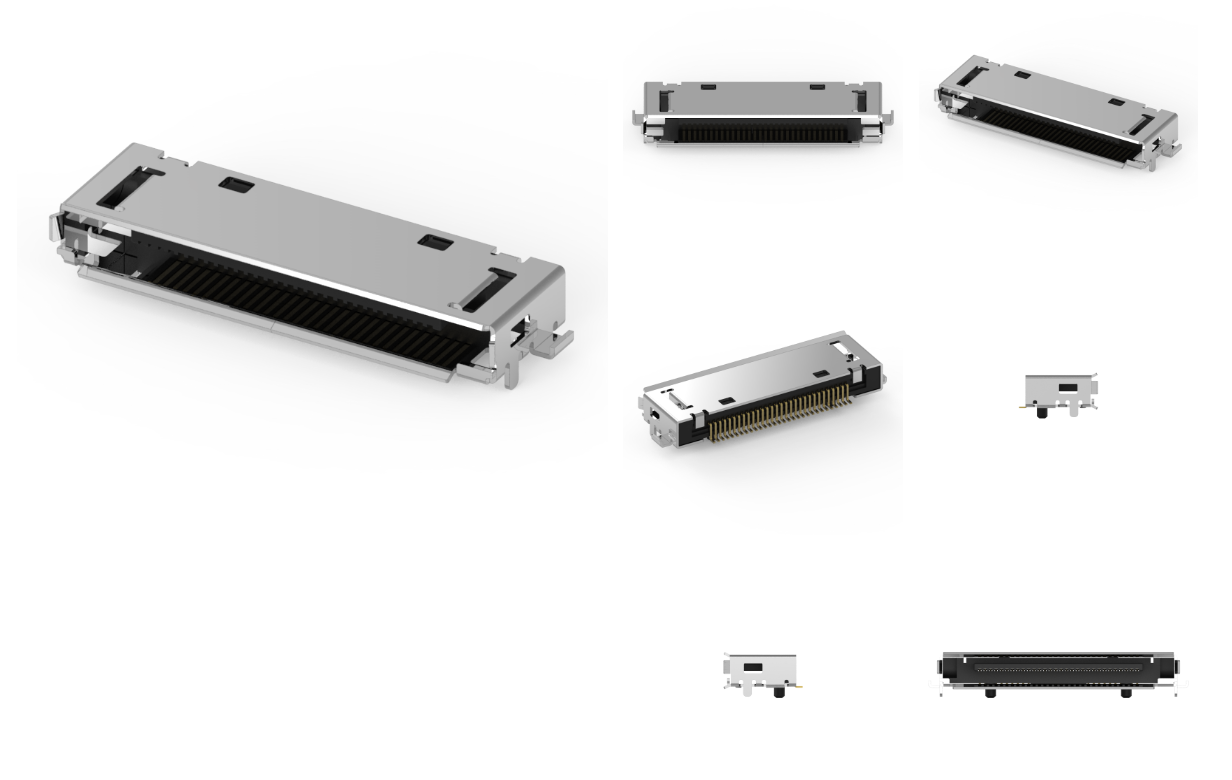

品名：30 Pin PCMCIA 母头插板式连接器
1.材料
1-1. 外壳：LCP UL94V0颜色：黑色
1-2. 触点：磷青铜
1-3. 外壳：不锈钢
2.完成：
2-1. 接触：
接触面积：最小5微英寸镀金
1.焊接区域：亚光锡60u”
底板：镍
2-2. 外壳：亚光锡150u”
品牌：科斯达开关KSDKG
产地：中国东莞
30 Pin PCMCIA 母头插板式连接器 是一种用于接收 PCMCIA 扩展卡（公头连接器）的接口组件，广泛应用于需要扩展功能的设备中，特别是在老旧的笔记本电脑和一些嵌入式系统中。
主要特征
1.引脚配置：
该连接器拥有 30 个引脚，符合 PCMCIA 标准，可以接收各种类型的 PCMCIA 扩展卡。每个引脚负责不同的功能，包括数据传输、供电、控制信号等。
2.母头设计：
作为母头连接器，能够稳固地接受公头连接器的插入，同时在物理和电气上提供可靠的连接。
3.插板式设计：
插板式设计使得连接器可以方便地安装到电路板上，适合批量生产和现场替换的需求。
4.材料和耐用性：
通常由高强度塑料和合金材料制成，以确保连接器在不同环境中保持长期的耐用性和良好的电性能。
应用领域
1.笔记本电脑：
常用于安装 PCMCIA 扩展卡，以便无线网络、存储扩展或其他功能的增加。
2.工业设备：
在某些工业控制和数据采集设备中，用于连接外部模块和传感器。
3.嵌入式系统：
在嵌入式设备中，用于提供额外的外部接口或功能。
安装与维护建议
1.焊接和装配：
在焊接时，要确保引脚与电路板的焊接良好，避免焊接不良导致连接失效。
2.插拔注意：
插拔卡片时要轻柔，避免用力过猛可能损坏插槽的引脚或内部结构。
3.定期检查：
定期检查连接器及其周边环境，确保没有灰尘和污染物影响电气连接。
4.功能测试：
每次插入新的 PCMCIA 卡后，应进行信号测试，以确认连接正常和功能完整。
总结
30 Pin PCMCIA 母头插板式连接器 在扩展老旧设备功能方面具有重要作用，尽管随着技术的变迁，许多新设备已转向更新的接口标准，这种连接器在特定应用场景仍然非常有用。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: 30 Pin PCMCIA Female Head Plug in Board Connector
1. Materials
1-1. Shell: LCP UL94V0 Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Stainless steel
2. Complete:
2-1. Contact:
Contact area: minimum 5 micro inches gold-plated
1. Welding area: Matte tin 60u "
Bottom plate: Nickel
2-2. Shell: Matte tin 150u "
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The 30 pin PCMCIA female plug connector is an interface component used to receive PCMCIA expansion cards (male connectors), widely used in devices that require extended functionality, especially in old laptops and some embedded systems.
Main features
1. Pin configuration:
This connector has 30 pins, complies with PCMCIA standards, and can receive various types of PCMCIA expansion cards. Each pin is responsible for different functions, including data transmission, power supply, control signals, etc.
2. Mother head design:
As a female connector, it can firmly accept the insertion of male connectors while providing reliable connections both physically and electrically.
3. Plug in design:
The plug-in design allows the connector to be easily installed on the circuit board, suitable for mass production and on-site replacement needs.
4. Materials and Durability:
Usually made of high-strength plastic and alloy materials to ensure long-term durability and good electrical performance of connectors in different environments.
application area
1. Laptop:
Commonly used for installing PCMCIA expansion cards for wireless networking, storage expansion, or other functional enhancements.
2. Industrial equipment:
In some industrial control and data acquisition devices, it is used to connect external modules and sensors.
3. Embedded systems:
In embedded devices, it is used to provide additional external interfaces or functions.
Installation and maintenance recommendations
1. Welding and assembly:
When soldering, it is important to ensure good soldering between the pins and the circuit board to avoid poor soldering that may cause connection failure.
2. Precautions for plugging and unplugging:
When inserting and removing cards, be gentle to avoid excessive force that may damage the pins or internal structure of the slot.
3. Regular inspection:
Regularly inspect the connector and its surrounding environment to ensure that there is no dust or pollutants affecting electrical connections.
4. Functional testing:
After inserting a new PCMCIA card, a signal test should be conducted to confirm proper connection and complete functionality.
summary
The 30 pin PCMCIA female plug connector plays an important role in expanding the functionality of older devices, although many new devices have shifted to newer interface standards with technological changes. This connector is still very useful in specific application scenarios. If you have further questions or need specific technical parameters, please feel free to contact the technician!
