KSD-US-04F3-25(快锁式）

KSD-US-04F3-25(快锁式）

  • 产品特性
  • 应用范围

图纸下载 样品申请

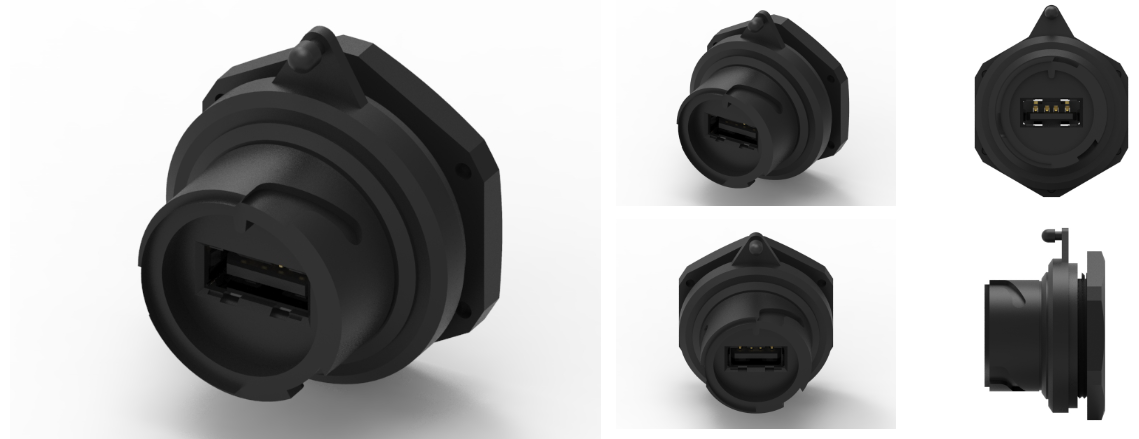

品名：USB 母头4PIN Type A后锁防水连接器(快锁式)
1.材料：
USB连接：
1-1.房屋：PBT UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：黄铜
1-4.PIN接头：黄铜
2.部分：
2-1.外壳：PBT UL94V-0；颜色：黑色
2-2. 螺母：PBT UL94V-0；颜色：黑色
2-3. 垫圈：PBT UL94V-0；颜色：黑色
2-4.O型圈：硅胶
3.镀层：
3-1.触点：触点区域镀金
焊料上的亮锡
外壳：整体镀镍
针头：镀金
4.电气规格：
4-1.额定电流：1.5A
4-2.额定电压：30V
4-3.防水等级：IP67
5.环境：
5-1.耐用性：1500次循环
匹配力：最大35N（3.57kgf）
1-1.未配对力：初始值至少为10N
5-2.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


USB 母头 4PIN Type A 后锁防水连接器（快锁式）
USB 母头 4PIN Type A 后锁防水连接器（快锁式） 是一种设计用于提供可靠连接的连接器，特别适合用于潮湿和多尘环境。这种连接器使用简便，同时具备优良的防水和防尘性能。以下是这种连接器的详细信息：

主要特点
1.防水防尘设计：
IP67/IP68 防护等级：确保在一定时间内浸水和防止灰尘侵入，适合户外和工业应用。
密封结构：搭载密封圈和材料，提供完全的防护，确保连接稳定。

2.快锁式设计：
便捷安装：采用快锁结构，可以轻松快速地连接和断开，不需要工具，节省了安装和维护时间。
牢固锁定：后锁机制确保连接的稳定性，即使在振动或冲击的环境中也能保持连接，不易松动。

3.4PIN 标准：
兼容性强：符合 USB 4PIN 接口标准，可广泛适用于各种 USB 设备，如传感器、工业控制设备、医疗设备等。
高效传输：传输速度和稳定性高，适合数据密集型应用。

4.耐用材料：
高强度构成：连接器由耐用的塑料和金属材料制成，能够承受各种环境条件。
长期使用：设计用于频繁插拔和长期使用，保证连接器的持久性能。

应用领域
1.工业自动化：适用于传感器、控制系统等设备，确保在粉尘、潮湿环境下稳定运行。

2.户外设备：如环境监测设备、野外探测器等，增加了设备的可靠性和耐用性。

3.交通运输：汽车电子设备连接，如导航系统、音响设备等，确保在复杂环境中正常工作。

4.消费电子：适合高端音响、便携式设备等，保护接口免受损坏。

使用注意事项
1.正确安装：确保连接器正确对齐并完全锁定，以保证密封效果和连接稳定性。

2.定期检查：定期检查连接器的密封性和完好性，及时更换老化或损坏的部件。

3.小心操作：避免过度拉扯连接线，以防止连接器损坏。

4.清洁和维护：保持连接器及其周围环境的清洁，避免污垢进入接触点。

总结
USB 母头 4PIN Type A 后锁防水连接器（快锁式） 是一种高性能的连接器，非常适合在严苛环境中使用。它的防水和防尘特性，以及方便的快锁设计，保障了设备的安全性和稳定性，是工业、户外设备等应用中的理想选择。如需要更多产品信息或进行采购，欢迎联系技术员！



Product Name: USB Female 4PIN Type A Rear Lock Waterproof Connector (Quick Lock Type)
1. Materials:
USB connection:
1-1. House: PBT UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Brass
1-4. PIN connector: brass
2. Part:
2-1. Shell: PBT UL94V-0； Color: Black
2-2.  Nut: PBT UL94V-0； Color: Black
2-3.  Gasket: PBT UL94V-0； Color: Black
2-4. O-ring: Silicone
3. Coating:
3-1. Contact: Gold plating in the contact area
Bright tin on solder
Shell: Nickel plated overall
Needle: gold-plated
4. Electrical specifications:
4-1. Rated current: 1.5A
4-2. Rated voltage: 30V
4-3. Waterproof grade: IP67
5. Environment:
5-1. Durability: 1500 cycles
Matching force: maximum 35N (3.57kgf)
1-1. Unparalleled force: The initial value should be at least 10N
5-2. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


USB Female 4PIN Type A Rear Lock Waterproof Connector (Quick Lock Type)
The USB female 4PIN Type A rear lock waterproof connector (quick lock type) is a connector designed to provide reliable connections, particularly suitable for use in humid and dusty environments. This type of connector is easy to use and has excellent waterproof and dustproof performance. Here is the detailed information of this connector:

main features
1. Waterproof and dustproof design:
IP67/IP68 protection level: ensures immersion in water and prevents dust intrusion for a certain period of time, suitable for outdoor and industrial applications.
Sealed structure: equipped with sealing rings and materials, providing complete protection and ensuring stable connection.

2. Quick lock design:
Convenient installation: Adopting a quick lock structure, it can be easily and quickly connected and disconnected without the need for tools, saving installation and maintenance time.
Secure locking: The rear locking mechanism ensures the stability of the connection, even in vibration or impact environments, and is not easily loosened.

3.4 PIN standard:
Strong compatibility: Compliant with the USB 4PIN interface standard, it can be widely used in various USB devices, such as sensors, industrial control equipment, medical equipment, etc.
Efficient transmission: High transmission speed and stability, suitable for data intensive applications.

4. Durable materials:
High strength composition: The connector is made of durable plastic and metal materials that can withstand various environmental conditions.
Long term use: Designed for frequent plugging and long-term use, ensuring the long-lasting performance of the connector.

application area
1. Industrial automation: Suitable for sensors, control systems, and other equipment to ensure stable operation in dusty and humid environments.

2. Outdoor equipment: such as environmental monitoring devices, field detectors, etc., increase the reliability and durability of the equipment.

3. Transportation: Connect automotive electronic devices such as navigation systems, audio equipment, etc. to ensure normal operation in complex environments.

4. Consumer electronics: Suitable for high-end speakers, portable devices, etc., protecting interfaces from damage.

Precautions for use
1. Correct installation: Ensure that the connectors are aligned correctly and fully locked to ensure sealing effectiveness and connection stability.

2. Regular inspection: Regularly check the sealing and integrity of the connector, and replace aging or damaged components in a timely manner.

3. Handle with caution: Avoid excessive pulling of the connecting wire to prevent damage to the connector.

4. Cleaning and maintenance: Keep the connector and its surrounding environment clean to prevent dirt from entering the contact points.

summary
The USB female 4PIN Type A rear lock waterproof connector (quick lock type) is a high-performance connector that is very suitable for use in harsh environments. Its waterproof and dustproof characteristics, as well as convenient quick lock design, ensure the safety and stability of the equipment, making it an ideal choice for industrial, outdoor equipment and other applications. If you need more product information or make purchases, please feel free to contact our technicians!
