KSD-US-04F3-33-11 (快锁式)

KSD-US-04F3-33-11 (快锁式)

  • 产品特性
  • 应用范围

图纸下载 样品申请

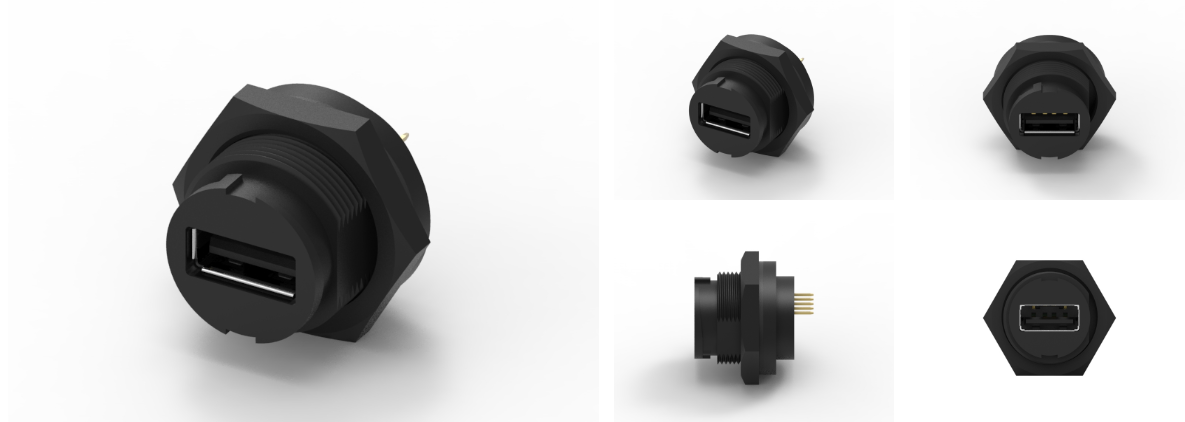

品名：USB 母头4PIN Type A前锁防水连接器(快锁式)
1.材料：
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：PA66 UL94V0；颜色：黑色，
1-4.圆形：SUS
1-5.垫片：硅；颜色：灰黑色。
1-6. 螺母：PA66
2.完成：
2-1.触点：镀金
2-2.圆形：镀镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：250V AC
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


USB 母头 4PIN Type A 前锁防水连接器（快锁式）
USB 母头 4PIN Type A 前锁防水连接器（快锁式） 是一种专为潮湿和恶劣环境设计的连接器，提供可靠的电气连接和优越的防护。该连接器采用前锁设计和快锁结构，便于快速安装和拆卸，同时确保连接的稳定性和安全性。以下是该连接器的详细介绍。

主要特点
1.防水防尘设计：
IP67/IP68 防护等级：可以有效防止水和灰尘的侵入，尤其适合在户外和工业环境中使用。
密封结构：使用特殊密封材料和设计，确保接口在连接时保持密封性，防止液体和固体材料的侵入。

2.前锁设计：
安全锁定：前锁机制使连接更加牢固，减少连接不良的风险，确保在震动和冲击下的稳定性。
易于操作：用户只需轻轻推入和锁定，无需额外工具，方便快捷。

3.4PIN 标准：
广泛兼容性：符合 USB 4PIN 接口标准，适用范围广泛，包括各种工业设备、医疗设备、传感器等。
高效数据传输：支持较高的传输速度，适合数据密集型的应用场景。
4.耐用材料：
优质构造：采用耐高温、抗腐蚀的材料制造，确保连接器在多种环境下均能正常使用。
长寿命设计：尤其适用于频繁插拔的环境，耐磨损，延长使用寿命。

应用领域
1.工业自动化：常用于各种工业控制系统、传感器及其数据采集设备，确保在恶劣条件下的稳定性。

2.户外设备：适合监测设备、野外探测器、无人机等，能够承受户外自然环境的挑战。

3.交通运输：广泛应用于汽车电子、导航系统、信息娱乐系统等，确保数据传输的可靠性。

4.消费电子：也可用于高端音响、便携式电子设备等，增强其耐用性和防护性能。

使用注意事项
1.正确连接：在连接前，确保接口干净无污垢，并对齐连接器，以确保良好的密封性。

2.定期维护：定期检查连接器，关注密封圈和其他部件的磨损情况，必要时更换。

3.操作注意：避免在连接过程中用力过大，以免导致连接器损坏。

4.清洁和保养：保持连接器的干燥和清洁，避免灰尘和污染物进入，影响连接质量。

总结
USB 母头 4PIN Type A 前锁防水连接器（快锁式） 是一款高性能连接器，专为复杂环境下的应用而设计。其优良的防水防尘性能、便捷的前锁结构和标准化的接口使其适合各种工业和消费电子设备。如果您有任何疑问或需要进一步的信息，欢迎联系技术员！



Product Name: USB Female 4PIN Type A Front Lock Waterproof Connector (Quick Lock Type)
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: PA66 UL94V0； Color: Black,
1-4. Circular: SUS
1-5. Gasket: Silicon; Color: Grey black.
1-6.  Nut: PA66
2. Complete:
2-1. Contact: Gold plating
2-2. Circular: Nickel plated
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 250V AC
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


USB Female 4PIN Type A Front Lock Waterproof Connector (Quick Lock Type)
The USB female 4PIN Type A front lock waterproof connector (quick lock type) is a connector designed specifically for humid and harsh environments, providing reliable electrical connections and superior protection. The connector adopts a front lock design and a quick lock structure, which facilitates quick installation and disassembly while ensuring the stability and safety of the connection. The following is a detailed introduction to the connector.

main features
1. Waterproof and dustproof design:
IP67/IP68 protection level: It can effectively prevent the intrusion of water and dust, especially suitable for outdoor and industrial environments.
Sealing structure: Special sealing materials and designs are used to ensure the sealing of the interface during connection, preventing the intrusion of liquid and solid materials.

2. Front lock design:
Security lock: The front lock mechanism makes the connection more secure, reduces the risk of poor connection, and ensures stability under vibration and impact.
Easy to operate: Users only need to gently push and lock, without the need for additional tools, making it convenient and fast.

3.4 PIN standard:
Wide compatibility: Compliant with the USB 4PIN interface standard, it has a wide range of applications, including various industrial equipment, medical equipment, sensors, etc.
Efficient data transmission: Supports high transmission speeds, suitable for data intensive application scenarios.
4. Durable materials:
High quality construction: Made of materials that are resistant to high temperatures and corrosion, ensuring that the connector can function properly in various environments.
Long life design: Especially suitable for environments with frequent plugging and unplugging, wear-resistant, and extends service life.

application area
1. Industrial automation: commonly used in various industrial control systems, sensors, and their data acquisition equipment to ensure stability under harsh conditions.

2. Outdoor equipment: Suitable for monitoring devices, field detectors, drones, etc., capable of withstanding the challenges of outdoor natural environments.

3. Transportation: Widely used in automotive electronics, navigation systems, entertainment systems, etc., to ensure the reliability of data transmission.

4. Consumer electronics: It can also be used for high-end audio systems, portable electronic devices, etc., to enhance their durability and protective performance.

Precautions for use
1. Correct connection: Before connecting, ensure that the interface is clean and free of dirt, and align the connector to ensure good sealing.

2. Regular maintenance: Regularly inspect the connector, pay attention to the wear of the sealing ring and other components, and replace them if necessary.

3. Operation precautions: Avoid applying excessive force during the connection process to prevent damage to the connector.

4. Cleaning and maintenance: Keep the connector dry and clean to prevent dust and pollutants from entering and affecting the quality of the connection.

summary
The USB female 4PIN Type A front lock waterproof connector (quick lock type) is a high-performance connector designed for applications in complex environments. Its excellent waterproof and dustproof performance, convenient front lock structure, and standardized interface make it suitable for various industrial and consumer electronic devices. If you have any questions or need further information, please feel free to contact the technician!
