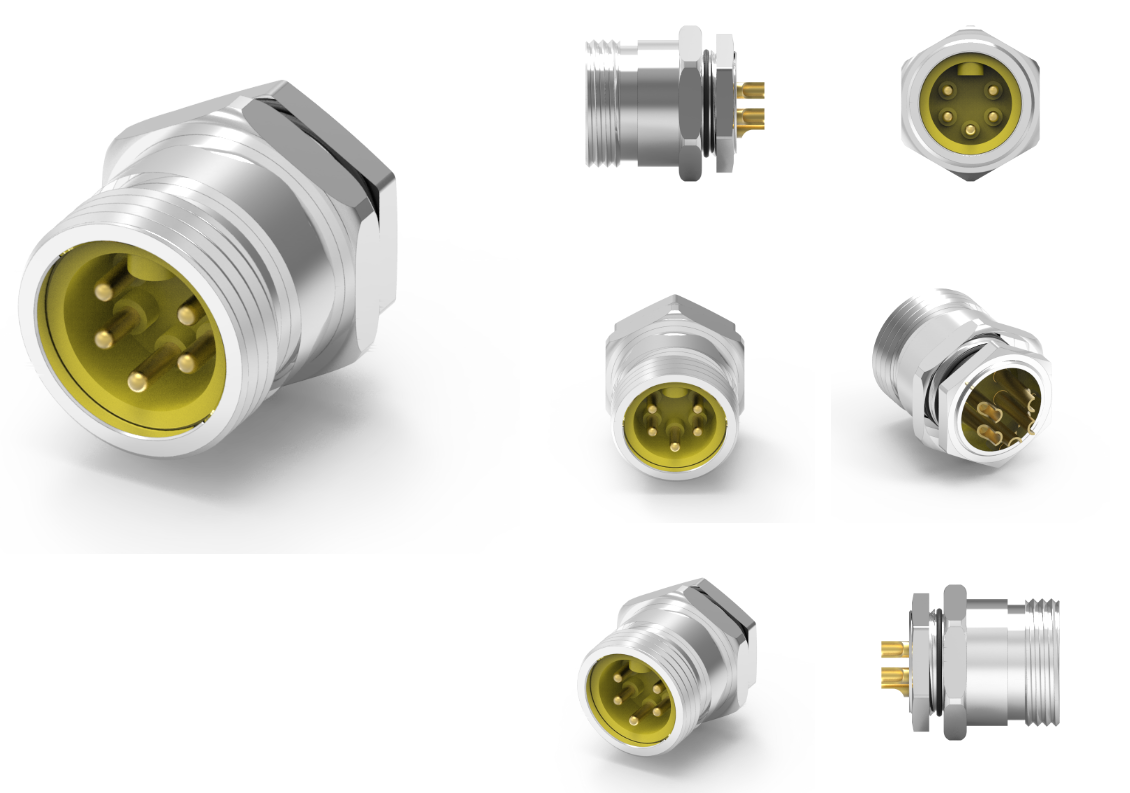

品名：7  8公头后锁焊线式防水连接器
1.材料：
1-1.外壳：PBT UL94V-0；颜色：黄色
1-2.触点：黄铜
1-3.编号：黄铜
1-4.O环：NBR；颜色：黑色
1-5.外壳：黄铜
2.完成：
2-1.触点：30微英寸镀金
2-2.编号：镀镍
2-3.外壳：镀镍
3.电气规格：
3-1.额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IP68
4.环境：
4-1.0工作温度：-40℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞


7和8公头后锁焊线式防水连接器是一种专门设计用于确保在恶劣环境中能够保持稳定且安全的电气连接的组件。这类连接器广泛应用于汽车、工业自动化、通讯设备和其他需要防水、防尘连接的领域。

特点

1.后锁设计：
连接器采用后锁设计，使用简单且能够提供良好的机械强度和连接稳定性。
后锁机制在锁定连接器的同时，能够有效防止连接器在震动或拉力下松动。

2.防水性能：
这类连接器通常具备防水等级，如IP67或更高，能够有效阻挡水和灰尘的侵入，延长使用寿命。
密封件（如O型圈）通常会被应用于连接器设计中，以确保连接区域的密封性。

3.焊线式接头：
焊线式设计使得连接器与导线的连接更为牢固，适合于需要高强度和低接触电阻的应用。
允许根据特定需求使用不同类型的导线和绝缘材料。

4.多种引脚配置：
7和8公头连接器通常提供多种引脚配置以满足不同应用场景的需求，可以根据具体功能需要选择合适的引脚数。

5.耐用性：
通常使用耐高温、耐腐蚀材料，确保能够在各种苛刻环境下工作。

应用领域

1.汽车工业：
广泛应用于汽车电气系统中的传感器、灯光、动力系统等部件的连接。

2.工业自动化：
用于机器设备、传感器和控制器之间的电气连接，确保稳定的信号和电源传输。

3.通讯设备：
用于各种通讯设备的连接，保障数据的稳定传输，适合动态和恶劣环境。

4.户外设备：
适用于各种户外环境的电子设备，如监控摄像头、LED照明等。

使用注意事项

1.焊接工艺：
确保使用合适的焊接技术和材料，以确保连接的牢固性和电气性能。

2.定期检查：
定期检查连接器的密封性和外观，防止潜在的水损害或腐蚀。

3.温度与环境适应性：
了解连接器的工作温度范围，避免在过高或过低的温度下使用，以延长其使用寿命。

小结
7和8公头后锁焊线式防水连接器凭借其稳固的连接性能和优越的防水能力，成为了许多行业和应用中不可或缺的重要组成部分。如果您对这类连接器有具体需求或者希望获取更多技术参数和规格，欢迎联系技术员！



Product Name: 7-8 Male Rear Lock Solder Wire Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V-0； Color: Yellow
1-2. Contact: Brass
1-3. Number: Brass
1-4. O-ring: NBR； Color: Black
1-5. Shell: Brass
2. Complete:
2-1. Contact: 30 micro inch gold-plated
2-2. Number: Nickel plating
2-3. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP68
4. Environment:
4-1.0 Operating temperature:- 40℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The 7 and 8-pin rear lock solder wire waterproof connector is a component specifically designed to ensure stable and safe electrical connections in harsh environments. This type of connector is widely used in automotive, industrial automation, communication equipment, and other fields that require waterproof and dustproof connections.

characteristic

1. Rear lock design:
The connector adopts a rear lock design, which is simple to use and can provide good mechanical strength and connection stability.
The rear locking mechanism can effectively prevent the connector from loosening under vibration or tension while locking the connector.

2. Waterproof performance:
These types of connectors typically have a waterproof rating, such as IP67 or higher, which can effectively block the intrusion of water and dust and extend their service life.
Seals, such as O-rings, are commonly used in connector design to ensure the sealing of the connection area.

3. Solder joint:
The wire bonding design makes the connection between the connector and the wire more secure, suitable for applications that require high strength and low contact resistance.
Allow the use of different types of wires and insulation materials according to specific needs.

4. Multiple pin configurations:
7 and 8 male connectors typically offer multiple pin configurations to meet the needs of different application scenarios, and the appropriate number of pins can be selected based on specific functional requirements.

5. Durability:
High temperature resistant and corrosion-resistant materials are usually used to ensure that they can work in various harsh environments.

application area

1. Automotive industry:
Widely used for connecting components such as sensors, lighting, and power systems in automotive electrical systems.

2. Industrial automation:
Used for electrical connections between machine equipment, sensors, and controllers to ensure stable signal and power transmission.

3. Communication equipment:
Used for connecting various communication devices, ensuring stable data transmission, suitable for dynamic and harsh environments.

4. Outdoor equipment:
Electronic devices suitable for various outdoor environments, such as surveillance cameras, LED lighting, etc.

Precautions for use

1. Welding process:
Ensure the use of appropriate welding techniques and materials to ensure the firmness and electrical performance of the connection.

2. Regular inspection:
Regularly check the sealing and appearance of the connector to prevent potential water damage or corrosion.

3. Temperature and environmental adaptability:
Understand the working temperature range of the connector and avoid using it at temperatures that are too high or too low to extend its lifespan.

Summary
The 7 and 8-pin rear lock solder wire waterproof connectors have become an indispensable and important component in many industries and applications due to their stable connection performance and superior waterproof ability. If you have specific requirements for this type of connector or would like to obtain more technical parameters and specifications, please feel free to contact a technician!
