KSD-WP-03M2-84-11

KSD-WP-03M2-84-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

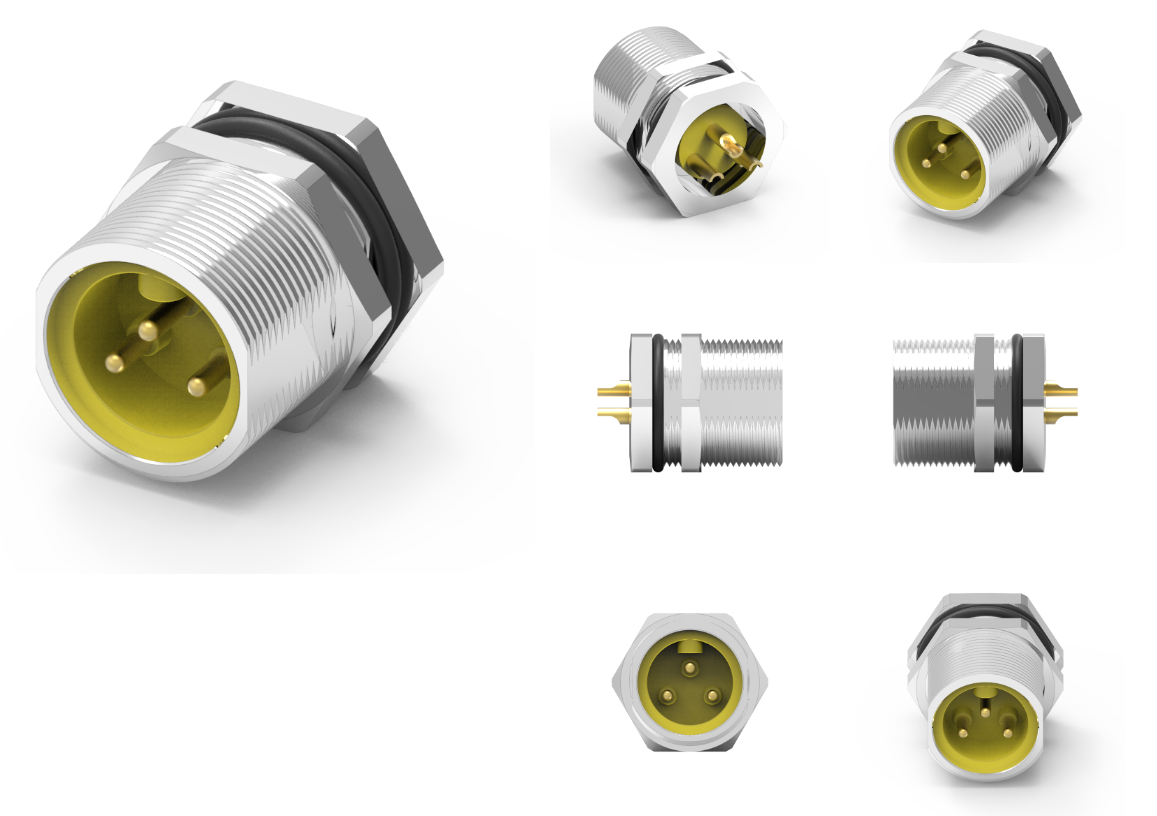

品名：7  8 公头前锁焊线式防水连接器
1.材料：
1-1.外壳：PBT UL94V-0；颜色：黄色
1-2.触点：黄铜
1-3.编号：黄铜
1-4.O环：NBR；颜色：黑色
1-5.外壳：黄铜
2.完成：
2-1.触点：30微英寸镀金
2-2.编号：镀镍
2-3.外壳：镀镍
3.电气规格：
3-1.额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IP68
4.环境：
4-1.0工作温度：-40℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞


7和8公头前锁焊线式防水连接器是一种设计用于提供可靠电气连接的组件，广泛应用于需要防水、防尘和稳定连接的场合。这种前锁设计的连接器提供了便捷的插拔功能，并且具有较好的机械强度和防护性能。

特点

1.前锁设计：
便捷连接：前锁设计使得连接器在插拔时更为方便，操作简单，适合快速连接和断开。
锁定机制：连接后能够稳固锁定，不易出现松动现象，增强连接的可靠性。

2.焊线式接头：
焊接连接确保了良好的电气性能和机械强度，适合高要求环境。
焊接工艺可以提供稳固的接触点，降低接触电阻，提升导电性。

3.防水性能：
该连接器通常具备IP67或更高的防护等级，能够有效阻挡水和灰尘的进入，保证在潮湿或多尘环境中的可靠性。
采用高质量的密封垫圈（如O型圈）来增强防水性能。

4.多种引脚配置：
可根据需要提供不同的引脚数，同时支持不同的电流和信号需求。
常见的引脚配置有7针和8针，适用于多种不同的应用场合。

5.耐用性：
材料通常具有良好的耐腐蚀性和耐温性，能够适应多种工业环境。

应用领域

1.汽车行业：
用于车辆的电气连接，比如传感器、灯光等关键部分，适应汽车内外的各种环境。

2.工业自动化：
应用于机器设备和工业控制系统中，确保设备间高效、稳定的信号和电力传输。

3.通讯设备：
在网络和数据通讯设备中常见，用于保证数据的稳定性和安全性。

4.户外设备：
适用于监控摄像头、LED照明和其他户外电子设备，确保在各种天气条件下能正常工作。

使用注意事项

1.焊接技巧：
确保采用正确的焊接技术和材料，以保证连接的稳定性和电气性能。

2.检查防护性能：
定期检查连接器的密封外观和结构，确保没有破损或老化，避免影响防水效果。

3.温度适应性：
了解连接器的工作温度范围，确保在规定的范围内使用，以防止性能下降或损坏。

小结
7和8公头前锁焊线式防水连接器因其便于使用的设计、良好的防水性能以及多功能性而被广泛应用于各行各业。无论是汽车、工业设备还是户外应用，它们都能提供安全、可靠的连接解决方案。如果您需要更多关于这类连接器的信息或产品规格，欢迎联系技术员！



Product Name: 7-8 Male Front Lock Solder Wire Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V-0； Color: Yellow
1-2. Contact: Brass
1-3. Number: Brass
1-4. O-ring: NBR； Color: Black
1-5. Shell: Brass
2. Complete:
2-1. Contact: 30 micro inch gold-plated
2-2. Number: Nickel plating
2-3. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP68
4. Environment:
4-1.0 Operating temperature:- 40℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The 7 and 8-pin front lock welding wire waterproof connector is a component designed to provide reliable electrical connections, widely used in situations that require waterproof, dustproof, and stable connections. This front lock design of the connector provides convenient insertion and removal functions, and has good mechanical strength and protective performance.

characteristic

1. Front lock design:
Convenient connection: The front lock design makes the connector more convenient to plug and unplug, with simple operation and suitable for quick connection and disconnection.
Locking mechanism: After connection, it can be firmly locked without easy loosening, enhancing the reliability of the connection.

2. Solder joint:
Welding connections ensure good electrical performance and mechanical strength, suitable for high demand environments.
Welding technology can provide stable contact points, reduce contact resistance, and improve conductivity.

3. Waterproof performance:
This connector usually has a protection level of IP67 or higher, which can effectively block the entry of water and dust, ensuring reliability in humid or dusty environments.
Use high-quality sealing gaskets (such as O-rings) to enhance waterproof performance.

4. Multiple pin configurations:
Different pin numbers can be provided as needed, while supporting different current and signal requirements.
The common pin configurations are 7-pin and 8-pin, suitable for a variety of different application scenarios.

5. Durability:
Materials usually have good corrosion resistance and temperature resistance, and can adapt to various industrial environments.

application area

1. Automotive industry:
Used for electrical connections in vehicles, such as sensors, lighting, and other critical components, to adapt to various environments inside and outside the car.

2. Industrial automation:
Applied in machine equipment and industrial control systems, ensuring efficient and stable signal and power transmission between devices.

3. Communication equipment:
Commonly used in network and data communication devices to ensure data stability and security.

4. Outdoor equipment:
Suitable for monitoring cameras, LED lighting, and other outdoor electronic devices, ensuring normal operation under various weather conditions.

Precautions for use

1. Welding techniques:
Ensure the use of correct welding techniques and materials to ensure the stability and electrical performance of the connection.

2. Check the protective performance:
Regularly inspect the sealing appearance and structure of the connector to ensure that there is no damage or aging, and to avoid affecting the waterproof effect.

3. Temperature adaptability:
Understand the working temperature range of the connector and ensure that it is used within the specified range to prevent performance degradation or damage.

Summary
7 and 8 male front lock welding wire waterproof connectors are widely used in various industries due to their user-friendly design, good waterproof performance, and versatility. Whether it's automobiles, industrial equipment, or outdoor applications, they can all provide safe and reliable connectivity solutions. If you need more information or product specifications about this type of connector, please feel free to contact a technician!
