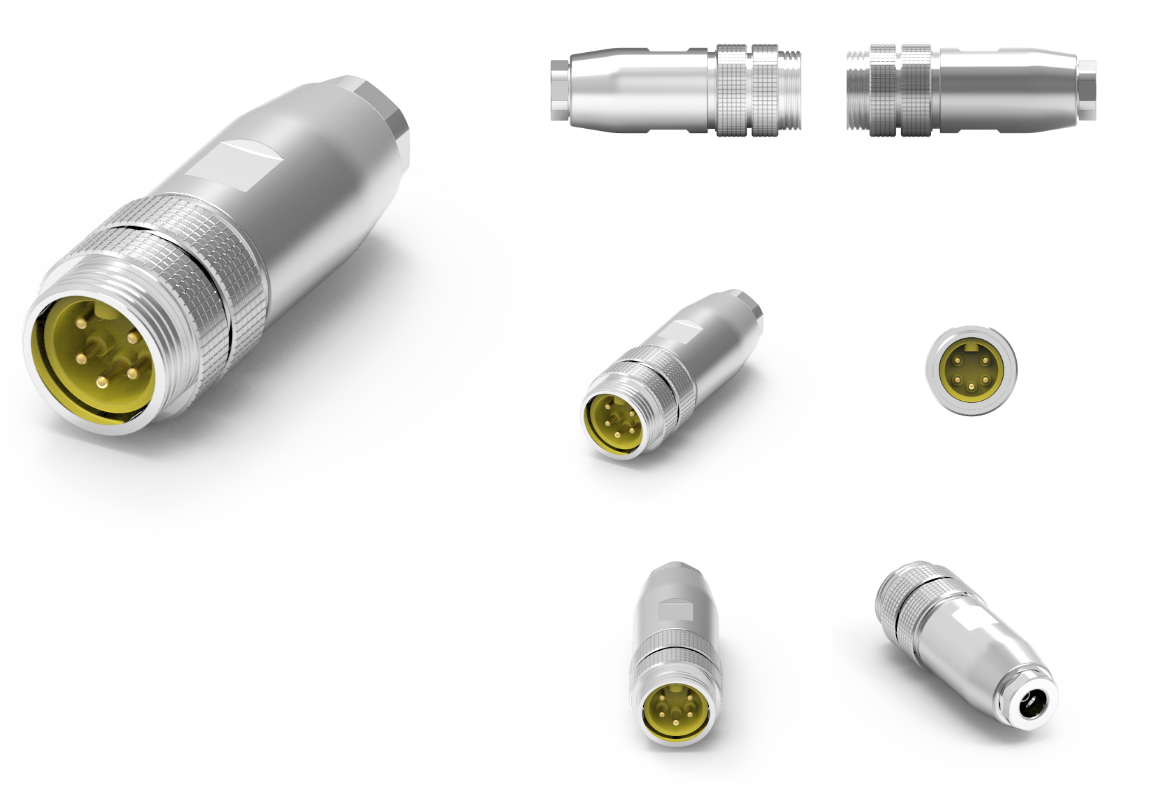

品名：7 8公头组装式防水连接器
1.材料：
1-1.外壳：TPU；颜色：黄色。
1-2.弹簧：不锈钢。
1-3.-RING A:NBR；颜色：黑色
1-4. 螺母A：黄铜，
1-5.螺母B：黄铜
1-6.外壳A：铝合金
1-7.外壳B：铝合金
1-8.触点：黄铜，
1-9.螺钉：合金钢
1-10.主体：铝合金
1-11.压盖：硅胶颜色：黑色。
1-12.压盖笼：POM；颜色：白色。
1-13. 螺母C：铝合金
1-14.O型圈B：硅胶颜色：黑色
1-15.O型圈C：硅胶颜色：黑色
2.完成：
2-1。但A：全部镀镍
2-2.编号B：全部镀镍
2-3.外壳A：全部镀镍
2-4.外壳B：全部镀镍
2-5.触点：镀金
2-6.螺钉：全部镀镍
2-7.主体：整体镀镍
2-8.螺母：全部镀镍
3.电气规格：
3-1.额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.0工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
7和8公头组装式防水连接器是一种设计用于提供高可靠性和防水性能的电气连接组件。这类连接器广泛应用于需要防水和防尘的环境中，特别是在汽车、工业设备、通信和户外电子产品等领域。
特点
1.组装式设计：
连接器采用模块化设计，可以根据实际需要进行组装和更换，便于制造和维护。
不同于焊线式连接器，组装式连接器通常可以进行插拔和替换，提供灵活性和便利性。
2.防水性能：
通常具有不低于IP67的防护等级，能够有效防止水和灰尘的侵入，确保在潮湿和恶劣环境中的可靠工作。
利用密封圈（如O型圈）和锁定机构增强防水性能，保持连接器在各种条件下的安全性。
3.多针脚配置：
提供多种引脚数量的选择，常见的有7针和8针配置，以适应不同的电力和信号需求。
适用于多种电气和电子应用，能够处理多种类型的信号和电流。
4.耐用材料：
制造过程中采用高强度、耐腐蚀的材料，能够耐受高温、低温和化学腐蚀，适合恶劣环境使用。
设计上通常配备抗UV材料，能够在户外长期使用而不易老化。
5.易于安装与拆卸：
组装式设计使得连接器的安装和拆卸变得简单快捷，可以快速进行维护和更换，减少维修时间。
应用领域
1.汽车行业：
常用于汽车电气系统中，如灯具、传感器和控制单元的连接，保证在各种道路和天气条件下的可靠性。
2.机械和工业设备：
在工业自动化系统中，这类连接器用于连接传感器、执行器和控制器，保证电气信号传输的稳定性。
3.通讯系统：
用于数据传输和通信设备，确保信号的完整性和传输的可靠性。
4.户外及消费电子：
在户外设备如电子监控、LED照明和其他智能设备中，提供稳定的电气连接，有效防止水和尘土影响设备性能。
使用注意事项
1.正确组装：
确保连接器组件按照制造商的指示进行组装，保持良好的电气接触。
2.经常检查：
定期检查连接器的密封及连接状态，防止老化或破损影响使用。
3.适应环境：
在使用连接器时，了解其电气和机械规格，确保在规定的工作条件下使用。
小结
7和8公头组装式防水连接器是一种具有优秀防水性能和适应性的连接器，适用于多种应用场景。其模块化设计不仅提供了便利的安装与维护，并且确保了连接的可靠性。如果您需要更详细的规格或有具体的应用需求，欢迎联系技术员！
Product Name: 7-8 Male Assembled Waterproof Connector
1. Materials:
1-1. Shell: TPU； Color: Yellow.
1-2. Spring: Stainless steel.
1-3.-RING A: NBR； Color: Black
1-4. Nut A: brass,
1-5. Nut B: Brass
1-6. Shell A: Aluminum alloy
1-7. Shell B: Aluminum alloy
1-8. Contact: brass,
1-9. Screw: Alloy steel
1-10. Main body: Aluminum alloy
1-11. Cover: Silicone Color: Black.
1-12. Cover cage: POM； Color: White.
1-13. Nut C: Aluminum alloy
1-14. O-ring B: Silicone Color: Black
1-15. O-ring C: Silicone Color: Black
2. Complete:
2-1. But A: All nickel plating
2-2. Number B: All nickel plated
2-3. Shell A: All nickel plated
2-4. Shell B: All nickel plated
2-5. Contact: Gold plating
2-6. Screws: All nickel plated
2-7. Body: Whole nickel plating
2-8. Nut: All nickel plated
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1.0 Operating temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
7 and 8 male assembled waterproof connectors are electrical connection components designed to provide high reliability and waterproof performance. This type of connector is widely used in environments that require waterproof and dustproof, especially in fields such as automobiles, industrial equipment, communications, and outdoor electronic products.
characteristic
1. Modular design:
The connector adopts a modular design, which can be assembled and replaced according to actual needs, making it easy to manufacture and maintain.
Unlike wire connectors, modular connectors can typically be plugged and replaced, providing flexibility and convenience.
2. Waterproof performance:
It usually has a protection level of not less than IP67, which can effectively prevent the intrusion of water and dust, ensuring reliable operation in humid and harsh environments.
Using sealing rings (such as O-rings) and locking mechanisms to enhance waterproof performance and maintain the safety of connectors under various conditions.
3. Multi pin configuration:
Provide a variety of pin numbers to choose from, with commonly available 7-pin and 8-pin configurations to accommodate different power and signal requirements.
Suitable for various electrical and electronic applications, capable of handling multiple types of signals and currents.
4. Durable materials:
High strength and corrosion-resistant materials are used in the manufacturing process, which can withstand high temperature, low temperature, and chemical corrosion, and are suitable for use in harsh environments.
UV resistant materials are usually equipped in the design, which can be used outdoors for a long time without aging easily.
5. Easy to install and disassemble:
The modular design makes the installation and disassembly of connectors simple and fast, allowing for quick maintenance and replacement, reducing repair time.
application area
1. Automotive industry:
Commonly used in automotive electrical systems, such as the connection of lighting fixtures, sensors, and control units, to ensure reliability under various road and weather conditions.
2. Machinery and industrial equipment:
In industrial automation systems, this type of connector is used to connect sensors, actuators, and controllers to ensure the stability of electrical signal transmission.
3. Communication system:
Used for data transmission and communication equipment to ensure signal integrity and transmission reliability.
4. Outdoor and consumer electronics:
Provide stable electrical connections in outdoor devices such as electronic monitoring, LED lighting, and other smart devices to effectively prevent water and dust from affecting device performance.
Precautions for use
1. Correct assembly:
Ensure that the connector components are assembled according to the manufacturer's instructions and maintain good electrical contact.
2. Regularly check:
Regularly check the sealing and connection status of the connector to prevent aging or damage from affecting its use.
3. Adapt to the environment:
When using connectors, understand their electrical and mechanical specifications to ensure they are used under the specified working conditions.
Summary
7 and 8 male assembled waterproof connectors are connectors with excellent waterproof performance and adaptability, suitable for various application scenarios. Its modular design not only provides convenient installation and maintenance, but also ensures the reliability of the connection. If you need more detailed specifications or specific application requirements, please feel free to contact the technician!
