KSD-WP-05F2-22

KSD-WP-05F2-22

  • 产品特性
  • 应用范围

图纸下载 样品申请

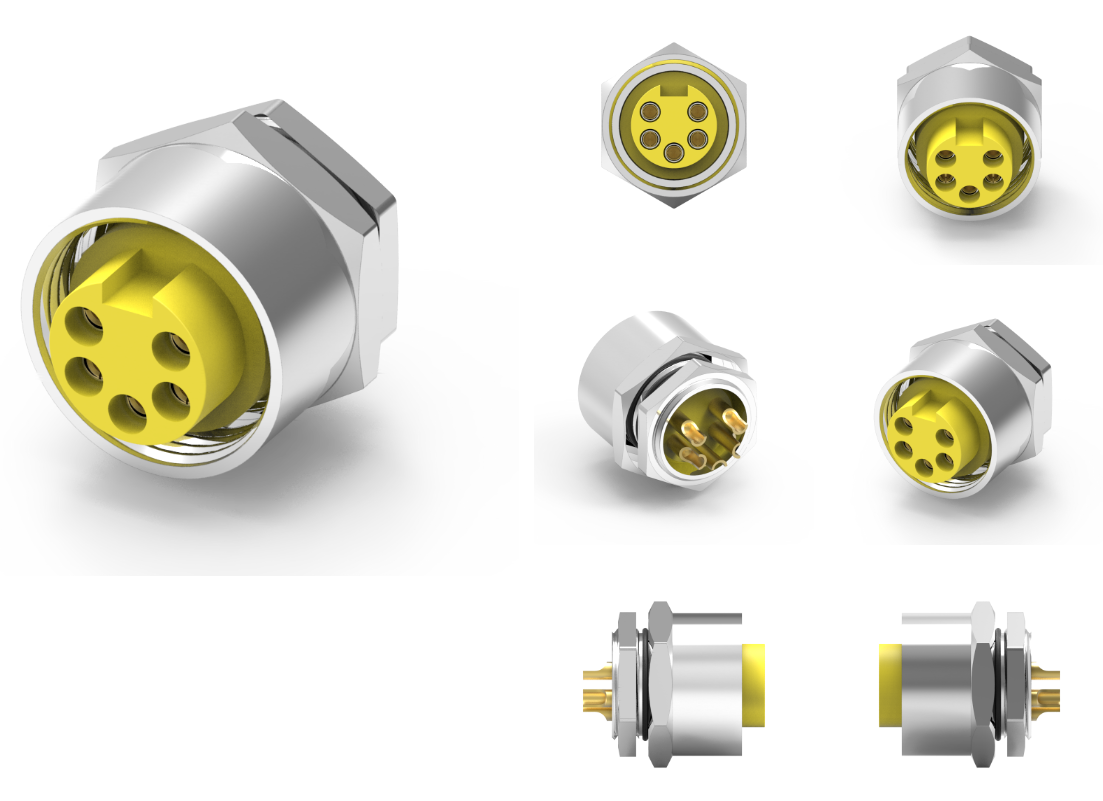

品名：7  8 母头后锁焊线式防水连接器
1.材料
1-1.外壳：PBT UL94V0；颜色：黄色
1-2.触点：黄铜
1-3.弹簧：磷青铜
1-4. 螺母：黄铜
1-5.外壳：黄铜
1-6.O环：NBR；颜色：黑色
2.完成：
2-1.触点：30微英寸镀金
底板：镍
2-2.弹簧：镀锡材料
2-3.编号：镀镍
2-4.外壳：镀镍
3.电气规格：
3-1.额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


7母头和8母头后锁焊线式防水连接器是一种常用于提供可靠电气连接的组件，特别是在需要防水和防尘保护的应用场合。以下是关于这种类型连接器的详细信息。

1. 特点
a. 焊线式设计
焊接连接：与组装式连接器不同，这类连接器采用焊接方式将电缆与连接器引脚连接，提供更稳固的连接。
电气导通性好：焊线连接能够确保电气接触良好，降低接触电阻，适合高电流应用。

b. 防水性能
防水等级：通常具有IP67或更高的防护等级，能有效防止水分和灰尘的侵入，适应恶劣环境。
密封设计：通常配有密封圈（如O型圈）和壳体设计，以保持连接口的密封性。

c. 后锁设计
后锁功能：连接器的后锁设计可以在插入连接之后提供额外的锁定机制，防止连接器因震动或拉扯而松脱。
操作便捷：简单的锁定机制使得连接器的插拔和拆卸变得方便。

d. 多针脚配置
引脚数量：7母头或8母头配置，适合需要多通道信号或电源传输的应用，能够同时传输多个信号或电流。
通用性：适应多种电气应用需求，提供灵活的连接解决方案。

2. 应用领域
汽车行业：用于车载电子设备的连接，如传感器、控制单元、灯具等，能够抵御多种气候条件。

工业设备：在工厂自动化系统中，确保传感器、执行器等组件的电气连接稳定。

户外设备：如监控摄像头、LED照明和各种智能设备，防止水分和灰尘对设备的影响。

消费电子：在一些电子产品中，提供稳固的电气连接和防护。

3. 使用注意事项
安装时注意焊接质量：确保焊接连接牢固，避免因焊点不良而导致电气故障。

定期检查：定期检查连接器的密封状态和整体连接状况，以免因磨损或老化导致防护性能下降。

遵循制造商的规格：在应用中遵循连接器的最大额定电流和电压，以确保安全和可靠性。

4. 小结
7母头和8母头后锁焊线式防水连接器凭借其优异的防水性能和稳固的电气连接，广泛应用于需要防护能力的行业和设备中。选择合适的连接器不仅能够提升系统的整体可靠性，也能减少维护和更换的频率。如果您对具体产品或技术细节有更多需求，欢迎联系技术员！



Product Name: 7-8 Female Head Rear Lock Solder Wire Waterproof Connector
1. Materials
1-1. Shell: PBT UL94V0； Color: Yellow
1-2. Contact: Brass
1-3. Spring: phosphor bronze
1-4.  Nut: Brass
1-5. Shell: Brass
1-6. O-ring: NBR； Color: Black
2. Complete:
2-1. Contact: 30 micro inch gold-plated
Bottom plate: Nickel
2-2. Spring: Tin plated material
2-3. Number: Nickel plating
2-4. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


7-head and 8-head rear lock solder wire waterproof connectors are commonly used components to provide reliable electrical connections, especially in applications that require waterproof and dustproof protection. The following is detailed information about this type of connector.

1. Characteristics
a. Wire bonding design
Welding connection: Unlike assembled connectors, this type of connector uses welding to connect the cable to the connector pins, providing a more stable connection.
Good electrical conductivity: Solder wire connections can ensure good electrical contact, reduce contact resistance, and are suitable for high current applications.

b. Waterproof performance
Waterproof rating: It usually has a protection level of IP67 or higher, which can effectively prevent the intrusion of moisture and dust and adapt to harsh environments.
Sealing design: usually equipped with sealing rings (such as O-rings) and shell design to maintain the sealing of the connection port.

c. Rear lock design
Rear lock function: The rear lock design of the connector can provide additional locking mechanism after insertion, preventing the connector from loosening due to vibration or pulling.
Convenient operation: The simple locking mechanism makes it easy to plug and remove the connector.

d. Multi pin configuration
Pin quantity: 7-pin or 8-pin configuration, suitable for applications that require multi-channel signal or power transmission, capable of simultaneously transmitting multiple signals or currents.
Universality: Adapt to various electrical application needs and provide flexible connection solutions.

2. Application Fields
Automotive industry: used for connecting in car electronic devices such as sensors, control units, lighting fixtures, etc., capable of withstanding various weather conditions.

Industrial equipment: Ensure stable electrical connections of components such as sensors and actuators in factory automation systems.

Outdoor equipment: such as surveillance cameras, LED lighting, and various smart devices to prevent moisture and dust from affecting the equipment.

Consumer electronics: In some electronic products, provide stable electrical connections and protection.

3. Precautions for use
Pay attention to welding quality during installation: ensure that the welding connection is firm and avoid electrical faults caused by poor welding points.

Regular inspection: Regularly check the sealing status and overall connection condition of the connector to prevent a decrease in protective performance due to wear or aging.

Follow the manufacturer's specifications: Follow the maximum rated current and voltage of the connector in the application to ensure safety and reliability.

4. Summary
The 7-head and 8-head rear lock welding wire waterproof connectors are widely used in industries and equipment that require protective capabilities due to their excellent waterproof performance and stable electrical connections. Choosing the appropriate connector can not only improve the overall reliability of the system, but also reduce the frequency of maintenance and replacement. If you have any further requirements for specific products or technical details, please feel free to contact the technician!
