KSD-WP-05F2-116-11

KSD-WP-05F2-116-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

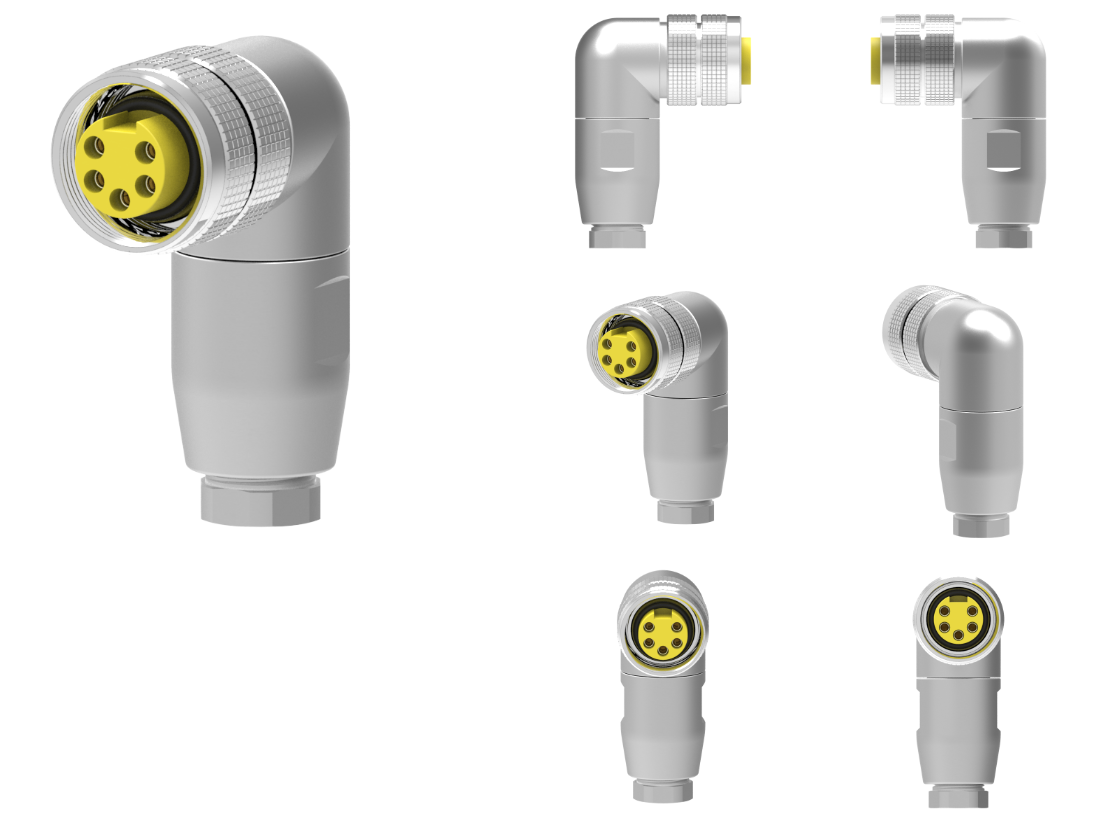

品名：7  8母头组装式防水连接器
1.材料：
1-1.外壳：TPU；颜色：黄色
1-2.弹簧：不锈钢
1-3. O型圈A:NBR；颜色：黑色
1-4. 螺母A：黄铜
1-5.螺母B：黄铜
1-6.外壳A：铝合金
1-7.外壳B：铝合金
1-8.触点：黄铜
1-9.螺钉：合金钢
1-10. 主体：铝合金
1-11.压盖：硅胶颜色：黑色
1-12.压盖笼：POM；颜色：白色
1-13. 螺母C：铝合金
1-14.O型圈：硅胶：颜色：黑色
1-15.O型圈：三元乙丙橡胶；颜色：黑色
1-16.O型圈：双硅：颜色：黑色
2.完成：
2-1. 螺母A：全部镀镍
2-2. 螺母B：全部镀镍
2-3. 外壳A：全部镀镍
2-4. 外壳B：整体镀镍
2-5.触点：镀金
2-6.螺钉：整体镀镍
2-7.主体：整体镀镍
2-8. 螺母C：全部镀镍
3.电气规格：
3-1.额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


7母头和8母头组装式防水连接器是一种灵活且稳定的连接解决方案，广泛应用于各种电气和电子设备中，尤其是在需要防水和防尘的环境中。以下是有关这种连接器的详细信息。

1. 特点
a. 组装式设计
模块化：组装式结构使得用户可以根据需求灵活组装连接器，便于更换和维修。
便于维护：在发生故障时，用户可以轻松拆卸和检修，而无需更换整个装置。

b. 防水性能
防护等级：通常具有IP67或更高的防护等级，能够有效防止水和灰尘的侵入，适合户外使用和苛刻环境。
密封设计：连接器内置O型圈或其他密封材料，以提高其防水能力，确保在潮湿条件下的可靠性。

c. 多孔配置
引脚数量：支持7针或8针的设计，可以同时传输多个信号，能够满足复杂电气系统的需求。
多功能：可以用于电源、信号传输以及控制等多种应用。

2. 应用领域
汽车行业：用于车载电子系统，如传感器、灯具及ECU（电子控制单元）等，确保在变化多端的气候条件下的稳定性。

工业自动化：广泛应用于机械设备、传感器和控制系统，提供可靠的电气连接。

户外设备：如监控摄像头、户外照明系统，能够适应各种自然环境。

消费电子：在日常电子产品中使用，提供安全、可靠的电气连接。

3. 使用注意事项
连接前检查：在组装时，确保插头、插孔和密封件无损坏，避免影响防水性能。

遵循制造商说明：务必按照制造商的说明进行组装和连接，以确保连接器的正常运行。

使用合适的导线：选择符合连接器要求的导线，以确保电气性能的稳定。

定期维护：定期检查连接器的工作状态，确认密封性，以保证其在长期使用过程中的可靠性。

4. 总结
7母头和8母头组装式防水连接器凭借其灵活性和稳定性，广泛应用于汽车、工业、户外和消费电子等多个领域。它们在确保防水和防尘的同时，允许用户根据具体需求进行定制，提升了电气连接的可靠性。如果您有具体的产品需求或技术问题，欢迎联系技术员！



Product Name: 7-8 Female Head Assembled Waterproof Connector
1. Materials:
1-1. Shell: TPU； Color: Yellow
1-2. Spring: Stainless steel
1-3.  O-ring A: NBR； Color: Black
1-4.  Nut A: Brass
1-5. Nut B: Brass
1-6. Shell A: Aluminum alloy
1-7. Shell B: Aluminum alloy
1-8. Contact: Brass
1-9. Screw: Alloy steel
1-10.  Subject: Aluminum alloy
1-11. Cap: Silicone Color: Black
1-12. Cover cage: POM； Color: White
1-13.  Nut C: Aluminum alloy
1-14. O-ring: Silicone: Color: Black
1-15. O-ring: EPDM rubber; Color: Black
1-16. O-ring: Double Silicon: Color: Black
2. Complete:
2-1.  Nut A: All nickel plated
2-2.  Nut B: All nickel plated
2-3.  Shell A: All nickel plated
2-4.  Shell B: Overall nickel plating
2-5. Contact: Gold plating
2-6. Screw: Nickel plated overall
2-7. Body: Whole nickel plating
2-8.  Nut C: All nickel plated
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


7-head and 8-head assembled waterproof connectors are a flexible and stable connection solution widely used in various electrical and electronic devices, especially in environments that require waterproofing and dust prevention. The following is detailed information about this type of connector.

1. Characteristics
a. Modular design
Modular: The modular structure allows users to flexibly assemble connectors according to their needs, making them easy to replace and repair.
Easy to maintain: In the event of a malfunction, users can easily disassemble and repair the entire device without the need to replace it.

b. Waterproof performance
Protection level: It usually has a protection level of IP67 or higher, which can effectively prevent the intrusion of water and dust, suitable for outdoor use and harsh environments.
Sealing design: The connector is equipped with an O-ring or other sealing material to enhance its waterproof ability and ensure reliability under humid conditions.

c. Porous configuration
Pin count: Supports 7-pin or 8-pin designs, can transmit multiple signals simultaneously, and can meet the needs of complex electrical systems.
Multi functional: can be used for various applications such as power supply, signal transmission, and control.

2. Application Fields
Automotive industry: used for in car electronic systems such as sensors, lighting fixtures, and ECU (Electronic Control Unit) to ensure stability under changing climate conditions.

Industrial automation: widely used in mechanical equipment, sensors, and control systems to provide reliable electrical connections.

Outdoor equipment, such as surveillance cameras and outdoor lighting systems, can adapt to various natural environments.

Consumer electronics: Used in daily electronic products to provide safe and reliable electrical connections.

3. Precautions for use
Pre connection inspection: During assembly, ensure that the plugs, sockets, and seals are not damaged to avoid affecting waterproof performance.

Follow manufacturer's instructions: It is essential to assemble and connect according to the manufacturer's instructions to ensure the proper functioning of the connector.

Use appropriate wires: Select wires that meet the requirements of the connector to ensure stable electrical performance.

Regular maintenance: Regularly check the working status of the connector, confirm its sealing, and ensure its reliability during long-term use.

4. Summary
7-head and 8-head assembled waterproof connectors are widely used in various fields such as automotive, industrial, outdoor, and consumer electronics due to their flexibility and stability. They allow users to customize according to specific needs while ensuring waterproof and dustproof, improving the reliability of electrical connections. If you have specific product requirements or technical issues, please feel free to contact the technician!
