KSD-WP-04M2-169-11

KSD-WP-04M2-169-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

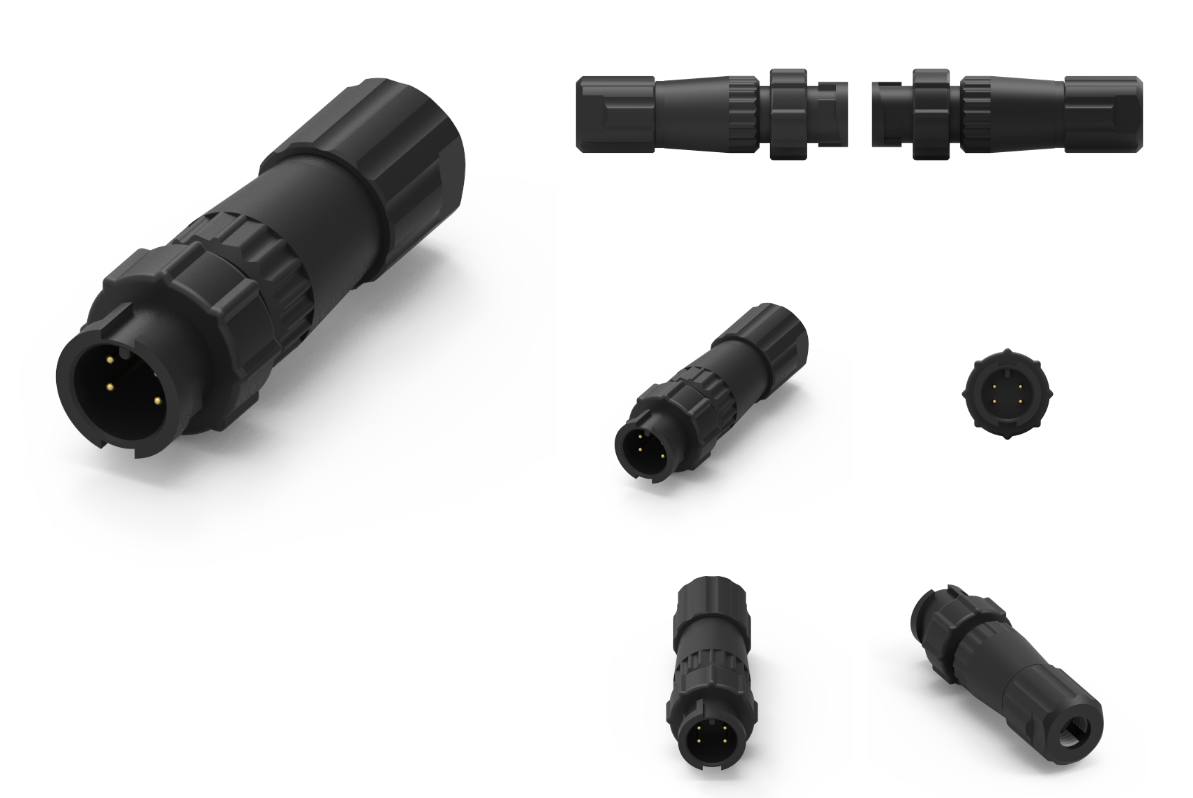

品名：A Size (公身公针) 组装式防水连接器(快锁式)
1.材料：
1-1. 外壳：PA66
1-2.触点：黄铜
1-3.主体：PA66
1-4. O型圈A:EPDM
1-5. O型圈B:NBR
1-6. 压盖笼：PA66
1-7. 压盖螺母：PA66
2.完成：
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~80℃
品牌：科斯达开关KSDKG
产地：中国东莞


A Size (公身公针) 组装式防水连接器 (快锁式) 概述
A Size (公身公针) 组装式防水连接器（快锁式）是专为需要高效、安全和防水连接设计的电气连接器。这种连接器在多个行业和应用中得到广泛使用，尤其是在恶劣环境下，能够提供可靠的性能。

主要特点
1.快锁设计：
快速连接：其独特的快锁机制使得用户能够迅速完成连接和断开，极大提高了操作效率。
安全锁定：连接后会牢固锁定，防止因振动或拉力而导致的松动，确保电气连接的稳定性。

2.防水性能：
高防护等级：该连接器通常具有IP67或更高的防护等级，能够有效抵御水和尘埃的侵入，确保设备在恶劣天气条件下也能正常运行。
密封设计：采用高品质的密封圈和密封材料，增强连接处的水密性。

3.组装式设计：
灵活适应性：组装结构允许用户根据实际需求进行灵活的组装和拆解，便于现场更换和维护。
增强稳定性：组装工艺的可靠性使得连接器在多次插拔后仍保持良好的接触性能。

4.材质与耐用性：
高耐温和耐腐蚀材料：连接器一般采用工程塑料及耐腐蚀金属，适应各种极端环境，确保其长期可靠工作。
抗冲击与振动：设计上考虑到抗冲击和振动能力，适合在工业环境及机械负载较大的场合下使用。

应用领域
汽车电子：广泛应用于汽车的电气系统，如传感器、控制模块等，确保信号和电力的稳定传输。

工业自动化：应用于PLC、变频器和其他工业设备，提供安全可靠的电气连接。

户外设备：适用于户外照明、监控安防等领域，其防水性能确保设备在各种气候条件下正常运行。

能源领域：广泛应用于电力设备，如变电站、发电机组等，保证电气连接的安全和可靠。

使用注意事项

1.安装前检查：在连接前，确认插头和插座的接触面干净，无污垢或损伤。

2.定期维护：定期检查密封圈，确保其完好，以保持良好的防水性能。

3.避免超负荷使用：在安装和使用过程中，避免施加过大的力量和拉伸，以防损坏连接器。

4.保持清洁：维持连接区域的清洁，防止积尘和污垢影响连接效果。

总结
A Size (公身公针) 组装式防水连接器（快锁式）凭借其优越的设计和性能，成为许多行业中不可或缺的连接解决方案。如果您需要了解更详细的技术参数或有其他疑问，欢迎联系技术员！



Product Name: A Size (Male Body Male Pin) Assembled Waterproof Connector (Quick Lock Type)
1. Materials:
1-1.  Shell: PA66
1-2. Contact: Brass
1-3. Subject: PA66
1-4.  O-ring A: EPDM
1-5.  O-ring B: NBR
1-6.  Cover cage: PA66
1-7.  Cap nut: PA66
2. Complete:
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~80℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Overview of A Size (male body and male pin) assembled waterproof connector (quick lock type)
A Size (male body, male pin) assembled waterproof connector (quick lock type) is an electrical connector designed specifically for efficient, safe, and waterproof connections. This type of connector is widely used in multiple industries and applications, especially in harsh environments, providing reliable performance.

main features
1. Quick lock design:
Quick connection: Its unique quick lock mechanism enables users to quickly complete connections and disconnections, greatly improving operational efficiency.
Security lock: After connection, it will be firmly locked to prevent loosening caused by vibration or tension, ensuring the stability of the electrical connection.

2. Waterproof performance:
High protection level: This connector typically has an IP67 or higher protection level, which can effectively resist the intrusion of water and dust, ensuring that the equipment can operate normally even in harsh weather conditions.
Sealing design: High quality sealing rings and sealing materials are used to enhance the water tightness of the connection.

3. Modular design:
Flexible adaptability: The assembly structure allows users to flexibly assemble and disassemble according to actual needs, facilitating on-site replacement and maintenance.
Enhanced stability: The reliability of the assembly process ensures that the connector maintains good contact performance even after multiple insertions and removals.

4. Material and Durability:
High temperature and corrosion-resistant materials: Connectors are generally made of engineering plastics and corrosion-resistant metals, which are suitable for various extreme environments and ensure their long-term reliable operation.
Anti impact and vibration: The design takes into account the ability to resist impact and vibration, making it suitable for use in industrial environments and situations with high mechanical loads.

application area
Automotive electronics: widely used in the electrical systems of automobiles, such as sensors, control modules, etc., to ensure stable transmission of signals and power.

Industrial automation: applied to PLCs, frequency converters, and other industrial equipment, providing safe and reliable electrical connections.

Outdoor equipment: Suitable for outdoor lighting, monitoring and security fields, its waterproof performance ensures the normal operation of the equipment under various climatic conditions.

In the field of energy, it is widely used in power equipment such as substations and generator sets to ensure the safety and reliability of electrical connections.

Precautions for use

1. Pre installation inspection: Before connecting, confirm that the contact surface between the plug and socket is clean, free of dirt or damage.

2. Regular maintenance: Regularly check the sealing ring to ensure its integrity and maintain good waterproof performance.

3. Avoid overloading: During installation and use, avoid applying excessive force and tension to prevent damage to the connector.

4. Keep clean: Keep the connection area clean to prevent dust and dirt from affecting the connection effect.

summary
A Size (male body male pin) assembled waterproof connector (quick lock type) has become an indispensable connection solution in many industries due to its superior design and performance. If you need to know more detailed technical parameters or have other questions, please feel free to contact the technician!
