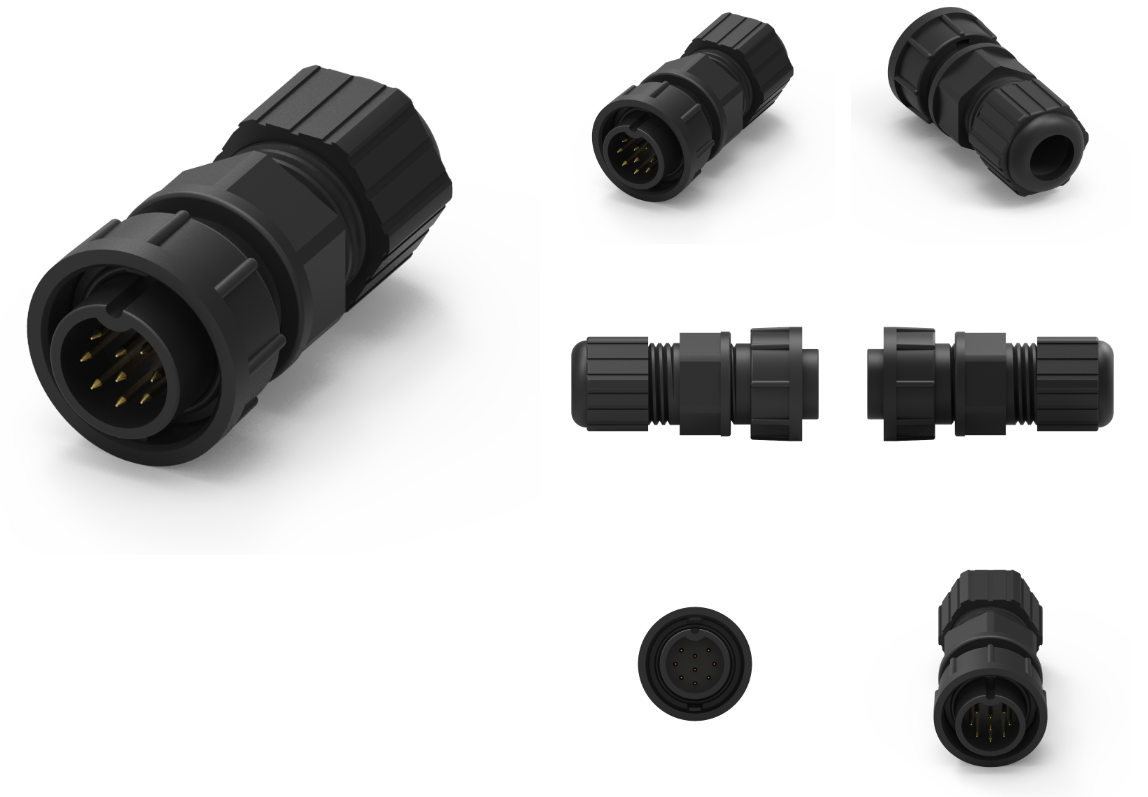

品名：C Size 公头防水连接器
1.材料：
1-1.外壳：PA66
1-2.触点：黄铜
1-3.垫片：硅胶
1-4. 夹紧环：PA66
1-5.密封：硅胶
电缆外径 8.6mm~9.6mm
1-6. 密封螺母：PA66
2.完成：
2-1.触点：镀金
3.电气规格：
3-1.额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞
C Size 公头防水连接器 概述
C Size 公头防水连接器是一种特定尺寸的电气连接器，专为要求高防护等级的应用而设计。它们广泛应用于汽车、工业、户外设备和其他需要防水和防尘性能的领域。该连接器的设计旨在确保在各种恶劣环境条件下的稳固电气连接。
主要特点
1.防水性能：
高防护等级：C Size 公头防水连接器通常达到IP67或更高的防护等级，有效地阻挡水和灰尘的入侵。
良好的密封设计：使用优质密封材料（如硅胶或橡胶）进行密封，有效防止水分和灰尘影响内部电气连接。
2.坚固耐用：
耐高温和腐蚀：采用耐高温、耐腐蚀的塑料和金属材料，适合高温和多种化学品环境。
抗撞击和振动：设计上考虑了抗冲击和振动，适合工业设备和车辆等动态环境。
3.公头设计：
便捷连接：公头连接器通过插入母头连接，连接稳固而可靠，适合各种电气应用。
多种引脚配置：提供多种引脚配置以满足不同电气需求，能够适应多种设备和系统。
4.快速安装：
易于连接和断开：用户在安装和维护时可以快速连接和断开，提升工作效率。
耐用性：具备良好的重用性，可以经受多次连接和断开的操作。
应用领域
1.汽车行业：在汽车电子系统中应用，连接传感器、照明和控制单元，确保高度可靠和安全的电气连接。
2.工业自动化：广泛应用于机械设备、PLC、变频器等，提供稳定的电气连接，适合潮湿或多尘的环境。
3.户外设备：用于户外照明、安防监控等设备，保障在任何气候条件下的正常运行。
4.船舶与航天：在极端条件下应用，确保设备的长时间稳定运行。
使用注意事项
1.安装前检查：连接器和插头要保持清洁，检查有无任何损坏或污垢。
2.保持干燥：连接器在未使用时应保持干燥，避免水分侵入影响性能。
3.定期维护：定期检查密封圈和连接部位，确保防水性能良好。
4.遵循额定参数：确保操作在额定电压和电流范围内以避免损坏连接器。
总结
C Size 公头防水连接器凭借其卓越的防水性能和耐用设计，广泛应用于许多需要可靠电气连接的领域。在各种苛刻环境下都能稳定工作，是汽车、工业以及户外设备等领域的重要组成部分。如需进一步了解技术细节或购买信息，请联系技术员！
Product Name: C Size Male Waterproof Connector
1. Materials:
1-1. Shell: PA66
1-2. Contact: Brass
1-3. Gasket: Silicone
1-4. Clamping ring: PA66
1-5. Sealing: Silicone
Cable outer diameter 8.6mm~9.6mm
1-6. Sealing nut: PA66
2. Complete:
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of C Size Male Waterproof Connector
C Size male waterproof connector is a specific size electrical connector designed for applications that require high protection levels. They are widely used in automotive, industrial, outdoor equipment, and other fields that require waterproof and dustproof performance. The design of this connector aims to ensure a stable electrical connection under various harsh environmental conditions.
main features
1. Waterproof performance:
High protection level: C Size male waterproof connectors typically achieve a protection level of IP67 or higher, effectively blocking the intrusion of water and dust.
Good sealing design: Use high-quality sealing materials (such as silicone or rubber) for sealing, effectively preventing moisture and dust from affecting internal electrical connections.
2. Durable and sturdy:
High temperature and corrosion resistance: Made of high temperature and corrosion resistant plastic and metal materials, suitable for high temperature and various chemical environments.
Anti impact and vibration: The design takes into account anti impact and vibration, making it suitable for dynamic environments such as industrial equipment and vehicles.
3. Public head design:
Convenient connection: The male connector is securely and reliably connected by inserting the female connector, making it suitable for various electrical applications.
Multiple pin configurations: Provides multiple pin configurations to meet different electrical needs and adapt to various devices and systems.
4. Quick installation:
Easy to connect and disconnect: Users can quickly connect and disconnect during installation and maintenance, improving work efficiency.
Durability: It has good reusability and can withstand multiple connections and disconnections.
application area
1. Automotive industry: Applied in automotive electronic systems, connecting sensors, lighting, and control units to ensure highly reliable and safe electrical connections.
2. Industrial automation: widely used in mechanical equipment PLC、 Variable frequency drives, etc. provide stable electrical connections and are suitable for humid or dusty environments.
3. Outdoor equipment: used for outdoor lighting, security monitoring and other equipment to ensure normal operation under any climate conditions.
4. Ships and Aerospace: Applied under extreme conditions to ensure long-term stable operation of equipment.
Precautions for use
1. Pre installation inspection: The connectors and plugs should be kept clean and checked for any damage or dirt.
2. Keep dry: The connector should be kept dry when not in use to prevent moisture from entering and affecting performance.
3. Regular maintenance: Regularly check the sealing ring and connection parts to ensure good waterproof performance.
4. Follow the rated parameters: Ensure that the operation is within the rated voltage and current range to avoid damaging the connector.
summary
The C Size male waterproof connector is widely used in many fields that require reliable electrical connections due to its excellent waterproof performance and durable design. Stable operation in various harsh environments is an important component of fields such as automotive, industrial, and outdoor equipment. If you need further technical details or purchasing information, please contact the technician!
