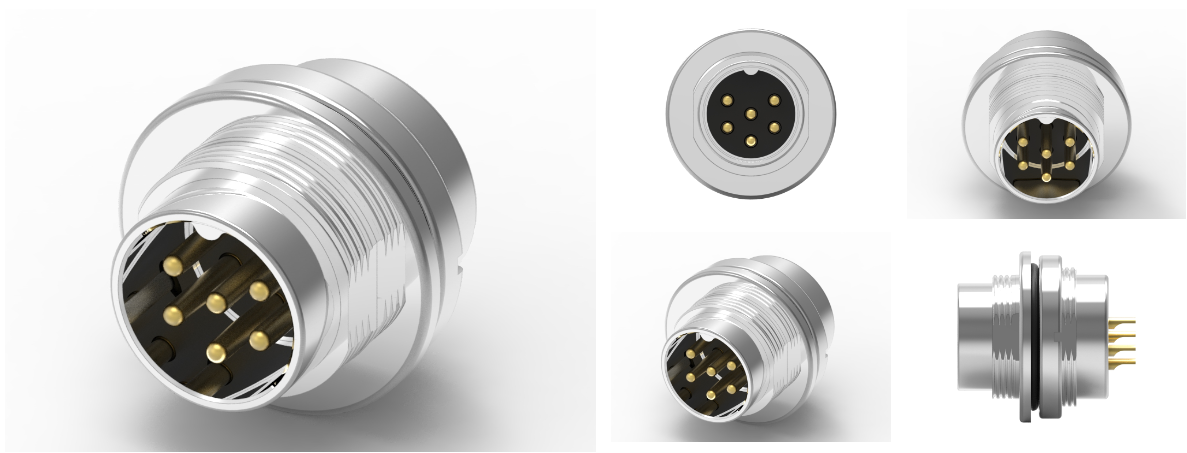

品名：DIN M16 公头后锁焊线式防水连接器
1.材料
1-1.外壳：PA66：颜色：黑色。
触点：黄铜
1-2.
1-3.编号：黄铜
1 -4.
0-环：EPDM：颜色：黑色
1-5.
外壳：黄铜。
2.完成：
2-1.触点：最小GOLDFLASH微英寸。
底板：镍
2-2.编号：镀镍
2-3.外壳：镀镍
3.电气规格：
3-1.额定电流：5A
3-2.
额定电压：250V
3-3.防水等级：IP67
环境的：
4-1.0工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
DIN M16 公头后锁焊线式防水连接器是一种常见的工业连接器，主要用于要求防水和安全连接的应用场景。以下是对该连接器的主要特性和概述：
特性：
1.DIN标准：符合DIN（德国标准）设计，保证了连接器的互换性和可靠性。
2.M16规格：指连接器的螺纹直径为16毫米，通常用于工业设备和自动化系统。
3.公头设计：连接器的公头部分用于插入母头连接器，通常与电缆或设备的电源线相连。
4.后锁设计：这种设计确保在连接后，连接器不会意外松动或脱落，通过螺纹或锁扣机制锁定连接，提供更高的安全性。
5.焊线式：焊线式连接器通过将电线焊接到连接器的接触点来进行电气连接，提供强固的连接，适用于高震动或高机械应力环境。
6.防水特性：该连接器设计用于防止水分或灰尘的侵入，通常具有IP67等级（在规定的条件下能够防止水和灰尘进入），适合户外或潮湿环境使用。
应用领域：
自动化设备：广泛应用于工业自动化和控制系统。
交通运输：用于车辆和设备中的电气连接，尤其是在汽车和铁路行业。
建筑和基础设施：用于电气系统中的户外或暴露在恶劣环境下的连接。
通讯设备：在电信设备中保证连接的可靠性和安全性。
选择注意事项：
确保所有连接器符合所需的电压和电流规格。
检查焊接过程，以确保连接的稳固性。
了解具体的防护等级需求，根据实际应用选择合适的连接器。
总之，DIN M16 公头后锁焊线式防水连接器是一种高性能的工业连接解决方案，适用于各种要求防水、可靠连接的应用场合。
Product Name: DIN M16 Male Rear Lock Solder Wire Waterproof Connector
1. Materials
1-1. Shell: PA66: Color: Black.
Contact: Brass
1-2.
1-3. Number: Brass
1 -4.
0-Ring: EPDM： Color: Black
1-5.
Shell: Brass.
2. Complete:
2-1. Contact: Minimum GOLD FLASH micro inch.
Bottom plate: Nickel
2-2. Number: Nickel plating
2-3. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 5A
3-2.
Rated voltage: 250V
3-3. Waterproof grade: IP67
Environmental:
4-1.0 Operating temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
DIN M16 male connector with rear lock welding wire waterproof connector is a common industrial connector, mainly used in application scenarios that require waterproof and safe connection. The following are the main features and overview of the connector:
characteristic:
1. DIN standard: Designed in accordance with DIN (German standard), ensuring the interchangeability and reliability of connectors.
2. M16 specification: Refers to a connector with a thread diameter of 16 millimeters, typically used in industrial equipment and automation systems.
3. Male connector design: The male part of the connector is used to insert a female connector, usually connected to a cable or power cord of a device.
4. Rear lock design: This design ensures that the connector will not accidentally loosen or fall off after connection, and locks the connection through threads or locking mechanisms, providing higher security.
5. Wire bonding: Wire bonding connectors are electrically connected by soldering wires to the contact points of the connector, providing a strong connection and suitable for high vibration or high mechanical stress environments.
6. Waterproof feature: This connector is designed to prevent the intrusion of moisture or dust and typically has an IP67 rating (which can prevent water and dust from entering under specified conditions), making it suitable for outdoor or humid environments.
Application areas:
Automation equipment: widely used in industrial automation and control systems.
Transportation: Used for electrical connections in vehicles and equipment, especially in the automotive and railway industries.
Buildings and infrastructure: used for outdoor or exposed connections in electrical systems.
Communication equipment: Ensuring the reliability and security of connections in telecommunications equipment.
Selection precautions:
Ensure that all connectors meet the required voltage and current specifications.
Check the welding process to ensure the stability of the connection.
Understand the specific protection level requirements and choose the appropriate connector based on actual applications.
In summary, the DIN M16 male head rear lock solder wire waterproof connector is a high-performance industrial connection solution suitable for various applications that require waterproof and reliable connections.
