KSD-DI-03M2-13-11

产品特性应用范围

样品申请

浏览 15 次

产品图纸（PDF）：KSD-DI-03M2-13-11 下载

产品特性

应用范围

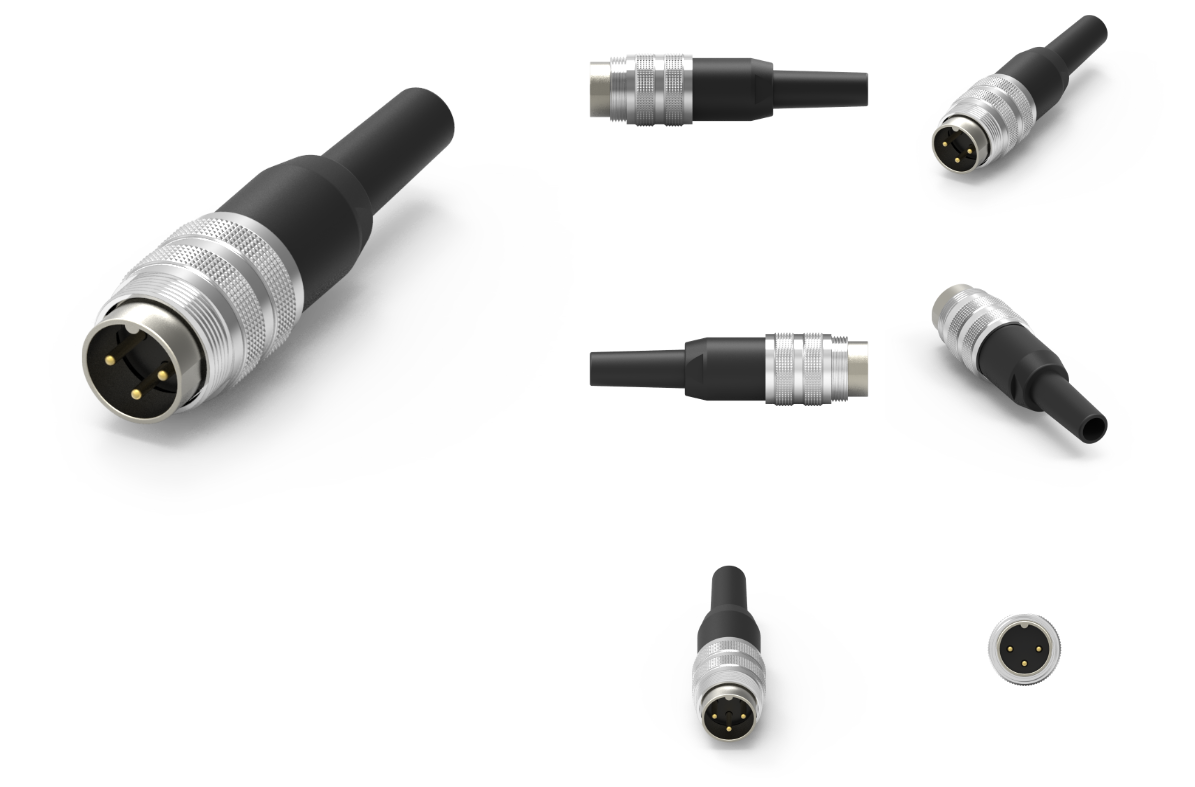

品名：DIN M16 公头组装式连接器
1.材料：
1-1.外壳：尼龙UL94V0：颜色：黑色
1-2.触点：黄铜
1-3.主体：锌合金
锁壳：黄铜
1-5.弹簧：不锈钢
1-6.隔离：聚氯乙烯-
1-7.灯具：锌合金
1-8.灯体：锌合金
1-9.螺钉：SPCC
1-10.背部主体：黄铜
1-11.O.-RING：硅胶；颜色：红色
1-12.压盖：硅胶颜色：黑色
1-13.陆地笼：POM；颜色：白色
1-14. 压盖螺母：铝合金
2.完成：
2-2.事实并非如此：令人担忧
2-3. 锁壳：镀镍
2-4.夹具：镀镍
2-5.夹具主体：镀镍
2-6.螺钉：镀镍
2-7.背部：镀镍
2-8.格兰螺母：镀镍
3.电气规格：
3-1.额定电流：3PIN～8PIN 5A；12针3a
3-2.额定电压：3PIN~8PIN250V；12针6V
3-3.防水等级：IP67
环境的：
4-1.0工作温度：-20~85℃
品牌：科斯达开关KSDKG
产地：中国东莞

DIN M16 公头组装式防水连接器是一种专为工业用途设计的连接器，广泛用于自动化、控制系统和其他需要防水保护的应用场景。以下是该连接器的主要特点、应用领域及使用注意事项。

主要特点：
1.DIN标准：
该连接器遵循DIN（Deutsches Institut für Normung）标准，确保互换性和兼容性，适合与多种设备和连接器配合使用。

2.M16规格：
M16表示连接器的外径为16毫米，适合空间受限的环境，能够满足多种连接需求。

3.公头设计：
公头设计意味着该连接器将插入母头，形成一种密合的连接，方便快速拆卸和重新连接。

4.组装式结构：
组装式设计允许用户根据具体需求自定义连接，用户可以灵活选择与之匹配的电缆和接头，适合各种应用场合。

5.防水特性：
具有较高的防水等级，通常达到IP67或以上，能够有效防止水、灰尘等异物的侵入，适合户外和潮湿环境使用。

6.耐用材料：
一般采用高强度、耐腐蚀的材料，确保连接器在苛刻环境下的长期使用和可靠性。

应用领域：
工业自动化：常用于传感器、执行器、控制面板等设备的电气连接。

交通运输：广泛应用于各类车辆（如汽车、火车和船只）中的电气系统。

电气和电子设备：用于医疗设备、家用电器、通信设备等。

建筑和基础设施：在户外照明、电力供应及各种监控系统中提供可靠的连接。

选择和使用注意事项：
1.电气参数：
确认所选连接器的额定电压和电流符合设备的要求，确保安全使用。

2.组装规范：
确保组装过程符合制造商的指导，注意电缆和接头的匹配性和可靠性，以防接触不良。

3.防水等级：
根据具体应用的环境选择合适的防水等级，确保能够抵御相应的水和尘埃侵入。

4.维护与检查：
定期检查连接器，确保没有磨损、腐蚀等现象，保证连接的可靠性。

5.适当的工具：
在组装和维护过程中使用合适的工具，以避免损坏连接器和附件。

小结：
DIN M16 公头组装式防水连接器是一种功能强大且灵活的电气连接解决方案，特别适合于需要防水和防尘保护的工业应用。根据具体需求进行合适的选择和使用能够大大提升设备的可靠性和寿命。如果您有特定的技术需求或其他疑问，欢迎联系技术员！

Product Name: DIN M16 Male Assembled Connector
1. Materials:
1-1. Shell: Nylon UL94V0: Color: Black
1-2. Contact: Brass
1-3. Main body: Zinc alloy
Lock shell: brass
1-5. Spring: Stainless steel
1-6. Isolation: Polyvinyl chloride-
1-7. Lighting fixtures: Zinc alloy
1-8. Lamp body: Zinc alloy
1-9. Screw: SPCC
1-10. Back body: brass
1-11. O. - RING: Silicone; Color: Red
1-12. Cap: Silicone Color: Black
1-13. Land Cage: POM； Color: White
1-14. Cap nut: aluminum alloy
2. Complete:
2-2. The fact is not so: worrying
2-3. Lock shell: Nickel plated
2-4. Fixture: Nickel plating
2-5. Fixture body: Nickel plated
2-6. Screw: Nickel plated
2-7. Back: Nickel plating
2-8. Grannut: Nickel plated
3. Electrical specifications:
3-1. Rated current: 3PIN~8PIN 5A; 12 needles 3a
3-2. Rated voltage: 3PIN~8PIN250V; 12 needles 6V
3-3. Waterproof grade: IP67
Environmental:
4-1.0 Operating temperature:- 20~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China

DIN M16 male assembled waterproof connector is a connector designed specifically for industrial use, widely used in automation, control systems, and other applications that require waterproof protection. The following are the main features, application areas, and usage precautions of this connector.

Main features:
1. DIN standard:
This connector follows the DIN (Deutsches Institution f ü r Normung) standard, ensuring interchangeability and compatibility, and is suitable for use with a variety of devices and connectors.

2. M16 specification:
M16 represents a connector with an outer diameter of 16 millimeters, suitable for environments with limited space and capable of meeting various connection requirements.

3. Public head design:
The male head design means that the connector will be inserted into the female head, forming a tight fit connection that is convenient for quick disassembly and reconnection.

4. Assembled structure:
Modular design allows users to customize connections according to specific needs, and users can flexibly choose cables and connectors that match them, suitable for various application scenarios.

5. Waterproof characteristics:
It has a high waterproof rating, usually reaching IP67 or above, which can effectively prevent the intrusion of foreign objects such as water and dust, and is suitable for outdoor and humid environments.

6. Durable materials:
Generally, high-strength and corrosion-resistant materials are used to ensure the long-term use and reliability of connectors in harsh environments.

Application areas:
Industrial automation: commonly used for electrical connections of sensors, actuators, control panels, and other equipment.

Transportation: widely used in electrical systems of various vehicles such as cars, trains, and ships.

Electrical and electronic equipment: used for medical devices, household appliances, communication equipment, etc.

Architecture and infrastructure: Provide reliable connections in outdoor lighting, power supply, and various monitoring systems.

Precautions for selection and use:
1. Electrical parameters:
Confirm that the rated voltage and current of the selected connector meet the requirements of the equipment to ensure safe use.

2. Assembly specifications:
Ensure that the assembly process complies with the manufacturer's guidelines, pay attention to the matching and reliability of cables and joints, and prevent poor contact.

3. Waterproof grade:
Choose the appropriate waterproof level based on the specific application environment to ensure resistance to water and dust intrusion.

4. Maintenance and Inspection:
Regularly inspect the connector to ensure there is no wear, corrosion, or other issues, ensuring the reliability of the connection.

5. Appropriate tools:
Use appropriate tools during assembly and maintenance to avoid damaging connectors and accessories.

Summary:
The DIN M16 male assembled waterproof connector is a powerful and flexible electrical connection solution, particularly suitable for industrial applications that require waterproof and dustproof protection. Choosing and using equipment appropriately based on specific needs can greatly improve its reliability and lifespan. If you have specific technical requirements or other questions, please feel free to contact a technician!
