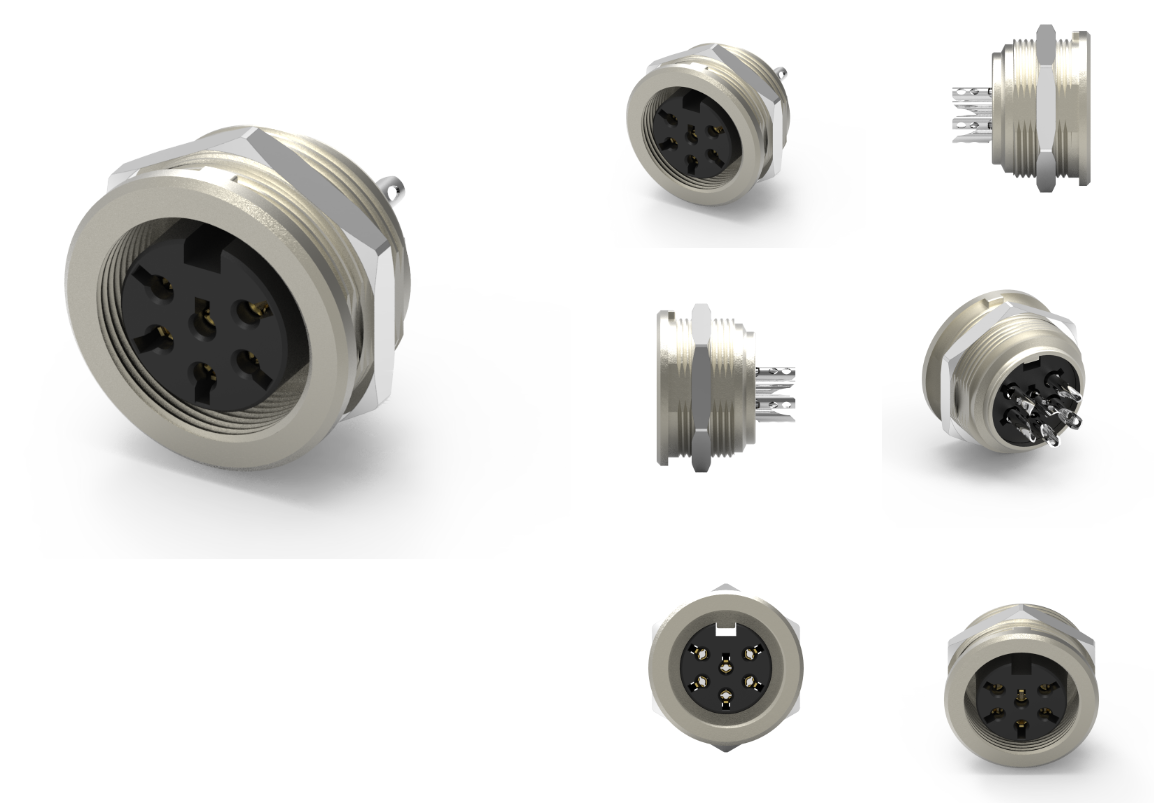

品名：DIN M16 母头后锁焊线式连接器
1.材料
1-1.外壳：尼龙UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：锌合金
1-4.0-RING：三元乙丙橡胶；颜色：黑色
1-5.螺母：黄铜
2.完成：
2-1.触点：最小镀金微英寸
2-2.编号：镀镍
2-3.外壳：镀镍
3.电气规格：
3-1.额定电流（40℃）：5A
3-2.额定电压：250V
3-3.防水：IP67（在配合条件下）
环境的：
4-1.0工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


DIN M16 母头后锁焊线式防水连接器是一种符合 DIN 标准的高性能电气连接器，主要用于工业、自动化和其他复杂应用场合。以下是该连接器的详细描述。

产品描述
1.标准化设计：
该连接器遵循 DIN（德国工业标准）设计，确保与其他连接器良好的兼容性和互换性。

2.母头类型：
连接器采用母头设计，便于与相应的 DIN 公头连接，实现快速和安全的连接。

3.后锁设计：
后锁结构通过锁紧装置有效固定连接，增强了连接可靠性，防止因震动或拉扯导致的脱落。

4.焊线式连接：
采用焊接方式连接导线，确保电气接触良好，并能承受较高的电流，适合各种严苛环境。

5.防水性能：
该连接器具备较高的防水等级，如 IP67，能够有效防止水、湿气及灰尘进入，适用于潮湿或多尘的工作环境。

6.耐用材料：
通常由高强度塑料和金属材料制造，具有良好的耐腐蚀、耐高温、耐环境变化的特性，延长了使用寿命。

7.多种引脚配置：
提供从几针到十几针的多种引脚配置，以满足不同应用的连接需求。

8.外形与紧凑设计：
连接器设计紧凑，易于在空间受限的环境中使用。

应用领域
工业自动化：用于各种传感器、执行器和控制系统的电气连接。

机械设备：在机器和设备之间提供稳定的电气连接。

运输与航空：广泛应用于汽车、飞机等交通工具的电气系统。

设备与仪器：用于医疗设备、实验仪器等重要设备中。

安装与使用注意事项
1.正确焊接：
焊接时应确保焊接点的质量，避免虚焊或短路，保证电气连接的可靠性。

2.安装环境：
确保在适合的环境中进行安装，避免过高的湿度和温度对连接器的影响。

3.定期维护：
定期检查连接器的状态，确保无水分、灰尘等侵入，及时处理发现的问题。

4.使用专业工具：
在焊接和安装过程中，使用专业工具，以确保连接器的完整性和功能。

小结
DIN M16 母头后锁焊线式防水连接器是一种可靠、耐用且具有良好防水性能的连接解决方案，广泛应用于多种工业和电子设备中。它的设计方便了电气连接的安装与维护，为用户提供了卓越的连接可靠性。如果您有更具体的应用需求或问题，请联系技术员！



Product Name: DIN M16 Female Head Rear Lock Solder Wire Connector
1. Materials
1-1. Shell: Nylon UL94V0; Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Zinc alloy
1-4.0-RING: EPDM rubber; Color: Black
1-5. Nut: Brass
2. Complete:
2-1. Contact: Minimum gold-plated micro inch
2-2. Number: Nickel plating
2-3. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current (40 ℃): 5A
3-2. Rated voltage: 250V
3-3. Waterproof: IP67 (under compatible conditions)
Environmental:
4-1.0 Operating temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The DIN M16 female head rear lock welding wire waterproof connector is a high-performance electrical connector that complies with DIN standards, mainly used in industrial, automation, and other complex applications. The following is a detailed description of the connector.

Product Description
1. Standardized design:
This connector is designed in accordance with DIN (German Industrial Standards) to ensure good compatibility and interchangeability with other connectors.

2. Mother head type:
The connector adopts a female head design, which is easy to connect with the corresponding DIN male head, achieving fast and safe connection.

3. Rear lock design:
The rear lock structure is effectively fixed and connected through a locking device, enhancing the reliability of the connection and preventing detachment caused by vibration or pulling.

4. Solder wire connection:
Using welding to connect wires ensures good electrical contact and can withstand high currents, suitable for various harsh environments.

5. Waterproof performance:
This connector has a high waterproof rating, such as IP67, which can effectively prevent water, moisture, and dust from entering, making it suitable for humid or dusty working environments.

6. Durable materials:
Usually made of high-strength plastic and metal materials, it has good corrosion resistance, high temperature resistance, and environmental change resistance, which extends its service life.

7. Multiple pin configurations:
Provide various pin configurations ranging from a few pins to over ten pins to meet the connection needs of different applications.

8. Appearance and compact design:
The connector design is compact and easy to use in space constrained environments.

application area
Industrial automation: used for electrical connections of various sensors, actuators, and control systems.

Mechanical equipment: Provide stable electrical connections between machines and equipment.

Transportation and Aviation: Electrical systems widely used in vehicles such as automobiles and airplanes.

Equipment and instruments: used in important equipment such as medical devices and experimental instruments.

Installation and usage precautions
1. Correct welding:
During welding, the quality of the welding points should be ensured to avoid virtual welding or short circuits and ensure the reliability of electrical connections.

2. Installation environment:
Ensure installation is carried out in a suitable environment to avoid the impact of excessive humidity and temperature on the connector.

3. Regular maintenance:
Regularly check the status of the connector to ensure that there is no moisture, dust, or other contaminants entering, and promptly address any issues discovered.

4. Use professional tools:
During the welding and installation process, use professional tools to ensure the integrity and functionality of the connector.

Summary
The DIN M16 female head rear lock solder wire waterproof connector is a reliable, durable, and well waterproofed connection solution widely used in various industrial and electronic devices. Its design facilitates the installation and maintenance of electrical connections, providing users with excellent connection reliability. If you have more specific application requirements or questions, please contact the technician!
