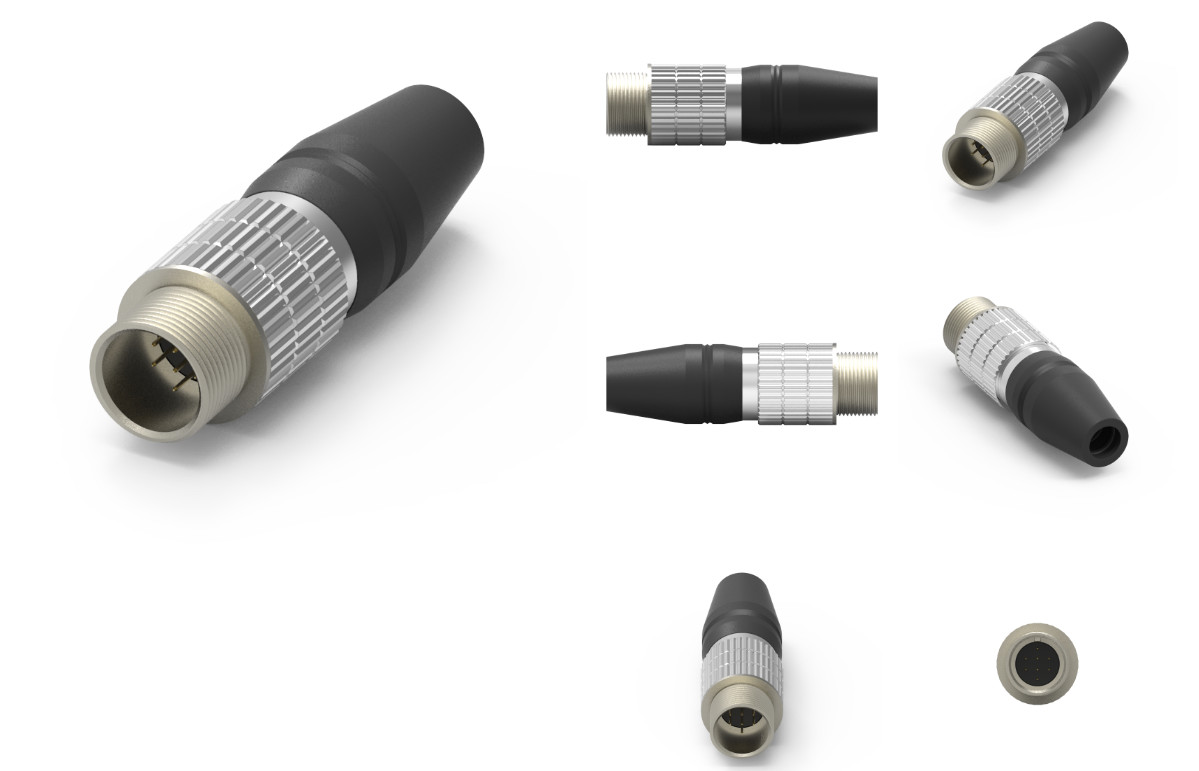

KSD-DI-08M2-07

KSD-DI-08M2-07

  • 产品特性
  • 应用范围

图纸下载 样品申请

品名：Screw Lock Size 7系列DIN公头连接器
材料
1.尼龙66；颜色：黑色
1-1.住房
1-2.触点：黄铜
1-3.外壳：锌合金
1-4.O环：三元乙丙橡胶；颜色：黑色
1-5.螺母：黄铜
1-6. 垫圈：黄铜
2.完成：
2-1.触点：最小10u”。镀金
底板：镍
2-2.外壳：镀镍
2-3号：镀镍。
3.电气规格：
3-1.额定电流：1A
3-2.额定电压：30VAC，42V DC
4.环境:
4-1.0工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Screw Lock Size 7系列DIN公头连接器是一种常用的连接器，广泛应用于各种电子设备中，如音频设备、通信系统和工业自动化等领域。该系列连接器结合了安全可靠的螺丝锁定机制，确保在各种应用中提供稳定的连接。以下是关于Screw Lock Size 7系列DIN公头连接器的详细信息：

特点
1.Screw Lock机制：
该连接器采用螺丝锁定设计，可确保在系统运行时连接牢固，不会因振动或拉力而松动。
提供更好的机械稳定性，适用于要求较高的应用场景。

2.优质材料：
通常采用耐用金属材料和高强度塑料制造，确保连接器在各种环境下的可靠性。
引脚经常涂覆镀金或镀镍，以提高导电性并防止腐蚀，确保长期稳定的电气连接。

3.多样的连接功能：
Size 7系列连接器提供多种引脚配置，适用于多种信号和功率传输需求。
可支持多种电气标准，适用于不同的设备和应用需求。

4.良好的防护性能：
设计具有相应的防尘和防水等级，适合在恶劣环境中使用。
可选配密封圈，以增强防护效果，确保连接的可靠性。

应用领域

1.音频和视频设备：
在专业音响、乐器、摄像机和广播设备中广泛应用，提供高质量的音频和视频信号传输。

2.工业自动化：
用于工业控制系统、机器人和其他自动化设备，确保连接稳定可靠。

3.通讯设备：
在数据通信和网络设备中，提供稳定的电气连接，确保数据传输的完整性。

4.医疗设备：
由于其高可靠性，常用于医疗设备和仪器中，确保在关键时刻连接的可靠性。

优势

1.高安全性：Screw Lock机制确保连接器在使用过程中不易松动，适合动态环境。

2.多功能应用：支持多种信号类型和设备需求，提供灵活的连接解决方案。

3.耐用性：耐用材料和结构设计，使其在恶劣条件下也能长时间工作。

使用注意事项

1.正确安装：在安装时，确保所有的引脚和接触点都干净，避免灰尘或污染物影响电气性能。

2.定期检查：定期检查连接器的连接状态和外观，确保没有磨损或损坏。

3.勿过度紧固：在使用螺丝锁定时，避免过度拧紧，以免损坏连接器。

小结
Screw Lock Size 7系列DIN公头连接器通过其可靠的锁定机制、优质材料以及多样的应用适应性，成为许多行业中优秀的连接解决方案。如果您对该系列连接器有具体的需求或想获得更多技术信息，欢迎联系技术员！



Product Name: Screw Lock Size 7 Series DIN Male Connector
Material Science
1. Nylon 66; Color: Black
1-1. Housing
1-2. Contact: Brass
1-3. Shell: Zinc alloy
1-4. O-ring: EPDM rubber; Color: Black
1-5. Nut: Brass
1-6.  Gasket: Brass
2. Complete:
2-1. Contact: Minimum 10u ". gold-plated
Bottom plate: Nickel
2-2. Shell: Nickel plated
2-3: Nickel plating.
3. Electrical specifications:
3-1. Rated current: 1A
3-2. Rated voltage: 30VAC, 42V DC
4. Environment:
4-1.0 Operating temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The Screw Lock Size 7 series DIN male connector is a commonly used connector, widely used in various electronic devices such as audio equipment, communication systems, and industrial automation. This series of connectors combines a safe and reliable screw locking mechanism to ensure stable connections in various applications. The following is detailed information about Screw Lock Size 7 series DIN male connectors:

characteristic
1. Screw Lock mechanism:
This connector adopts a screw locking design, which ensures a secure connection during system operation and will not loosen due to vibration or tension.
Provide better mechanical stability, suitable for high demand application scenarios.

2. High quality materials:
Usually made of durable metal materials and high-strength plastics, ensuring the reliability of connectors in various environments.
The pins are often coated with gold or nickel to improve conductivity and prevent corrosion, ensuring long-term stable electrical connections.

3. Diverse connection functions:
The Size 7 series connectors offer multiple pin configurations, suitable for various signal and power transmission needs.
Can support multiple electrical standards, suitable for different equipment and application needs.

4. Good protective performance:
The design has corresponding dustproof and waterproof levels, suitable for use in harsh environments.
Optional sealing ring is available to enhance the protective effect and ensure the reliability of the connection.

application area

1. Audio and video equipment:
Widely used in professional audio, musical instruments, cameras, and broadcasting equipment, providing high-quality audio and video signal transmission.

2. Industrial automation:
Used for industrial control systems, robots, and other automation equipment to ensure stable and reliable connections.

3. Communication equipment:
Provide stable electrical connections in data communication and network equipment to ensure the integrity of data transmission.

4. Medical equipment:
Due to its high reliability, it is commonly used in medical equipment and instruments to ensure reliable connections at critical moments.

advantage

1. High security: The Screw Lock mechanism ensures that the connector is not easily loosened during use and is suitable for dynamic environments.

2. Multi functional application: Supports multiple signal types and device requirements, providing flexible connection solutions.

3. Durability: Durable materials and structural design enable it to work for extended periods of time even under harsh conditions.

Precautions for use

1. Proper installation: During installation, ensure that all pins and contact points are clean to avoid dust or contaminants affecting electrical performance.

2. Regular inspection: Regularly check the connection status and appearance of the connector to ensure that there is no wear or damage.

3. Do not overtighten: When using screw locks, avoid overtightening to avoid damaging the connector.

Summary
The Screw Lock Size 7 series DIN male connectors have become excellent connection solutions in many industries due to their reliable locking mechanism, high-quality materials, and diverse application adaptability. If you have specific requirements for this series of connectors or would like to obtain more technical information, please feel free to contact a technician!
