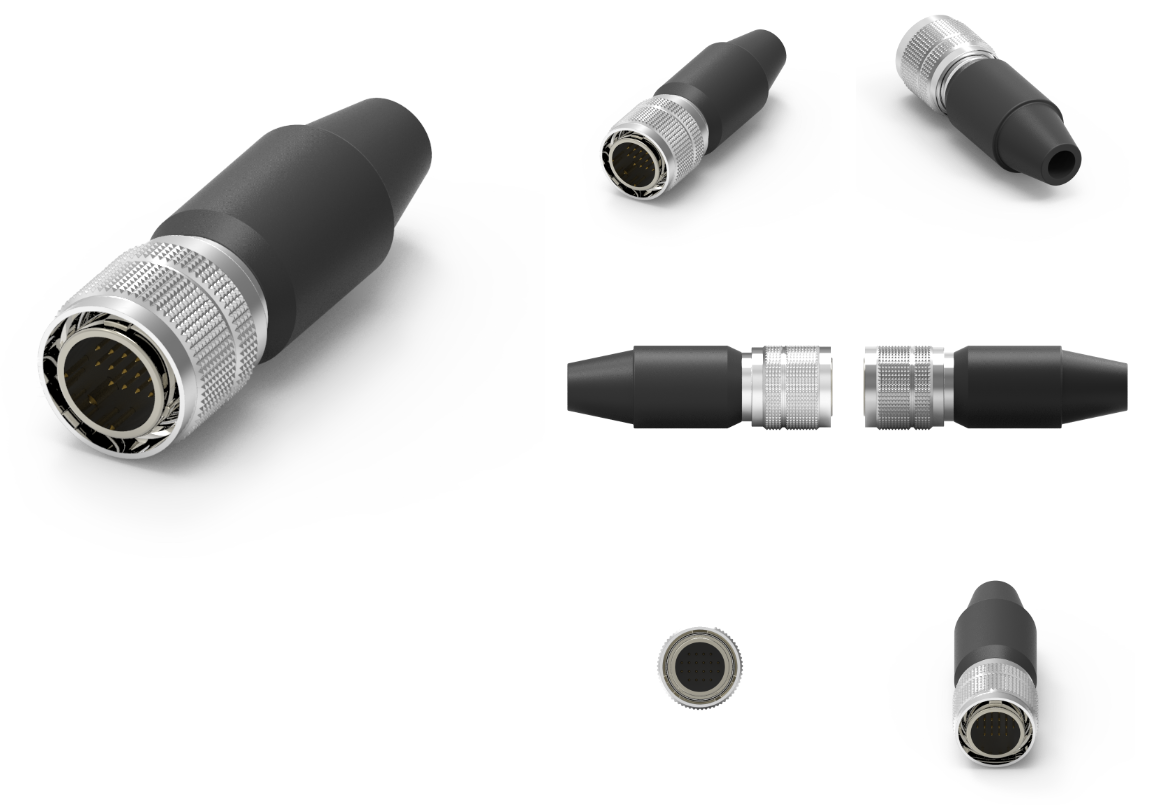

品名：DIN 公头Push Pull Size 13连接器
1.材料
1-1.外壳：尼龙66 UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 外壳：锌合金
1-4.弹簧：不锈钢
1-5.垫圈：磷青铜
1-6.螺母：黄铜
2.完成
2-1.触点：金色闪光
2-2.外壳：镍
2-3. 垫圈：镍
2-4.螺母：镍
3.电气规格
3-1. 额定电流：2A
3-2.额定电压：100V交流/140V直流
4.环境：
4-1.工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
DIN 公头 Push Pull Size 13 连接器
DIN 公头 Push Pull Size 13 连接器 是一种常用于工业和音频/视频应用的连接器，以其独特的推拉操作设计在安全连接中提供了便捷性。它在各类电子和机械设备中得到广泛应用，主要用于信号传输和电源连接。
主要特点
1.Push Pull 机制：
快速连接和断开：这种设计允许用户轻松地推入或拉出连接器，简化了连接和拆卸过程。
牢固连接：Push Pull 机制能够在连接时提供高牵引力，确保连接器在使用过程中不会意外脱落。
2.DIN 标准：
标准化设计：符合 DIN 标准，确保连接器在多种设备和环境中的兼容性。
可互换性：与其他遵循 DIN 标准的连接器具有良好的互换性，便于设备和配件的连接。
3.Size 13 设计：
针脚配置：Size 13 通常指该连接器具备 13 个引脚，用于传输多个信号和电源。
多功能性：可用于多种应用，支持音频、视频、数据和电力传输。
4.耐用材料：
高强度材料：通常采用工程塑料或金属外壳，具备良好的抗腐蚀和耐高温能力。
机械稳定性：设计适应高频率的插拔操作，确保长期使用的可靠性。
应用广泛：
1.音频和视频设备：用于连接麦克风、扩音器和其他音频设备。
2.工业应用：在机器人、自动化设备和测试设备中，提供信号和电力传输。
应用领域
1.音频设备：连接调音台、放大器、音响等，确保高质量音频信号传输。
2.视频设备：用于摄像机、监视器等设备的连接，适合需要高带宽和低延迟的应用。
3.工业控制：在复杂的自动化系统中，提供稳定的信号传输。
4.医疗设备：在医疗仪器中实现数据交换和电源供应，确保设备正常运行。
使用注意事项
1.安装与操作：
在连接时确保对齐，不要用力过猛，以免损坏连接器。
拆卸时请按下 Push Pull 机制，确保安全释放。
2.定期检查：
定期检查连接器的接触点和外壳，以防止腐蚀或损坏。
检查锁定功能是否正常，确保连接能够保持安全。
3.负载要求：
确保使用的连接器符合设备的电气规格，避免过载。
不同的设备可能对电流和电压的要求不同，请遵循相应的标准。
4.环境适应性：
在恶劣环境下使用时，考虑选择具有额外防护等级的连接器。
避免在高温、潮湿或多尘环境中长期使用未保护的连接器。
总结
DIN 公头 Push Pull Size 13 连接器 是一个高效、灵活且易于使用的连接解决方案，非常适合需要安全与稳定连接的场合。其设计确保了高频率的操作和多种连接配置，使其在音频/视频和工业应用中非常受欢迎。如果您需要更多关于 DIN 公头 Push Pull Size 13 连接器的信息或技术支持，或需要具体的技术参数，
Product Name: DIN Male Push Pull Size 13 Connector
1. Materials
1-1. Shell: Nylon 66 UL94V-0; Color: Black
1-2. Contact: Brass
1-3. Shell: Zinc alloy
1-4. Spring: Stainless steel
1-5. Gasket: phosphor bronze
1-6. Nut: Brass
2. Complete
2-1. Contact: Gold Flash
2-2. Shell: Nickel
2-3. Gasket: Nickel
2-4. Nut: Nickel
3. Electrical specifications
3-1. Rated current: 2A
3-2. Rated voltage: 100V AC/140V DC
4. Environment:
4-1. Working temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
DIN male Push Pull Size 13 connector
The DIN male Push Pull Size 13 connector is a connector commonly used in industrial and audio/video applications, providing convenience in secure connections with its unique push and pull operation design. It is widely used in various electronic and mechanical devices, mainly for signal transmission and power connection.
main features
1. Push Pull mechanism:
Quick Connect and Disconnect: This design allows users to easily push in or pull out connectors, simplifying the process of connecting and disconnecting.
Secure Connection: The Push Pull mechanism provides high traction during connection, ensuring that the connector does not accidentally detach during use.
2. DIN standard:
Standardized design: Complies with DIN standards to ensure compatibility of connectors in various devices and environments.
Interchangeability: It has good interchangeability with other connectors that comply with DIN standards, making it easy to connect equipment and accessories.
3. Size 13 design:
Pin configuration: Size 13 typically refers to a connector with 13 pins used for transmitting multiple signals and power supplies.
Multifunctionality: Can be used for multiple applications, supporting audio, video, data, and power transmission.
4. Durable materials:
High strength materials: usually made of engineering plastics or metal shells, with good corrosion resistance and high temperature resistance.
Mechanical stability: Designed to adapt to high-frequency plugging and unplugging operations, ensuring long-term reliability.
Widely used:
1. Audio and video devices: used to connect microphones, amplifiers, and other audio devices.
2. Industrial applications: Provide signal and power transmission in robots, automation equipment, and testing equipment.
application area
1. Audio equipment: Connect mixing consoles, amplifiers, speakers, etc. to ensure high-quality audio signal transmission.
2. Video equipment: used for connecting cameras, monitors, and other devices, suitable for applications that require high bandwidth and low latency.
3. Industrial control: Provide stable signal transmission in complex automation systems.
4. Medical equipment: Implement data exchange and power supply in medical instruments to ensure the normal operation of the equipment.
Precautions for use
1. Installation and operation:
Ensure alignment during connection and do not apply excessive force to avoid damaging the connector.
Please press the Push Pull mechanism when disassembling to ensure safe release.
2. Regular inspection:
Regularly inspect the contact points and housing of the connector to prevent corrosion or damage.
Check if the locking function is working properly and ensure that the connection remains secure.
3. Load requirements:
Ensure that the connectors used comply with the electrical specifications of the equipment and avoid overloading.
Different devices may have different requirements for current and voltage, please follow the corresponding standards.
4. Environmental adaptability:
When used in harsh environments, consider choosing connectors with additional protection levels.
Avoid long-term use of unprotected connectors in high temperature, humid, or dusty environments.
summary
The DIN male Push Pull Size 13 connector is an efficient, flexible, and easy-to-use connection solution, perfect for situations that require safe and stable connections. Its design ensures high-frequency operation and multiple connection configurations, making it very popular in audio/video and industrial applications. If you need more information or technical support about the DIN male Push Pull Size 13 connector, or specific technical specifications,
