KSD-DI-20F2-01

KSD-DI-20F2-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

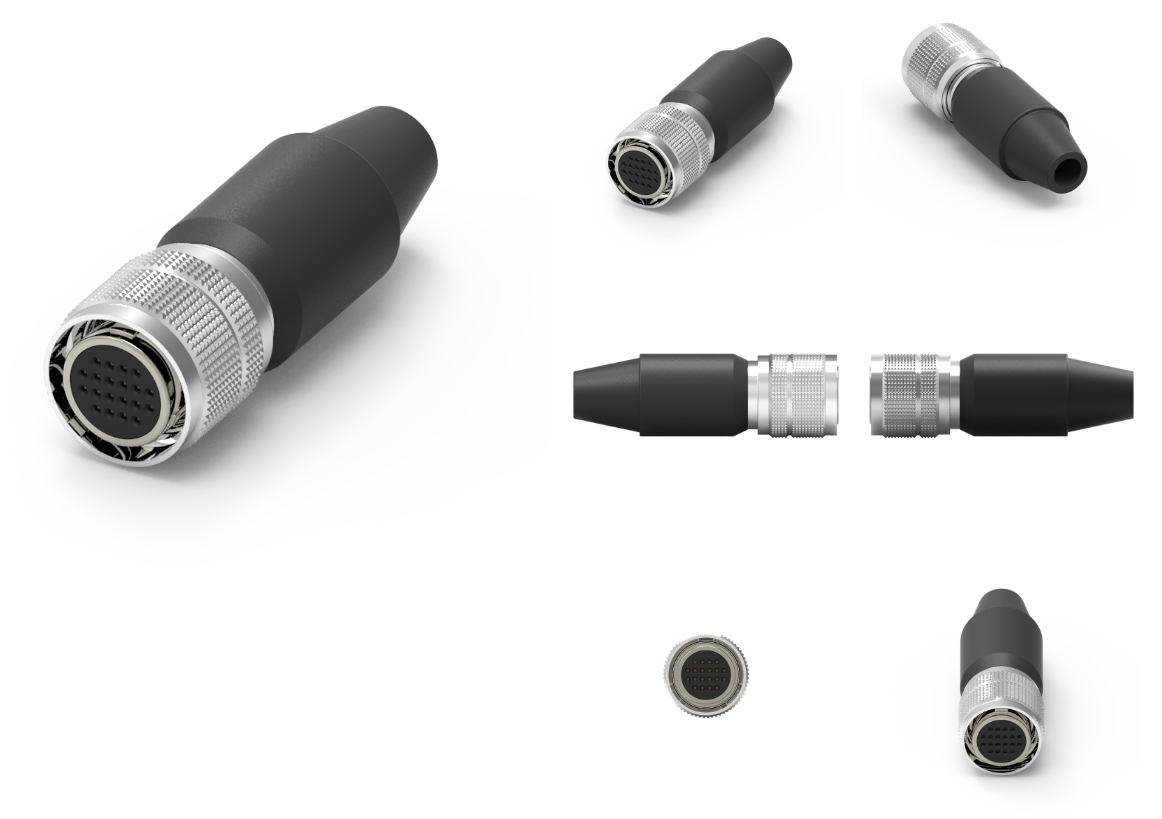

品名：Push Pull Size 13系列DIN 母头连接器
1.材料
1-1.外壳：尼龙46 UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 外壳A：锌合金
1-4.外壳B：黄铜
1-5.外壳：黄铜
1-6. 弹簧：不锈钢
1-7.螺钉：合金钢
1-8. 抽筋：黄铜
1-9.SR:NBR；颜色：黑色
2.完成：
2-1.触点：金色闪光
2-2.外壳A:镍
2-3.外壳B：缎面镍
2-4.外壳C：镍
2-5.弹簧：镍
2-6.螺钉：镍
3.电气规格:
3-1.额定电流：2A
3-2.额定电压：100V交流/140V直流
4.环境：
4-1.0工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Push Pull Size 13系列DIN母头连接器是一种高效和可靠的连接解决方案，特别适用于需要快速连接和断开的应用场景。此系列连接器广泛应用于音频、视频信号传输以及许多工业和医疗设备中。下面是关于Push Pull Size 13系列DIN母头连接器的详细信息。

特点
1.Push Pull连接机制：
使用简单，用户只需轻轻推入或拉出连接器，便可快速完成连接或断开，而无需旋转或复杂的机械操作。
这种设计有效减少了连接时间，提高了工作效率。

2.优良的材料和结构：
通常由高强度金属和耐用塑料制成，确保连接器在各种环境中可靠工作。
引脚部分常采用镀金或镀镍处理，提供优越的导电性能并防止腐蚀。

3.防护性能：
Push Pull设计具备良好的防尘和防水特性，适应多种环境条件，包括恶劣环境。
其密封特性使得该连接器非常适合在潮湿或尘埃较多的场合使用。

应用领域

1.音频和视频设备：
广泛应用于专业音响、乐器、广播设备和视频监控系统，提供高质量的信号传输。

2.工业自动化：
用于机器人、传感器和控制系统等领域，实现快速的连接和断开，有助于设备的高效运行。

3.医疗设备：
因其高可靠性和快速连接能力，常用于医疗仪器和设备中，确保设备能够在关键时刻迅速响应。

4.通信设备：
在数据传输和通信设备中，为其提供稳定的连接。

优势
提高效率：Push Pull机制大大简化了连接过程，适合频繁插拔的应用 scenario。

稳固的连接：设计确保在工作过程中不会轻易松动，提高了信号的稳定性。

代理相容性：Size 13标准连接器能够与多个设备相兼容，满足不同设备的连接需求。

使用注意事项

1.确保正确连接：在插入和拔出连接器时，请确保方向正确，避免强行连接导致损坏。

2.定期检查和维护：定期检查连接器的接触点及外观，确保没有污垢、磨损或腐蚀现象，保持良好的电气性能。

3.适宜的环境使用：尽管Push Pull连接器具备良好的防护性能，但仍建议在适宜的环境中使用，以延长其使用寿命。

小结
Push Pull Size 13系列DIN母头连接器在多个领域中提供了高效、可靠的连接解决方案。它们不仅提高了连接的便捷性，同时也确保了电气连接的稳定性和耐用性。如果您对该系列连接器有任何具体要求或需要进一步的信息（如技术规格、产品选型等），


Product Name: Push Pull Size 13 Series DIN Female Connector
1. Materials
1-1. Shell: Nylon 46 UL94V-0; Color: Black
1-2. Contact: Brass
1-3.  Shell A: Zinc alloy
1-4. Shell B: Brass
1-5. Shell: Brass
1-6.  Spring: Stainless steel
1-7. Screw: Alloy steel
1-8.  Cramp: Brass
1-9.SR: NBR； Color: Black
2. Complete:
2-1. Contact: Gold Flash
2-2. Shell A: Nickel
2-3. Shell B: Satin nickel
2-4. Shell C: Nickel
2-5. Spring: Nickel
2-6. Screw: Nickel
3. Electrical specifications:
3-1. Rated current: 2A
3-2. Rated voltage: 100V AC/140V DC
4. Environment:
4-1.0 Operating temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The Push Pull Size 13 series DIN female connector is an efficient and reliable connection solution, particularly suitable for applications that require quick connection and disconnection. This series of connectors is widely used for audio and video signal transmission, as well as in many industrial and medical devices. The following is detailed information about the Push Pull Size 13 series DIN female connector.

characteristic
1. Push Pull connection mechanism:
Easy to use, users only need to gently push in or pull out the connector to quickly connect or disconnect without the need for rotation or complex mechanical operations.
This design effectively reduces connection time and improves work efficiency.

2. Excellent materials and structures:
Usually made of high-strength metal and durable plastic, the connector ensures reliable operation in various environments.
The pin part is often treated with gold or nickel plating to provide superior conductivity and prevent corrosion.

3. Protective performance:
The Push Pull design has excellent dust and water resistance characteristics, adapting to various environmental conditions, including harsh environments.
Its sealing characteristics make the connector very suitable for use in damp or dusty environments.

application area

1. Audio and video equipment:
Widely used in professional audio, musical instruments, broadcasting equipment, and video surveillance systems, providing high-quality signal transmission.

2. Industrial automation:
Used in fields such as robots, sensors, and control systems to achieve fast connection and disconnection, which helps to ensure efficient operation of equipment.

3. Medical equipment:
Due to its high reliability and fast connection capability, it is commonly used in medical instruments and equipment to ensure that the equipment can respond quickly at critical moments.

4. Communication equipment:
Provide stable connections for data transmission and communication devices.

advantage
Improve efficiency: The Push Pull mechanism greatly simplifies the connection process and is suitable for application scenarios with frequent plugging and unplugging.

Stable connection: The design ensures that it will not easily loosen during operation, improving signal stability.

Proxy compatibility: The Size 13 standard connector is compatible with multiple devices, meeting the connection needs of different devices.

Precautions for use

1. Ensure correct connection: When inserting and removing connectors, make sure the direction is correct to avoid damage caused by forced connection.

2. Regular inspection and maintenance: Regularly inspect the contact points and appearance of the connector to ensure that there is no dirt, wear, or corrosion, and maintain good electrical performance.

3. Suitable environmental use: Although the Push Pull connector has good protective performance, it is still recommended to use it in a suitable environment to extend its service life.

Summary
The Push Pull Size 13 series DIN female connectors provide efficient and reliable connection solutions in multiple fields. They not only improve the convenience of connections, but also ensure the stability and durability of electrical connections. If you have any specific requirements or need further information about this series of connectors (such as technical specifications, product selection, etc.),
