KSD-LFH-60M1-01

KSD-LFH-60M1-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

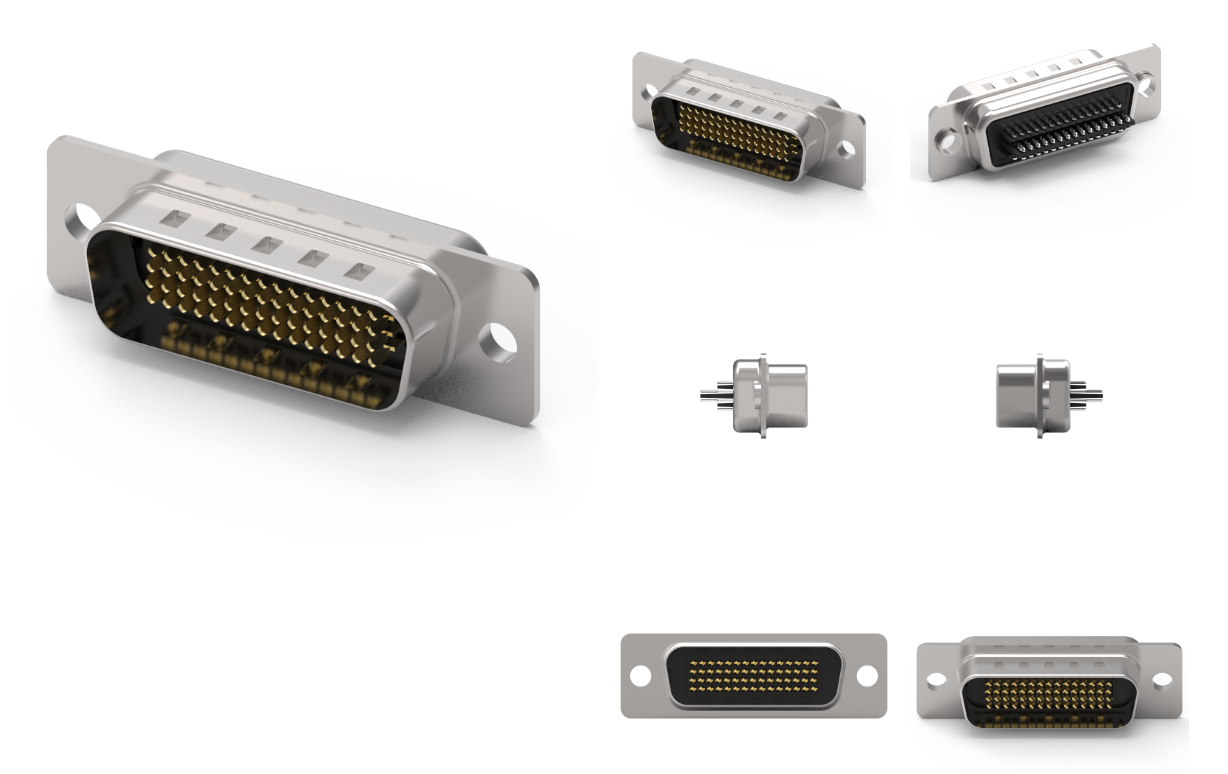

品名：D-Sub 公头60PIN 线端成型式连接器
注：
1.安全性：
1-1.额定电流：1A
1-2.额定电压：40VAC
1-3.绝缘电阻：在50OV DC下至少10欧姆，持续1分钟
1-4.风力发电机：500伏交流电1分钟
2.材料：
2-1.插件：LCP
2-2.端子/引脚：黄铜/磷青铜/PBT
2-3.铁壳：铁0.4m/m
3.电线/镀层：端子/引脚：见表A
品牌：科斯达开关KSDKG
产地：中国东莞


D-Sub 60针公头（D-Sub 60PIN Male Connector）线端成型连接器 是一种常用的电气连接器，广泛应用于计算机、通信和工业设备等领域。D-Sub连接器以其可靠性和灵活性著称，适合于多种信号和电源连接。

D-Sub 60针公头连接器概述

特征
1.针脚数：
D-Sub 60针连接器通常有60个独立针脚，适用于需要多个信号或电源连接的场合。

2.形状与标准：
D-Sub连接器具有明显的D形外壳设计，确保易于插拔且不容易错插。符合相关国际标准（如MIL-C-24308）。

3.线端成型式：
线端成型连接器是指连接器的针脚部分已经成型，用户只需连接相应的电缆，通常采用焊接或螺丝固定方式，简化了安装过程。

4.材料：
外壳通常采用镀镍或镀锌的金属材料，具有良好的抗腐蚀性，内针脚则可能用铜合金制造，以确保良好的电气导通性能。

5.防护等级：
部分D-Sub连接器可选用防护设计，如防尘、防水等，适合在恶劣环境中使用。

性能参数
额定电流：一般在1A至3A之间（具体根据型号而定）。

额定电压：通常为250V AC（具体根据设计标准不同可能有所变化）。

工作温度：通常为-20°C至+70°C，以适应不同应用场合。

应用领域

1.计算机接口：
常用于计算机与外部设备的连接，例如并口和串口通信。

2.工业自动化：
用于PLC、传感器和执行器之间的信号连接。

3.通信设备：
在通信系统中用于信号传输，例如电话交换机和网络设备。

4.嵌入式系统：
多用于各种嵌入式设备中的信号传输和模块间连接。

安装与维护建议
1.正确连接：
在安装时确保针脚对齐，精确插入，避免误插造成损坏。

2.定期检查接触点：
定期检查连接器的接触点，确保没有污垢、腐蚀或物理损坏，以保持良好的电气性能。

3.线缆管理：
合理布线，避免拉扯和扭曲，保护连接器和连接的电缆。

4.遵循额定规格：
确保不超负荷使用，根据制造商的说明使用连接器，避免过大的电流和电压。

总结
D-Sub 60针公头线端成型式连接器 是一种高效、可靠的连接方案，适用于多种应用场合。它的多针脚设计和线端成型方式使其在需要多信号传输的电气连接中表现突出。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: D-Sub Male 60PIN Wire End Forming Connector
Note:
1. Security:
1-1. Rated current: 1A
1-2. Rated voltage: 40VAC
1-3. Insulation resistance: At least 10 ohms at 50OV DC for 1 minute
1-4. Wind turbine: 500 volt AC for 1 minute
2. Materials:
2-1. Plugin: LCP
2-2. Terminals/pins: brass/phosphor bronze/PBT
2-3. Iron shell: Iron 0.4m/m
3. Wires/Coatings: Terminals/Pins: See Table A
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


D-Sub 60PIN Male Connector is a commonly used electrical connector, widely used in fields such as computers, communications, and industrial equipment. D-Sub connectors are known for their reliability and flexibility, making them suitable for connecting various signals and power sources.

Overview of D-Sub 60 pin male connector

features
1. Pin count:
D-Sub 60 pin connectors typically have 60 independent pins, making them suitable for situations that require multiple signal or power connections.

2. Shape and standard:
The D-Sub connector features a distinct D-shaped housing design, ensuring easy insertion and removal without the risk of misplacement. Compliant with relevant international standards (such as MIL-C-24308).

3. End forming type:
A wire end formed connector refers to a connector whose pin parts have already been formed, and users only need to connect the corresponding cables. It is usually fixed by welding or screws, simplifying the installation process.

4. Materials:
The outer shell is usually made of nickel plated or galvanized metal material, which has good corrosion resistance, while the inner pins may be made of copper alloy to ensure good electrical conductivity.

5. Protection level:
Some D-Sub connectors can be designed with protective features such as dust and water resistance, making them suitable for use in harsh environments.

performance parameter
Rated current: generally between 1A and 3A (depending on the model).

Rated voltage: typically 250V AC (may vary depending on design standards).

Working temperature: usually ranging from -20 ° C to+70 ° C to adapt to different application scenarios.

application area

1. Computer interface:
Commonly used for connecting computers with external devices, such as parallel and serial communication.

2. Industrial automation:
Used for signal connection between PLC, sensors, and actuators.

3. Communication equipment:
Used for signal transmission in communication systems, such as telephone exchanges and network equipment.

4. Embedded systems:
It is commonly used for signal transmission and inter module connections in various embedded devices.

Installation and maintenance recommendations
1. Correct connection:
Ensure pin alignment and precise insertion during installation to avoid damage caused by accidental insertion.

2. Regularly check contact points:
Regularly inspect the contact points of the connector to ensure that there is no dirt, corrosion, or physical damage to maintain good electrical performance.

3. Cable management:
Reasonable wiring, avoiding pulling and twisting, protecting connectors and connected cables.

4. Follow the rated specifications:
Ensure not to overload, use connectors according to the manufacturer's instructions, and avoid excessive current and voltage.

summary
The D-Sub 60 pin male end molded connector is an efficient and reliable connection solution suitable for various applications. Its multi pin design and wire end forming method make it stand out in electrical connections that require multiple signal transmissions. If you have further questions or need specific technical parameters, please feel free to contact the technician!
