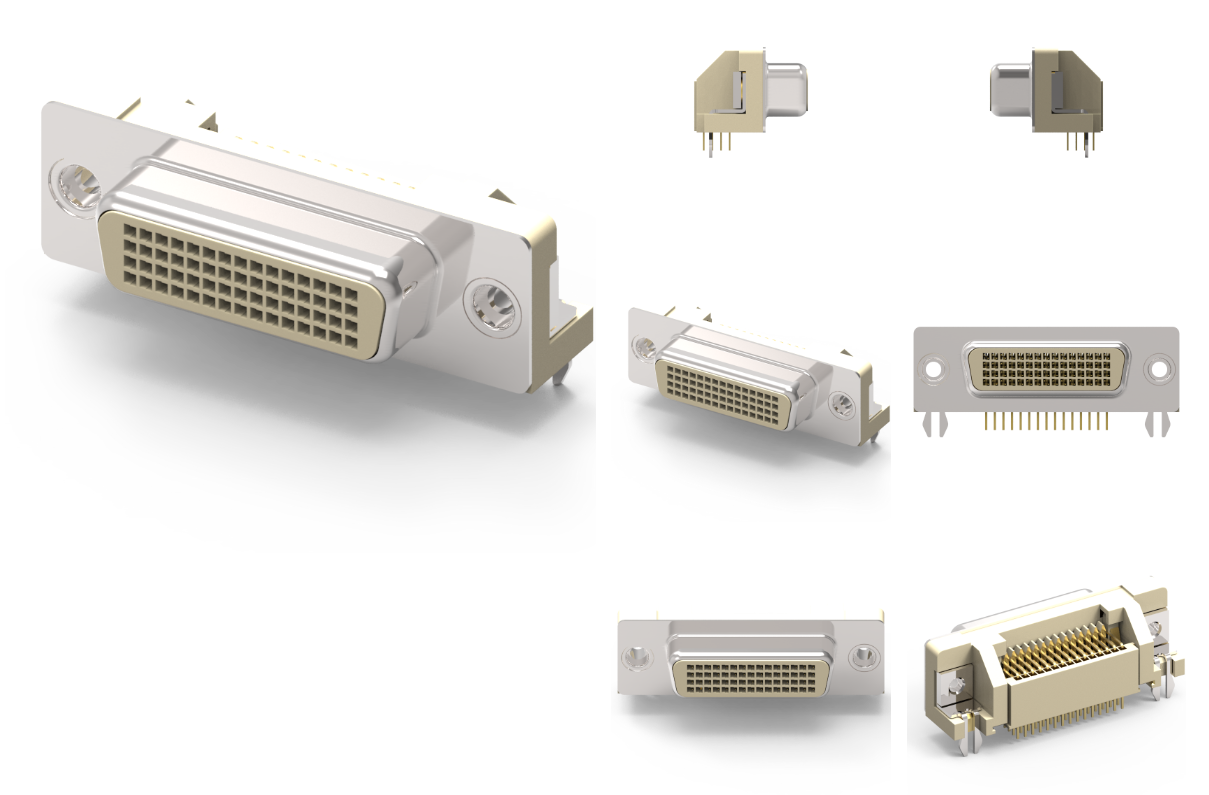

品名：D-Sub 母头60PIN 90°插板式连接器
额定电流：1A
额定电压：40VAC
1.材料：
1-1. 外壳：LCP UL94V0；颜色：灰白色
1-2.触点：磷青铜
1-3.外壳：SPCC
1-4.板锁：黄铜
1-5.螺钉：黄铜
1-6.后盖：LCP UL94V0；颜色：灰白色
2.完成
2-1.联系方式：
接触面积：镀金
焊接区域：镀金
底板：镍
2-2.外壳：镀镍，
2-3.板锁：光亮镀锡
2-4.螺钉：镀镍
品牌：科斯达开关KSDKG
产地：中国东莞
D-Sub 60针母头（D-Sub 60PIN Female Connector）90°插板式连接器 是一种广泛应用于电气连接的组件，特别适用于各种数据和信号传输的场合。90°插板式设计使得该类型连接器在空间受限的区域特别有用。
D-Sub 60针母头连接器概述
特征
1.60针设计：
该连接器有60个针脚，适用于多信号传输或多个电源连接，能够满足多种应用需求。
2.90°插板式：
90°的插头设计使得连接器可以在水平或垂直空间有限的情况下更容易安装和使用。这种设计有助于节省空间并适应各种机壳设计。
3.标准兼容性：
D-Sub连接器通常符合相关国际标准（如MIL-C-24308），可确保互换性和可靠性。
4.材料选择：
通常外壳由耐腐蚀的金属材料制成（如镀镍），针脚则用优质铜合金制造，以实现良好的导电性能。
5.螺丝固定或焊接：
一般具有螺丝固定功能或者阀片，可以确保连接牢固可靠。
性能参数
额定电流：通常在1A到3A之间，具体取决于设计和应用。
额定电压：一般为250V AC。
工作温度范围：通常在-20°C至+70°C之间。
应用领域
1.计算机和外围设备：
常用于计算机系统与打印机、扫描仪等外围设备的连接。
2.工业自动化：
用于PLC系统、传感器和执行器等工业设备之间的连接。
3.通信设备：
在通信系统、网络设备中提供信号和数据连接。
4.嵌入式系统：
可用在各种嵌入式系统中进行模块间的信号交换。
安装与维护建议
1.连接前检查：
在连接之前，确保连接器和相应的插座没有损坏或污垢，以确保良好的接触。
2.正确导向：
在安装过程中，确保连接器的定位孔与母插座对齐，避免不当插入。
3.固定稳固：
使用螺钉或阀片确保连接器稳固安装，防止在振动或移动时松动。
4.定期维护：
定期检查连接器的状态，包括针脚接触的氧化情况，必要时进行清洁维护。
总结
D-Sub 60针母头90°插板式连接器 提供了一种高效可靠的连接解决方案，适用于多种应用环境。其灵活的90°设计特别适合有限空间使用。若您有更多关于该连接器的具体应用或技术要求，欢迎联系技术员！
Product Name: D-Sub Female Head 60PIN 90 ° Plug in Plate Connector
Rated current: 1A
Rated voltage: 40VAC
1. Materials:
1-1. Shell: LCP UL94V0； Color: gray white
1-2. Contact: phosphor bronze
1-3. Shell: SPCC
1-4. Plate lock: brass
1-5. Screw: brass
1-6. Rear cover: LCP UL94V0； Color: gray white
2. Complete
2-1. Contact Information:
Contact area: Gold plating
Welding area: Gold plating
Bottom plate: Nickel
2-2. Shell: Nickel plated,
2-3. Board lock: Bright tin plating
2-4. Screw: Nickel plated
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The D-Sub 60PIN Female Connector, a 90 ° plug-in connector, is a widely used component for electrical connections, particularly suitable for various data and signal transmission scenarios. The 90 ° plug-in design makes this type of connector particularly useful in areas with limited space.
Overview of D-Sub 60 pin female connector
features
1.60 pin design:
This connector has 60 pins and is suitable for multi signal transmission or multiple power connections, meeting various application needs.
2.90 ° plug-in plate:
The 90 ° plug design makes the connector easier to install and use in situations where horizontal or vertical space is limited. This design helps to save space and adapt to various chassis designs.
3. Standard compatibility:
D-Sub connectors typically comply with relevant international standards (such as MIL-C-24308) to ensure interchangeability and reliability.
4. Material selection:
The shell is usually made of corrosion-resistant metal materials (such as nickel plating), and the pins are made of high-quality copper alloy to achieve good conductivity.
5. Screw fixation or welding:
Generally, it has screw fixing function or valve plate, which can ensure a firm and reliable connection.
performance parameter
Rated current: usually between 1A and 3A, depending on the design and application.
Rated voltage: generally 250V AC.
Working temperature range: typically between -20 ° C and+70 ° C.
application area
1. Computers and peripherals:
Commonly used for connecting computer systems with peripheral devices such as printers and scanners.
2. Industrial automation:
Used for connecting industrial equipment such as PLC systems, sensors, and actuators.
3. Communication equipment:
Provide signal and data connections in communication systems and network devices.
4. Embedded systems:
It can be used for signal exchange between modules in various embedded systems.
Installation and maintenance recommendations
1. Check before connection:
Before connecting, ensure that the connector and corresponding socket are not damaged or dirty to ensure good contact.
2. Correct orientation:
During installation, ensure that the positioning holes of the connector are aligned with the female socket to avoid improper insertion.
3. Fixed and stable:
Use screws or valve plates to ensure a stable installation of the connector and prevent loosening during vibration or movement.
4. Regular maintenance:
Regularly check the status of the connector, including the oxidation of pin contacts, and perform cleaning and maintenance if necessary.
summary
The D-Sub 60 pin female head 90 ° plug-in connector provides an efficient and reliable connection solution, suitable for various application environments. Its flexible 90 ° design is particularly suitable for use in limited spaces. If you have more specific applications or technical requirements about this connector, please feel free to contact the technician!
