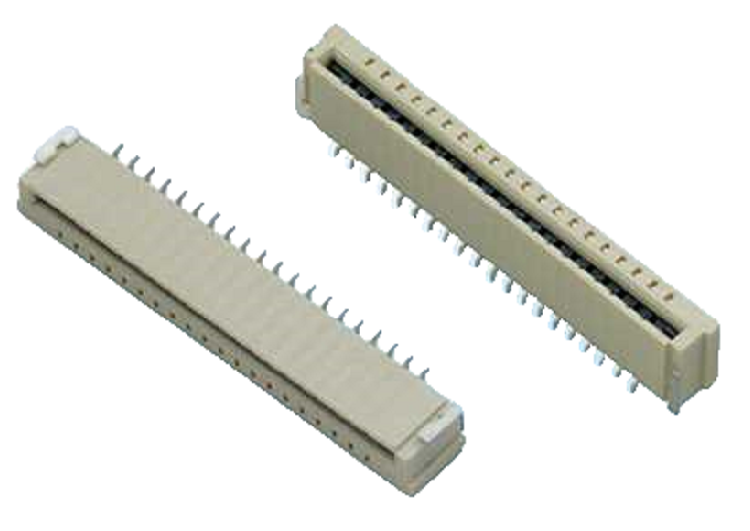

KSD-FPC-100-101-H2.7后压 (蝴蝶扣)

KSD-FPC-100-101-H2.7后压 (蝴蝶扣)

  • 产品特性
  • 应用范围

图纸下载 样品申请


产品名称:FPC连接器1.0间距
注:
1.材料
1.1:外壳:LCP,UL94-V0,颜色:黑色
1.2:执行器:LCP,UL94-VO,颜色:黑色。
1.3:触点:磷青铜。
1.4:支腿:黄铜。
2.电镀
2.1:触点:镀金
2.2:LEG:镀镍亚光镀锡。
3.评级:
3.1:工作电压:30V AC/DC
3.2:额定电流:0.2A AC/DC。
3.3:工作温度:-55℃~+85℃
产品符合:ROHS
品牌:科斯达开关 KSDKG
产地:中国东莞


FPC连接器指的是柔性印刷电路连接器(Flexible Printed Circuit Connector),通常用于连接柔性电路板与其他电子部件。1.0间距描述的是连接器各个引脚或接触点之间的中心到中心的距离为1.0毫米。
1.0间距FPC连接器的特点:
1.紧凑设计:1.0 mm的间距使得连接器在空间受限的环境中仍能有效利用空间,适用于小型化电子设备。

2.高密度连接:较小的引脚间距允许在有限的空间内增加更多的引脚数,适合需要高数据传输速率的应用。

3.应用广泛:1.0 mm间距的FPC连接器常用于手机、平板电脑、相机、医疗设备和其他可穿戴电子设备中。

4.耐用性:虽然这些连接器小巧,但可以设计得非常耐用,适合频繁的插拔操作。

5.多种配置:市场上有多种类型的FPC连接器,包含不同的插入方向、锁定机制和引脚数量,以满足不同的设计需求。

6.焊接和插拔方式:可以通过表面贴装方式或穿孔插孔方式进行安装,适应不同的制造工艺。

选择时考虑的因素:
引脚数:确定所需的连接器引脚数量以满足电路需求。

高度:需要考虑连接器的高度以确保与其他组件的兼容性。

安装方式:选择合适的安装方式(表面贴装或焊接)以适应生产流程。

如果您有具体的应用需求或者技术要求,可以提供更多信息,以便更好地为您解答。
1.FPC连接器(柔性印刷电路连接器)采用1.0mm间距设计,其主要特点包括:

2.紧凑设计:1.0mm的间距使得FPC连接器非常紧凑,适合于空间受限的应用,能够满足小型化设备的需求。

3.高密度连接:由于间距小,在相同面积内可以实现更多的信号通道,适合用于高密度的电路设计。

4.多种类型:1.0mm间距的FPC连接器有多种类型可供选择,如0.5、1.0、2.0等肩宽和不同的接触类型,可以满足不同应用的需求。

5.良好的信号传输:适用于高频信号传输,能保持较低的信号损耗和干扰。

6.方便的安装:通常采用自锁结构,连接稳定,同时也有利于PCB的装配和生产。

7.耐用性:大多数1.0mm FPC连接器具有较高的插拔次数,能够满足日常使用的耐久性要求。

适用行业广泛:广泛应用于手机、平板电脑、医疗设备、消费电子、汽车电子等领域。



Product Name: FPC Connector 1.0 Pitch
Note:
1. Materials
1.1: Shell: LCP, UL94-V0, color: black
1.2: actuator: LCP, UL94-VO, color: black.
1.3: Contact: phosphor bronze.
1.4: Legs: Brass.
2. Electroplating
2.1: Contact: Gold plating
2.2: LEG: Nickel plated matte tin plated.
3. Rating:
3.1: Working voltage: 30V AC/DC
3.2: Rated current: 0.2A AC/DC.
3.3: Working temperature: -55 ℃~+85 ℃
Product compliance: ROHS
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


FPC connector refers to a flexible printed circuit connector, typically used to connect flexible circuit boards with other electronic components. The 1.0 spacing describes a center to center distance of 1.0 millimeters between each pin or contact point of the connector.
Characteristics of 1.0 pitch FPC connector:
1. Compact design: The 1.0 mm spacing allows the connector to effectively utilize space in confined environments, making it suitable for miniaturized electronic devices.

2. High density connection: The smaller pin spacing allows for an increase in the number of pins within a limited space, making it suitable for applications that require high data transmission rates.

3. Wide application: FPC connectors with a spacing of 1.0 mm are commonly used in mobile phones, tablets, cameras, medical devices, and other wearable electronic devices.

4. Durability: Although these connectors are compact, they can be designed to be very durable and suitable for frequent plugging and unplugging operations.

5. Multiple configurations: There are various types of FPC connectors on the market, including different insertion directions, locking mechanisms, and pin numbers, to meet different design requirements.

6. Welding and plugging methods: Installation can be carried out through surface mount or perforated socket methods to adapt to different manufacturing processes.

Factors to consider when making a choice:
Pin count: Determine the required number of connector pins to meet circuit requirements.

Height: The height of the connector needs to be considered to ensure compatibility with other components.

Installation method: Choose the appropriate installation method (surface mount or welding) to adapt to the production process.

If you have specific application or technical requirements, we can provide more information to better answer them for you.
1. The FPC connector (flexible printed circuit connector) adopts a 1.0mm spacing design, and its main features include:

2. Compact design: The 1.0mm spacing makes the FPC connector very compact, suitable for space limited applications and able to meet the needs of miniaturized devices.

3. High density connection: Due to the small spacing, more signal channels can be achieved within the same area, making it suitable for high-density circuit design.

4. Multiple types: There are various types of FPC connectors with a spacing of 1.0mm to choose from, such as 0.5, 1.0, 2.0 shoulder widths and different contact types, which can meet the needs of different applications.

5. Good signal transmission: suitable for high-frequency signal transmission, able to maintain low signal loss and interference.

6. Convenient installation: Usually adopts self-locking structure, stable connection, and is also conducive to PCB assembly and production.

7. Durability: Most 1.0mm FPC connectors have a high number of insertions and removals, which can meet the durability requirements for daily use.

Widely applicable industries: widely used in fields such as mobile phones, tablets, medical equipment, consumer electronics, automotive electronics, etc.
