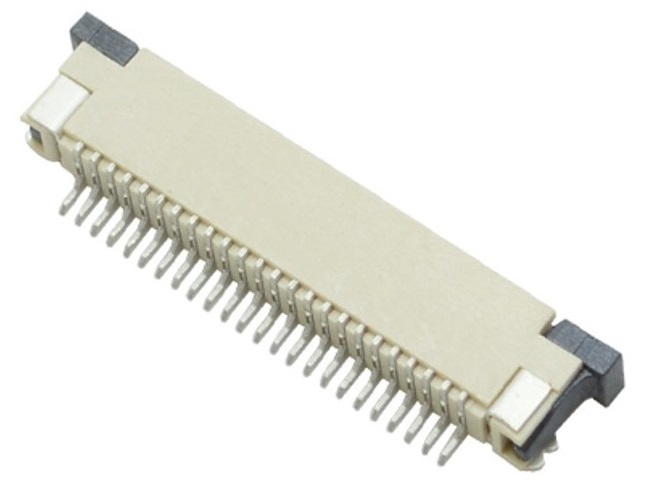

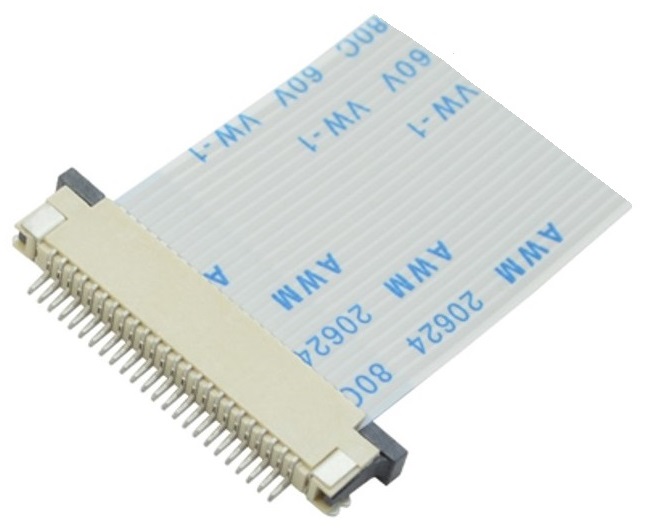

KSD-FPC-008-005 0.8mm抽屉上接

KSD-FPC-008-005 0.8mm抽屉上接

  • 产品特性
  • 应用范围

图纸下载 样品申请

产品名称：FPC连接器0.8间距
注：
1.材料
1.1：外壳：LCP UL94-V0颜色：自然色。或黑色
1.2：执行器：LCP UL94-V0颜色：黑色或自然色
1.3：触点：磷青铜。
1.4:LEG：磷青铜。
2.电镀
2.1:：LEG：镍上镀亚光锡
3.评级：
3.1:工作电压：30V AC/DC
3.2：额定电流：0.2A AC/DC。
3.3：工作温度：-55℃~+85℃。
产品符合：ROHS
品牌：科斯达开关 KSDKG
产地：中国东莞


FPC连接器（柔性印刷电路连接器）0.8间距是指连接器的引脚间距为0.8毫米。这种连接器广泛应用于电子设备中，特别是在需要连接柔性电路板和其他电路板或组件时。
特点和应用：
1.紧凑设计：0.8mm间距的设计使其适合于空间有限的应用，如手机、平板电脑和其他便携式电子设备。

2.高密度连接：这种连接器可以在较小的空间内实现更多的连接，引脚数量通常从几个到几十个不等。

3.柔性特性：FPC本身是柔性的，能够适应复杂的内部结构布局，提供灵活的安装方案。

4.信号传输：通常用于低电压和低功耗的信号传输，适合用于数字信号和模拟信号连接。

5.常见行业：广泛应用于消费电子、通信设备、工业控制、医疗设备等领域。

选购与考虑因素：
引脚数量：根据具体应用需求选择合适的引脚数量。

温度范围：确保连接器能够在特定的工作温度范围内正常工作。

材料与耐用性：考虑连接器材料的耐腐蚀性和耐磨损性，确保长期使用的可靠性。

配件：通常还需要考虑连接器的配套线缆和插头，以确保连接的稳定性和适配性。

在选择和设计时，应根据具体应用场景的需求进行综合考虑。


FPC连接器（柔性印刷电路连接器）的0.8间距特点包括：
1.紧凑设计：0.8mm的间距适合小型化电子设备，节省空间，支持高密度布局。

2.高带宽：由于设计精细，适用于高速信号传输，能够满足高频率的应用需求。

3.多种类型：市场上有多种类型的0.8mm FPC连接器，包括直插式和弯插式，适应不同的安装需求。

4.易于焊接：大多数0.8mm连接器采用表面贴装技术（SMD），焊接容易，适合自动化生产。

5.耐用性：设计多为防尘和防水特性，增强了在苛刻环境下的使用性能。

6.灵活性：适用于各种电路应用，从消费电子到工业设备，提供了良好的适应性。

7.可靠性：在经过严格的质量测试后，确保在长期使用中的可靠性，降低故障率。

在选择和使用0.8mm间距的FPC连接器时，应根据具体的应用需求来考虑其性能参数和兼容性。


Product Name: FPC Connector 0.8 Pitch
Note:
1. Materials
1.1: Shell: LCP UL94-V0 Color: Natural color. Or black
1.2: actuator: LCP UL94-V0 color: black or natural color
1.3: Contact: phosphor bronze.
1.4: LEG: phosphor bronze.
2. Electroplating
2.1: LEG: Matte tin plating on nickel
3. Rating:
3.1: Working voltage: 30V AC/DC
3.2: Rated current: 0.2A AC/DC.
3.3: Working temperature: -55 ℃~+85 ℃.
Product compliance: ROHS
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


FPC connector (flexible printed circuit connector) 0.8 spacing refers to the pin spacing of the connector being 0.8 millimeters. This type of connector is widely used in electronic devices, especially when connecting flexible circuit boards and other circuit boards or components.
Features and Applications:
1. Compact design: The 0.8mm spacing design makes it suitable for applications with limited space, such as mobile phones, tablets, and other portable electronic devices.

2. High density connection: This type of connector can achieve more connections in a smaller space, and the number of pins usually ranges from a few to dozens.

3. Flexibility feature: FPC itself is flexible and can adapt to complex internal structural layouts, providing flexible installation solutions.

4. Signal transmission: Typically used for low-voltage and low-power signal transmission, suitable for connecting digital and analog signals.

5. Common industries: widely used in consumer electronics, communication equipment, industrial control, medical equipment and other fields.

Selection and considerations:
Pin quantity: Choose the appropriate pin quantity according to specific application requirements.

Temperature range: Ensure that the connector can operate normally within a specific working temperature range.

Materials and Durability: Consider the corrosion resistance and wear resistance of connector materials to ensure long-term reliability.

Accessories: It is usually necessary to consider the matching cables and plugs of the connector to ensure the stability and adaptability of the connection.

When selecting and designing, comprehensive consideration should be given to the specific requirements of the application scenario.


The 0.8 pitch characteristics of FPC connectors (flexible printed circuit connectors) include:
1. Compact design: 0.8mm spacing is suitable for miniaturized electronic devices, saving space and supporting high-density layout.

2. High bandwidth: Due to its precise design, it is suitable for high-speed signal transmission and can meet the requirements of high-frequency applications.

3. Multiple types: There are various types of 0.8mm FPC connectors on the market, including direct insertion and bending insertion, to meet different installation needs.

4. Easy to solder: Most 0.8mm connectors use surface mount technology (SMD), which is easy to solder and suitable for automated production.

5. Durability: The design is mostly dustproof and waterproof, enhancing its performance in harsh environments.

6. Flexibility: Suitable for various circuit applications, from consumer electronics to industrial equipment, providing good adaptability.

7. Reliability: After rigorous quality testing, ensure reliability in long-term use and reduce failure rates.

When selecting and using FPC connectors with a spacing of 0.8mm, their performance parameters and compatibility should be considered based on specific application requirements.
