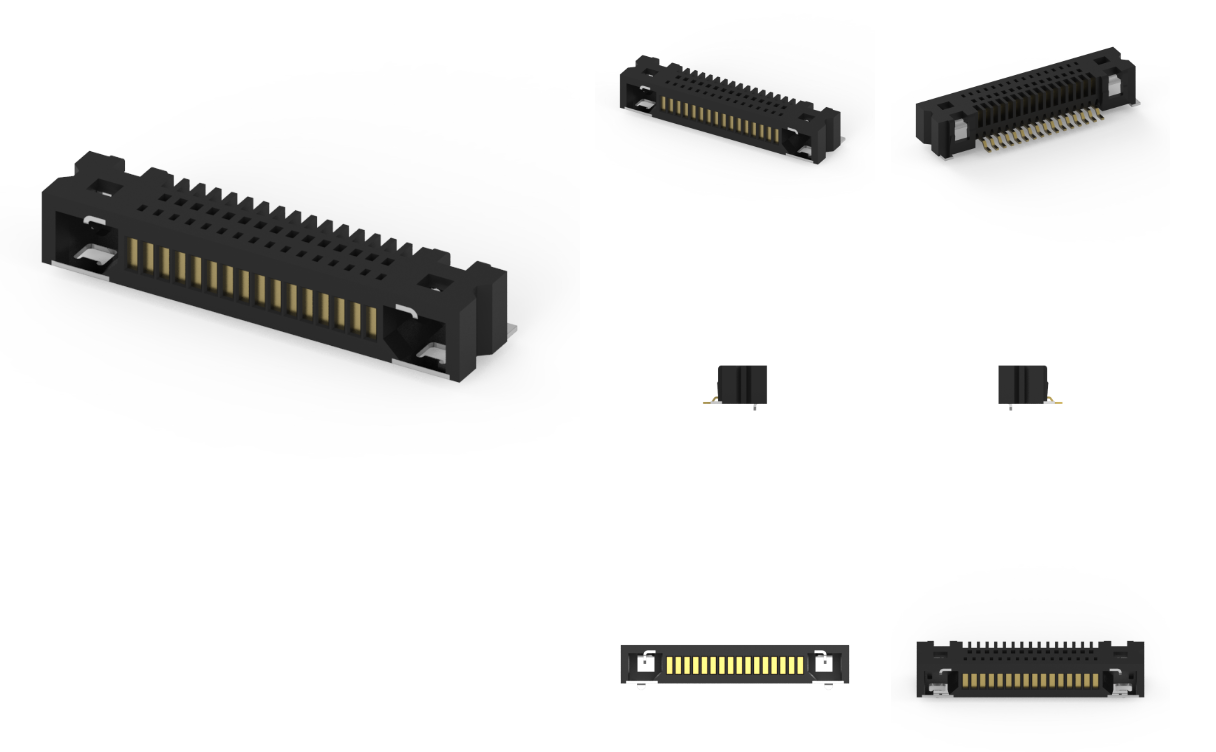

品名：HandyLink 母头连接器
1.材料
1-1.外壳：LCP UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：不锈钢
2.完成
2-1.接触：接触面积见表A
整体镀镍150u”
2-2.外壳：整体为100u"哑光锡
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：30V
4.环境：
4-1.工作温度：-40℃~80℃
品牌：科斯达开关KSDKG
产地：中国东莞
HandyLink 母头连接器 是一种广泛应用于电子设备中用于连接和配对的接口。此类连接器因其设计紧凑、可靠性高以及易于操作而备受欢迎，特别是在需要频繁插拔的应用场景中。
HandyLink 母头连接器概述
特征
1.紧凑设计：
HandyLink 母头连接器的尺寸设计小巧，适合在空间受限的环境中使用，可以轻松集成到各种设备中。
2.多种针脚配置：
根据不同的应用需求，HandyLink 母头连接器通常提供多种针脚数量和排列方式，支持多路信号传输。
3.高可靠性和耐用性：
该连接器经过设计可以耐受频繁的插拔，确保在使用过程中的良好电接触，减少故障率。
4.电气性能：
适用于多种电流和电压规格，确保在不同应用中能够实现安全且稳定的电气连接。
5.材料与抗干扰设计：
通常采用铝合金或塑料外壳，配有适当的防护措施，保障连接器免受环境因素的影响（如灰尘和湿气）。
性能参数
额定电流：通常在1A到10A之间，具体取决于型号和应用。
额定电压：一般在30V到500V之间，选择适合的型号以符合特定应用需求。
工作温度范围：通常为-40°C到+85°C，适用于冷冻和加热的环境。
应用领域
1.工业自动化：
用于传感器、执行器和控制器之间的连接，实现数据采集和控制功能。
2.通信设备：
连接各种通信设备，如交换机、路由器、基站等，确保信号的流畅传输。
3.消费电子：
应用于音响设备、计算机和各类触控设备，为用户提供简单、快速的连接体验。
4.医疗设备：
在医疗仪器和监测设备中，实现稳定和可靠的电源和信号连接。
5.汽车电子：
用于汽车中的各种电气系统，支持传感器、控制单元和照明设备等。
安装与维护建议
1.连接前检查：
确保连接器和插座的接触面清洁，避免灰尘和污垢影响连接质量。
2.确认插入方向：
插入连接器时，应确保按照规定的方向正确插入，以防止物理损坏。
3.防止强力插拔：
在拔出连接器时，避免使用过大的力量，以防引脚弯曲或损坏。
4.定期检查：
定期检查连接器的状态，尤其是在严重振动或高温条件下工作时，以确保其性能。
总结
HandyLink 母头连接器 是一种高效、可靠的连接解决方案，适用于多个领域和多种应用。凭借其耐用性和易用性，成为现代电子设备中不可或缺的一部分。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: HandyLink Female Connector
1. Materials
1-1. Shell: LCP UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Stainless steel
2. Complete
2-1. Contact: Contact area is shown in Table A
Overall nickel plating 150u
2-2. Shell: Overall made of 100u "matte tin
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 30V
4. Environment:
4-1. Working temperature:- 40℃~80℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
HandyLink female connector is an interface widely used in electronic devices for connection and pairing. This type of connector is popular due to its compact design, high reliability, and ease of operation, especially in applications that require frequent plugging and unplugging.
Overview of HandyLink Female Connector
features
1. Compact design:
The HandyLink female connector is designed to be compact and suitable for use in space constrained environments, making it easy to integrate into various devices.
2. Multiple pin configurations:
According to different application requirements, HandyLink female connectors typically offer multiple pin numbers and arrangements, supporting multi-channel signal transmission.
3. High reliability and durability:
This connector is designed to withstand frequent plugging and unplugging, ensuring good electrical contact during use and reducing failure rates.
4. Electrical performance:
Suitable for various current and voltage specifications, ensuring safe and stable electrical connections in different applications.
5. Materials and anti-interference design:
Usually, aluminum alloy or plastic casing is used with appropriate protective measures to protect the connector from environmental factors such as dust and moisture.
performance parameter
Rated current: usually between 1A and 10A, depending on the model and application.
Rated voltage: generally between 30V and 500V, choose the appropriate model to meet specific application requirements.
Working temperature range: typically -40 ° C to+85 ° C, suitable for both freezing and heating environments.
application area
1. Industrial automation:
Used for connecting sensors, actuators, and controllers to achieve data acquisition and control functions.
2. Communication equipment:
Connect various communication devices such as switches, routers, base stations, etc. to ensure smooth signal transmission.
3. Consumer electronics:
Applied to audio equipment, computers, and various touch devices, providing users with a simple and fast connection experience.
4. Medical equipment:
To achieve stable and reliable power and signal connections in medical instruments and monitoring equipment.
5. Automotive Electronics:
Used for various electrical systems in automobiles, supporting sensors, control units, lighting equipment, etc.
Installation and maintenance recommendations
1. Check before connection:
Ensure that the contact surfaces of the connector and socket are clean to avoid dust and dirt affecting the quality of the connection.
2. Confirm insertion direction:
When inserting the connector, make sure to insert it correctly in the specified direction to prevent physical damage.
3. Prevent strong plugging and unplugging:
When unplugging the connector, avoid using excessive force to prevent the pins from bending or being damaged.
4. Regular inspection:
Regularly check the status of the connector, especially when working under severe vibration or high temperature conditions, to ensure its performance.
summary
HandyLink female connector is an efficient and reliable connection solution suitable for multiple fields and applications. With its durability and ease of use, it has become an indispensable part of modern electronic devices. If you have further questions or need specific technical parameters, please feel free to contact the technician!
