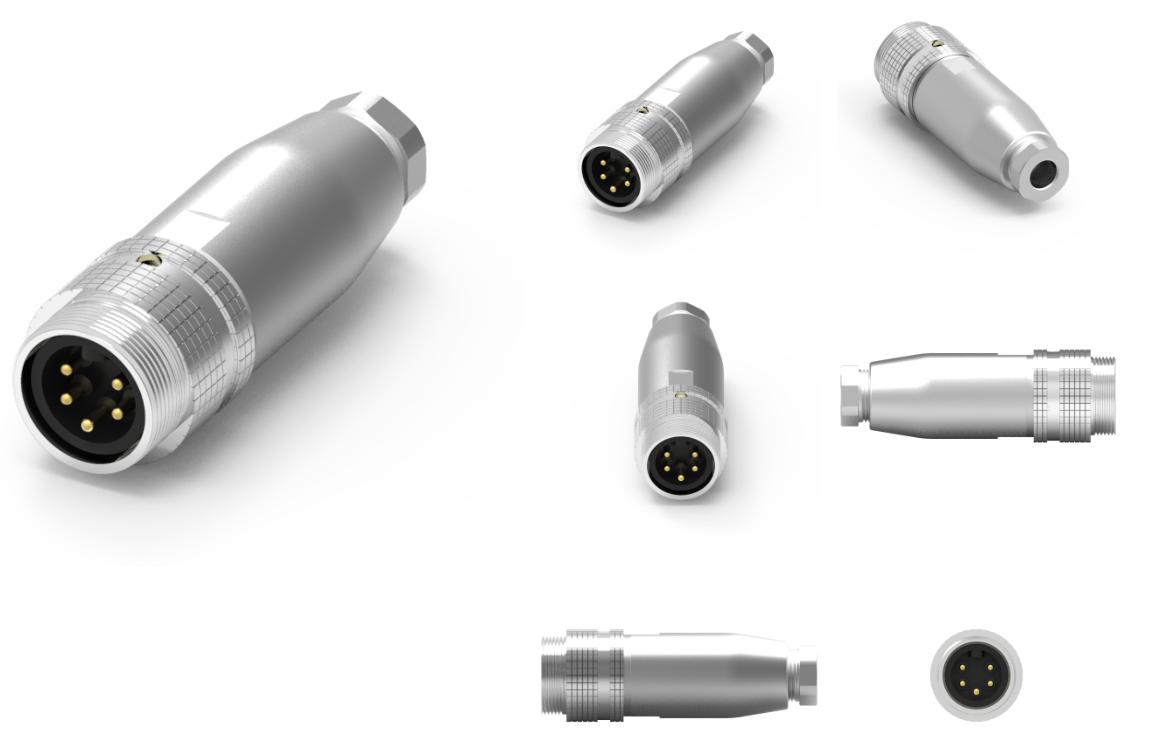

品名：M23 公头防水连接器
1.材料：
1-1.外壳：PBT UL94V-0；颜色：黑色。
1-2.弹簧：不锈钢。
1-3.O环：三元乙丙橡胶；颜色：黑色
1-4.输出A：黄铜
1-5.外壳：黄铜。
1-6.触点：黄铜
1-7.主体：铝合金。
1-8.压盖：硅胶颜色：黑色。
1-9.压盖笼：POM；颜色：白色。
1-10.螺母B：铝合金。
2.完成：
2-1.螺母-A：全部镀镍
2-2.外壳：表面镀镍
2-3.触点：30微米英寸。镀金
2-4. 主体：整体镀镍
2-5.螺母B：全部镀镍
3.电气规格
3-1，额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
M23 公头防水连接器概述
M23 公头防水连接器是一种专为严苛环境条件设计的电气连接器，广泛应用于工业自动化、交通运输、通讯、以及其他需要可靠防水和防尘特性的场合。这一类型的连接器提供了坚固的连接，确保设备在潮湿或多尘环境中的性能稳定。
主要特点
1.防水防尘设计：
高防护等级：M23 连接器通常达到 IP67 或更高的防护等级，能够有效阻止水和灰尘侵入，是户外和工业环境中的理想选择。
密封结构：采用优质的密封材料（如橡胶或硅胶），确保在连接时提供良好的密封性能。
2.可靠的连接性：
优化的插头设计：M23 公头连接器的插头设计配合精确，确保在插拔过程中的稳定性，减少接触不良的风险。
多针脚配置：可提供不同数量的针脚（如 3、4、5、6、7、12 针等），可以根据具体应用需求进行选择。
3.耐用性：
优质材料：使用高强度塑料和金属材料，具备抗震和抗冲击性，适合各种复杂环境。
温度适应性：设计可以承受较宽的工作温度范围，适用性强。
4.多功能性：
支持多种接线方式，包括螺纹连接、焊接、压接等，提供了灵活的安装选项。
应用领域
1.工业自动化：用于机器人、传感器、控制器和执行器之间的连接，提升设备的稳定性和通信性能。
2.汽车电子：在汽车照明、传感器及其他电子模块中使用，提供可靠的电气接入，确保高效能。
3.交通工程：适用于铁路、公共交通等领域，确保在各种环境下长时间稳定运行。
4.新能源领域：在光伏逆变器、风电设备等中提供安全稳定的连接，适应各种气候条件。
使用注意事项
1.安装前检查：在使用前检查连接器的密封状态和插头完整性，以确保连接良好。
2.定期保养：定期检查密封圈和连接器，清洁连接器表面，防止污垢影响性能。
3.遵循规范：按照制造商的要求进行正确的连接和安装，避免因操作不当造成的损坏。
4.负载及环境：确保在额定电流电压范围内使用，避免因过载导致连接器失效。
总结
M23 公头防水连接器是一款多功能、高可靠性的电气连接组件，适合在多种苛刻环境中使用。它凭借防水、防尘和耐用性特点，广泛应用于工业、汽车、交通等领域。若需更多信息或技术支持，欢迎联系技术员！
Product Name: M23 Male Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V-0； Color: Black.
1-2. Spring: Stainless steel.
1-3. O-ring: EPDM rubber; Color: Black
1-4. Output A: Brass
1-5. Shell: Brass.
1-6. Contact: Brass
1-7. Body: Aluminum alloy.
1-8. Cover: Silicone Color: Black.
1-9. Cover cage: POM； Color: White.
1-10. Nut B: Aluminum alloy.
2. Complete:
2-1. Nut-A: All nickel plated
2-2. Shell: Nickel plated surface
2-3. Contact: 30 micrometer inches. gold-plated
2-4. Main body: Whole nickel plating
2-5. Nut B: All nickel plated
3. Electrical specifications
3-1, rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of M23 Male Waterproof Connector
The M23 male waterproof connector is an electrical connector designed specifically for harsh environmental conditions, widely used in industrial automation, transportation, communication, and other applications that require reliable waterproof and dustproof characteristics. This type of connector provides a sturdy connection, ensuring stable performance of the device in humid or dusty environments.
main features
1. Waterproof and dustproof design:
High protection level: M23 connectors typically achieve a protection level of IP67 or higher, effectively preventing water and dust from entering, making them an ideal choice for outdoor and industrial environments.
Sealing structure: High quality sealing materials (such as rubber or silicone) are used to ensure good sealing performance during connection.
2. Reliable connectivity:
Optimized plug design: The plug design of the M23 male connector is precisely matched to ensure stability during insertion and removal, reducing the risk of poor contact.
Multi pin configuration: Different numbers of pins (such as 3, 4, 5, 6, 7, 12, etc.) can be provided, and can be selected according to specific application needs.
3. Durability:
High quality materials: using high-strength plastic and metal materials, with seismic and impact resistance, suitable for various complex environments.
Temperature adaptability: The design can withstand a wide range of working temperatures and has strong applicability.
4. Multifunctionality:
Supports multiple wiring methods, including threaded connections, welding, crimping, etc., providing flexible installation options.
application area
1. Industrial automation: used for connecting robots, sensors, controllers, and actuators to enhance equipment stability and communication performance.
2. Automotive electronics: Used in automotive lighting, sensors, and other electronic modules to provide reliable electrical connections and ensure high efficiency.
3. Transportation Engineering: Suitable for fields such as railways and public transportation, ensuring long-term stable operation in various environments.
4. In the field of new energy: providing safe and stable connections in photovoltaic inverters, wind power equipment, etc., to adapt to various climatic conditions.
Precautions for use
1. Pre installation inspection: Check the sealing status and plug integrity of the connector before use to ensure a good connection.
2. Regular maintenance: Regularly check the sealing ring and connector, clean the surface of the connector, and prevent dirt from affecting performance.
3. Follow the specifications: Connect and install correctly according to the manufacturer's requirements to avoid damage caused by improper operation.
4. Load and environment: Ensure use within the rated current and voltage range to avoid connector failure due to overload.
summary
The M23 male waterproof connector is a multifunctional and highly reliable electrical connection component, suitable for use in various harsh environments. It is widely used in industrial, automotive, transportation and other fields due to its waterproof, dustproof and durability characteristics. If you need more information or technical support, please feel free to contact the technician!
