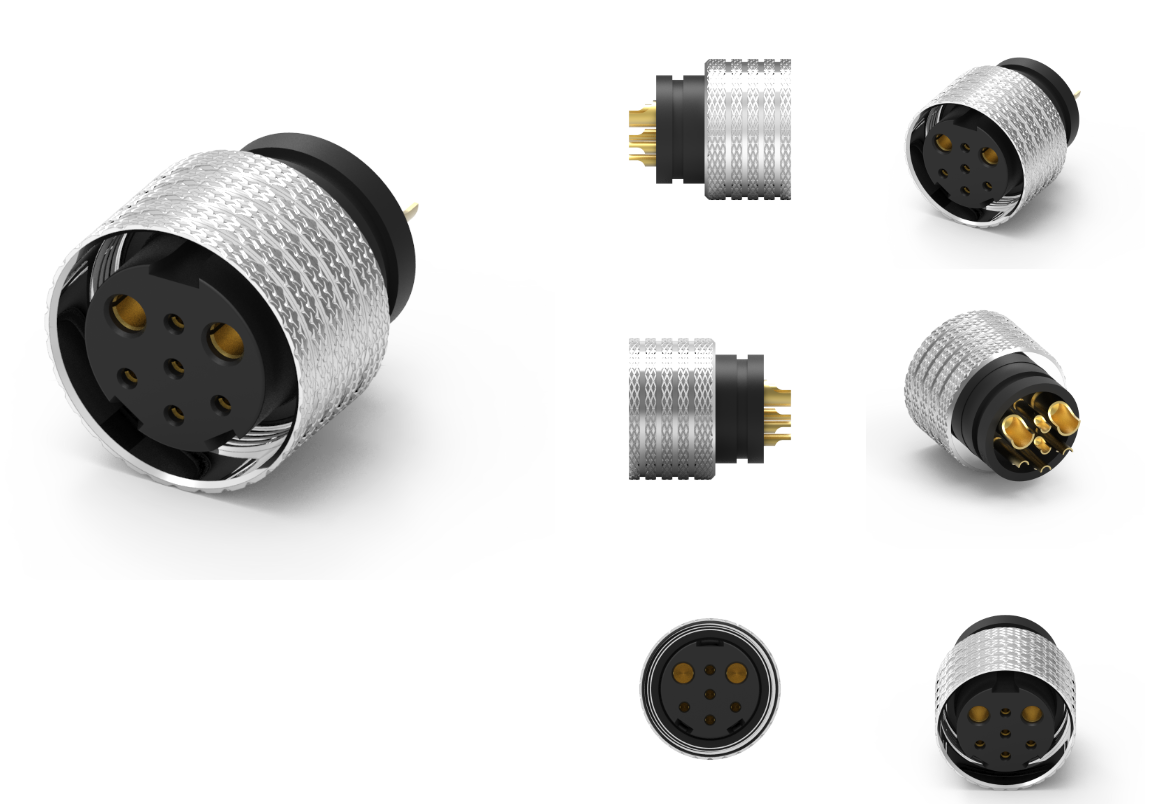

品名：M24 母头线端成型式防水连接器
1.材料
1-1.外壳：PBT UL94V0：颜色：黑色
1-2.触点：黄铜
1-3. 螺母：黄铜
1-4.O型圈：EPDM
2.完成：
2-1.触点：金闪光微英寸最小
底板：镍
2-2. 螺母：镀镍
3.电气规格：
3-1.额定电流：7.5A和25A
3-2.额定电压：125V和500V
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M24 母头线端成型式防水连接器概述
M24 母头线端成型式防水连接器是一种常用于电气连接的高性能连接器，特别适合在工业、自动化、通信、交通和能源等领域中应用。与公头连接器配合使用，这种连接器通常具有出色的防水、防尘性能，以确保在恶劣环境条件下也能正常工作。

主要特点
1.防水防尘设计：
高防护等级：M24 母头连接器通常具备 IP67 或更高的防护等级，能够有效阻止水和灰尘的进入，确保其在潮湿及浑浊环境中保持良好的电气连接。
密封结构：连接器内含高质量的密封圈（如橡胶或硅胶材料），提供额外的保护。

2.线端成型设计：
灵活性：母头线端成型设计使得连接器更加灵活，便于用户根据需求进行定制，适配不同的线径和接线方式。
可靠连接：采用标准化设计，母头连接器与公头配合时提供可靠的机械连接，减少接触不良的风险。

3.耐用性：
优质材料：使用耐高温、耐腐蚀的优质塑料和金属材料，具有良好的耐用性和抗冲击性能，确保长期的稳定性。
抗震动设计：设计上强化了抗震动性能，适应高震动环境，确保连接的可靠性。

4.多种配置可选：
支持不同的接头数量（如 2、3、4、5、7、12 针等），适用于各种应用需求，满足不同电气配置的要求。

5.广泛应用领域：
适用于工业自动化、汽车电子、建筑设备、交通设施、能源系统等多个领域。

应用领域
1.工业设备：用于控制器、传感器和执行器之间的电气连接，确保稳定的信号传输。

2.汽车与交通：应用于车辆电气系统、照明和传感器，增强车辆在各类外部环境中的工作性能。

3.新能源技术：在太阳能发电和风能装置中，提供可靠连接，承载高电流和电压。

4.户外设备：在户外监控系统、照明设备及其他需要防护的电气系统中发挥重要作用。

使用注意事项
1.定期检查：定期检查连接器的密封状态，确保密封圈和接头无磨损或老化。

2.安装规范：确保按照制造商提供的说明进行安装，避免因不当操作造成的损坏。

3.环境适应性：确保连接器的使用环境在其额定范围内，防止因过载或环境压力造成的故障。

4.清洁维护：保持连接器外部清洁，防止污垢及腐蚀物质进入连接器内部。

总结
M24 母头线端成型式防水连接器是一个高标准的电气连接解决方案，适合在各种苛刻条件下使用。凭借其卓越的防水、防尘和耐用性，这种连接器被广泛应用于许多关键领域。如果您需要更进一步的信息或技术支持，欢迎联系技术员！



Product Name: M24 Female Wire End Forming Waterproof Connector
1. Materials
1-1. Shell: PBT UL94V0： Color: Black
1-2. Contact: Brass
1-3.  Nut: Brass
1-4. O-ring: EPDM
2. Complete:
2-1. Contact: Gold flash micro inch minimum
Bottom plate: Nickel
2-2.  Nut: Nickel plated
3. Electrical specifications:
3-1. Rated current: 7.5A and 25A
3-2. Rated voltage: 125V and 500V
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Overview of M24 Female Wire End Forming Waterproof Connector
M24 female wire end molded waterproof connector is a high-performance connector commonly used for electrical connections, particularly suitable for applications in industries such as industry, automation, communication, transportation, and energy. When used in conjunction with male connectors, this type of connector typically has excellent waterproof and dustproof performance to ensure normal operation even in harsh environmental conditions.

main features
1. Waterproof and dustproof design:
High protection level: M24 female connectors typically have an IP67 or higher protection level, which can effectively prevent water and dust from entering, ensuring good electrical connection in humid and turbid environments.
Sealing structure: The connector contains high-quality sealing rings (such as rubber or silicone material) to provide additional protection.

2. End forming design:
Flexibility: The molded design of the female wire end makes the connector more flexible, making it easy for users to customize according to their needs and adapt to different wire diameters and wiring methods.
Reliable Connection: Adopting standardized design, the female connector provides reliable mechanical connection when matched with the male connector, reducing the risk of poor contact.

3. Durability:
High quality materials: using high temperature resistant and corrosion-resistant high-quality plastic and metal materials, with good durability and impact resistance, ensuring long-term stability.
Anti vibration design: The design enhances the anti vibration performance, adapts to high vibration environments, and ensures the reliability of the connection.

4. Multiple configurations to choose from:
Supports different numbers of connectors (such as 2, 3, 4, 5, 7, 12 pins, etc.), suitable for various application needs, and meets the requirements of different electrical configurations.

5. Wide application areas:
Suitable for multiple fields such as industrial automation, automotive electronics, building equipment, transportation facilities, energy systems, etc.

application area
1. Industrial equipment: used for electrical connections between controllers, sensors, and actuators to ensure stable signal transmission.

2. Automotive and Transportation: Applied to vehicle electrical systems, lighting, and sensors to enhance the performance of vehicles in various external environments.

3. New energy technology: providing reliable connections and carrying high currents and voltages in solar and wind power installations.

4. Outdoor equipment: plays an important role in outdoor monitoring systems, lighting equipment, and other electrical systems that require protection.

Precautions for use
1. Regular inspection: Regularly check the sealing status of the connector to ensure that the sealing ring and joint are not worn or aged.

2. Installation specifications: Ensure installation is carried out according to the manufacturer's instructions to avoid damage caused by improper operation.

3. Environmental adaptability: Ensure that the connector is used within its rated range to prevent malfunctions caused by overload or environmental pressure.

4. Cleaning and maintenance: Keep the exterior of the connector clean to prevent dirt and corrosive substances from entering the interior of the connector.

summary
The M24 female wire end molded waterproof connector is a high standard electrical connection solution suitable for use in various harsh conditions. With its excellent waterproof, dustproof, and durability, this connector is widely used in many key fields. If you need further information or technical support, please feel free to contact the technician!
