KSD-WP-03F2-21

KSD-WP-03F2-21

  • 产品特性
  • 应用范围

图纸下载 样品申请

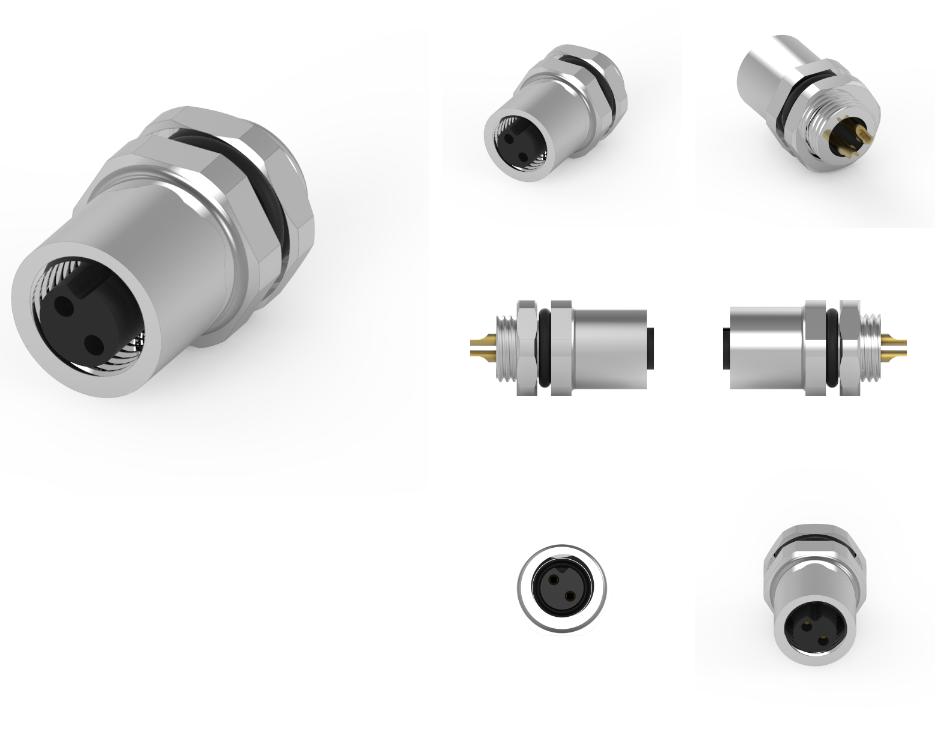

品名：M5 母头防水连接器
1.材料：
1-1. 外壳：PBT UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 螺母：黄铜
1-4.外壳：黄铜
1-5.O型圈：NBR；颜色：黑色
1-6.环氧基：EF400A和EF400B。颜色：黑色
2.完成：
2-1.触点：见表A
2-2. 螺母：镀镍
2-3. 外壳：镀镍
3.电气规格：
3-1.额定电流：1A
3-2.额定电压：60V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M5 母头防水连接器
M5 母头防水连接器 是一种在工业自动化和电子设备中广泛应用的防水连接器。其小巧、可靠的设计使其非常适合空间受限的环境，同时具备出色的防水防尘特性，能够在恶劣环境下提供稳定的电气连接。

主要特点
1.防水防尘设计：
高防护等级：通常具有 IP67 或以上的防护等级，能够有效防止水和灰尘的侵入，适合潮湿和多尘的环境。
优秀的密封性：采用密封圈和专用材料，确保连接器在插入后保持良好的密封性。

2.紧凑的外形：
小巧设计：M5 接口的直径较小，适合在空间有限的设备中使用。
轻量化：设计合理，整体重量轻，便于安装和集成。

3.高可靠性：
耐久材料：采用耐磨损、高强度的塑料和金属材料，确保连接器在各种极端环境下的稳定性和长寿命。
抗震动：设计上考虑了震动和机械冲击的影响，增强了连接器的耐用性。

4.多种连接方式：
多引脚选择：可提供 2 PIN、3 PIN、4 PIN 等多种引脚配置，满足不同应用需求。
接线方式灵活：支持焊接、插接等多种连接方式，以适应不同的安装环境。

5.广泛的适用性：
兼容性好：符合国际标准的设计，能够与其他品牌的 M5 连接器实现互换。
适用于多种设备：广泛应用于传感器、执行器、PLC、医疗设备等各种电子设备。

应用领域
1.工业自动化：在机械设备、传感器和控制系统中广泛应用。

2.机器人技术：用于各种工业机器人和自动化装置的电气连接。

3.交通运输：适合铁路、智能交通和物流系统中的防水连接需求。

4.环境监测：在气象监测、土壤监测等设备中用作可靠的数据传输连接。

5.消费电子：可用于智能家居、便携式设备等领域中，确保安全可靠的连接。

使用注意事项
1.安装前检查密封性：确保密封圈完好无损，以保持良好的防水性能。

2.避免过载操作：遵守连接器的额定电压和电流，避免超过额定值的使用。

3.定期维护与检查：定期检查连接器的状态，确保电气连接的可靠性和安全性。

4.防化学品接触：避免连接器接触腐蚀性化学品，以延长其使用寿命。

总结
M5 母头防水连接器 是一款设计精良、性能卓越的连接器，具有优异的防水防尘特性，适合用于各种工业和电子应用。它的小巧外形和高可靠性使其非常适合在苛刻环境中使用。如果您对该连接器有更多的需求或疑问，欢迎联系技术员！



Product Name: M5 Female Waterproof Connector
1. Materials:
1-1.  Shell: PBT UL94V-0； Color: Black
1-2. Contact: Brass
1-3.  Nut: Brass
1-4. Shell: Brass
1-5. O-ring: NBR； Color: Black
1-6. Epoxy group: EF400A and EF400B. Color: Black
2. Complete:
2-1. Contact: See Table A
2-2.  Nut: Nickel plated
2-3.  Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 1A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M5 female waterproof connector
M5 female waterproof connector is a widely used waterproof connector in industrial automation and electronic equipment. Its compact and reliable design makes it ideal for space constrained environments, while also possessing excellent waterproof and dustproof properties, providing stable electrical connections in harsh environments.

main features
1. Waterproof and dustproof design:
High protection level: usually with a protection level of IP67 or above, it can effectively prevent the intrusion of water and dust, suitable for humid and dusty environments.
Excellent sealing: Using sealing rings and specialized materials to ensure good sealing of the connector after insertion.

2. Compact appearance:
Compact design: The M5 interface has a smaller diameter, making it suitable for use in devices with limited space.
Lightweight: The design is reasonable, the overall weight is light, and it is easy to install and integrate.

3. High reliability:
Durable materials: Made of wear-resistant and high-strength plastic and metal materials, ensuring the stability and longevity of the connector in various extreme environments.
Anti vibration: The design takes into account the effects of vibration and mechanical impact, enhancing the durability of the connector.

4. Multiple connection methods:
Multi pin selection: Multiple pin configurations such as 2 PIN, 3 PIN, and 4 PIN are available to meet different application needs.
Flexible wiring method: supports multiple connection methods such as welding and plugging to adapt to different installation environments.

5. Wide applicability:
Good compatibility: Designed in accordance with international standards, it can be interchanged with M5 connectors from other brands.
Suitable for various devices: widely used in sensors, actuators PLC、 Various electronic devices such as medical equipment.

application area
1. Industrial automation: widely used in mechanical equipment, sensors, and control systems.

2. Robotics technology: used for electrical connections of various industrial robots and automation devices.

3. Transportation: Suitable for waterproof connection requirements in railways, intelligent transportation, and logistics systems.

4. Environmental monitoring: used as a reliable data transmission connection in meteorological monitoring, soil monitoring and other equipment.

5. Consumer electronics: can be used in fields such as smart homes and portable devices to ensure secure and reliable connections.

Precautions for use
1. Check the sealing before installation: Ensure that the sealing ring is intact and undamaged to maintain good waterproof performance.

2. Avoid overload operation: Follow the rated voltage and current of the connector, and avoid using it beyond the rated value.

3. Regular maintenance and inspection: Regularly check the status of connectors to ensure the reliability and safety of electrical connections.

4. Chemical contact prevention: Avoid connectors from coming into contact with corrosive chemicals to extend their service life.

summary
The M5 female waterproof connector is a well-designed and high-performance connector with excellent waterproof and dustproof properties, suitable for various industrial and electronic applications. Its compact size and high reliability make it very suitable for use in harsh environments. If you have any further needs or questions about this connector, please feel free to contact the technician!
