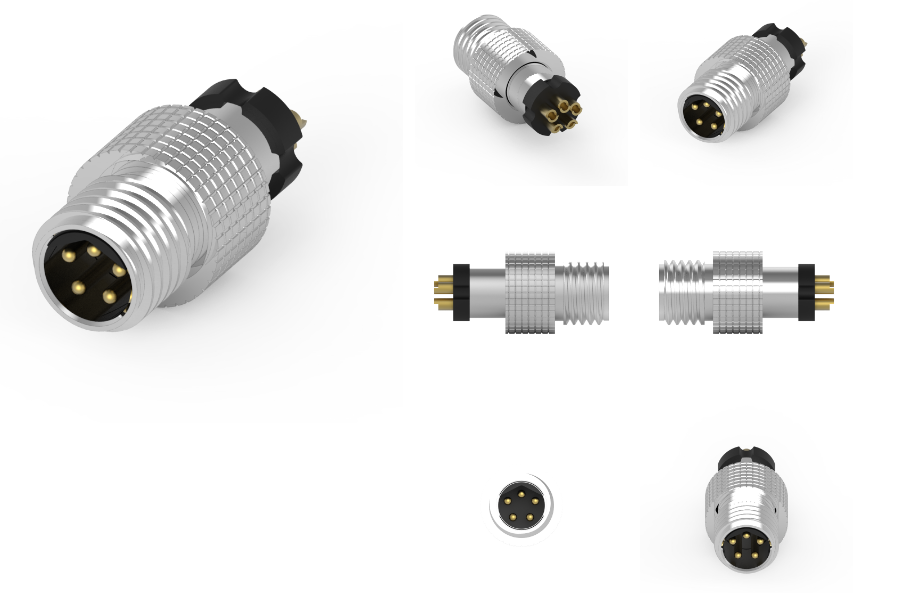

品名：M8 公头 B-Coded 线端成型式防水连接器
1.材料：
1-1. 外壳：PA UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 螺母：黄铜。
1-4.外壳：黄铜
1-5.O型圈：NBR
1-6.地面：磷青铜
2.完成：
2-1.触点：最小10克拉，镀金
底板：镍
2-2. 螺母：镀镍
2-3.外壳：镀镍
2-4.接地：镀锡
3.电气规格：
3-1.额定电流：3A
3-2.额定电压：30V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
M8 公头 B-Coded 线端成型式防水连接器
M8 公头 B-Coded 线端成型式防水连接器 是一种专为工业自动化、传感器和设备互连而设计的高性能连接器。该连接器采用线端成型设计，使得安装和维护更加方便，广泛应用于各种电气和电子设备中。
主要特点
1.B-Coded 编码设计：
防止误插：B-Coded 配置确保连接器的引脚排列符合特定标准，防止错误连接，提升系统的安全性和可靠性。
适用设备：特别适合在传感器和执行器等设备中使用。
2.线端成型设计：
便捷连接：线端成型的设计使得连接器的安装更加方便，减少了现场接线的复杂性。
高度灵活性：适应不同长度和类型的电缆，用户可以根据实际需要进行选择。
3.防水性能：
IP67 防护等级：防水设计确保连接器在潮湿环境下依然可以稳定工作，适合多种恶劣环境使用。
耐腐蚀性：采用耐化学腐蚀的材料，保证在工业环境中有效使用。
4.耐久材料：
优质结构：使用耐高温、耐磨损的材料，确保连接器具有优良的耐用性和长期性能。
卓越的电气性能：采用优质导体，确保信号传输的稳定性与可靠性。
5.便捷安装：
无特殊工具：用户在安装和拆卸时无需特殊工具，能够快速完成操作，提升工作效率。
灵活适用：可根据设备要求调整线缆长度，适应不同的系统需求。
应用领域
1.工业自动化：用于自动化设备和控制系统，提供稳定的电源和信号传输连接。
2.传感器连接：广泛用于各种类型的传感器，包括温度、湿度、压力等，支持实时数据收集和监测。
3.机器人技术：应用于工业机器人和机械臂之间的电气连接，确保精确控制和操作。
4.交通工具：用于汽车及其他交通工具中，确保电子设备间的可靠连接。
使用和维护建议
1.安装和连接：
安装时请确保连接器对齐，然后轻轻插入，注意不要用力过猛，以免损坏。
确保连接器的锁定机制牢固，避免因振动或外力导致接触不良。
2.定期检查：
定期检查连接器以及电缆的外观，确保无损伤或污染物。
如发现密封件磨损或失效，请及时更换，以保持防水性能。
3.电气规范：
确保连接器的电压和电流参数符合应用要求，避免过载使用。
定期监测信号质量，确保连接稳定可靠。
4.环境适应性：
避免连接器长时间暴露在高温或强腐蚀环境中。如需在极端条件下使用，请选择具有更高防护等级的连接器。
总结
M8 公头 B-Coded 线端成型式防水连接器 是一种设计先进、性能卓越的连接解决方案，适用于工业自动化和各类电子设备。其防水特性和便捷的线端安装设计，使其在各种应用场景中都能发挥重要作用。如果您有更多关于此连接器的信息需求或技术支持，欢迎联系技术员！
Product Name: M8 Male B-Code End Forming Waterproof Connector
1. Materials:
1-1. Shell: PA UL94V-0； Color: Black
1-2. Contact: Brass
1-3. Nut: brass.
1-4. Shell: Brass
1-5. O-ring: NBR
1-6. Ground: phosphor bronze
2. Complete:
2-1. Contact: Minimum 10 carats, gold-plated
Bottom plate: Nickel
2-2. Nut: Nickel plated
2-3. Shell: Nickel plated
2-4. Grounding: Tin plating
3. Electrical specifications:
3-1. Rated current: 3A
3-2. Rated voltage: 30V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
M8 Male B-Code End Forming Waterproof Connector
The M8 male B-Code wire end molded waterproof connector is a high-performance connector designed specifically for industrial automation, sensor, and equipment interconnection. This connector adopts a wire end forming design, making installation and maintenance more convenient, and is widely used in various electrical and electronic devices.
main features
1. B-Code coding design:
Preventing accidental insertion: B-Code configuration ensures that the pin arrangement of the connector conforms to specific standards, preventing incorrect connections and enhancing the safety and reliability of the system.
Applicable equipment: Especially suitable for use in devices such as sensors and actuators.
2. End forming design:
Convenient connection: The design of the wire end forming makes the installation of the connector more convenient and reduces the complexity of on-site wiring.
High flexibility: Suitable for cables of different lengths and types, users can choose according to their actual needs.
3. Waterproof performance:
IP67 protection level: Waterproof design ensures stable operation of the connector in humid environments, suitable for use in various harsh environments.
Corrosion resistance: Made of chemically resistant materials to ensure effective use in industrial environments.
4. Durable materials:
High quality structure: using high temperature resistant and wear-resistant materials to ensure that the connector has excellent durability and long-term performance.
Excellent electrical performance: using high-quality conductors to ensure the stability and reliability of signal transmission.
5. Convenient installation:
No special tools: Users do not need special tools for installation and disassembly, which can quickly complete operations and improve work efficiency.
Flexible and applicable: The cable length can be adjusted according to device requirements to meet different system requirements.
application area
1. Industrial automation: used for automation equipment and control systems, providing stable power and signal transmission connections.
2. Sensor Connection: Widely used in various types of sensors, including temperature, humidity, pressure, etc., supporting real-time data collection and monitoring.
3. Robotics technology: applied to the electrical connection between industrial robots and robotic arms, ensuring precise control and operation.
4. Transportation: Used in cars and other transportation vehicles to ensure reliable connections between electronic devices.
Usage and maintenance suggestions
1. Installation and connection:
Please ensure that the connectors are aligned during installation, and then gently insert them. Be careful not to apply too much force to avoid damage.
Ensure that the locking mechanism of the connector is secure to avoid poor contact caused by vibration or external forces.
2. Regular inspection:
Regularly inspect the appearance of connectors and cables to ensure no damage or contamination.
If the seal is found to be worn or ineffective, please replace it in a timely manner to maintain its waterproof performance.
3. Electrical specifications:
Ensure that the voltage and current parameters of the connector meet the application requirements and avoid overloading during use.
Regularly monitor signal quality to ensure stable and reliable connections.
4. Environmental adaptability:
Avoid prolonged exposure of connectors to high temperatures or highly corrosive environments. If you need to use it under extreme conditions, please choose connectors with higher protection levels.
summary
M8 male B-Coded wire end molded waterproof connector is a connection solution with advanced design and excellent performance, which is suitable for industrial automation and various electronic equipment. Its waterproof characteristics and convenient terminal installation design enable it to play an important role in various application scenarios. If you have any further information or technical support regarding this connector, please feel free to contact a technician!
