KSD-WP-04M2-61

KSD-WP-04M2-61

  • 产品特性
  • 应用范围

图纸下载 样品申请

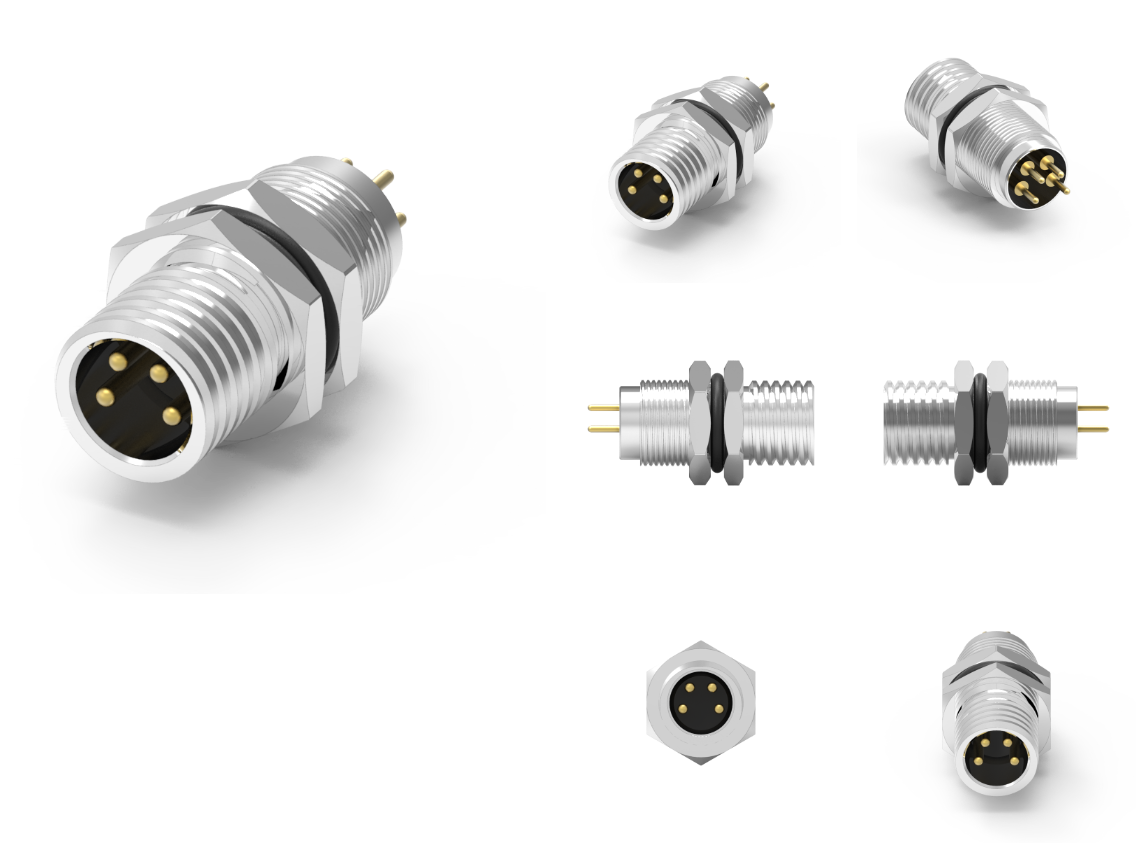

品名：M8 公头 后锁插板式防水连接器
1.材料：
1.外壳：PBFASSOLOR
1-2.联系人：黑色
1-3.外壳：黄铜
1-4.-RING：NBR；颜色：黑色
1-5.螺母：黄铜
2.完成：
2-1.触点：最小10微英寸镀金
2-2.外壳：镀镍
2-3.编号：镀镍
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M8 公头 后锁插板式防水连接器
M8 公头 后锁插板式防水连接器 是一种高性能连接器，广泛应用于工业自动化、传感器和执行器等领域。这种连接器的设计兼顾了防水性和易用性，适用于恶劣的工作环境，确保信号与电源的稳定传输。

主要特点
后锁机制：

安全可靠：后锁设计确保连接器在安装后不会因振动或拉力而松脱，从而提高了连接的可靠性。
便捷插拔：尽管采用后锁设计，但仍然能够便捷地进行连接和断开。
1.插板式设计：
模块化连接：插板式结构允许用户根据需要轻松替换或维护连接器，适合快速的设备更新和维护。
紧凑设计：节省空间，适合狭小环境中的应用。

2.防水性能：
IP67 级防护：具备良好的防尘和防水性能，确保在潮湿和尘土环境中的稳定工作。
耐化学腐蚀：采用耐化学腐蚀的材料，适合于各种工业环境。

3.优质材料：
耐用性强：使用高强度的塑料及金属材料，抗冲击、耐磨损，确保长时间可靠运行。
良好的电气性能：高质量的导电材料使信号传输更稳定，减少电气干扰。

4.应用灵活：
适配多种设备：可与多种电缆、传感器和设备进行连接，满足不同客户的需求。

应用领域
1.工业自动化：广泛应用于自动化控制系统、机器设备和生产线，提供稳定的电力和信号连接。

2.传感器连接：用于连接各种传感器（如温度、压力、湿度传感器），实现高效的数据采集和监测。

3.机器人技术：在工业机器人和机械手中的应用，确保精确的电信号传输和控制。

4.交通运输：用于汽车、火车和其他交通工具中，实现电子设备的可靠连接。

使用和维护建议
1.安装和连接：
安装时，请确保连接器的插头和插座对齐后，轻轻插入，直至听到“咔嗤”声以确认锁定。
确保在连接时不施加过大的力量，以防损坏连接器。

2.定期检查：
定期检查连接器和连接线，确保没有磨损、裂纹或其他损坏。
及时清洁连接端口，避免灰尘和杂质影响连接质量。

3.电气维护：
确保连接器的电流和电压参数符合操作要求。
监测信号传输的稳定性，如发现问题，请及时检查连接处。

4.环境适应性：
在极端温度或腐蚀性环境中使用时，考虑选择更高防护等级的连接器。
避免频繁暴露于高温或低温中，以延长连接器的使用寿命。

总结
M8 公头 后锁插板式防水连接器 以其出色的设计和可靠的性能，为工业应用提供了一种高效的连接解决方案。其可靠的防水性能、方便的安装设计和耐用性，使其成为现代工程设备中不可或缺的一部分。如需进一步了解产品信息或技术支持，欢迎联系技术员！



Product Name: M8 Male Rear Lock Plug Plate Waterproof Connector
1. Materials:
1. Shell: PBFASSOLOR
1-2. Contact: Black
1-3. Shell: Brass
1-4.-RING： NBR； Color: Black
1-5. Nut: Brass
2. Complete:
2-1. Contact: Minimum 10 microinches gold-plated
2-2. Shell: Nickel plated
2-3. Number: Nickel plating
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M8 male rear lock plug-in waterproof connector
The M8 male locking plug-in waterproof connector is a high-performance connector widely used in industrial automation, sensors, and actuators. The design of this connector balances waterproofing and usability, making it suitable for harsh working environments and ensuring stable transmission of signals and power.

main features
Rear locking mechanism:

Safe and reliable: The rear lock design ensures that the connector will not loosen due to vibration or tension after installation, thereby improving the reliability of the connection.
Convenient insertion and removal: Despite adopting a rear lock design, it can still be easily connected and disconnected.
1. Plug in design:
Modular connection: The plug-in structure allows users to easily replace or maintain connectors as needed, making it suitable for rapid device updates and maintenance.
Compact design: saves space and is suitable for applications in narrow environments.

2. Waterproof performance:
IP67 protection: It has good dustproof and waterproof performance, ensuring stable operation in humid and dusty environments.
Chemical corrosion resistance: Made of materials that are resistant to chemical corrosion, suitable for various industrial environments.

3. High quality materials:
Strong durability: using high-strength plastic and metal materials, resistant to impact and wear, ensuring long-term reliable operation.
Good electrical performance: High quality conductive materials make signal transmission more stable and reduce electrical interference.

4. Flexible application:
Compatible with multiple devices: can be connected to various cables, sensors, and devices to meet the needs of different customers.

application area
1. Industrial automation: widely used in automation control systems, machinery equipment, and production lines, providing stable power and signal connections.

2. Sensor connection: Used to connect various sensors (such as temperature, pressure, humidity sensors) to achieve efficient data collection and monitoring.

3. Robotics technology: Application in industrial robots and manipulators to ensure precise electrical signal transmission and control.

4. Transportation: Used in cars, trains, and other modes of transportation to achieve reliable connection of electronic devices.

Usage and maintenance suggestions
1. Installation and connection:
When installing, please ensure that the plug and socket of the connector are aligned, gently insert until you hear a "click" sound to confirm locking.
Ensure that excessive force is not applied during connection to prevent damage to the connector.

2. Regular inspection:
Regularly inspect connectors and connecting wires to ensure there is no wear, cracks, or other damage.
Clean the connection port in a timely manner to avoid dust and impurities affecting the connection quality.

3. Electrical maintenance:
Ensure that the current and voltage parameters of the connector meet the operational requirements.
Monitor the stability of signal transmission. If any problems are found, please check the connection in a timely manner.

4. Environmental adaptability:
When used in extreme temperature or corrosive environments, consider choosing connectors with higher protection levels.
Avoid frequent exposure to high or low temperatures to extend the lifespan of the connector.

summary
The M8 male rear locking plug-in waterproof connector provides an efficient connection solution for industrial applications with its excellent design and reliable performance. Its reliable waterproof performance, convenient installation design, and durability make it an indispensable part of modern engineering equipment. If you need further product information or technical support, please feel free to contact a technician!
