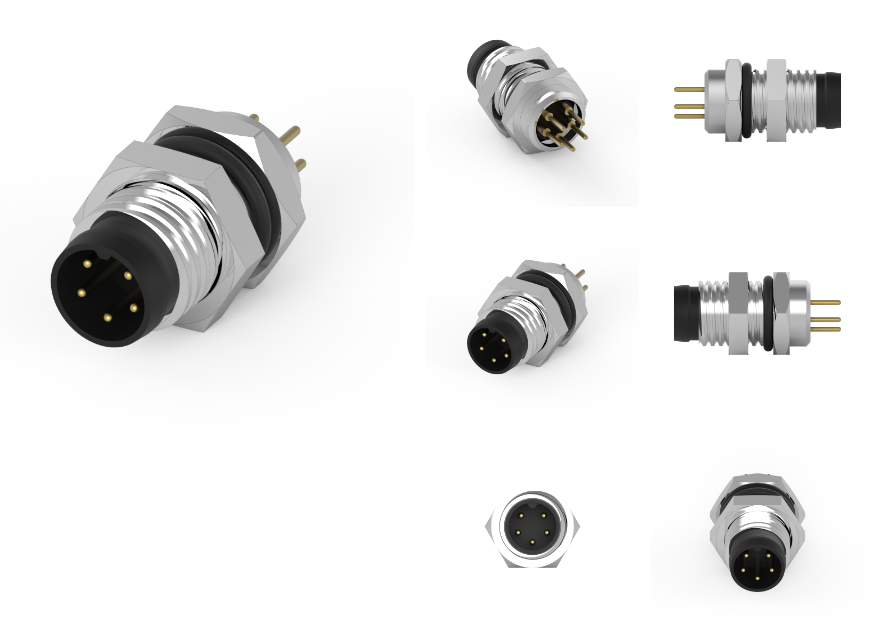

品名：M8 公头 前锁 插板式防水连接器
1.材料：
1.外壳：PBFASSOLOR
1-2.联系人：黑色
1-3.外壳：黄铜
1-4.-RING：NBR；颜色：黑色
1-5.螺母：黄铜
2.完成：
2-1.触点：最小10微英寸镀金
2-2.外壳：镀镍
2-3.编号：镀镍
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M8 公头 前锁插板式防水连接器
M8 公头 前锁插板式防水连接器 是一种广泛用于工业和自动化设备的连接解决方案，特别适合于要求高防护等级和可靠连接的应用场景。其设计形式为前锁插板，能够确保快速、简单的连接与断开，同时提供良好的防水性能。

主要特点
1.前锁设计：
便捷连接：前锁设计使得连接器的插拔操作更加方便，用户可以在有限的空间内轻松完成连接，适合狭小的安装环境。
增强稳定性：前锁机制确保连接器插入后能牢固锁定，减少因振动或物理拉力导致的断开风险。

2.插板式连接：
可靠电气连接：插板式设计确保连接牢固，适合高频率的插拔操作，同时在电气传导方面具有良好的性能。
结构紧凑：由于其紧凑的结构，适用于各种设备，无论是大型机械还是小型传感器。

3.防水性能：
IP67防护等级：连接器具备良好的防水和防尘能力，能够在潮湿、尘土较多的环境中正常工作，适应工业应用中的复杂条件。
材料选择：采用高性能的塑料和金属材料，能够抵御常见化学物质的侵蚀，增强耐用性。

4.多种规格和适配性：
多种引脚配置：根据设备需求，提供不同引脚数量（如3、4、5、8等）的配置，灵活适应不同应用场合。
广泛兼容性：能够与多种设备（如传感器、执行器和控制系统）进行连接，满足不同的行业需求。

5.耐用性和长寿命：
高质量材料：连接器采用的材料具有很好的耐磨损和耐冲击性能，确保在苛刻环境中长期稳定运行。
设计周全：经过严格测试，即使在极端条件下也能保持良好的电气性能。

应用领域
1.工业自动化：用于PLC、HMI和其他自动化控制系统的连接，支持数据和电源传输。

2.传感器连接：广泛用于不同类型的传感器（温度、湿度、压力、位置等），使其能够高效地与控制系统互联。

3.机器人技术：在工业机器人和自动化设备中，提供稳定的电气连接，确保关键任务的可靠性。

4.汽车工业：可应用于车辆的传感器和控制系统，增强汽车电子设备的连接安全性。

使用和维护建议
1.连接和安装：
在插入连接器时，请检查方向，确保插头与插座的对接正确，插入后轻按直至听到“咔嗤”声，确认锁定。
避免在连接时施加过大的力量，防止损坏连接器及导线。

2.定期维护：
定期检查连接器和导线的状态，确保无物理损伤、腐蚀或污染。
在工业环境中，及时清理连接器的工作表面，以维持良好的接触。

3.电气测试：
定期监测连接器的电气性能，包括电流、电压等，确保在安全范围内运行。
对于使用频率较高的连接器，建议进行周期性的测试与检查，确保无故障发生。

4.环境考虑：
在极端温度或极端化学环境下使用时，需确保连接器的等级和材料能够适应这些条件。
在环境可能出现过多水分或灰尘时，考虑使用更高防护等级的型号。

总结
M8 公头 前锁插板式防水连接器 是一款功能全面、性能卓越的连接器，能有效满足工业自动化、传感器及其他设备的连接需求。凭借其出色的设计、安全性和防护性能，它在众多应用场合中成为优选的连接方案。如果您需要更多信息或技术支持，欢迎联系技术员！
