KSD-WP-06M2-52-11

KSD-WP-06M2-52-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

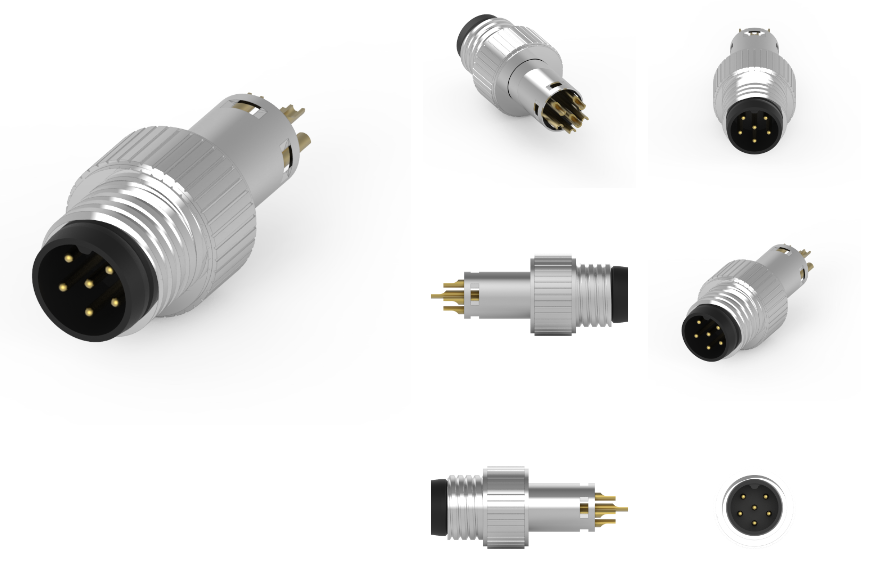

品名：M8 公头 线端成型防水连接器
1.注：
1.材料
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：黄铜
1-3.外壳：黄铜
1-4. 螺母：黄铜
2.完成
2-1.触点：见表A
2-2.外壳：镀镍
2-2. 螺母：镀镍
3.电气规格：
3-1.额定电流：3A
3-2.额定电压：125V
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M8 公头 线端成型防水连接器
M8 公头线端成型防水连接器 是一种专门设计用于工业自动化、传感器连接和其他需要防水和可靠电气连接的应用的连接器。其设计考虑了紧凑性、高防护等级以及方便的安装方式，广泛应用于各种设备和系统中。

主要特点
1.线端成型设计：
预先成型：该连接器具有预先成型的线端，减少了用户自定义接线的复杂性和风险，确保了电气连接的可靠性。
提高连接稳定性：通过线端成型的设计，能够确保连接器在各类环境下提供稳定的电信号和电源。

2.防水性能：
IP67 防护等级：能够有效防止水和灰尘的侵入，适用于高湿度和恶劣环境，确保连接器在各种条件下的正常工作。
优质材料：使用耐候性和抗腐蚀性强的材料，增强连接器的耐用性，确保在严酷环境中的长期性能。

3.紧凑的结构：
适应空间受限的应用：M8规格设计小巧，在空间有限的设备中尤为适用，如传感器、执行器以及自动化设备等。
易于布线：适合在复杂的设备布线中，避免占用过多空间。

4.多种引脚配置：
灵活的引脚选择：根据具体应用需求，提供多种引脚数量（如3、4、5、8等），满足不同设备的连接需求。
兼容性强：与各种型号的传感器和控制设备兼容，能够广泛应用于多种场合。

5.高耐用性和可靠性：
抗冲击与抗振动：设计能够抵抗机械冲击和振动，确保连接的稳定性和耐久性。
长期运行的适用性：能够在频繁插拔的情况下依然保持良好的电气性能，适合长期使用。

应用领域
1.工业自动化：在PLC、HMI、传感器及执行器等设备之间进行电力和数据传输连接。

2.传感器接口：广泛应用于各种传感器的连接，如温度、压力、位置以及流量传感器等。

3.机器人与自动化设备：用于机器人系统中的电气连接，确保系统运行的可靠性。

4.汽车电子：在汽车的各种电子设备中，提供稳定的电气连接。

使用和维护建议
1.连接与安装：
在连接时，确保线端正确插入，并注意不施加过大的力度，以免损坏连接器。
避免在连接过程中有异物进入连接器接口，以保证良好的接触。

2.定期检查：
定期对连接器进行检查，确保无物理损伤，防水性能正常。
清理连接器的工作表面，防止灰尘或其他异物影响连接质量。

3.电气性能测试：
定期检查连接器的电气性能，确保电流和电压在正常范围内。
对于使用频率较高的连接器，应进行定期维护和测试。

4.环境适应性：
使用前检查连接器的额定参数，确保能够适应所处的环境条件（如温度、湿度、化学物质等）。
在极端环境中使用时，需选择高防护等级的型号，以增强适应性。

总结
M8 公头线端成型防水连接器 是一款功能强大、设计合理的连接解决方案，适用于各种工业和自动化设备的连接需求。其优越的防水性能、便捷的安装方式以及卓越的耐用性，使其成为可靠的选择。如需更多技术支持或者产品信息，欢迎联系技术员！



Product Name: M8 Male Wire End Forming Waterproof Connector
1. Note:
1. Materials
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: Brass
1-3. Shell: Brass
1-4.  Nut: Brass
2. Complete
2-1. Contact: See Table A
2-2. Shell: Nickel plated
2-2.  Nut: Nickel plated
3. Electrical specifications:
3-1. Rated current: 3A
3-2. Rated voltage: 125V
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M8 male wire end formed waterproof connector
The M8 male wire end formed waterproof connector is a connector specifically designed for industrial automation, sensor connections, and other applications that require waterproof and reliable electrical connections. Its design considers compactness, high protection level, and convenient installation method, and is widely used in various devices and systems.

main features
1. End forming design:
Pre formed: This connector has pre formed wire ends, reducing the complexity and risk of user-defined wiring and ensuring the reliability of electrical connections.
Improve connection stability: Through the design of wire end molding, the connector can ensure stable electrical signals and power supply in various environments.

2. Waterproof performance:
IP67 protection level: It can effectively prevent the intrusion of water and dust, suitable for high humidity and harsh environments, ensuring the normal operation of the connector under various conditions.
High quality materials: Use materials with strong weather resistance and corrosion resistance to enhance the durability of the connector and ensure long-term performance in harsh environments.

3. Compact structure:
Suitable for applications with limited space: The M8 specification is designed to be compact and particularly suitable for devices with limited space, such as sensors, actuators, and automation equipment.
Easy wiring: Suitable for complex equipment wiring, avoiding excessive space occupation.

4. Multiple pin configurations:
Flexible pin selection: Provide multiple pin numbers (such as 3, 4, 5, 8, etc.) according to specific application requirements to meet the connection needs of different devices.
Strong compatibility: Compatible with various types of sensors and control devices, it can be widely used in various occasions.

5. High durability and reliability:
Anti impact and anti vibration: Designed to resist mechanical impact and vibration, ensuring the stability and durability of the connection.
Long term applicability: able to maintain good electrical performance even in frequent plugging and unplugging, suitable for long-term use.

application area
1. Industrial automation: in PLC HMI、 Power and data transmission connections are established between devices such as sensors and actuators.

2. Sensor interface: widely used for connecting various sensors, such as temperature, pressure, position, and flow sensors.

3. Robots and automation equipment: used for electrical connections in robot systems to ensure the reliability of system operation.

4. Automotive electronics: Provide stable electrical connections among various electronic devices in automobiles.

Usage and maintenance suggestions
1. Connection and installation:
When connecting, ensure that the wire end is inserted correctly and be careful not to apply excessive force to avoid damaging the connector.
Avoid foreign objects entering the connector interface during the connection process to ensure good contact.

2. Regular inspection:
Regularly inspect the connectors to ensure no physical damage and normal waterproof performance.
Clean the working surface of the connector to prevent dust or other foreign objects from affecting the connection quality.

3. Electrical performance testing:
Regularly check the electrical performance of the connector to ensure that the current and voltage are within the normal range.
For connectors with high usage frequency, regular maintenance and testing should be carried out.

4. Environmental adaptability:
Before use, check the rated parameters of the connector to ensure it can adapt to the environmental conditions (such as temperature, humidity, chemicals, etc.).
When used in extreme environments, it is necessary to choose models with high protection levels to enhance adaptability.

summary
The M8 male wire end formed waterproof connector is a powerful and well-designed connection solution suitable for the connection needs of various industrial and automation equipment. Its superior waterproof performance, convenient installation method, and excellent durability make it a reliable choice. If you need more technical support or product information, please feel free to contact our technicians!
