KSD-WP-04M2-167-11

KSD-WP-04M2-167-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

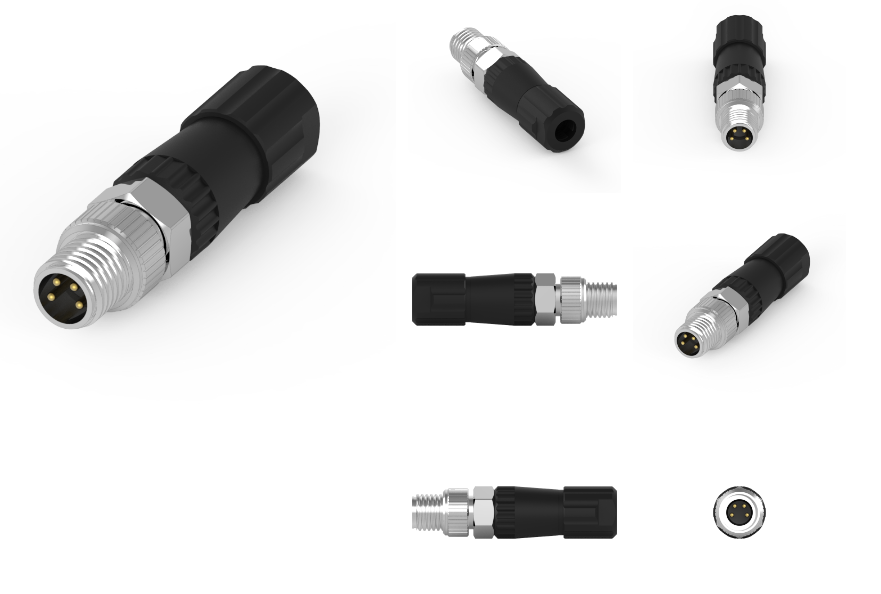

品名：M8 公头 组装式防水连接器
1.材料：
1-1.材料A
a.外壳：PBT UL94V0；颜色：黑色
b.触点：黄铜
c.螺母：铝合金
d.壳牌A：黄铜
e.外壳B：黄铜
1-2.材料B
a.主体：PA66：颜色：黑色
b.O型圈A:EPDM；颜色：黑色
1-3.O型圈B:NBR颜色：黑色。
1-4.压盖笼：PA66；颜色：白色
1-5.压盖螺母：PA66：颜色：黑色
2.完成：
2-1.材料A
a.触点：镀金
底板：镍
b.螺母：镀镍
c.外壳A：镀镍
d.外壳B：镀镍
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M8 公头 组装式防水连接器
M8 公头组装式防水连接器 是专为工业自动化、机械设备和传感器应用设计的连接器，具有易于组装和良好的防水性能。该连接器通常用于要求高防护标准的环境，确保在各种应用中的电气连接稳定性和可靠性。

主要特点
1.组装式设计：
简便组装：组装式设计使用户能够根据实际需要进行组装，灵活性高，适应性强。
便于维护：在需要更换或维修时，可以快速拆卸，减少停机时间和维护成本。

2.防水性能：
IP67 级防护：提供极佳的防水和防尘保护，能够有效防止水浸入和灰尘侵入，非常适合潮湿或恶劣的工作环境。
优质材料：采用耐候性材料，具备抗湿气、抗腐蚀性，确保产品在多种环境下的长期稳定性。

3.多种规格：
多引脚配置：提供不同引脚数量的选择（如3、4、5、8引脚等），满足不同设备的接口需求。
兼容性强：能够与各种传感器、执行器及控制器兼容，适用于多种工业应用。

4.紧凑设计：
节省空间：M8 规格的小巧设计适合在空间有限的设备中使用，能够有效利用空间。
良好的装配灵活性：能够适应不同的安装位置和布局，简化了整体布线设计。

5.高耐用性：
抗振动和抗冲击：其扎实的结构能够有效抵抗机械振动和冲击，确保在恶劣环境中仍然可靠工作。
长寿命：即使在频繁插拔的使用情况下，仍能保持良好的电气和机械性能。

应用领域
1.工业自动化：在各种自动化设备、控制系统中，用于电力和数据传输的连接接口。

2.传感器应用：连接温度、压力、流量、位置等多种传感器，确保信号传输的稳定性和准确性。

3.机器人技术：在工业机器人和自动化装置中，提供安全的电气连接，保障机器的精确控制。

4.汽车电子：用于汽车制造中的电子设备连接，确保安全稳定的电气支持。

使用和维护建议
1.组装与连接：
在进行组装时，确保所有部件（包括密封圈、接口等）正确对齐，避免出现漏水或接触不良的问题。
使用合适的工具和方式进行紧固，避免对连接器造成过度的物理损伤。

2.定期检查：
定期检查连接器及其接口，确保无物理损伤和污染，保持良好的工作状态。
确保密封性良好，定期更换密封圈等易损部件，以保持连接器的防水性能。

3.电气性能监测：
定期检查电气性能，确保电流和电压在正常范围内，避免潜在的电气故障。
特别是在高负荷或高频率的应用中，定期进行电气测试，确保连接器的使用安全。

4.环境适应性：
确保使用时环境条件符合连接器的额定规格，避免在超出承受范围的情况下使用。
在极端气候或潮湿环境中，应定期监测并维护连接器，以保持其长期的可靠性。

总结
M8 公头组装式防水连接器 是一种高效、可靠的连接解决方案，适用于广泛的工业和自动化应用。其优越的防水性能、灵活的组装方式和卓越的耐用性，使其成为可靠的选择。如需获取更多产品信息或技术支持，欢迎联系技术员！



Product Name: M8 Male Assembled Waterproof Connector
1. Materials:
1-1. Material A
a. Shell: PBT UL94V0； Color: Black
b. Contact: Brass
c. Nut: Aluminum alloy
d. Shell A: Brass
e. Shell B: Brass
1-2. Material B
a. Subject: PA66： Color: Black
b. O-ring A: EPDM； Color: Black
1-3. O-ring B: NBR color: black.
1-4. Cover cage: PA66； Color: White
1-5. Cap Nut: PA66： Color: Black
2. Complete:
2-1. Material A
a. Contact: Gold plating
Bottom plate: Nickel
b. Nut: Nickel plated
c. Shell A: Nickel plated
d. Shell B: Nickel plated
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M8 male assembled waterproof connector
M8 male assembled waterproof connector is a connector designed specifically for industrial automation, mechanical equipment, and sensor applications, with easy assembly and good waterproof performance. This connector is typically used in environments that require high protection standards to ensure electrical connection stability and reliability in various applications.

main features
1. Modular design:
Easy assembly: The modular design allows users to assemble according to their actual needs, with high flexibility and strong adaptability.
Easy to maintain: When replacement or repair is needed, it can be quickly disassembled, reducing downtime and maintenance costs.

2. Waterproof performance:
IP67 protection: Provides excellent waterproof and dustproof protection, effectively preventing water and dust from entering, making it very suitable for humid or harsh working environments.
High quality materials: Made of weather resistant materials with moisture resistance and corrosion resistance, ensuring the long-term stability of the product in various environments.

3. Multiple specifications:
Multi pin configuration: Provides options for different pin numbers (such as 3, 4, 5, 8 pins, etc.) to meet the interface requirements of different devices.
Strong compatibility: It can be compatible with various sensors, actuators, and controllers, and is suitable for a variety of industrial applications.

4. Compact design:
Space saving: The compact design of M8 specification is suitable for use in devices with limited space and can effectively utilize space.
Good assembly flexibility: able to adapt to different installation positions and layouts, simplifying the overall wiring design.

5. High durability:
Anti vibration and anti impact: Its solid structure can effectively resist mechanical vibration and impact, ensuring reliable operation in harsh environments.
Long lifespan: Even under frequent plugging and unplugging, it can still maintain good electrical and mechanical performance.

application area
1. Industrial automation: a connection interface used for power and data transmission in various automation equipment and control systems.

2. Sensor application: Connect various sensors such as temperature, pressure, flow rate, and position to ensure the stability and accuracy of signal transmission.

3. Robotics technology: Provide safe electrical connections in industrial robots and automation devices to ensure precise control of machines.

4. Automotive electronics: Used for connecting electronic devices in automotive manufacturing to ensure safe and stable electrical support.

Usage and maintenance suggestions
1. Assembly and connection:
When assembling, ensure that all components (including sealing rings, interfaces, etc.) are aligned correctly to avoid problems such as water leakage or poor contact.
Use appropriate tools and methods for fastening to avoid excessive physical damage to the connector.

2. Regular inspection:
Regularly inspect connectors and their interfaces to ensure no physical damage or contamination, and maintain good working condition.
Ensure good sealing and regularly replace vulnerable components such as sealing rings to maintain the waterproof performance of the connector.

3. Electrical performance monitoring:
Regularly check electrical performance to ensure that current and voltage are within normal ranges and avoid potential electrical faults.
Especially in high load or high-frequency applications, regular electrical testing should be conducted to ensure the safe use of connectors.

4. Environmental adaptability:
Ensure that the environmental conditions during use comply with the rated specifications of the connector and avoid using it beyond its tolerance range.
In extreme weather or humid environments, connectors should be regularly monitored and maintained to maintain their long-term reliability.

summary
The M8 male assembled waterproof connector is an efficient and reliable connection solution suitable for a wide range of industrial and automation applications. Its superior waterproof performance, flexible assembly method, and outstanding durability make it a reliable choice. If you need more product information or technical support, please feel free to contact our technicians!
