KSD-WP-03M2-141-11

KSD-WP-03M2-141-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

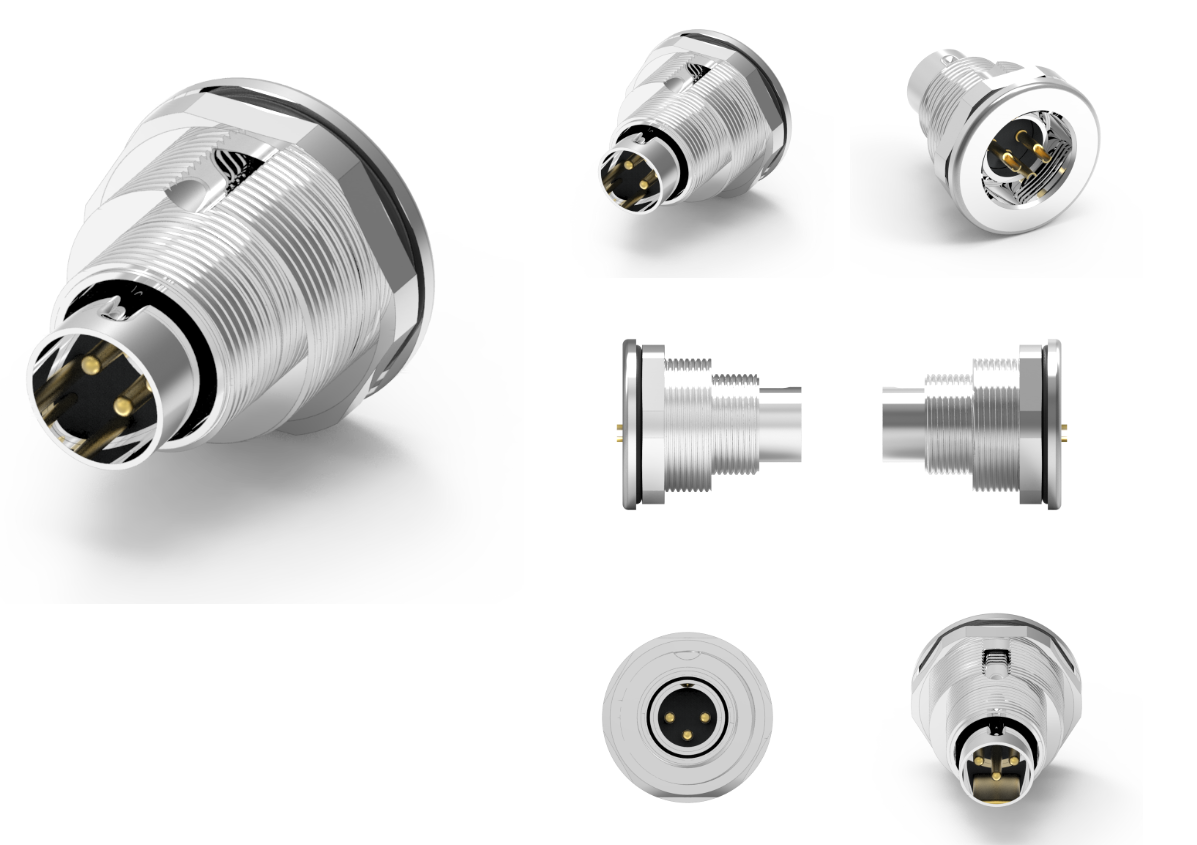

品名：M9公头防水连接器
1.材料：
1-1. 外壳：PBTUL94V0；颜色：黑色
1-2.触点：黄铜
1-3.O型圈：NBR；颜色：黑色
1-4. 螺母：黄铜
2.完成：
2-1.触点：10微英寸。镀金
底板：镍
2-2. 螺母：见表A
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M9 公头防水连接器
M9 公头防水连接器 是一种用于电气连接的组件，常用于各种工业和电子应用中。由于其优良的防水防尘特性，特别适合在恶劣环境中使用，如自动化设备、传感器、机器人和其他工业应用。

主要特点
1.防水防尘设计：
高防护等级：通常符合 IP67 或更高标准，能够有效防止水和尘埃进入连接器。
密封性能：连接器内部采用密封圈设计，确保在潮湿或多尘环境中保护电路。

2.耐用性：
高品质材料：采用耐高温、耐腐蚀的塑料和金属材料，确保连接器在各种恶劣条件下持久可靠。
抗机械应力：设计考虑到抗震动和冲击，增强抗损坏能力。

3.多样化的引脚配置：
多种针脚选择：提供从 3 针到 8 针及更多配置，以满足不同的电气参数需求。
便捷连接：符合标准的插拔设计，方便快速连接和断开。

4.紧凑型设计：
小巧轻便：M9 尺寸设计，小巧并适合空间受限的应用。
易于集成：便于与其他设备和组件结合使用。

5.广泛兼容性：
符合国际标准：可与多种品牌和型号的设备互换，降低使用门槛。
适应性强：适用于各类设备，如测量仪器、控制器、PLC、传感器和电机等。

应用领域
1.工业自动化：用于自动化设备、PLC 和传感器的连接，确保稳定可靠的运行。

2.机器人技术：广泛应用于机器人控制系统中，连接传感器和执行机构。

3.交通运输：在铁路、智能交通和监控系统中，用于防水连接，确保安全可靠。

4.医疗设备：在医疗器械中，提供防水和防尘的电气连接，符合高标准的安全需求。

5.智能家居：用于各种智能硬件中，确保设备连接安全稳定。

使用注意事项
1.安装过程：
确保在安装过程中密封圈完好，以增强防水性能。
避免极端拧紧，以免损坏连接器本身。

2.负载规格：
遵循制造商规定的电压和电流范围，确保安全稳定的运行。
定期检查连接器，防止松动和电接触不良。

3.清洁与维护：
定期清洁连接器表面，防止污垢附着影响连接性能。
检查密封性能，确保没有磨损或老化。

4.避免化学腐蚀：
尽量避免连接器与强腐蚀性物质接触，以延长其使用寿命。

总结
M9 公头防水连接器 以其出色的防水防尘特性和紧凑的设计，成为多种工业和电子设备中不可或缺的连接组件。其广泛的应用适应性和耐用性，使其在恶劣条件下仍能保持性能稳定。如需更多详细信息或具体产品建议，欢迎联系技术员！



Product Name: M9 Male Waterproof Connector
1. Materials:
1-1.  Shell: PBTUL94V0； Color: Black
1-2. Contact: Brass
1-3. O-ring: NBR； Color: Black
1-4.  Nut: Brass
2. Complete:
2-1. Contact: 10 micro inches. gold-plated
Bottom plate: Nickel
2-2.  Nut: see Table A
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M9 male waterproof connector
M9 male waterproof connector is a component used for electrical connections, commonly used in various industrial and electronic applications. Due to its excellent waterproof and dustproof properties, it is particularly suitable for use in harsh environments such as automation equipment, sensors, robots, and other industrial applications.

main features
1. Waterproof and dustproof design:
High protection level: usually meets IP67 or higher standards, effectively preventing water and dust from entering the connector.
Sealing performance: The connector adopts a sealing ring design inside to ensure the protection of the circuit in humid or dusty environments.

2. Durability:
High quality materials: Made of high temperature resistant and corrosion-resistant plastic and metal materials, ensuring that the connector is durable and reliable under various harsh conditions.
Resistance to mechanical stress: The design takes into account resistance to vibration and impact, enhancing the ability to resist damage.

3. Diversified pin configurations:
Multiple pin options: available in configurations ranging from 3 to 8 pins and more to meet different electrical parameter requirements.
Convenient Connection: Compliant with standard plug-in design, convenient and fast connection and disconnection.

4. Compact design:
Compact and lightweight: The M9 size design is compact and suitable for applications with limited space.
Easy to integrate: easy to use in conjunction with other devices and components.

5. Wide compatibility:
Compliant with international standards: interchangeable with various brands and models of equipment, reducing the threshold for use.
Strong adaptability: Suitable for various devices such as measuring instruments, controllers PLC、 Sensors and motors, etc.

application area
1. Industrial automation: used for connecting automation equipment, PLCs, and sensors to ensure stable and reliable operation.

2. Robotics technology: widely used in robot control systems, connecting sensors and actuators.

3. Transportation: Used for waterproof connections in railways, intelligent transportation, and monitoring systems to ensure safety and reliability.

4. Medical equipment: Provide waterproof and dustproof electrical connections in medical devices, meeting high safety requirements.

5. Smart Home: Used in various smart hardware to ensure secure and stable device connections.

Precautions for use
1. Installation process:
Ensure that the sealing ring is intact during installation to enhance waterproof performance.
Avoid extreme tightening to prevent damage to the connector itself.

2. Load specifications:
Follow the manufacturer's specified voltage and current range to ensure safe and stable operation.
Regularly inspect connectors to prevent looseness and poor electrical contact.

3. Cleaning and maintenance:
Regularly clean the surface of the connector to prevent dirt from adhering and affecting the connection performance.
Check the sealing performance to ensure there is no wear or aging.

4. Avoid chemical corrosion:
Try to avoid contact between connectors and highly corrosive substances to extend their service life.

summary
The M9 male waterproof connector has become an indispensable connecting component in various industrial and electronic devices due to its excellent waterproof and dustproof characteristics and compact design. Its wide applicability and durability enable it to maintain stable performance even under harsh conditions. If you need more detailed information or specific product suggestions, please feel free to contact the technician!
