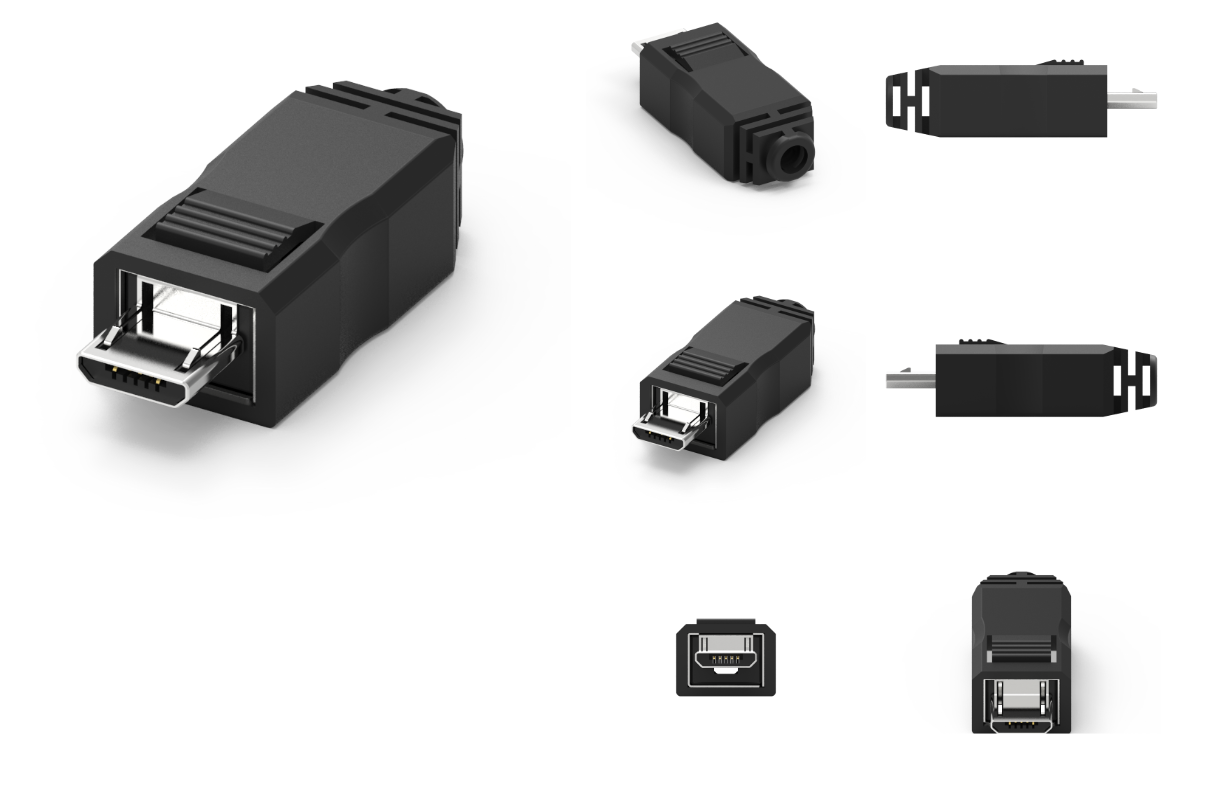

品名：Micro USB 2.0 公头连接器
1.材料：
1-1.外壳：LCP UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3. 外壳：不锈钢
2.完成：
2-1.触点：触点区域有金闪光
其他区域的哑光锡
2-2.外壳：可焊缘
3.环境：
3-1.工作温度范围：-2OC ~+85°C
3-2.储存温度范围：-40^C ~+85^C
4.规格：
4-1.额定电流：引脚1和5 1.8A（最大）其他0.5A
每个引脚1A
品牌：科斯达开关KSDKG
产地：中国东莞
Micro USB 2.0 公头连接器 是一种广泛使用的连接器，主要用于智能手机、平板电脑、数码相机和各种电子设备的数据传输和充电。其小巧的设计使其非常适合于便携设备，并且由于其普及程度，已成为电子设备连接的标准之一。
Micro USB 2.0 公头连接器概述
特征
1.小型化设计：
Micro USB 2.0 公头连接器具有小巧轻便的外形，适用于空间有限的设备和配件。
2.数据传输和充电：
支持高速数据传输，传输速率最高可达480 Mbps，同时还可用于充电。
3.标准化接口：
Micro USB 2.0 是一个国际标准接口，具有良好的兼容性，能够与大多数使用该接口的设备配合工作。
4.耐用性：
该连接器通常由强韧的塑料或金属材料制成，能够承受长时间的使用和频繁插拔。
5.引脚设计：
Micro USB 2.0 公头连接器通常有5个引脚，用于电源传输和数据信号发送。
性能参数
传输速率：数据传输速率为最高480 Mbps。
额定电流：通常支持最高2A的电流。
额定电压：通常为5V，用于传统的USB供电。
插拔寿命：可达10000次以上，确保在正常使用条件下的可靠性。
应用领域
1.智能手机和平板电脑：
用于充电和数据传输，几乎所有Android设备都配备了Micro USB接口。
2.数码相机：
用于将相机中的照片和视频传输到电脑或其他设备。
3.外部存储设备：
一些外置硬盘和USB闪存盘使用Micro USB接口进行数据传输。
4.家电和配件：
许多智能家居设备、蓝牙音响和其他外围设备采用Micro USB接口进行电源供应。
5.汽车电子产品：
在车辆的音响系统或导航设备中用于充电或数据连接。
安装与维护建议
1.连接前检查：
确保连接器和接口干净，没有灰尘和污垢，以避免连接故障。
2.确认插入方向：
注意连接器的形状，确保正确插入，以防止损坏接触点。
3.防止强力插拔：
在拔出连接器时，避免施加过大的力量，以防止连接器和接口的损坏。
4.定期检查：
定时检查连接器、数据线和接口的状况，保证正常使用。
总结
Micro USB 2.0 公头连接器 是现代电子产品中不可或缺的一部分，以其便捷性和可靠性被广泛应用于多种设备。它不仅可以用于数据传输，还能有效支持设备充电，满足日常生活的需求。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: Micro USB 2.0 Male Connector
1. Materials:
1-1. Shell: LCP UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Stainless steel
2. Complete:
2-1. Contact: There is a golden flash in the contact area
Matte tin in other areas
2-2. Shell: Weldable edge
3. Environment:
3-1. Operating temperature range:- 2OC ~+85°C
3-2. Storage temperature range:- 40^C ~+85^C
4. Specifications:
4-1. Rated current: pins 1 and 5 1.8A (maximum), other 0.5A
Each pin 1A
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Micro USB 2.0 male connector is a widely used connector, mainly used for data transmission and charging of smartphones, tablets, digital cameras, and various electronic devices. Its compact design makes it very suitable for portable devices, and due to its popularity, it has become one of the standards for electronic device connectivity.
Overview of Micro USB 2.0 Male Connector
features
1. Miniaturization design:
The Micro USB 2.0 male connector has a compact and lightweight appearance, suitable for devices and accessories with limited space.
2. Data transmission and charging:
Supports high-speed data transmission, with a maximum transmission rate of 480 Mbps, and can also be used for charging.
3. Standardized interfaces:
Micro USB 2.0 is an international standard interface that has good compatibility and can work with most devices that use this interface.
4. Durability:
This connector is usually made of strong plastic or metal materials, which can withstand long-term use and frequent plugging and unplugging.
5. Pin design:
Micro USB 2.0 male connectors typically have 5 pins for power transmission and data signal transmission.
performance parameter
Transmission rate: The maximum data transmission rate is 480 Mbps.
Rated current: usually supports a maximum current of 2A.
Rated voltage: usually 5V, used for traditional USB power supply.
Plug and unplug lifespan: up to 10000 times, ensuring reliability under normal usage conditions.
application area
1. Smartphones and tablets:
Almost all Android devices are equipped with Micro USB ports for charging and data transfer.
2. Digital camera:
Used to transfer photos and videos from a camera to a computer or other device.
3. External storage devices:
Some external hard drives and USB flash drives use the Micro USB interface for data transfer.
4. Home appliances and accessories:
Many smart home devices, Bluetooth speakers, and other peripheral devices use Micro USB interfaces for power supply.
5. Automotive electronic products:
Used for charging or data connection in the vehicle's audio system or navigation equipment.
Installation and maintenance recommendations
1. Check before connection:
Ensure that the connectors and interfaces are clean, free from dust and dirt to avoid connection failures.
2. Confirm insertion direction:
Pay attention to the shape of the connector to ensure correct insertion and prevent damage to the contact points.
3. Prevent strong plugging and unplugging:
When unplugging the connector, avoid applying excessive force to prevent damage to the connector and interface.
4. Regular inspection:
Regularly check the condition of connectors, data cables, and interfaces to ensure normal use.
summary
Micro USB 2.0 male connector is an indispensable part of modern electronic products, widely used in various devices for its convenience and reliability. It can not only be used for data transmission, but also effectively support device charging to meet the needs of daily life. If you have further questions or need specific technical parameters, please feel free to contact the technician!
