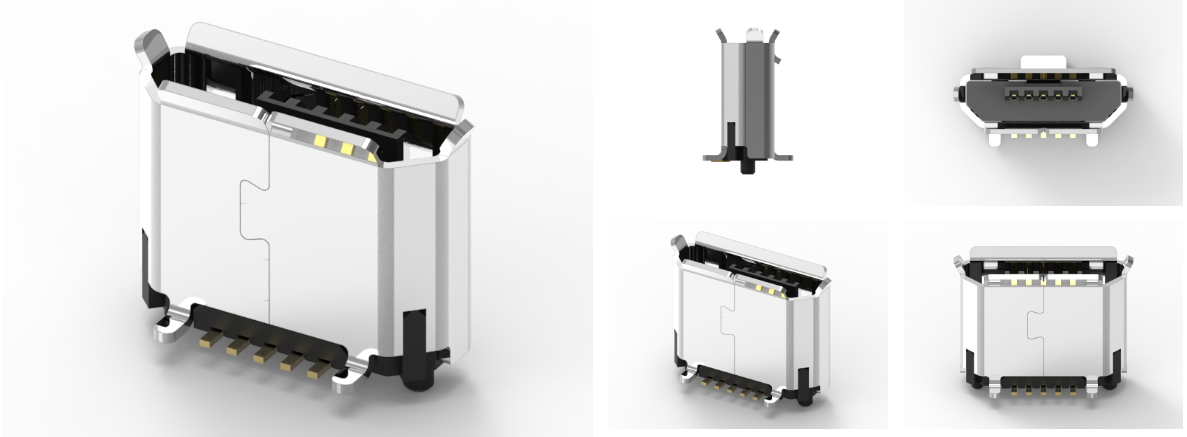

品名：Micro USB 2.0 母头5PIN连接器
注：
1.材料：
1-1.外壳：LCP UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：不锈钢
1-4. O型圈：硅
1-5. 衬垫：黄铜
2.完成：
2-1.底层：镍50u”
2-2.外壳：哑光镀锡
2-3.衬垫：哑光镀锡
3.电气规格
3-1.触点电流额定值：1.8A（仅引脚1和5）；其他0.5A（仅引脚2、3和4）。
3-2.触点额定电压：30V
3-3.接触电阻：最大30m欧姆
3-4.绝缘电阻：直流500V时最小100M欧姆。
3-5.电介质耐受电压：交流100V交流电/1分钟10mA。
3-6.防水：IPX7
4.环境：
4-1.工作温度：-40~85°
品牌：科斯达开关KSDKG
产地：中国东莞


Micro USB 2.0 母头5PIN连接器 是一种常见的连接器，广泛用于各种电子设备中，以支持数据传输和充电功能。Micro USB 2.0接口因其紧凑设计和兼容性，成为智能手机、平板电脑和其他移动设备的标准连接方式。

Micro USB 2.0 母头5PIN连接器概述

特征
1.小型化设计：
Micro USB母头连接器相较于标准USB连接器更小，更适合便携设备，便于在空间有限的情况下设计。

2.5PIN配置：
该连接器包括5个引脚，分别用于电源传输和数据传输，确保设备之间的连接稳定。

3.高兼容性：
Micro USB 2.0是一个国际标准接口，几乎所有Android设备和许多其他电子设备都采用该连接器。

4.耐用性：
通常使用高质量的塑料或金属材质，保证连接器在重复插拔使用中的耐用性。

5.电气性能：
支持高达2A的电流及5V的电压，适合大多数设备的充电和数据通信需求。

性能参数
传输速率：支持最大480 Mbps的数据传输速率。

额定电压：5V，确保能够满足大多数移动设备的充电需求。

插拔寿命：一般可达到10000次插拔，适合长时间使用。

工作温度范围：通常为-20°C到+70°C，适应各种工作环境。

应用领域

1.智能手机和平板电脑：
作为充电和数据传输的接口，广泛用于Android设备。

2.数码相机：
用于将相机中的数据传输到计算机或其他设备。

3.电子配件：
众多蓝牙音响、便携式充电器和其他外围设备均使用Micro USB接口。

4.车载电子产品：
用于汽车导航、音响系统以及其他智能车载设备的连接。

5.其它消费电子：

各类支持USB的消费电子产品，如便携式风扇、LED灯等。

安装与维护建议

1.正确插入：
插入时要确保连接器与接口对齐，避免因插错方向而造成设备损坏。

2.避免施加过大力量：
拔出连接器时应轻轻用力，避免损伤针脚或母头接口。

3.保持接口清洁：
定期检查和清洁接口，防止灰尘和杂物导致连接不良。

4.检查线缆状态：
使用过程中注意观察数据线和连接器的磨损情况，及时更换。

总结
Micro USB 2.0 母头5PIN连接器 在当今的电子产品中极为常见，因其便捷性和高兼容性成为多种设备的标准接口，满足了现代生活中对于快速充电和数据传输的需求。无论是在消费电子、工业设备还是汽车电子中，该连接器都发挥着重要作用。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: Micro USB 2.0 Female 5PIN Connector
Note:
1. Materials:
1-1. Shell: LCP UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Stainless steel
1-4.  O-ring: Silicon
1-5.  Pad: Brass
2. Complete:
2-1. Bottom layer: Nickel 50u "
2-2. Shell: Matte tin plated
2-3. Pad: Matte tin plated
3. Electrical specifications
3-1. Contact current rating: 1.8A (only pins 1 and 5); Other 0.5A (only pins 2, 3, and 4).
3-2. Contact rated voltage: 30V
3-3. Contact resistance: maximum 30m ohms
3-4. Insulation resistance: Minimum 100M ohms at 500V DC.
3-5. Dielectric withstand voltage: AC 100V AC/10mA per minute.
3-6. Waterproof: IPX7
4. Environment:
4-1. Working temperature:- 40~85°
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The Micro USB 2.0 female 5PIN connector is a common connector widely used in various electronic devices to support data transfer and charging functions. The Micro USB 2.0 interface has become the standard connection method for smartphones, tablets, and other mobile devices due to its compact design and compatibility.

Overview of Micro USB 2.0 Female 5PIN Connector

features
1. Miniaturization design:
Compared to standard USB connectors, Micro USB female connectors are smaller and more suitable for portable devices, making them easier to design in limited space.

2.5PIN configuration:
This connector includes 5 pins, which are used for power transmission and data transmission respectively, ensuring stable connections between devices.

3. High compatibility:
Micro USB 2.0 is an international standard interface that is used by almost all Android devices and many other electronic devices.

4. Durability:
High quality plastic or metal materials are usually used to ensure the durability of the connector during repeated insertion and removal.

5. Electrical performance:
Supports up to 2A current and 5V voltage, suitable for charging and data communication needs of most devices.

performance parameter
Transmission rate: Supports a maximum data transmission rate of 480 Mbps.

Rated voltage: 5V, ensuring that it can meet the charging needs of most mobile devices.

Plug and unplug lifespan: Generally up to 10000 times, suitable for long-term use.

Working temperature range: usually -20 ° C to+70 ° C, suitable for various working environments.

application area

1. Smartphones and tablets:
As an interface for charging and data transmission, it is widely used in Android devices.

2. Digital camera:
Used to transfer data from the camera to a computer or other device.

3. Electronic accessories:
Many Bluetooth speakers, portable chargers, and other peripheral devices use the Micro USB interface.

4. In car electronic products:
Used for connecting car navigation, audio systems, and other intelligent in car devices.

5. Other consumer electronics:

Various consumer electronics products that support USB, such as portable fans, LED lights, etc.

Installation and maintenance recommendations

1. Correct insertion:
When inserting, ensure that the connector is aligned with the interface to avoid device damage caused by incorrect insertion direction.

2. Avoid applying excessive force:
When pulling out the connector, gently apply force to avoid damaging the pins or female interface.

3. Keep the interface clean:
Regularly inspect and clean the interface to prevent poor connections caused by dust and debris.

4. Check the cable status:
Pay attention to the wear and tear of the data cable and connector during use, and replace them in a timely manner.

summary
The Micro USB 2.0 female 5PIN connector is extremely common in today's electronic products, and has become a standard interface for various devices due to its convenience and high compatibility, meeting the needs of fast charging and data transmission in modern life. This connector plays an important role in consumer electronics, industrial equipment, and automotive electronics. If you have further questions or need specific technical parameters, please feel free to contact the technician!
