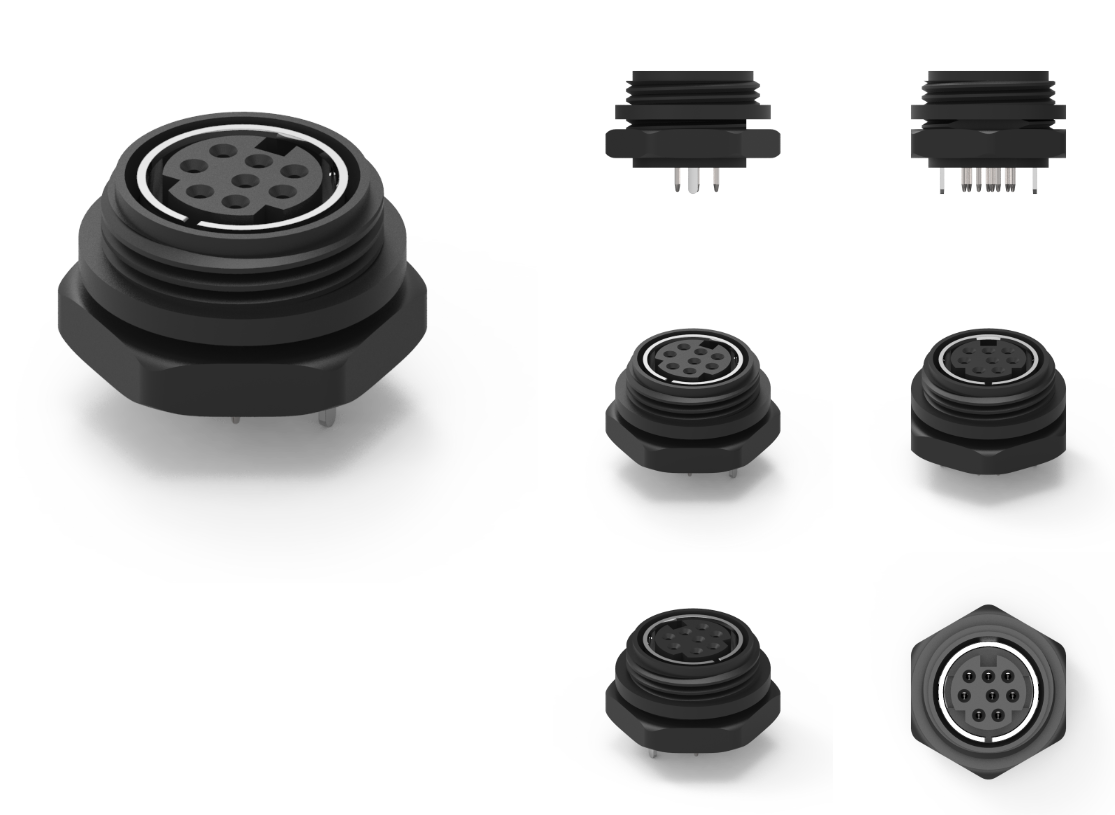

品名：Mini DIN 母头后锁插板式连接器
1.材料：
1-1.外壳：PBT UL94V-0；颜色：黑色
1-2.联系人：磷青铜
1-3.外壳：黄铜
2.完成：
2-1.触点：光亮镀锡
2-2.外壳：镀镍
3.电气规格：
3-1.额定电流：2A
3-2.额定电压：12vDC
3-3.绝缘电阻：250VDC时最小50Mn
3-4.绝缘强度：250VAC 1分钟
3-5.接触电阻：最大30m2。
3-6.插入力：最大45N。
3-7.拉力：9N至30N
3-8.耐久性试验：1000次循环
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini DIN 母头后锁插板式连接器是一种特定设计的小型连接器，广泛应用于音频、视频、数据传输以及其他电子设备中。与普通的Mini DIN母头插板式连接器相比，后锁设计在连接后增加了一个锁定机制，以确保连接的稳定性和安全性。以下是关于Mini DIN 母头后锁插板式连接器的详细信息。
主要特征
1.后锁设计：
后锁机制提供额外的保护，可以防止连接器在使用过程中意外松脱，为关键应用提供更高的稳定性。
2.多种引脚配置：
通常提供多种引脚选项（如4针、6针、8针等），用户可以根据具体需求选择适合的型号。
3.高可靠性：
采用高质量材料（如塑料和金属）生产，具有良好的耐用性和抗干扰性能，适应多种工作环境。
4.插板式设计：
母头连接器设计为插板式形式，便于在电路板上焊接和固定，安装简单。
5.兼容性：
标准化的设计使得Mini DIN母头后锁插板式连接器能够与多种设备广泛兼容。
应用领域
Mini DIN 母头后锁插板式连接器的应用领域包括：
音频设备：常用于高保真音响系统、混音器和音频接口，确保稳定的音频信号传输。
视频设备：在某些摄像机和显示器中用于视频信号的连接。
计算机及外围设备：如连接鼠标、键盘、打印机等设备，提供稳定的连接。
工业控制：在工业自动化设备中用于信号传输和设备间通信，确保设备可靠运行。
医疗设备：由于其稳定的连接性，后锁插板式连接器也常被应用于医疗设备中。
安装与维护建议
安装注意事项：
在安装时，确保连接器与电路板的引脚对齐，并遵循制造商手册中的建议进行焊接。
确保连接器和连接面的清洁，以避免干扰和接触不良。
维护建议：
定期检查连接器及焊接点的状态，以确保没有腐蚀或磨损。
如果设备长期不使用，建议将连接器用适当的保护措施封住，以防止灰尘和污垢的侵入。
总结
Mini DIN 母头后锁插板式连接器以其可靠的连接性能和耐用性在多种电子设备中得到了广泛应用。后锁设计增强了连接的安全性，特别适合于对连接稳定性要求较高的场合。通过合理的安装和维护，可以有效提高连接器的使用寿命和性能。无论在音频、视频还是工业应用中，这种连接器都能够助力高效、稳定的操作。如果您有特定的技术需求或其他疑问，欢迎联系技术员！
Product Name: Mini DIN Female Head Rear Lock Insertion Plate Connector
1. Materials:
1-1. Shell: PBT UL94V-0； Color: Black
1-2. Contact person: phosphor bronze
1-3. Shell: Brass
2. Complete:
2-1. Contact: Bright Tin Plating
2-2. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 2A
3-2. Rated voltage: 12vDC
3-3. Insulation resistance: minimum 50Mn at 250VDC
3-4. Insulation strength: 250VAC for 1 minute
3-5. Contact resistance: maximum 30m2.
3-6. Insertion force: maximum 45N.
3-7. Tensile strength: 9N to 30N
3-8. Durability test: 1000 cycles
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Mini DIN female head rear locking plug connector is a specially designed small connector widely used in audio, video, data transmission, and other electronic devices. Compared with ordinary Mini DIN female plug connectors, the rear lock design adds a locking mechanism after connection to ensure stability and safety of the connection. The following is detailed information about the Mini DIN female head rear locking plug-in connector.
Main features
1. Rear lock design:
The rear locking mechanism provides additional protection to prevent accidental loosening of the connector during use, providing higher stability for critical applications.
2. Multiple pin configurations:
Usually, multiple pin options are provided (such as 4-pin, 6-pin, 8-pin, etc.), and users can choose the appropriate model according to their specific needs.
3. High reliability:
Produced with high-quality materials such as plastic and metal, it has good durability and anti-interference performance, and can adapt to various working environments.
4. Plug in design:
The female connector is designed in a plug-in form, which is convenient for soldering and fixing on the circuit board, and easy to install.
5. Compatibility:
The standardized design enables the Mini DIN female head rear locking plug-in connector to be widely compatible with a variety of devices.
application area
The application areas of Mini DIN female head rear locking plug connector include:
Audio equipment: commonly used in high fidelity audio systems, mixers, and audio interfaces to ensure stable audio signal transmission.
Video equipment: Used for connecting video signals in certain cameras and displays.
Computers and peripheral devices: such as connecting mice, keyboards, printers, and other devices, providing stable connections.
Industrial control: Used for signal transmission and inter device communication in industrial automation equipment to ensure reliable operation of the equipment.
Medical devices: Due to their stable connectivity, rear locking plug-in connectors are also commonly used in medical devices.
Installation and maintenance recommendations
Installation precautions:
During installation, ensure that the connectors are aligned with the pins of the circuit board and follow the manufacturer's manual for soldering.
Ensure that the connectors and connection surfaces are clean to avoid interference and poor contact.
Maintenance suggestion:
Regularly check the condition of connectors and soldering points to ensure there is no corrosion or wear.
If the device is not used for a long time, it is recommended to seal the connector with appropriate protective measures to prevent dust and dirt from entering.
summary
The Mini DIN female head locking plug connector has been widely used in various electronic devices due to its reliable connection performance and durability. The rear lock design enhances the security of the connection, making it particularly suitable for situations that require high stability of the connection. By proper installation and maintenance, the service life and performance of connectors can be effectively improved. This connector can assist in efficient and stable operation in audio, video, and industrial applications. If you have specific technical requirements or other questions, please feel free to contact a technician!
