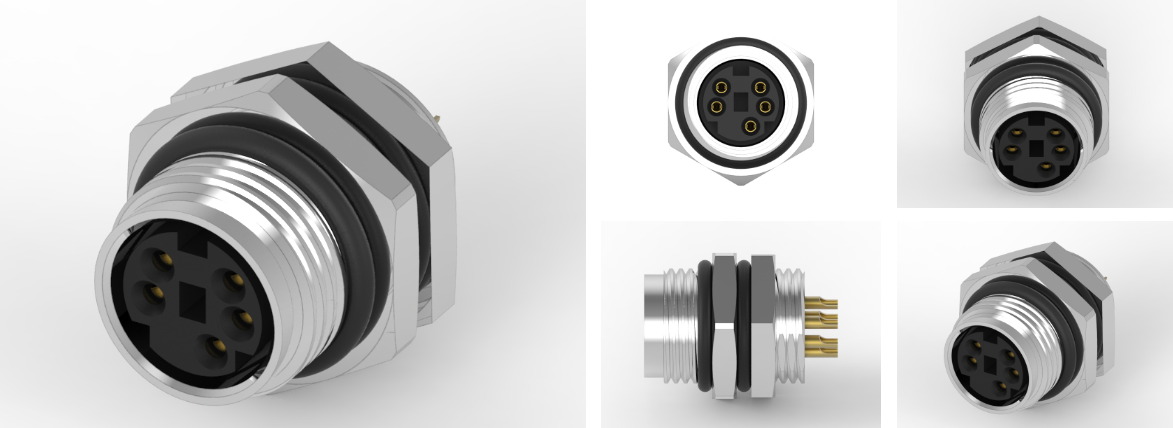

品名：Mini DIN 母头后锁焊线式防水连接器
1.材料：
1-1. 外壳：PBT UL94V0；颜色：黑色
1-2.触点：黄铜
1-3.外壳：黄铜
1-4.编号：黄铜
1-5.0-RING：三元乙丙橡胶；颜色：黑色
2.完成：
2-1.触点：金色闪光。
底板：镍
2-2.外壳：镀镍。
2-2.编号：镀镍。
3.电气规格
3-1.额定电流：2A
3-2.额定电压：12V
3-3.防水等级：IPX7
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini DIN 母头后锁焊线式防水连接器是一种专门设计的连接器，结合了 Mini DIN 连接器的特点与后锁机制，并具备防水功能，适用于各种需防潮或防水的应用场景。以下是关于这种连接器的详细信息。
特点
1.后锁设计：
后锁机制能够确保连接器在连接后提供额外的牢固性，防止在震动或意外拉扯的情况下松脱。
2.防水性能：
该连接器采用防水设计，通常包括密封圈或专用材料，防止水分和尘埃进入，从而保护内部连接不受潮湿和污染的影响。
3.焊线式连接：
连接器的引脚设计为焊接方式，使得连接更加牢固可靠。在焊接时，用户可以根据具体的电缆规格选择适合的焊接方式。
4.多种引脚配置：
提供多种引脚数量（如4针、6针、8针等），满足不同设备的需求。
5.高可靠性：
使用耐用且抗腐蚀的材料制造，适应各种工业和户外环境，保证连接的长期稳定性。
应用领域
Mini DIN 母头后锁焊线式防水连接器适用于多种场合，包括：
户外设备：防水性能使其成为户外使用设备（如露天音响、摄像头、IoT设备等）的理想选择。
汽车电子：在汽车中用于连接传感器、控制模块等，有效抵御水和灰尘的入侵。
工业设备：广泛应用于需要防水和防尘的工业环境，如自动化设备、生产线等。
医疗设备：由于抗潮湿的特性，可以在某些医疗设备中使用，确保设备在湿润环境下正常运行。
安装与维护建议
安装注意事项：
在焊接时，确保连接点干净，以保证良好的电气接触。
遵循产品手册中的焊接指导，防止焊接温度过高导致材料损坏。
维护建议：
定期检查连接器的外观，确保没有磨损或损坏。
在有条件的情况下，定期测试防水性能，确保连接器在特定环境下正常运行。
总结
Mini DIN 母头后锁焊线式防水连接器结合了稳固的锁定机制和防水设计，非常适合在具有挑战性的环境中使用，如户外、工业或汽车应用。得益于其良好的连接性能和防护能力，这种连接器在确保设备性能和延长使用寿命方面发挥了重要作用。通过合理的安装和维护，可以确保其在各种环境下的高效稳定运行。如果您有特定的技术需求或其他疑问，欢迎联系技术员！
Product Name: Mini DIN Female Head Rear Lock Solder Wire Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: Brass
1-3. Shell: Brass
1-4. Number: Brass
1-5.0-RING: EPDM rubber; Color: Black
2. Complete:
2-1. Contact: Gold flashing.
Bottom plate: Nickel
2-2. Shell: Nickel plated.
2-2. Number: Nickel plating.
3. Electrical specifications
3-1. Rated current: 2A
3-2. Rated voltage: 12V
3-3. Waterproof grade: IPX7
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The Mini DIN female head rear lock solder wire waterproof connector is a specially designed connector that combines the characteristics of Mini DIN connectors with the rear lock mechanism, and has waterproof function, suitable for various application scenarios that require moisture-proof or waterproof. The following is detailed information about this type of connector.
characteristic
1. Rear lock design:
The rear locking mechanism ensures that the connector provides additional stability after connection, preventing it from loosening in the event of vibration or accidental pulling.
2. Waterproof performance:
This connector adopts a waterproof design, usually including sealing rings or specialized materials to prevent moisture and dust from entering, thus protecting the internal connections from moisture and pollution.
3. Solder wire connection:
The pins of the connector are designed to be soldered, making the connection more secure and reliable. During welding, users can choose the appropriate welding method based on the specific cable specifications.
4. Multiple pin configurations:
Provide multiple pin numbers (such as 4-pin, 6-pin, 8-pin, etc.) to meet the needs of different devices.
5. High reliability:
Made of durable and corrosion-resistant materials, suitable for various industrial and outdoor environments, ensuring long-term stability of the connection.
application area
Mini DIN female head rear locking wire waterproof connector is suitable for various occasions, including:
Outdoor equipment: Its waterproof performance makes it an ideal choice for outdoor devices such as outdoor speakers, cameras, IoT devices, etc.
Automotive electronics: Used in cars to connect sensors, control modules, etc., effectively resisting the invasion of water and dust.
Industrial equipment: widely used in industrial environments that require waterproofing and dust prevention, such as automation equipment, production lines, etc.
Medical equipment: Due to its moisture resistance, it can be used in certain medical devices to ensure normal operation in humid environments.
Installation and maintenance recommendations
Installation precautions:
During welding, ensure that the connection points are clean to ensure good electrical contact.
Follow the welding instructions in the product manual to prevent material damage caused by excessive welding temperature.
Maintenance suggestion:
Regularly inspect the appearance of the connector to ensure there is no wear or damage.
If conditions permit, regularly test the waterproof performance to ensure that the connector operates normally in specific environments.
summary
The Mini DIN female head rear lock solder wire waterproof connector combines a stable locking mechanism and waterproof design, making it ideal for use in challenging environments such as outdoor, industrial, or automotive applications. Thanks to its excellent connection performance and protective capabilities, this connector plays an important role in ensuring device performance and extending service life. By proper installation and maintenance, it can ensure efficient and stable operation in various environments. If you have specific technical requirements or other questions, please feel free to contact a technician!
