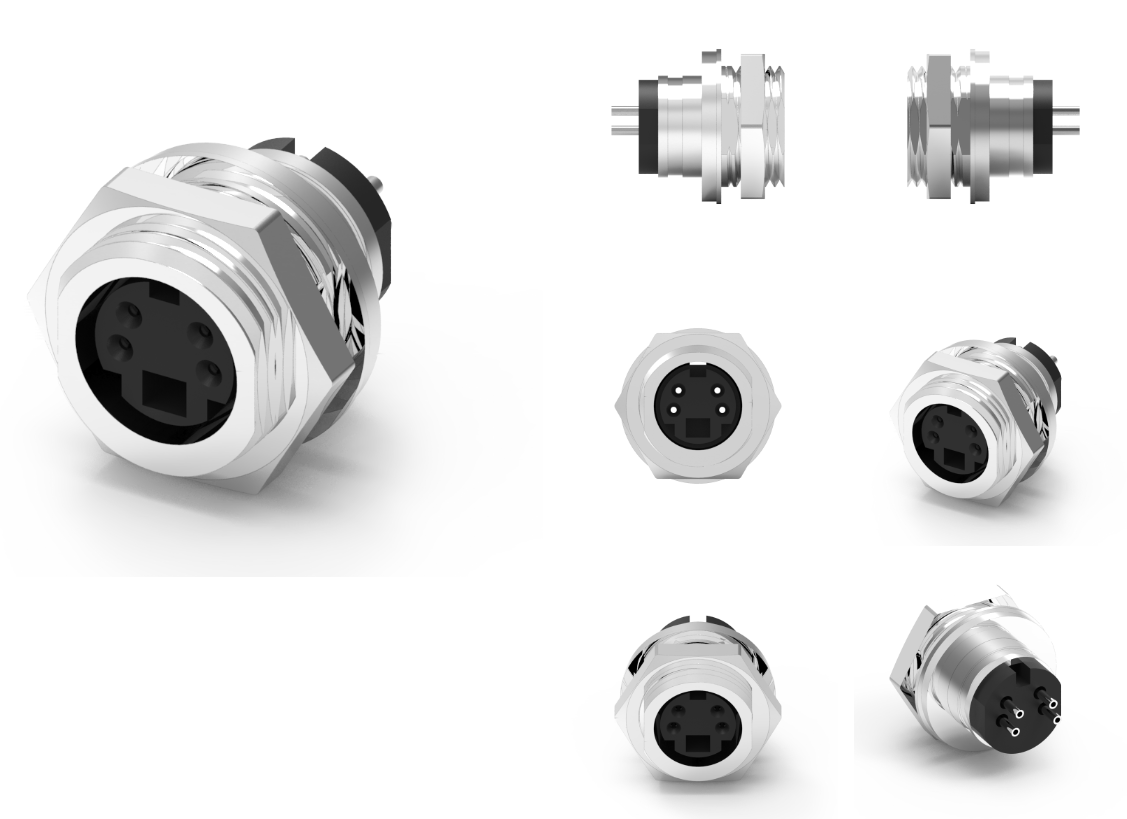

品名：Mini DIN 母头前锁焊线式连接器
1.材料
1-1.外壳：PBT+30%GFUL94V-0；颜色：黑色
1-2. 触点：磷青铜
1-3.编号：黄铜
1-4.垫片：不锈钢
1-5.外壳：黄铜，
2.完成
2-1.触点：镀金
2-2.编号：镀镍
2-3.垫片：镀镍
2-4.外壳：镀镍
3.电气规格：
3-1.额定电流：2A
3-2.额定电压：12V
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini DIN 母头前锁焊线式连接器是一种用于电子和电气设备的连接器，具有前锁设计和焊接连接方式，广泛应用于各种音频、视频和数据传输场景。以下是关于该连接器的详细介绍。
特点
1.前锁设计：
前锁结构能够实现稳固的连接，防止连接器在使用过程中松动或意外脱落，提高连接的可靠性。
2.焊线式连接：
采用焊接的方式进行线缆连接，提供强大的机械连接和优良的电气信号传输性能。焊接能够确保良好的接触，减少信号损失。
3.多种针脚配置：
Mini DIN 母头连接器通常实现多种引脚配置，如4针、6针、8针等，能够适应不同的应用需求。
4.紧凑设计：
Mini DIN 连接器设计紧凑，适合于空间有限的应用场景，能够实现高密度安装。
5.良好的电气性能：
由高质量材料制造，具有良好的导电性和耐用性，适合各种高频率和高带宽信号的传输。
应用领域
Mini DIN 母头前锁焊线式连接器广泛应用于以下领域：
音频设备：
常用于音频输入/输出接口，如乐器、专业音响设备、高质量音响系统等。
视频设备：
适用于摄像系统、监视器和其他视频应用，提供稳定的视频信号传输。
计算机和外围设备：
用于PC和外部设备的连接，特别是在老式计算机和外部周边设备中，例如键盘、鼠标等。
网络设备：
在一些网络设备中提供可靠的接口，供数据传输使用。
工业自动化：
用于工业设备的信号连接，适合控制系统和自动化设备需求。
安装与使用建议
安装注意事项：
确保连接器与线缆的匹配，按照说明书的指示进行焊接，以确保良好的接触。
在进行焊接前，保持连接器和线缆端子清洁，避免污染对焊接质量的影响。
使用建议：
使用时避免过度弯曲或拉扯线缆，以降低接触不良的风险。
定期检查连接器的状态，确保没有松动或磨损，从而保持最佳的信号传输效果。
总结
Mini DIN 母头前锁焊线式连接器凭借其可靠的前锁设计和优质的焊线连接方式，成为多种电子设备中不可或缺的连接解决方案。它能够提供优良的电气性能与稳定的连接，适运动于音频、视频和数据传输等多个应用场景。适当的安装与维护可以确保连接器的长期稳定性和性能。如果您有特定的技术需求或其他疑问，欢迎联系技术员！
Product Name: Mini DIN Female Head Front Lock Solder Wire Connector
1. Materials
1-1. Shell: PBT+30%GFUL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Number: Brass
1-4. Gasket: Stainless steel
1-5. Shell: brass,
2. Complete
2-1. Contact: Gold plating
2-2. Number: Nickel plating
2-3. Gasket: Nickel plated
2-4. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 2A
3-2. Rated voltage: 12V
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Mini DIN female head front lock solder wire connector is a connector used for electronic and electrical equipment, with a front lock design and solder connection method, widely used in various audio, video, and data transmission scenarios. The following is a detailed introduction about the connector.
characteristic
1. Front lock design:
The front lock structure can achieve a stable connection, prevent the connector from loosening or accidentally falling off during use, and improve the reliability of the connection.
2. Solder wire connection:
Using welding for cable connection provides strong mechanical connection and excellent electrical signal transmission performance. Welding can ensure good contact and reduce signal loss.
3. Multiple pin configurations:
Mini DIN female connectors typically implement multiple pin configurations, such as 4-pin, 6-pin, 8-pin, etc., to meet different application requirements.
4. Compact design:
The Mini DIN connector is designed to be compact and suitable for applications with limited space, enabling high-density installation.
5. Good electrical performance:
Made of high-quality materials, it has good conductivity and durability, suitable for the transmission of various high-frequency and high bandwidth signals.
application area
Mini DIN female head front locking wire connectors are widely used in the following fields:
Audio equipment:
Commonly used for audio input/output interfaces, such as musical instruments, professional audio equipment, high-quality audio systems, etc.
Video equipment:
Suitable for camera systems, monitors, and other video applications, providing stable video signal transmission.
Computers and peripherals:
Used for connecting PCs and external devices, especially in older computers and peripheral devices such as keyboards, mice, etc.
Network equipment:
Provide reliable interfaces for data transmission in some network devices.
Industrial automation:
Used for signal connection of industrial equipment, suitable for control systems and automation equipment requirements.
Installation and usage suggestions
Installation precautions:
Ensure that the connector matches the cable and solder according to the instructions in the manual to ensure good contact.
Before welding, keep the connectors and cable terminals clean to avoid contamination affecting the welding quality.
Usage suggestion:
Avoid excessive bending or pulling of cables during use to reduce the risk of poor contact.
Regularly check the status of the connectors to ensure they are not loose or worn, in order to maintain optimal signal transmission performance.
summary
The Mini DIN female head front lock wire connector, with its reliable front lock design and high-quality wire connection method, has become an indispensable connection solution in various electronic devices. It can provide excellent electrical performance and stable connections, suitable for multiple application scenarios such as audio, video, and data transmission. Proper installation and maintenance can ensure the long-term stability and performance of the connector. If you have specific technical requirements or other questions, please feel free to contact a technician!
