KSD-MD-03F1-07

KSD-MD-03F1-07

  • 产品特性
  • 应用范围

图纸下载 样品申请

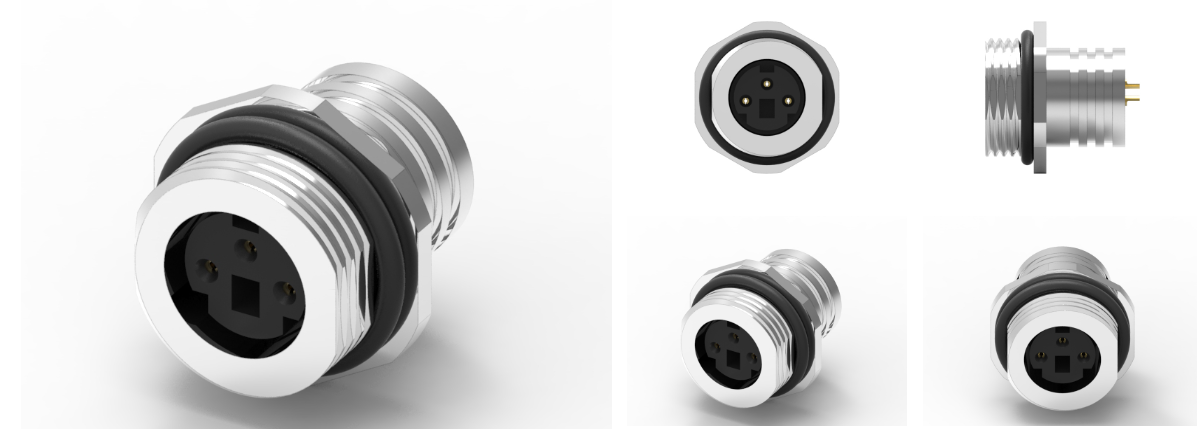

品名：Mini DIN 母头线端成型式防水连接器
1.材料：
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：黄铜
1-4.0-RING：三元乙丙橡胶；颜色：黑色
2.完成：
2-1.接触区域：镀金
焊接区域：镀金属
2-2.外壳：镀镍。
3.电气规格：
3-1.额定电流：2A
3-2.额定电压：12V
3-3.防水等级：IPX7
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Mini DIN 母头线端成型式防水连接器是一种用于连接和保护电子设备的连接器，结合了 Mini DIN 接口的标准化设计和优越的防水性能。它通常由焊接线缆和专用密封结构组成，适用于需要防水和防尘保护的应用场合。

特点
1.防水设计：
该连接器通常具有高等级的防水防尘能力（例如 IP67 或 IP68），能够有效阻止水和灰尘进入连接器内部，适合户外或恶劣环境使用。

2.线端成型：
线端成型设计使线缆连接更加紧凑，减少了连接器在设备中的占用空间，同时提升了连接的稳固性。

3.多样化引脚配置：
根据不同的应用需求，Mini DIN 母头连接器可以提供多种引脚配置（如4针、6针、8针等），满足不同信号传输的需求。

4.高质量材料：
使用耐用的材料制造，确保连接器在极端条件下保持性能，避免腐蚀和磨损。

5.简便安装：
线端成型式设计使得安装过程相对简便，无需额外的接线端子，直接焊接到线缆上即可。

应用领域

Mini DIN 母头线端成型式防水连接器广泛应用于多个领域，包括：

汽车电子：
用于汽车内部和外部的电子设备，如传感器、音响系统等，抵御水分和灰尘的侵入。

工业自动化：
应用于工业控制系统、机器人以及其他需要防水的机器设备，确保稳定的信号连接。

户外设备：
用于户外通讯设备、监控摄像头、音响系统等，保证设备在恶劣天气下正常工作。

医疗设备：
应用于医疗器械和设备，提供防水保护，确保设备在潮湿环境中的可靠性。

网络设备：
在需要防护的网络环境中使用，确保数据传输稳定。

安装与维护建议

安装注意事项：
确保焊接时连接器和线缆端子处于干燥、洁净的状态，以保证良好的焊接效果。

在组装过程中检查密封圈是否完好，避免漏水现象。

维护建议：
定期检查连接器，确保没有损坏或老化，尤其是在恶劣环境中长期使用后。

清洁时使用干燥的软布，不要使用腐蚀性清洁剂，以免损坏连接器表面。

总结
Mini DIN 母头线端成型式防水连接器结合了高效的防水性能与便捷的安装设计，非常适合需要高可靠性和耐用性的应用场景。其广泛应用于汽车、工业、医疗和户外设备等多个领域，能够在多种恶劣环境中保持良好的电气性能和稳定的连接。通过适当的使用与维护，这种连接器可以确保长期有效地工作。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Mini DIN Female Wire End Forming Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Brass
1-4.0-RING: EPDM rubber; Color: Black
2. Complete:
2-1. Contact area: Gold plating
Welding area: Metal plating
2-2. Shell: Nickel plated.
3. Electrical specifications:
3-1. Rated current: 2A
3-2. Rated voltage: 12V
3-3. Waterproof grade: IPX7
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Mini DIN female end molded waterproof connector is a connector used for connecting and protecting electronic devices, combining the standardized design of Mini DIN interface with superior waterproof performance. It usually consists of welded cables and specialized sealing structures, suitable for applications that require waterproof and dustproof protection.

characteristic
1. Waterproof design:
This connector typically has a high level of waterproof and dustproof capabilities (such as IP67 or IP68), which can effectively prevent water and dust from entering the interior of the connector, making it suitable for outdoor or harsh environments.

2. End forming:
The wire end forming design makes the cable connection more compact, reduces the space occupied by the connector in the equipment, and improves the stability of the connection.

3. Diversified pin configurations:
According to different application requirements, Mini DIN female connectors can provide multiple pin configurations (such as 4-pin, 6-pin, 8-pin, etc.) to meet the needs of different signal transmission.

4. High quality materials:
Made with durable materials to ensure the connector maintains performance under extreme conditions, avoiding corrosion and wear.

5. Easy installation:
The wire end molding design makes the installation process relatively simple, without the need for additional wiring terminals, and can be directly welded to the cable.

application area

Mini DIN female end molded waterproof connectors are widely used in multiple fields, including:

Automotive Electronics:
Used for electronic devices inside and outside cars, such as sensors, audio systems, etc., to resist the intrusion of moisture and dust.

Industrial automation:
Applied to industrial control systems, robots, and other waterproof machinery and equipment to ensure stable signal connections.

Outdoor equipment:
Used for outdoor communication equipment, surveillance cameras, audio systems, etc., to ensure that the equipment works properly in adverse weather conditions.

Medical equipment:
Applied to medical devices and equipment, providing waterproof protection to ensure the reliability of the equipment in humid environments.

Network equipment:
Use in a network environment that requires protection to ensure stable data transmission.

Installation and maintenance recommendations

Installation precautions:
Ensure that the connectors and cable terminals are in a dry and clean state during welding to ensure good welding results.

Check if the sealing ring is intact during the assembly process to avoid water leakage.

Maintenance suggestion:
Regularly inspect connectors to ensure they are not damaged or aged, especially after long-term use in harsh environments.

When cleaning, use a dry soft cloth and do not use corrosive cleaning agents to avoid damaging the surface of the connector.

summary
The Mini DIN female end molded waterproof connector combines efficient waterproof performance with convenient installation design, making it ideal for applications that require high reliability and durability. It is widely used in various fields such as automotive, industrial, medical, and outdoor equipment, and can maintain good electrical performance and stable connections in various harsh environments. By proper use and maintenance, this connector can ensure long-term effective operation. If you have specific technical requirements or other questions, please feel free to contact a technician!
