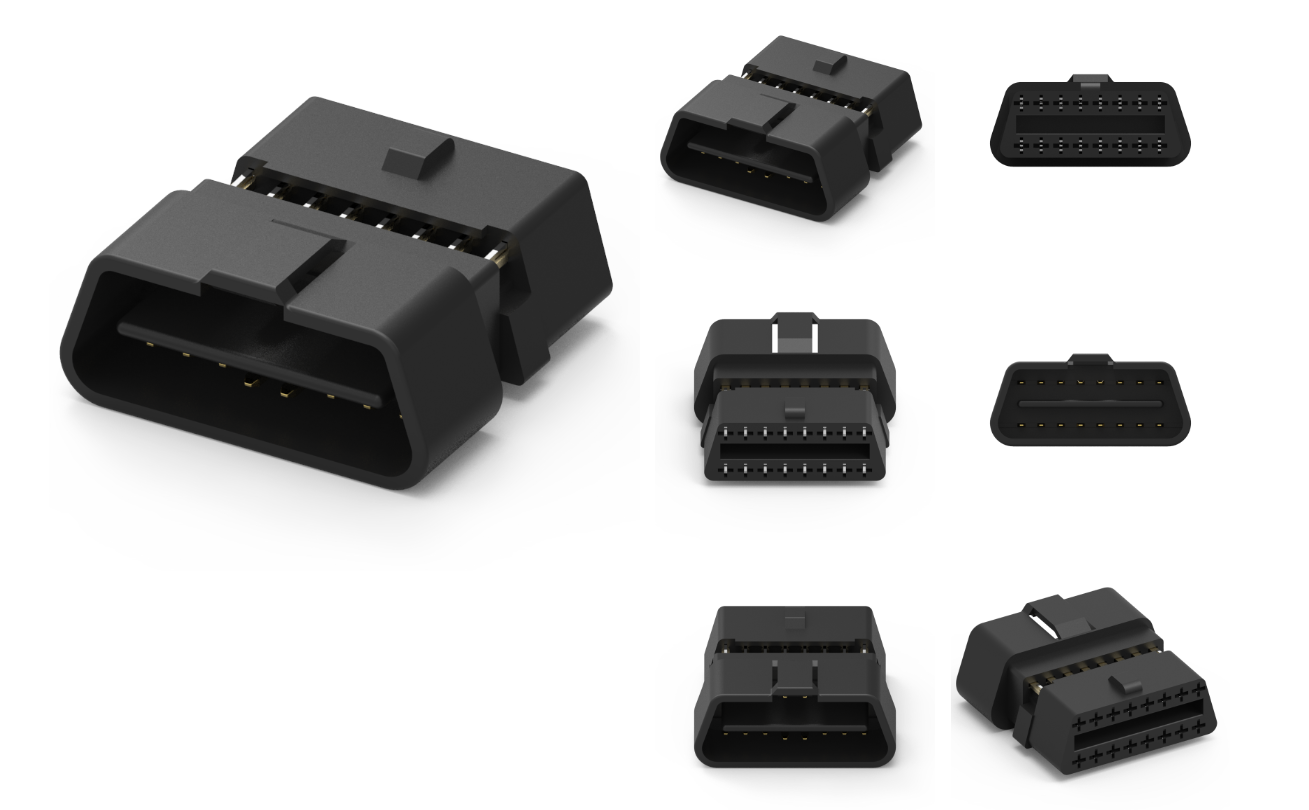

品名：OBD2 16PIN 公转母转接器
1.材料：
1-1.外壳：尼龙66+GF 15%UL94V-0；颜色：黑色。
1-2. 触点：黄铜
2.完成：
2-1.触点：亮锡
3.电气规格：
3-1.额定电流：4A
3-2.电压：30V
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
OBD2 16PIN 公转母转接器 是一种用于连接OBD2设备和汽车诊断接口的适配器。它的设计目的是在需要将OBD2汽车接口（母头）与OBD2诊断工具（公头）进行连接时提供便利。以下是关于此接器的一些详细信息：
主要特点
1.类型：
OBD2 16PIN 公转母转接器可以将OBD2公头连接到OBD2母头，使得各种OBD2工具和设备能够连接到汽车的OBD接口。
2.插头与插座配置：
公头：标准的OBD2公接头，通常为16个引脚的连接器，用于插入OBD2母头（汽车的诊断接口）。
母头：另一端是OBD2母接头，允许将其他OBD2连接器或设备插入进行数据读取或故障检测。
3.耐用性：
该转接器一般采用高质量材料制造，设计为耐磨、耐高温，能够在汽车的工作环境下长时间使用。
4.便于使用：
无需更改原有的汽车诊断接口，简单插入即可使用，方便维修和技术人员在不同设备之间转换。
应用领域
1.汽车技术维修：
维修技师在进行车辆故障检测时，可以使用此转换器连接各种OBD2诊断工具，从而提高工作效率。
2.数据监控：
可以将OBD2数据流连接到计算机或其他设备上，以监视汽车的实时性能、故障码和传感器数据。
3.二次开发与实验：
开发人员可以利用转接器连接不同的自定义设备，以进行功能实验或数据记录。
使用建议
1.确保兼容性：
在购买或使用前，请确认转接器的公头和母头都是符合OBD2标准的16PIN接头。
2.正确插拔：
插入和拔出时要保持正对，不要用力过猛，以免损坏接口。
3.避免潮湿环境：
尽量保持接头干燥和清洁，避免水分和污垢进入连接器，以确保良好的电气接触。
4.定期检查：
定期检查转接器的磨损情况，确保其引脚和连接没有腐蚀或损坏。
总结
OBD2 16PIN 公转母转接器 是一种极为实用的工具，特别对于那些需要频繁连接不同设备的技术人员。它提供了一种便利的连接方式，便于各种OBD2设备与车辆的互联互通。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: OBD2 16PIN Rotating Mother Adapter
1. Materials:
1-1. Shell: Nylon 66+GF 15% UL94V-0; Color: Black.
1-2. Contact: Brass
2. Complete:
2-1. Contact: Bright Tin
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Voltage: 30V
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The OBD2 16PIN revolving mother adapter is an adapter used to connect OBD2 devices and automotive diagnostic interfaces. Its design purpose is to provide convenience when connecting the OBD2 car interface (female head) with the OBD2 diagnostic tool (male head). Here are some detailed information about this connector:
main features
1. Type:
The OBD2 16PIN revolving female adapter can connect the OBD2 male head to the OBD2 female head, enabling various OBD2 tools and devices to be connected to the car's OBD interface.
2. Plug and socket configuration:
Male connector: A standard OBD2 male connector, typically a 16 pin connector, used to insert an OBD2 female connector (a diagnostic interface for automobiles).
Female connector: The other end is an OBD2 female connector, which allows other OBD2 connectors or devices to be inserted for data reading or fault detection.
3. Durability:
This adapter is generally made of high-quality materials, designed to be wear-resistant and heat-resistant, and can be used for a long time in the working environment of automobiles.
4. Easy to use:
No need to change the original car diagnostic interface, it can be easily inserted and used, making it convenient for maintenance and technical personnel to switch between different devices.
application area
1. Automotive technical maintenance:
Maintenance technicians can use this converter to connect various OBD2 diagnostic tools during vehicle fault detection, thereby improving work efficiency.
2. Data monitoring:
The OBD2 data stream can be connected to a computer or other device to monitor the real-time performance, fault codes, and sensor data of the car.
3. Secondary development and experimentation:
Developers can use adapters to connect different custom devices for functional experiments or data recording.
Usage suggestions
1. Ensure compatibility:
Before purchasing or using, please confirm that both the male and female heads of the adapter are 16 PIN connectors that comply with OBD2 standards.
2. Correct insertion and removal:
When inserting and unplugging, keep it facing each other and do not apply too much force to avoid damaging the interface.
3. Avoid humid environments:
Try to keep the connector dry and clean, avoiding moisture and dirt from entering the connector to ensure good electrical contact.
4. Regular inspection:
Regularly check the wear of the adapter to ensure that its pins and connections are not corroded or damaged.
summary
The OBD2 16PIN rotary adapter is an extremely practical tool, especially for technicians who need to frequently connect different devices. It provides a convenient connection method for various OBD2 devices to interconnect with vehicles. If you have further questions or need specific technical parameters, please feel free to contact the technician!
