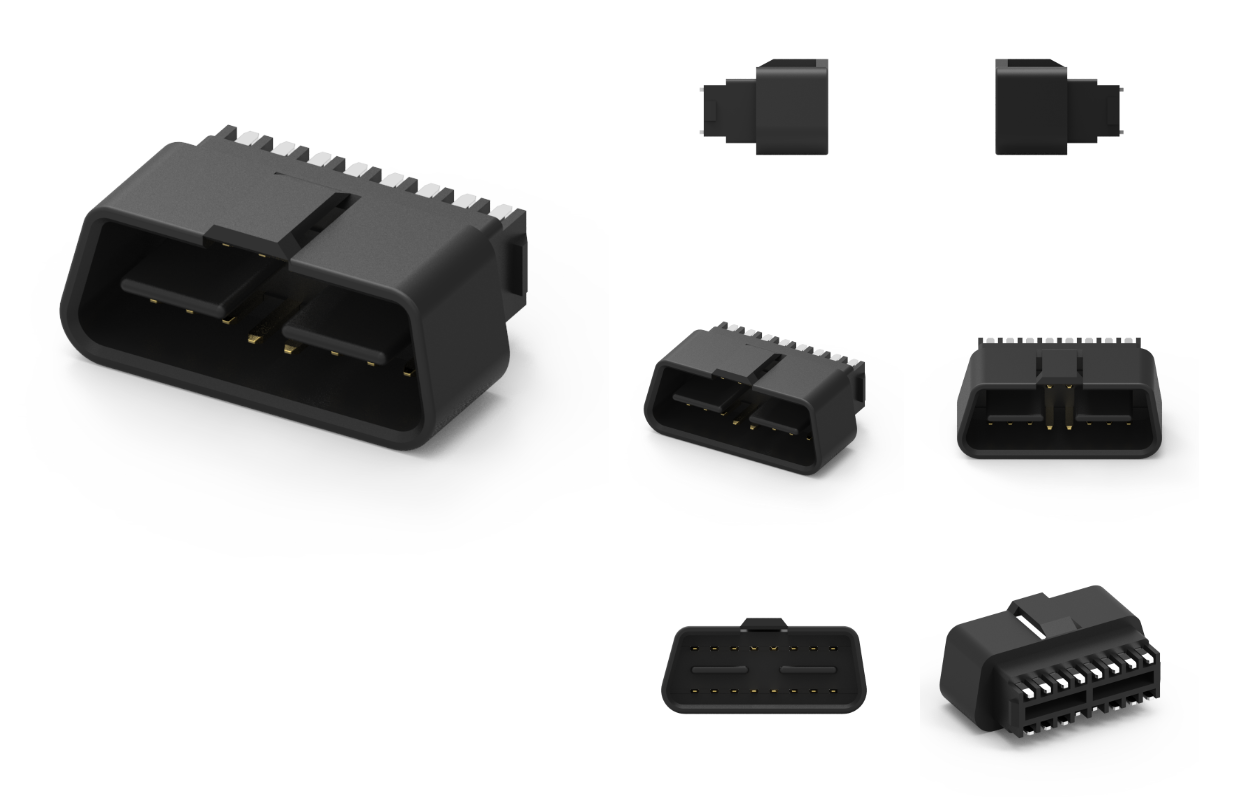

品名：OBD2 公头16PIN连接器
1.材料：
1-1. 外壳：尼龙66 UL94V-0；颜色：黑色
1-2.触点：黄铜
2.完成
2-1.触点：锡100”
底板：镍
3.电气规格：
3-1.额定电流：4A
3-2.电压：30V
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
OBD2 公头 16PIN 连接器 是一种标准化的连接器，用于汽车诊断与维修。OBD（On-Board Diagnostics，车载诊断）系统能够监测车辆的性能，并在发生故障时提供相关的故障码。以下是 OBD2 公头 16PIN 连接器的详细信息：
主要特点
1.引脚配置：
OBD2 16PIN 连接器具有 16 个引脚，每个引脚都有特定的功能。通常的引脚配置如下：
引脚 1: 保留
引脚 2: J1850 Bus + (用于数据通信)
引脚 3: 被保留
引脚 4: 接地 (Chassis Ground)
引脚 5: 信号地 (Signal Ground)
引脚 6: CAN High (连接到控制器局域网)
引脚 7: K-Line (用于 ISO 9141 和 KW2000)
引脚 8: 保留
引脚 9: 保留
引脚 10: J1850 Bus - (用于数据通信)
引脚 11: 保留
引脚 12: 保留
引脚 13: 保留
引脚 14: CAN Low (连接到控制器局域网)
引脚 15: K-Line (可选功能)
引脚 16: 电源正极 (通常为 12V)
2.标准化接头：
OBD2 连接器的标准化使得各种汽车诊断工具和设备可以兼容多种车型，便于维修与检测。
3.耐用性与插拔性能：
OBD2 连接器通常采用高强度塑料和金属材料制成，能够承受频繁插拔以及车内的恶劣环境。
应用领域
1.汽车诊断工具：
OBD2 连接器广泛用于诊断仪器、扫描仪和汽车故障检测设备中，帮助技术人员读取和清除故障码以及监测车辆性能。
2.汽车维护与修理：
汽车维修车间使用 OBD2 连接器与诊断设备连接，进行车辆故障排查和维护。
3.二次开发和程序设计：
一些开发者和工程师利用 OBD2 接口进行车辆性能调节、数据读取和程序开发。
安装与使用建议
1.连接方式：
确保在连接 OBD2 设备时，车辆处于关闭状态，然后再插入 OBD2 连接器，避免电气问题。
2.定期检查：
定期检查连接器和线路是否有磨损、损坏或松动，确保连接可靠且电气性能良好。
3.操作注意事项：
使用 OBD2 诊断工具时，注意不要在车辆编辑或配置过程中拔掉连接器，以免造成数据丢失或车辆故障。
总结
OBD2 公头 16PIN 连接器 是现代汽车的重要组成部分，支持各种车辆的故障诊断和维护。了解其构造和使用方式，可以有效地维护和监测车辆的性能。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: OBD2 Male 16PIN Connector
1. Materials:
1-1. Shell: Nylon 66 UL94V-0; Color: Black
1-2. Contact: Brass
2. Complete
2-1. Contact: Tin 100 "
Bottom plate: Nickel
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Voltage: 30V
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The OBD2 male 16PIN connector is a standardized connector used for automotive diagnosis and maintenance. The OBD (On Board Diagnostics) system can monitor the performance of the vehicle and provide relevant fault codes in the event of a malfunction. The following is the detailed information of the OBD2 male 16PIN connector:
main features
1. Pin configuration:
The OBD2 16PIN connector has 16 pins, each with a specific function. The typical pin configuration is as follows:
Pin 1: Reserved
Pin 2: J1850 Bus+(for data communication)
Pin 3: Reserved
Pin 4: Chassis Ground
Pin 5: Signal Ground
Pin 6: CAN High (connected to Controller Area Network)
Pin 7: K-Line (for ISO 9141 and KW2000)
Pin 8: Reserved
Pin 9: Reserved
Pin 10: J1850 Bus - (for data communication)
Pin 11: Reserved
Pin 12: Reserved
Pin 13: Reserved
Pin 14: CAN Low (connected to Controller Area Network)
Pin 15: K-Line (optional feature)
Pin 16: Positive pole of power supply (usually 12V)
2. Standardized connectors:
The standardization of OBD2 connectors enables various automotive diagnostic tools and equipment to be compatible with multiple vehicle models, facilitating maintenance and testing.
3. Durability and plug-in performance:
OBD2 connectors are usually made of high-strength plastic and metal materials, which can withstand frequent insertion and extraction as well as harsh environments inside the vehicle.
application area
1. Automotive diagnostic tools:
OBD2 connectors are widely used in diagnostic instruments, scanners, and automotive fault detection equipment to assist technicians in reading and clearing fault codes, as well as monitoring vehicle performance.
2. Car maintenance and repair:
The car repair workshop uses OBD2 connectors to connect with diagnostic equipment for vehicle troubleshooting and maintenance.
3. Secondary development and programming:
Some developers and engineers use the OBD2 interface for vehicle performance tuning, data reading, and program development.
Installation and usage suggestions
1. Connection method:
Ensure that the vehicle is turned off when connecting the OBD2 device, and then plug in the OBD2 connector to avoid electrical issues.
2. Regular inspection:
Regularly inspect connectors and wiring for wear, damage, or looseness to ensure reliable connections and good electrical performance.
3. Precautions for operation:
When using the OBD2 diagnostic tool, be careful not to unplug the connector during vehicle editing or configuration to avoid data loss or vehicle malfunction.
summary
The OBD2 male 16PIN connector is an important component of modern automobiles, supporting fault diagnosis and maintenance for various vehicles. Understanding its structure and usage can effectively maintain and monitor the performance of vehicles. If you have further questions or need specific technical parameters, please feel free to contact the technician!
