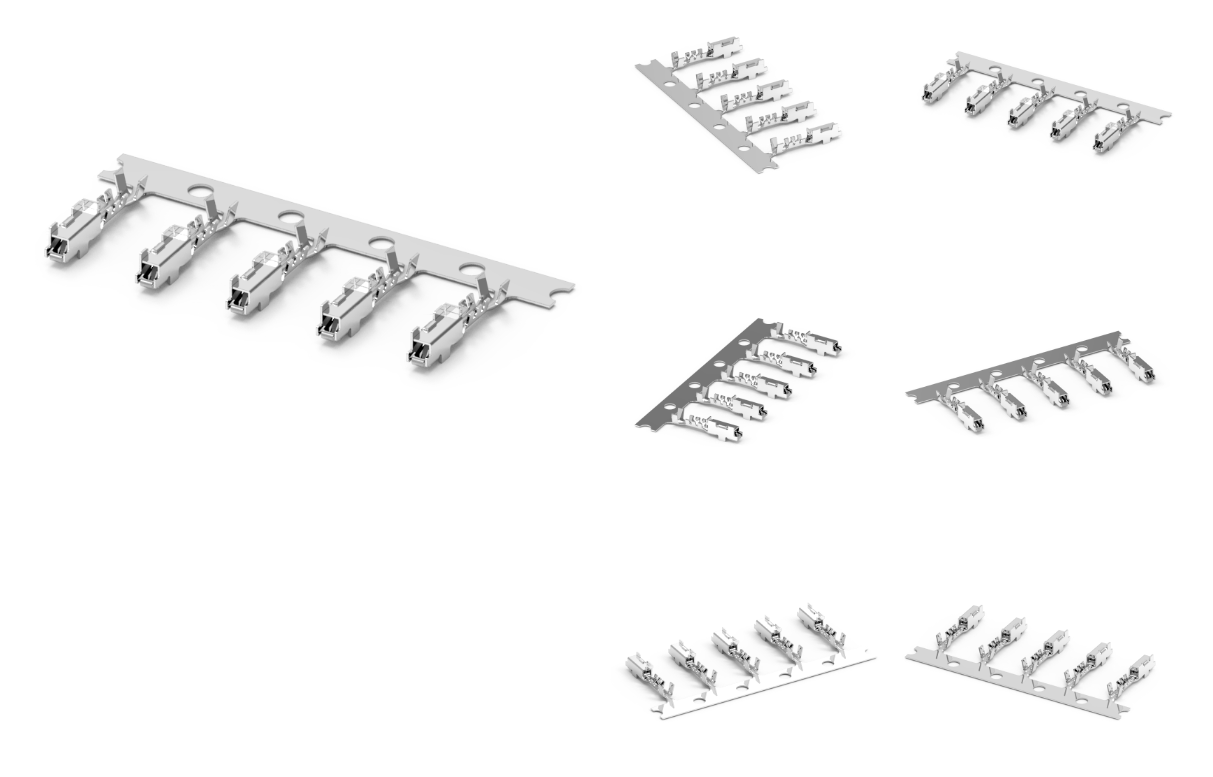

品名：OBD2 母头16PIN连接器
1.材料：
1-1.外壳：尼龙66+GF 15%UL94V-0；颜色：黑色。
1-2. 触点：黄铜
2.完成：
2-1.触点：亮锡
3.电气规格：
3-1.额定电流：4A
3-2.电压：30V
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
OBD2 母头 16PIN 连接器 是一种用于汽车诊断的标准化连接器，通常用于连接OBD（On-Board Diagnostics，车载诊断）设备和汽车上的OBD接口。OBD2系统允许监测车辆的性能，并进行故障检测和排除。以下是关于 OBD2 母头 16PIN 连接器的详细信息：
主要特点
1.引脚配置：
OBD2 母头连接器有 16 个引脚，每个引脚都有特定的功能。常见的引脚配置如下：
引脚 1: 保留
引脚 2: J1850 Bus + (用于数据通信)
引脚 3: 保留
引脚 4: 接地 (Chassis Ground)
引脚 5: 信号地 (Signal Ground)
引脚 6: CAN High (连接到控制器局域网, CAN)
引脚 7: K-Line (用于 ISO 9141 和 KW2000)
引脚 8: 保留
引脚 9: 保留
引脚 10: J1850 Bus - (用于数据通信)
引脚 11: 保留
引脚 12: 保留
引脚 13: 保留
引脚 14: CAN Low (连接到控制器局域网, CAN)
引脚 15: K-Line (可选功能)
引脚 16: 电源正极 (通常为 12V)
2.标准化设计：
OBD2 连接器是标准化的，不同车型的车辆都具备兼容的接口，使得诊断工具的使用更加普遍和便捷。
3.耐用性：
OBD2 连接器通常采用高强度的塑料壳体和金属引脚，设计上能承受汽车环境中的高温、油污和震动。
应用领域
1.汽车诊断工具：
OBD2 母头连接器被广泛用于连接各种汽车故障诊断工具和扫描仪，帮助专业技术人员读取故障码以及实时监测车辆性能。
2.车辆维护和修理：
汽车维修车间使用 OBD2 连接器与诊断设备连接进行车辆故障排查、维修和保养。
3.二次开发：
一些开发者利用 OBD2 接口进行自定义软件开发，以优化车辆性能或进行特殊配置。
安装与使用建议
1.正确连接：
在连接或断开 OBD2 连接器时，最好在车辆处于关闭状态下进行，以避免电气短路或损坏设备。
2.定期维护：
定期检查 OBD2 母头连接器的引脚和接口，确保没有生锈或腐蚀情况，保持良好连接。
3.避免过度拉扯：
在使用过程中，避免对连接器施加过多的拉拽力量，以防止损坏。
总结
OBD2 母头 16PIN 连接器 是现代汽车诊断和维护的重要组件。了解其功能和特性，可以帮助技术人员有效地使用诊断工具，及时发现和解决车辆问题。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: OBD2 Female 16PIN Connector
1. Materials:
1-1. Shell: Nylon 66+GF 15% UL94V-0; Color: Black.
1-2. Contact: Brass
2. Complete:
2-1. Contact: Bright Tin
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Voltage: 30V
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The OBD2 female 16 PIN connector is a standardized connector used for automotive diagnostics, typically used to connect OBD (On Board Diagnostics) devices and OBD interfaces on vehicles. The OBD2 system allows monitoring of vehicle performance and conducting fault detection and troubleshooting. The following is detailed information about the OBD2 female 16 PIN connector:
main features
1. Pin configuration:
The OBD2 female connector has 16 pins, each with a specific function. The common pin configurations are as follows:
Pin 1: Reserved
Pin 2: J1850 Bus+(for data communication)
Pin 3: Reserved
Pin 4: Chassis Ground
Pin 5: Signal Ground
Pin 6: CAN High (connected to the Controller Area Network, CAN)
Pin 7: K-Line (for ISO 9141 and KW2000)
Pin 8: Reserved
Pin 9: Reserved
Pin 10: J1850 Bus - (for data communication)
Pin 11: Reserved
Pin 12: Reserved
Pin 13: Reserved
Pin 14: CAN Low (connected to the Controller Area Network, CAN)
Pin 15: K-Line (optional feature)
Pin 16: Positive pole of power supply (usually 12V)
2. Standardized design:
The OBD2 connector is standardized, and vehicles of different models have compatible interfaces, making the use of diagnostic tools more common and convenient.
3. Durability:
OBD2 connectors typically use high-strength plastic shells and metal pins, designed to withstand high temperatures, oil stains, and vibrations in automotive environments.
application area
1. Automotive diagnostic tools:
The OBD2 female connector is widely used to connect various automotive fault diagnosis tools and scanners, helping professional technicians read fault codes and monitor vehicle performance in real time.
2. Vehicle maintenance and repair:
The car repair workshop uses OBD2 connectors to connect with diagnostic equipment for vehicle troubleshooting, repair, and maintenance.
3. Secondary development:
Some developers use the OBD2 interface for custom software development to optimize vehicle performance or perform special configurations.
Installation and usage suggestions
1. Correct connection:
It is best to connect or disconnect the OBD2 connector when the vehicle is in a closed state to avoid electrical short circuits or damage to equipment.
2. Regular maintenance:
Regularly check the pins and interfaces of the OBD2 female connector to ensure there is no rust or corrosion and maintain a good connection.
3. Avoid excessive pulling:
During use, avoid applying excessive pulling force to the connector to prevent damage.
summary
The OBD2 female 16 PIN connector is an important component for modern automotive diagnosis and maintenance. Understanding its functions and features can help technicians effectively use diagnostic tools to promptly detect and solve vehicle problems. If you have further questions or need specific technical parameters, please feel free to contact the technician!
