KSD-PC-10F4-02

KSD-PC-10F4-02

  • 产品特性
  • 应用范围

图纸下载 样品申请

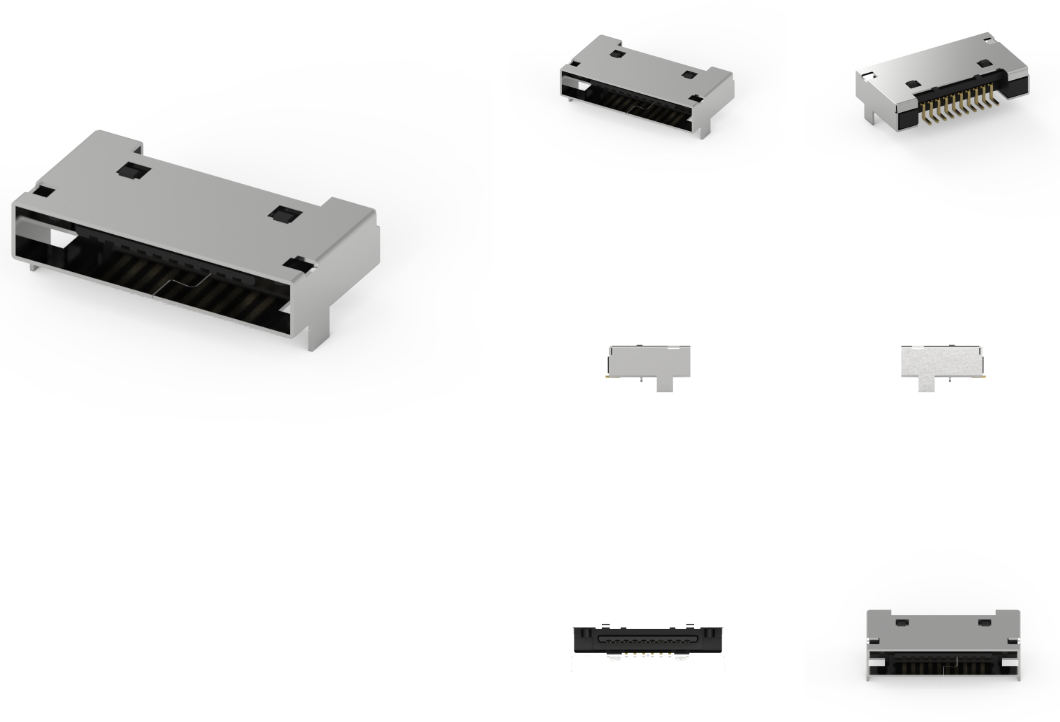

品名：PCMCIA 10PIN插板式连接器-SMT型
1.材料：
1-1.外壳：LCP UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：不锈钢
2.完成：
2-1.触点：
接触面积：见表A
焊接区域：亮锡
底板：镍
2-2.外壳：镀镍
3.电气规格：
3-1.额定电流：0.5A
3-2.额定电压：交流30Vr.m.s
4.环境：
4-1.工作温度：-25℃~75℃
品牌：科斯达开关KSDKG
产地：中国东莞


PCMCIA 10PIN插板式连接器-SMT型 是一种与 PCMCIA（Personal Computer Memory Card International Association）标准兼容的表面贴装技术（SMT）连接器，专门用于便携式计算机和其他电子设备。这种连接器通常用于连接 PCMCIA 卡，并允许设备之间进行数据和电源传输。

1. 特征
1.引脚配置：
该连接器通常具有 10 个引脚，可以根据具体应用需求支持多种功能，包括电源、地线、数据传输和控制信号。引脚功能的具体分配可能因设备标准或需求而有所不同。

2.表面贴装设计 (SMT)：
SMT 型连接器设计用于在电路板上直接焊接，具有体积小、重量轻、节省空间等优点。相比于传统的通孔焊接，SMT 可以提高生产效率和降低生产成本。

3.紧凑型设计：
紧凑的小型设计非常适合现代便携式设备，有效利用有限的尺寸空间。

4.耐用性：
一般采用高品质的塑料和金属材料，具有较好的抗冲击和抗磨损能力，适合在各种环境中使用。

2. 应用领域
1.笔记本电脑：
该连接器广泛应用于笔记本电脑中，支持各种 PCMCIA 扩展卡如网络接口卡、存储扩展卡等。

2.嵌入式系统：
在一些嵌入式系统和模块中，PCMCIA 连接器也可能被用作扩展接口。

3.通讯设备：
用于连接调制解调器、无线网卡等通讯设备。

3. 安装与维护建议
1.焊接注意：
在进行 SMT 型连接器的焊接时，确保使用适当的温度和时间，以避免损坏连接器或电路板。

3.检查连接：
安装完成后，检查连接器与电路板的接脚，以保障良好的接触。

4.防静电措施：
在处理 SMT 连接器时，采用防静电措施以防止静电对电子元件的损坏。

5.定期检查：
定期检查连接器的磨损情况和接触性能，确保其正常工作。

4. 总结
PCMCIA 10PIN插板式连接器-SMT型 是一种功能强大且设计紧凑的连接器，广泛应用于早期笔记本电脑等设备中，尽管现代设备正在逐步采用更多的新标准（如 Mini PCIe、M.2 等），但这种连接器在特定应用中仍然有其重要性。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: PCMCIA 10PIN plug-in connector SMT type
1. Materials:
1-1. Shell: LCP UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Stainless steel
2. Complete:
2-1. Contact:
Contact area: see Table A
Welding area: Bright tin
Bottom plate: Nickel
2-2. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 0.5A
3-2. Rated voltage: AC 30Vr.m.s
4. Environment:
4-1. Working temperature:- 25℃~75℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


PCMCIA 10PIN plug-in board connector SMT type is a surface mount technology (SMT) connector compatible with PCMCIA (Personal Computer Memory Card International Association) standard, specifically designed for portable computers and other electronic devices. This type of connector is typically used to connect PCMCIA cards and allow for data and power transfer between devices.

1. Characteristics
1. Pin configuration:
This connector typically has 10 pins and can support multiple functions according to specific application requirements, including power, ground, data transmission, and control signals. The specific allocation of pin functions may vary depending on device standards or requirements.

2. Surface mount design (SMT):
SMT connectors are designed for direct soldering on circuit boards and have advantages such as small size, light weight, and space saving. Compared to traditional through-hole soldering, SMT can improve production efficiency and reduce production costs.

3. Compact design:
The compact and small design is very suitable for modern portable devices, effectively utilizing limited size space.

4. Durability:
Generally, high-quality plastic and metal materials are used, which have good impact resistance and wear resistance, and are suitable for use in various environments.

2. Application Fields
1. Laptop:
This connector is widely used in laptops and supports various PCMCIA expansion cards such as network interface cards, storage expansion cards, etc.

2. Embedded systems:
PCMCIA connectors may also be used as expansion interfaces in some embedded systems and modules.

3. Communication equipment:
Used to connect communication devices such as modems and wireless network cards.

3. Installation and maintenance suggestions
1. Welding precautions:
When soldering SMT type connectors, ensure to use appropriate temperature and time to avoid damaging the connectors or circuit boards.

3. Check the connection:
After installation, check the pins of the connector and circuit board to ensure good contact.

4. Anti static measures:
When handling SMT connectors, anti-static measures should be taken to prevent static electricity from damaging electronic components.

5. Regular inspection:
Regularly check the wear and contact performance of the connector to ensure its normal operation.

4. Summary
PCMCIA 10PIN plug-in board connector SMT type is a powerful and compact connector widely used in early laptops and other devices. Although modern devices are gradually adopting more new standards (such as Mini PCIe, M.2, etc.), this connector still has its importance in specific applications. If you have further questions or need specific technical parameters, please feel free to contact the technician!
