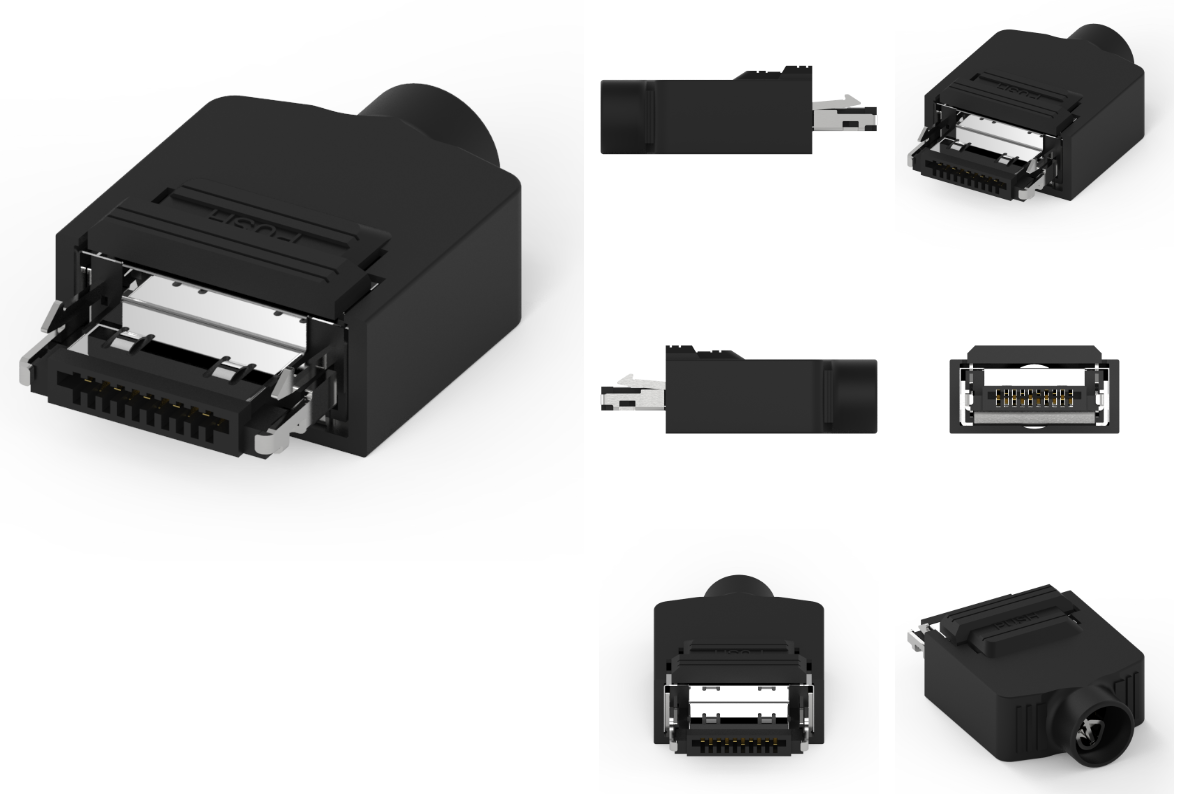

品名：PCMCIA 公头10PIN 组装式连接器
注：
1.材料：
1-1.塑料盖：C1200（ABS+PC）94-V0
1-2.外壳：PBT+30GF（黑色）
1-3.金属盖：镍银
-4.金属下盖：黄铜
-5.触点：磷青铜
1-6.弹簧：不锈钢弹簧#301
2.完成：
2-1触点：触点区域镀金5u”
焊料区域镀亮锡，下面全部镀镍。
2-2.金属下盖：镍60u”
品牌：科斯达开关KSDKG
产地：中国东莞
PCMCIA 公头10PIN 组装式连接器 是一种用于笔记本电脑和其他便携设备中的连接器类型，它符合PCMCIA（Personal Computer Memory Card International Association）标准。PCMCIA 卡最初是为便携式计算机设计的扩展卡，广泛应用于各种外部设备，如网络卡、存储卡、调制解调器等。
1. 特征
1.引脚配置：
PCMCIA 公头连接器的 10 针布局通常由 10 个引脚组成，这些引脚被用于电源、地线、数据传输和控制信号等功能。具体引脚功能会根据不同的设备和标准有所变化。
2.组装式设计：
组装式连接器允许用户根据需要进行连接和修复，可以在现场简单地进行连接，而无需专业工具。这使得维护和更换更加方便。
3.耐用性：
通常采用高品质材料制造，具备良好的抗磨损、抗腐蚀性能和较长的使用寿命。
4.小型设计：
连接器体积较小，使其适合于空间有限的便携式设备。
2. 应用领域
1.笔记本电脑：
适用于老旧笔记本电脑中的扩展功能，与各种 PCMCIA 扩展卡配合使用，比如网络适配器、存储卡等。
2.外部设备：
可能与各种外部设备连接，如打印机、调制解调器等。
3.嵌入式系统：
在一些嵌入式系统设计中也可以看到 PCMCIA 接口的应用。
3. 安装与维护建议
1.小心插拔：
插入和拔出连接器时要小心，避免强制插拔导致连接器或设备损坏。
2.检查接触点：
定期检查连接器的接触点，确保没有脏污或腐蚀，以保持良好的导电性。
3.确保证书规范：
确保所使用的 PCMCIA 卡与设备兼容，避免因不匹配导致连接问题。
4.使用适当工具：
如果进行组装或维护时，请使用适当的手动工具，确保安全和可靠的连接。
4. 总结
PCMCIA 公头10PIN 组装式连接器 作为一种经典的接口标准，虽然在现代设备中使用频率有所减少，但在某些旧款设备和特定应用中仍然发挥着重要作用。对于需要维护或更换的设备，了解这种连接器的特性和使用方法将有助于保证设备的正常运行。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: PCMCIA Male 10 PIN Assembled Connector
Note:
1. Materials:
1-1. Plastic cover: C1200（ABS+PC）94-V0
1-2. Shell: PBT+30GF (black)
1-3. Metal Cover: Nickel Silver
-4. Metal lower cover: brass
-5. Contact: phosphor bronze
1-6. Spring: Stainless steel spring # 301
2. Complete:
2-1 Contact: Contact area gold-plated with 5u "
The solder area is plated with bright tin, and the entire bottom is plated with nickel.
2-2. Metal Lower Cover: Nickel 60u "
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The PCMCIA male 10 PIN modular connector is a type of connector used in laptops and other portable devices, which complies with the PCMCIA (Personal Computer Memory Card International Association) standard. PCMCIA cards were originally designed as expansion cards for portable computers, widely used in various external devices such as network cards, storage cards, modems, etc.
1. Characteristics
1. Pin configuration:
The 10 pin layout of PCMCIA male connectors typically consists of 10 pins, which are used for functions such as power, ground, data transmission, and control signals. The specific pin functions may vary depending on different devices and standards.
2. Modular design:
Assembled connectors allow users to connect and repair as needed, and can be easily connected on site without the need for professional tools. This makes maintenance and replacement more convenient.
3. Durability:
Usually made of high-quality materials, it has good wear resistance, corrosion resistance, and a long service life.
4. Small scale design:
The small size of the connector makes it suitable for portable devices with limited space.
2. Application Fields
1. Laptop:
Suitable for expansion functions in old laptops, used in conjunction with various PCMCIA expansion cards, such as network adapters, storage cards, etc.
2. External devices:
May be connected to various external devices such as printers, modems, etc.
3. Embedded systems:
The application of PCMCIA interface can also be seen in some embedded system designs.
3. Installation and maintenance suggestions
1. Be careful when inserting and removing:
Be careful when inserting and unplugging connectors to avoid damaging the connectors or devices due to forced insertion and extraction.
2. Check the contact points:
Regularly check the contact points of the connector to ensure that there is no dirt or corrosion, in order to maintain good conductivity.
3. Ensure certificate specifications:
Ensure that the PCMCIA card used is compatible with the device to avoid connection issues caused by mismatches.
4. Use appropriate tools:
If assembling or maintaining, please use appropriate manual tools to ensure safe and reliable connections.
4. Summary
As a classic interface standard, PCMCIA male 10 PIN modular connectors still play an important role in some older devices and specific applications, although their frequency of use has decreased in modern devices. Understanding the characteristics and usage of this connector will help ensure the normal operation of equipment that requires maintenance or replacement. If you have further questions or need specific technical parameters, please feel free to contact the technician!
