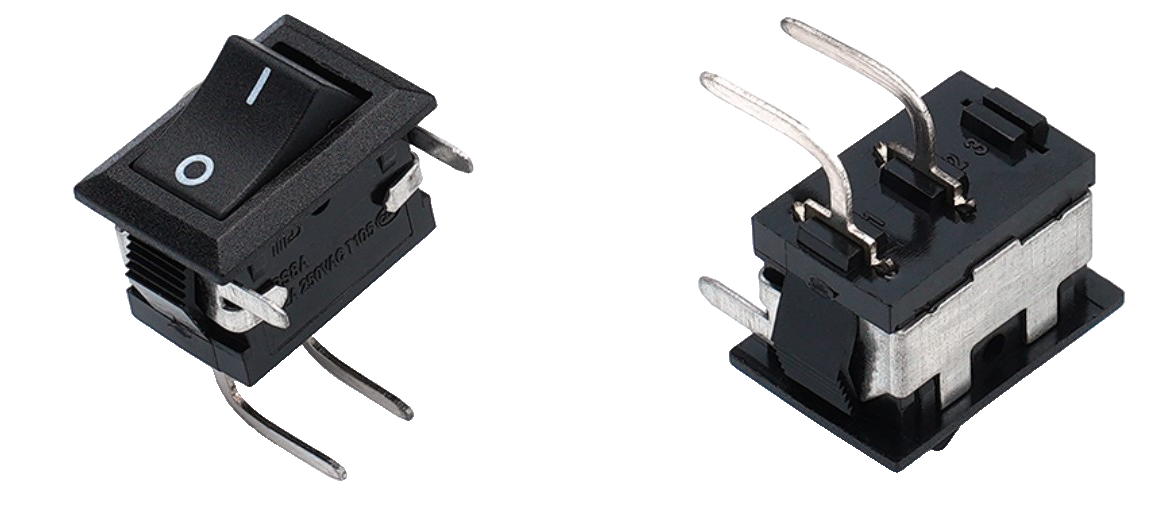

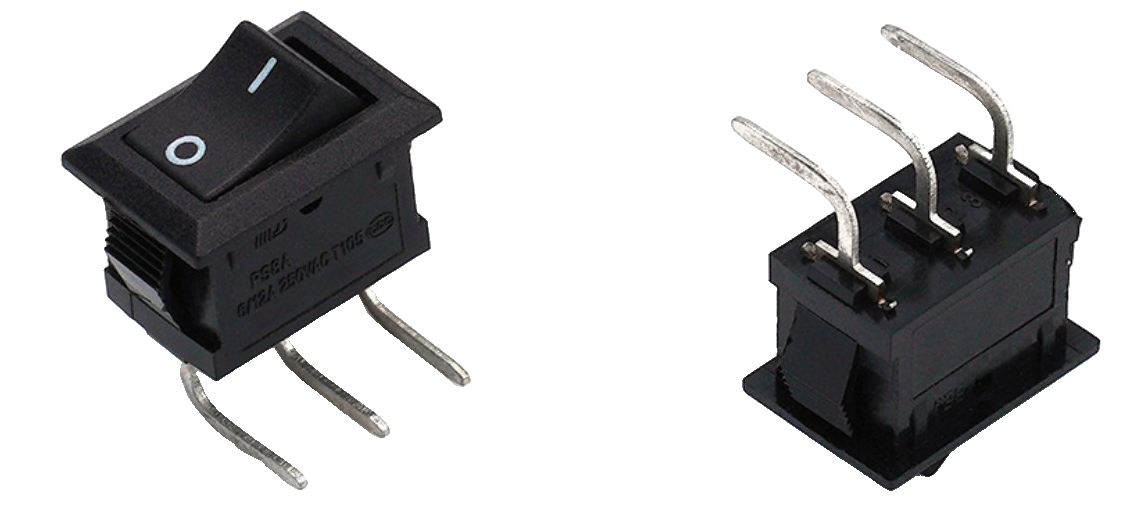

船型开关 技术参数
1、功能：开-关
2、额定值：cQc：6/12A 25OVAC T105
ENEC VDE：64)A 250VAC T105
UL:4(4)A 125/250VAC 25T125/555E4
3、操作力：700士400g.f
4、接触电阻≤50mn5绝缘电阻100 Mn
6、绝缘耐压：端子到按钮_3000VAC/10mA/1MINUTE
TERMINALTOTERMTNAL1500VAC/10mA/1MINUTE

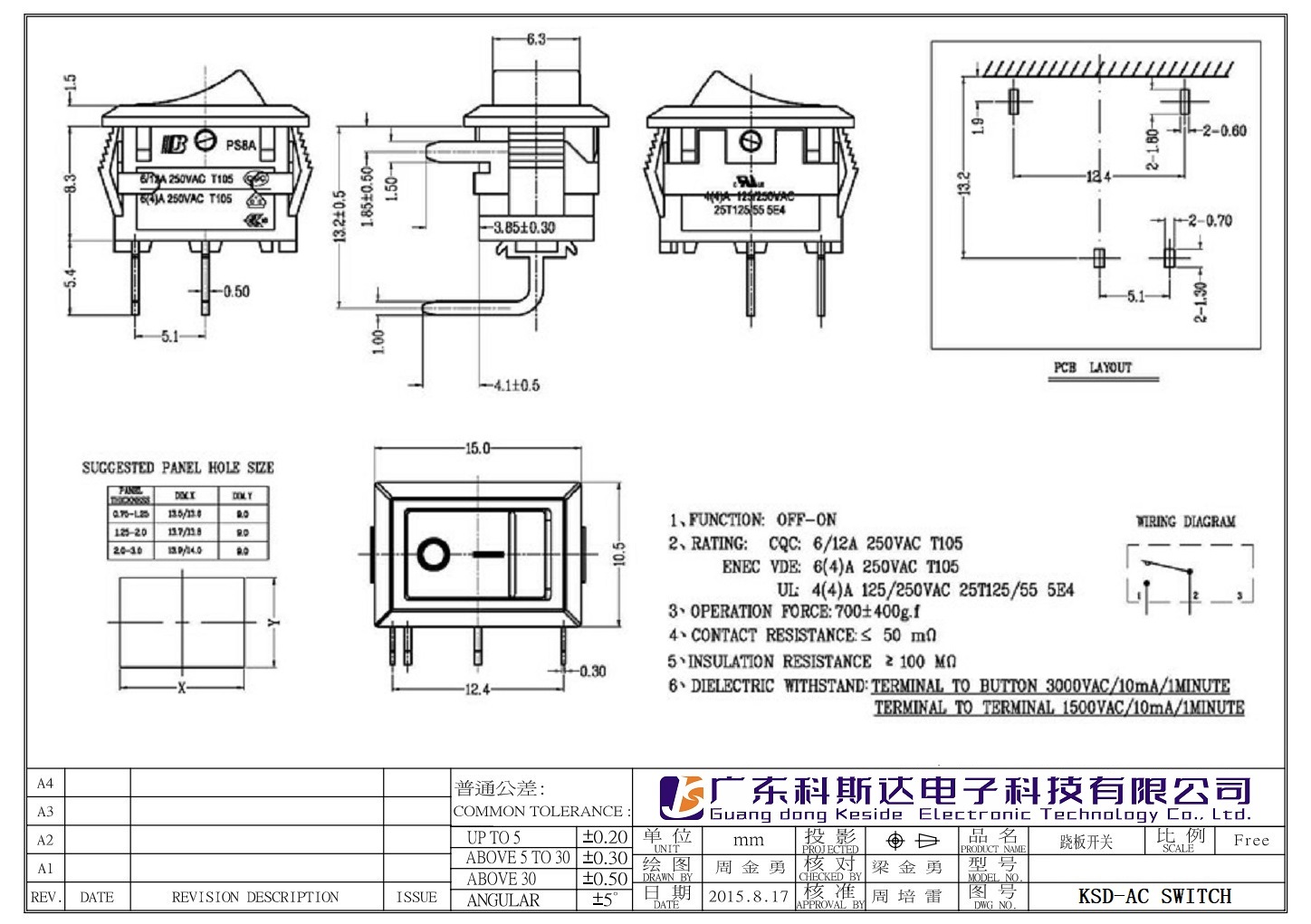

Rocker switch technical parameters
1、FUNCTION:ON-OFF
2、RATING:cQc: 6/12A 25OVAC T105
ENEC VDE: 64)A 250VAC T105
UL:4(4)A 125/250VAC 25T125/555E4
3、OPERATION FORCE: 700士400g.f
4、CONTACT RESISTANCE≤50mn5INSULATION RESISTANCE 100 Mn
6、DIELRCTRIC WITHSTAND: TERMINAL TO BUTTON _3000VAC/10mA/1MINUTE
TERMINALTOTERMTNAL1500VAC/10mA/1MINUTE
