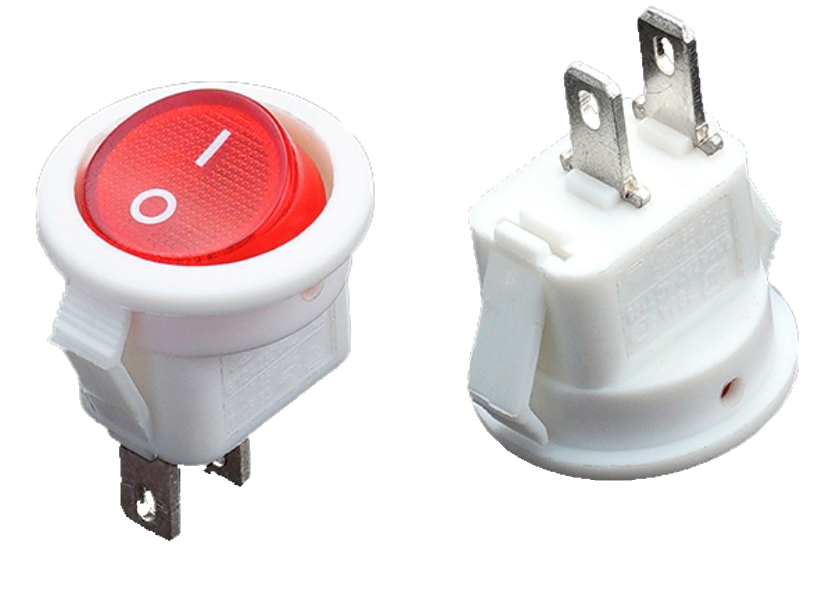

船型开关 技术参数
1、功能：开-关
2、额定值：UL:4(4)A 250VAC 25T125/55 5E4
质量控制：6/12A 250VAC T105
ENEC VDE:6(4)A 250VAC T105/55
KC:10(4)A 250VAC T105
3、操作力：600士300g.f4、接触电阻：≤50 mQ5、绝缘电阻2100 MQ
6、DIEL.RCTRIC耐力：端子到按钮3000VAC/5mA/1MINUTE
TERMINALTOTERMINAL1500VAC/5mA/1MINUTE

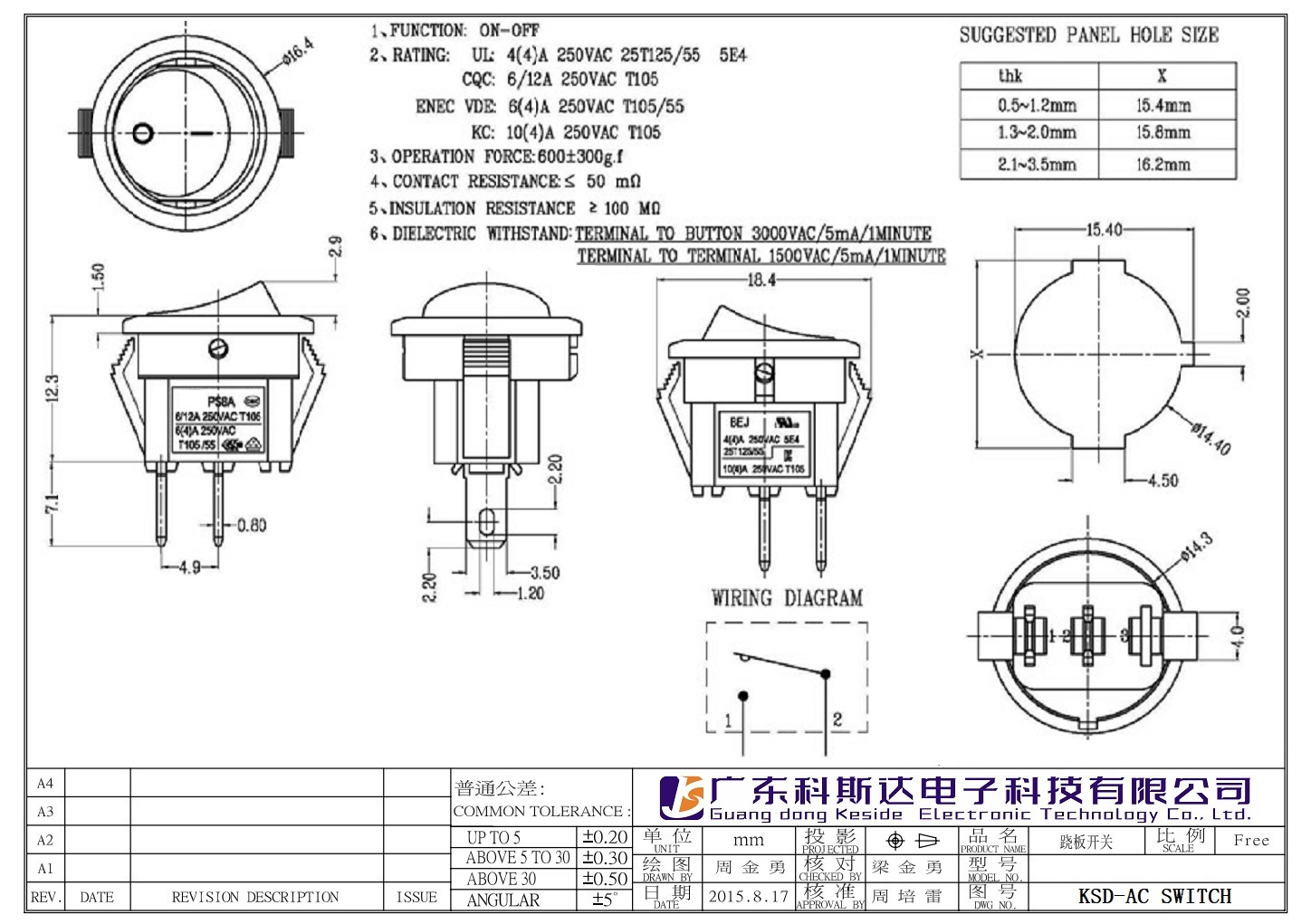

ROCKER SWITCH TECHNICAL PARAMETERS
1、FUNCTION: ON-OFF
2、RATING: UL:4(4)A 250VAC 25T125/55 5E4
cQc: 6/12A 250VAC T105
ENEC VDE:6(4)A 250VAC T105/55
KC:10(4)A 250VAC T105
3、OPERATION FORCE:600士300g.f4、CONTACT RESISTANCE: ≤50 mQ5、INSUI.ATION RESISTANCE 2100 MQ
6、DIEL.RCTRIC wITHSTAND: TERMINAL TO BUTTON 3000VAC/5mA/1MINUTE
TERMINALTOTERMINAL1500VAC/5mA/1MINUTE
