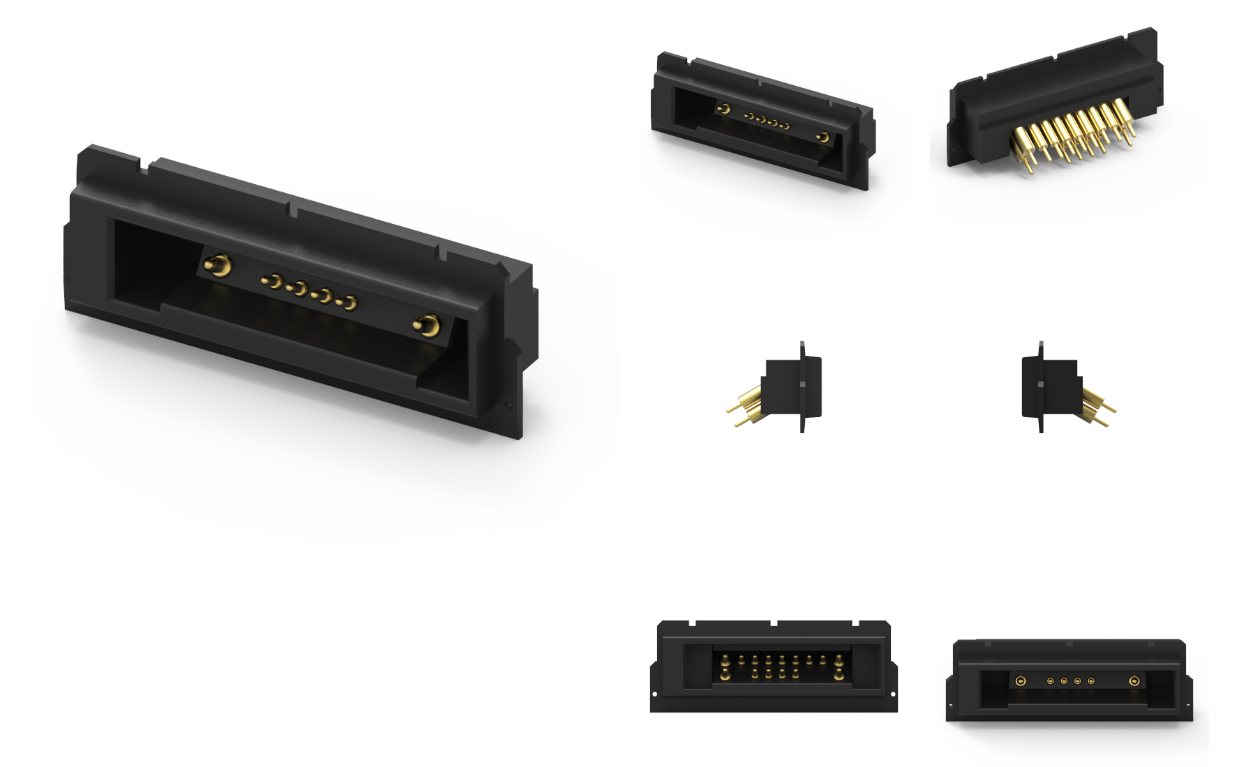

品名：Pogo Pin 母头15PIN 防水连接器
1.材料：
1-1. 外壳：PBT UL94V0；颜色：黑色
1-2.触点：弹簧：不锈钢304
1-3.管柱：黄铜
1-4.柱塞：黄铜
2.完成：
2-1.触点：最小镀金15微英寸
底板：镍
3.电气规格：
3-1.额定电流：3A
3-2.额定电压：12V
3-3.防水等级：IP66
4.环境：
4-1.工作温度：-20℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞
Pogo Pin 母头 15PIN 防水连接器
Pogo Pin 母头 15PIN 防水连接器是一种专为电子设备设计的高性能连接器，采用弹性接触技术（Pogo Pin）并兼具防水功能。它广泛应用于多个领域，尤其在需要高可靠性和耐环境能力的应用场合。
主要特点
1.防水性能：
IP等级：通常具有 IP67 或更高的防护等级，智能设计防止水和灰尘的进入，适合潮湿和恶劣环境。
密封设计：通过 O 型圈或其他密封材料实现连接器的密封，确保即使在极端条件下也能正常工作。
2.Pogo Pin 接触技术：
弹性接触：每个Pogo Pin都配备弹簧设计，提供稳定且可靠的接触力，确保良好的电气连接。
耐用性：高耐久性设计支持多次插拔，减少磨损风险，延长使用寿命。
3.15PIN 设计：
多功能性：15PIN 设计提供更广泛的连接和数据传输选项，适合复杂应用需求。
信号质量：精心设计的引脚布局和材料选择，确保信号稳定，减少干扰和衰减。
4.紧凑高效：
节省空间：小巧的设计使其适合于空间有限的设备中，能有效利用内部空间。
快速安装：设计考虑到易于连接和断开，简化操作，便于维护。
应用领域
1.消费电子：智能手机、平板电脑、可穿戴设备等。
2.工业设备：传感器、控制系统及机器人设备，尤其在制造行业中。
3.医疗设备：用于各种医疗监测仪器和便携式设备，确保其在潮湿环境中的可靠性。
4.汽车电子：车载系统、导航仪和音响设备等，对防水性和可靠性有很高要求的场合。
使用注意事项
1.正确插拔：在连接和断开时要注意手法，以防对连接器造成物理损伤。
2.定期检查：检查密封圈和连接器状态，确保防水性能持久。
3.遵守电气参数：确保连接器在规定的电压和电流范围内使用，避免过载。
4.定期清洁：保持连接器的干燥和清洁，避免污垢影响接触效果。
总结
Pogo Pin 母头 15PIN 防水连接器凭借其出色的防水性能、弹性接触技术和耐用性，成为很多高要求应用领域的理想选择。无论是在消费电子、工业设备，还是医疗和汽车领域，这种连接器都能提供可靠的电气连接。如果您需要更多详细信息或技术咨询，欢迎联系技术员！
Product Name: Pogo Pin Female Head 15PIN Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: Spring: Stainless steel 304
1-3. Column: Brass
1-4. Plunger: Brass
2. Complete:
2-1. Contact: Minimum gold-plated 15 microinches
Bottom plate: Nickel
3. Electrical specifications:
3-1. Rated current: 3A
3-2. Rated voltage: 12V
3-3. Waterproof grade: IP66
4. Environment:
4-1. Working temperature:- 20℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Pogo Pin Female Head 15PIN Waterproof Connector
The Pogo Pin female 15PIN waterproof connector is a high-performance connector designed specifically for electronic devices, which uses elastic contact technology (Pogo Pin) and also has waterproof function. It is widely used in multiple fields, especially in applications that require high reliability and environmental resistance.
main features
1. Waterproof performance:
IP rating: typically with a protection level of IP67 or higher, intelligently designed to prevent water and dust from entering, suitable for humid and harsh environments.
Sealing design: The connector is sealed using O-rings or other sealing materials to ensure normal operation even under extreme conditions.
2. Pogo Pin Contact Technology:
Elastic contact: Each Pogo Pin is equipped with a spring design, providing stable and reliable contact force to ensure good electrical connection.
Durability: The high durability design supports multiple insertions and removals, reducing the risk of wear and extending the service life.
3.15PIN design:
Multifunctionality: The 15PIN design provides a wider range of connectivity and data transfer options, suitable for complex application requirements.
Signal quality: Carefully designed pin layout and material selection ensure signal stability and reduce interference and attenuation.
4. Compact and efficient:
Space saving: The compact design makes it suitable for devices with limited space and can effectively utilize internal space.
Quick installation: Designed for easy connection and disconnection, simplified operation, and easy maintenance.
application area
1. Consumer electronics: smartphones, tablets, wearable devices, etc.
2. Industrial equipment: sensors, control systems, and robotic devices, especially in the manufacturing industry.
3. Medical equipment: used for various medical monitoring instruments and portable devices to ensure their reliability in humid environments.
4. Automotive electronics: In car systems, navigation systems, and audio equipment that require high levels of waterproofing and reliability.
Precautions for use
1. Correct plugging and unplugging: Pay attention to the technique when connecting and disconnecting to prevent physical damage to the connector.
2. Regular inspection: Check the sealing ring and connector status to ensure long-lasting waterproof performance.
3. Comply with electrical parameters: Ensure that the connector is used within the specified voltage and current range to avoid overload.
4. Regular cleaning: Keep the connector dry and clean to avoid dirt affecting the contact effect.
summary
The Pogo Pin female 15PIN waterproof connector has become an ideal choice for many high demand application fields due to its excellent waterproof performance, elastic contact technology, and durability. This connector can provide reliable electrical connections in consumer electronics, industrial equipment, medical and automotive fields. If you need more detailed information or technical consultation, please feel free to contact the technician!
