KSD-PD-03M2-01

KSD-PD-03M2-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

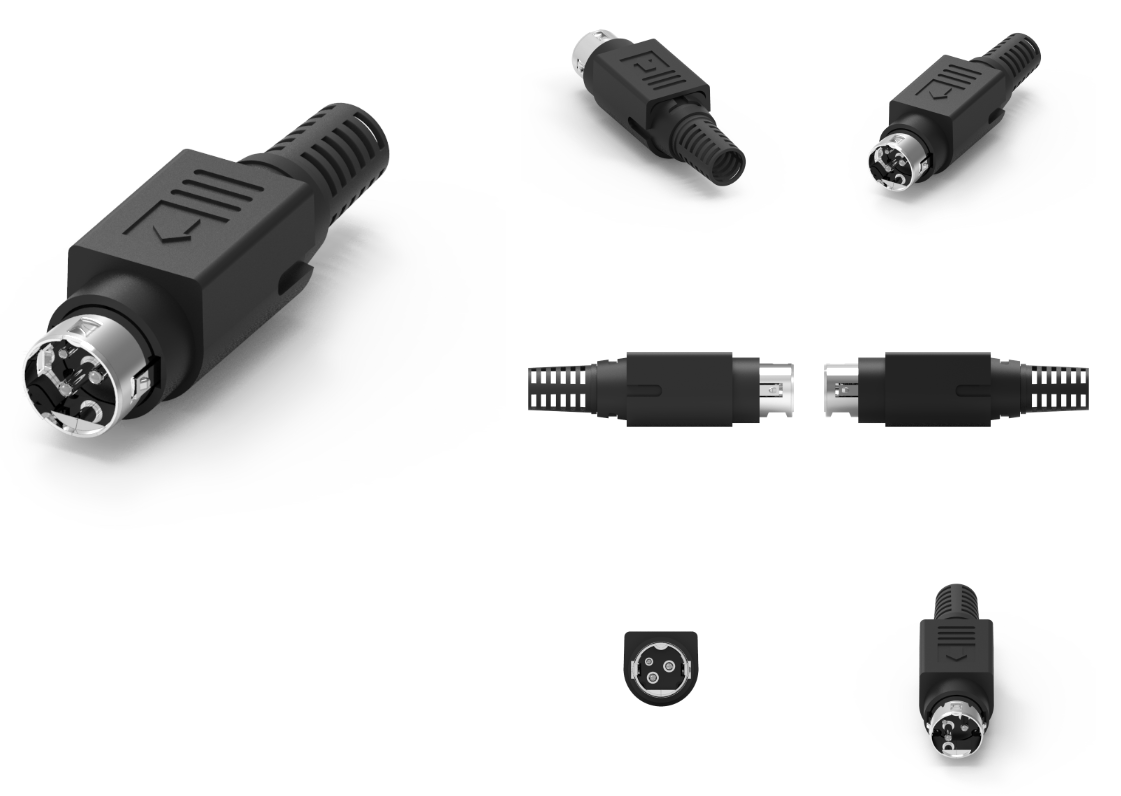

品名：Power DIN 公头组装式连接器
材料：
1-1.外壳：PBT UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3.塑料盖：ABS：颜色：见表A
1-4.平面管：ABS或PC；颜色：见表A
1-5.POM环：POM；颜色：黑色
1-6.SR：聚氯乙烯；颜色：见表A
1-7.弹簧：碳钢或不锈钢
1-8.金属盖：黄铜
1-9.金属外壳：黄铜
2.完成：
2-1.触点：50微英寸镀银
2-4.弹簧：整体镀镍60u“~100u”
2-4.金属盖：整体镀镍60u“~100u”
2-4.金属外壳：整体镀镍6OU“~100U”
3.电气规格：
3-1.额定电流：4针：最大7.5A/DC
3针：针1和针2 7.5A/DC；引脚3 1A/DC
3-2.电压：最大20V/DC
环境的
4-1.工作温度：-20℃~85℃。
品牌：科斯达开关KSDKG
产地：中国东莞


Power DIN 公头组装式连接器是一种广泛应用于电源和信号连接的连接器，主要用于需要高功率和可靠性的电子设备。与线端成型式连接器相比，组装式连接器的设计允许用户在不焊接的情况下进行简单的连接器组装，使其更易于维护与替换。以下是有关 Power DIN 公头组装式连接器的详细介绍。

特点
1.组装式设计：
允许用户根据需要组装和拆卸，便于安装、维护和更换，尤其适合需要频繁插拔的应用场合。

2.多针脚配置：
提供多种针脚配置（如3针、4针、5针等），适应不同电流和信号传输的需求，满足多种设备的应用要求。

3.高功率承载能力：
通常设计用于处理较高的电流负载，确保设备能够稳定运行，适合电源连接应用。

4.可靠的连接性能：
采用优质材料制造，包括高导电性金属和优良绝缘材料，确保良好的电气性能及耐久性。

5.安全性：
设计上考虑到防尘和防水功能，部分型号具有防护等级（如IP等级），适合工业环境使用。

应用领域

Power DIN 公头组装式连接器的应用范围非常广泛，包括：

音频和视频设备：
用于音频设备（如音频功放、混音器）和视频设备（如摄像机）的电源和信号连接。

专业照明：
在舞台照明、建筑照明等场景中，作为电源连接器提供稳定的电力供应。

工业设备：
适用于工业自动化设备、传感器及控制系统中，提供可靠的电力和信号连接。

医疗设备：
用于医疗仪器中的电源连接，确保设备的安全高效运行。

计算机和通信设备：
在计算机、网络设备与通信基站中使用，以提供电源和信号连接。

安装与维护建议

安装简便：
组装式连接器通常带有简易插拔设计，可直接插入或拆卸，无需焊接或复杂工具，便于快速组装。

定期检查和维护：
定期检查连接器的接触点，确保没有氧化和腐蚀，保持良好的电气连接状态。

使用环境：
避免在超出连接器标准工作条件的环境下使用，特别是在高温、多尘或潮湿环境中应采取必要的防护措施。

使用适配器：
当连接不同设备时，确保使用适当的适配器或转换器，以保证电气兼容性和安全性。

总结
Power DIN 公头组装式连接器是一种灵活、高效、可靠的连接解决方案，能够满足各种高功率和信号应用的需求。其组装式的便捷设计使得安装和维护更加简便，适合在音频、视频、工业设备等多个行业中广泛应用。通过适当的安装和定期维护，可以确保连接器的长期稳定性和性能。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Power DIN Male Assembled Connector
Material Science:
1-1. Shell: PBT UL94V-0； Color: Black
1-2. Contact: Brass
1-3. Plastic cover: ABS： Color: See Table A
1-4. Flat pipe: ABS or PC; Color: See Table A
1-5. POM ring: POM； Color: Black
1-6. SR: Polyvinyl chloride; Color: See Table A
1-7. Spring: Carbon steel or stainless steel
1-8. Metal cover: brass
1-9. Metal shell: brass
2. Complete:
2-1. Contact: 50 microinches silver plated
2-4. Spring: Whole nickel plated 60u "~100u"
2-4. Metal cover: Whole nickel plated 60u "~100u"
2-4. Metal shell: Whole nickel plated 6OU "~100U"
3. Electrical specifications:
3-1. Rated current: 4-pin: maximum 7.5A/DC
3 needles: Needle 1 and Needle 2 7.5A/DC; Pin 3 1A/DC
3-2. Voltage: Maximum 20V/DC
The environment
4-1. Working temperature:- 20 ℃~85 ℃.
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Power DIN male connector is a widely used connector for power and signal connections, mainly used for electronic devices that require high power and reliability. Compared with wire end molded connectors, the design of modular connectors allows users to perform simple connector assembly without welding, making it easier to maintain and replace. The following is a detailed introduction to the Power DIN male connector assembly.

characteristic
1. Modular design:
Allow users to assemble and disassemble as needed, facilitating installation, maintenance, and replacement, especially suitable for applications that require frequent plugging and unplugging.

2. Multi pin configuration:
Provide multiple pin configurations (such as 3-pin, 4-pin, 5-pin, etc.) to meet the needs of different currents and signal transmission, and meet the application requirements of various devices.

3. High power carrying capacity:
Usually designed to handle high current loads, ensuring stable operation of equipment and suitable for power connection applications.

4. Reliable connection performance:
Made with high-quality materials, including highly conductive metals and excellent insulation materials, to ensure good electrical performance and durability.

5. Security:
In terms of design, dustproof and waterproof functions are considered, and some models have protection levels (such as IP level), suitable for use in industrial environments.

application area

The application range of Power DIN male assembled connectors is very wide, including:

Audio and video equipment:
Used for power and signal connections of audio devices (such as audio amplifiers, mixers) and video devices (such as cameras).

Professional lighting:
In scenarios such as stage lighting and architectural lighting, it serves as a power connector to provide stable power supply.

Industrial equipment:
Suitable for providing reliable power and signal connections in industrial automation equipment, sensors, and control systems.

Medical equipment:
Used for power connection in medical instruments to ensure safe and efficient operation of the equipment.

Computer and communication equipment:
Used in computers, network devices, and communication base stations to provide power and signal connections.

Installation and maintenance recommendations

Easy installation:
Assembled connectors typically come with a simple plug-in design, allowing for direct insertion or disassembly without the need for soldering or complex tools, making them easy to assemble quickly.

Regular inspection and maintenance:
Regularly check the contact points of the connector to ensure that there is no oxidation or corrosion, and maintain good electrical connection.

Usage environment:
Avoid using in environments beyond the standard working conditions of the connector, especially in high temperature, dusty or humid environments where necessary protective measures should be taken.

Using adapter:
When connecting different devices, make sure to use appropriate adapters or converters to ensure electrical compatibility and safety.

summary
The Power DIN male assembled connector is a flexible, efficient, and reliable connection solution that can meet the needs of various high-power and signal applications. Its modular and convenient design makes installation and maintenance easier, making it suitable for wide applications in multiple industries such as audio, video, and industrial equipment. By proper installation and regular maintenance, the long-term stability and performance of the connector can be ensured. If you have specific technical requirements or other questions, please feel free to contact a technician!
