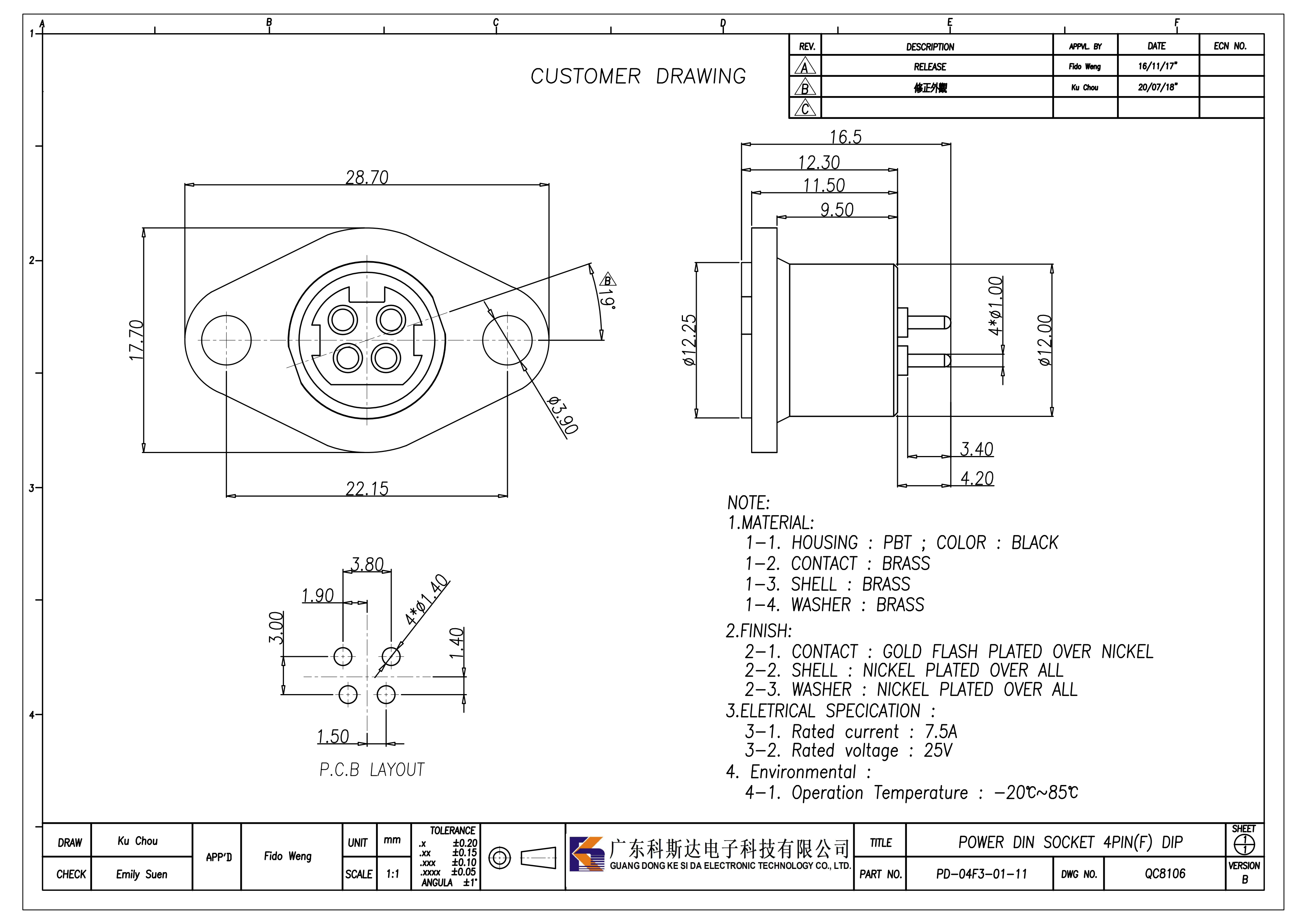

品名：Power DIN 母头面板安装插板式连接器
注：
1.材料：
1-1. 外壳：PBT；颜色：黑色
1-2.触点：黄铜
1-3. 外壳：黄铜
1-4.洗涤器：黄铜
2.完成：
2-1.触点：镍上镀金
2-2.外壳：全部镀镍
2-3.洗涤器：全部镀镍
3.电气规格
3-1.额定电流：7.5A
3-2.额定电压：25V
4.环境
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Power DIN 母头面板安装插板式连接器是一种常用于电气和电子设备的连接器，具有面板安装的设计，方便于将连接器固定在设备的外壳上，便于外部设备连接。这种连接器广泛应用于工业、通信、音频设备及自动化系统等领域。

特点
1.面板安装设计：
这种连接器专为面板安装设计，通常通过螺丝或锁扣固定在设备的面板上，方便用户进行插拔操作。

2.插板式连接：
插板式设计使得连接器可以快速连接和断开，减少了安装和维护的复杂性，同时也适合频繁插拔的应用需求。

3.多个针脚选项：
Power DIN 通常提供多种针脚配置选项（如3针、5针、7针和更多），可用于不同的电源和信号需求，适应多种应用场景。

4.可靠的电气性能：
采用高质量的金属材料和电镀工艺，底部金属触点提供良好的导电性能，确保低接触电阻和高可靠性。

5.兼容性：
Power DIN 系列连接器通常遵循国际标准，具有良好的互换性，适合各种设备和系统的连接。

6.坚固耐用：
通常采用耐用材料制造，能够承受工业环境中的一定冲击和磨损，适合长期使用。

应用领域

Power DIN 母头面板安装插板式连接器被广泛应用于：

音频设备：
为专业音响、调音台和乐器等提供电源和信号连接。

通信设备：
在网络设备、交换机和路由器中使用，支持数据和电源传输。

工业自动化：
适用于控制系统、传感器和执行器，提供稳定的电源和信号连接。

医疗设备：
用于医疗仪器的连接，确保安全和稳定的电源供应。

安装与维护建议

正确安装：
确保在面板上正确定位和固定连接器，避免因安装不当导致的接触不良。

连接线选择：
根据连接器的规格选择合适的线缆和接头，确保焊接或连接的可靠性。

定期检查：
定期检查连接器的接触点、螺丝和密封圈，确保没有松动、腐蚀或其他损坏现象。

环境适用性：
避免在超过连接器额定参数的极端环境下使用，以保障连接器的稳定性和耐用性。

注意频繁插拔：
对于频繁插拔的应用，确保操作时注意力集中，以免损坏连接器或母头。

总结
Power DIN 母头面板安装插板式连接器凭借其可靠的性能和易于使用的设计，成为了各种电子和电气设备的重要组成部分。通过适当的安装和维护，可以充分发挥其在数据和电源传输中的优势，满足多种应用需求。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Power DIN Female Head Panel Installation Plug in Connector
Note:
1. Materials:
1-1.  Shell: PBT； Color: Black
1-2. Contact: Brass
1-3.  Shell: Brass
1-4. Washer: Brass
2. Complete:
2-1. Contact: Gold plating on nickel
2-2. Shell: All nickel plated
2-3. Scrubber: All nickel plated
3. Electrical specifications
3-1. Rated current: 7.5A
3-2. Rated voltage: 25V
4. Environment
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Power DIN female head panel mounted plug-in connector is a type of connector commonly used in electrical and electronic equipment. It features a panel mounted design, making it easy to secure the connector to the device's casing and facilitate external device connections. This type of connector is widely used in industries, communications, audio equipment, and automation systems.

characteristic
1. Panel installation design:
This type of connector is designed specifically for panel installation and is usually fixed to the device panel with screws or locks, making it convenient for users to plug and unplug.

2. Plug in connection:
The plug-in design allows connectors to be quickly connected and disconnected, reducing the complexity of installation and maintenance, and also suitable for applications that require frequent plugging and unplugging.

3. Multiple pin options:
Power DIN typically offers multiple pin configuration options (such as 3-pin, 5-pin, 7-pin, and more) that can be used for different power and signal requirements, adapting to various application scenarios.

4. Reliable electrical performance:
Using high-quality metal materials and electroplating processes, the bottom metal contacts provide excellent conductivity, ensuring low contact resistance and high reliability.

5. Compatibility:
Power DIN series connectors typically follow international standards, have good interchangeability, and are suitable for connecting various devices and systems.

6. Durable and sturdy:
It is usually made of durable materials that can withstand certain impacts and wear in industrial environments, making it suitable for long-term use.

application area

Power DIN female head panel installation plug-in connectors are widely used in:

Audio equipment:
Provide power and signal connections for professional speakers, mixing consoles, and musical instruments.

Communication equipment:
Used in network devices, switches, and routers, supporting data and power transmission.

Industrial automation:
Suitable for control systems, sensors, and actuators, providing stable power and signal connections.

Medical equipment:
Used for connecting medical instruments to ensure safe and stable power supply.

Installation and maintenance recommendations

Correct installation:
Ensure correct positioning and fixation of connectors on the panel to avoid poor contact caused by improper installation.

Connection line selection:
Select appropriate cables and connectors according to the specifications of the connector to ensure the reliability of welding or connection.

Regular inspection:
Regularly inspect the contact points, screws, and sealing rings of the connector to ensure that there is no looseness, corrosion, or other damage.

Environmental Applicability:
Avoid using in extreme environments that exceed the rated parameters of the connector to ensure its stability and durability.

Pay attention to frequent plugging and unplugging:
For applications that require frequent plugging and unplugging, ensure focused attention during operation to avoid damaging the connector or female head.

summary
Power DIN female head panel mounted plug-in connectors have become an important component of various electronic and electrical equipment due to their reliable performance and easy-to-use design. By proper installation and maintenance, its advantages in data and power transmission can be fully utilized to meet various application needs. If you have specific technical requirements or other questions, please feel free to contact a technician!
