KSD-PD-08F2-01

KSD-PD-08F2-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

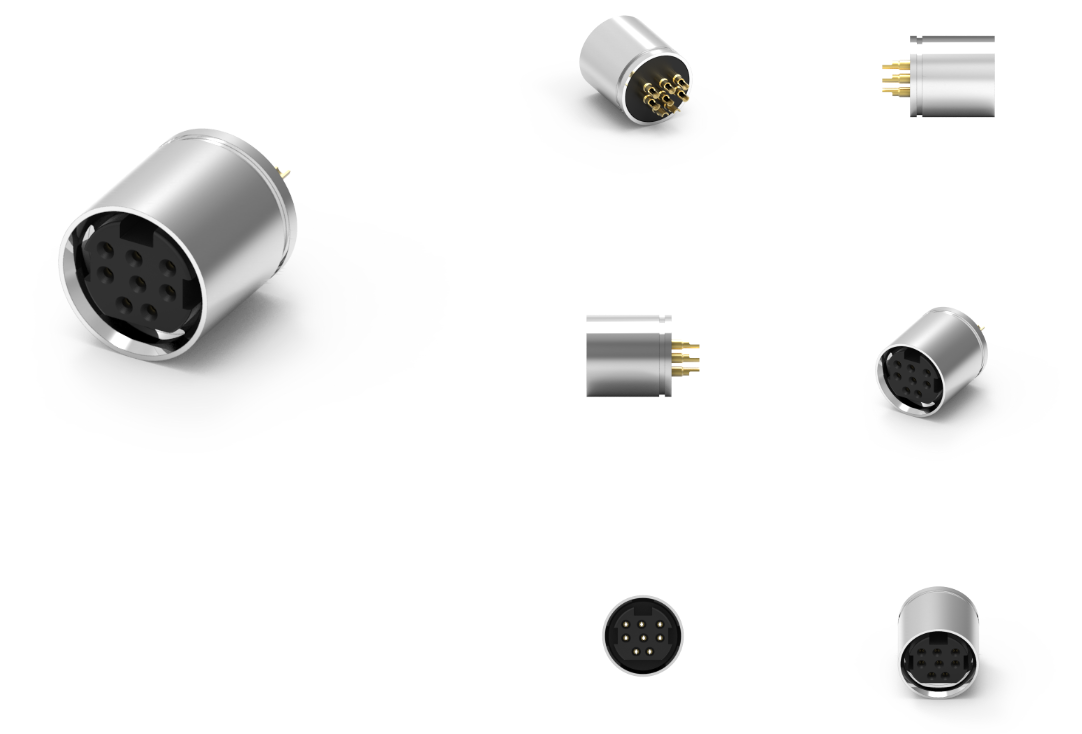

品名：Power DIN 母头线端成型式连接器
注：
1.材料：
1-1.外壳：PBT UL94V0；颜色：黑色
1-3：接触式黄铜
2.电镀：
2-1.触点：镀镍60英寸镀锡
2-2.外壳：整体镀镍6Ou“~100u”
3.电气规格
3-1.额定电流：最大7.5A/DC
3-2.额定电压：最大25V/DC
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Power DIN 母头线端成型式连接器是一种用于电源和信号连接的连接器，通常适用于各种电子设备和系统，尤其是在音频、通信和工业自动化领域。这种连接器的设计特点使其在安装和使用过程中灵活且可靠。

特点
1.线端成型设计：
线端成型式连接器的设计使导线的连接行为更为简便，提供良好的接触和机械可靠性。通过快速连接或接头设计，减少了安装时间和工作量。

2.多种配置：
Power DIN 转接头可以提供多种针脚配置，常见的有3针、5针、7针及更多，根据用户的需求进行选择，以适应不同信号和电源要求。

3.高可靠性：
较好的材料和做工使得这种连接器具有优异的耐腐蚀性和耐磨损性，有助于在多种环境条件下保持稳定性能。

4.简单的安装方式：
线端成型式连接器通常具有简单的插拔特性，便于快速连接和断开，减少了维护和更换的时间。

5.兼容性：
符合国际标准的设计，具有良好的互换性，适用于多种设备和场景。

应用领域
Power DIN 母头线端成型式连接器一般应用于以下领域：

音频设备：
广泛用于音频设备、调音台、专业音响设备及乐器等，确保高质量信号的传输和电源的稳定供给。

工业控制：
回馈传感器、控制信号和执行器的应用中，提供可靠的电源和信号连接。

通信设备：
用于网络交换机、路由器及其他通信设备中，满足电源和数据传输的双重需求。

医疗设备：
应用于各种医疗仪器和监测设备，确保信号的准确传输和电源的安全供给。

安装与维护建议

仔细检查接头：
在连接前，确保连接器和导线的接触点清洁，无氧化或其他杂质，以确保良好的电气连接。

合理选择导线：
根据连接器的规格，选择合适的线材长度和类型，以满足电流和电压需求，并确保良好的导电性能。

避免过载：
使用时避免超过连接器额定的电流和电压，以减少损坏风险并保证安全使用。

定期检查：
定期检查连接器的连接方式，确保没有松动或物理损伤，及时进行维护和更换。

保持清洁：
确保连接器及其周围环境的清洁，防止灰尘和杂物影响连接的性能和安全。

总结
Power DIN 母头线端成型式连接器因其高可靠性、简便的安装使用和广泛的应用场景而成为优选的连接解决方案。通过合理选择和定期维护，可以确保系统的稳定性和效率，满足各种电子设备的连接需求。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Power DIN Female End Forming Connector
Note:
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-3: Contact brass
2. Electroplating:
2-1. Contact: Nickel plated 60 inch tin plated
2-2. Shell: Whole nickel plated 6Ou "~100u"
3. Electrical specifications
3-1. Rated current: Maximum 7.5A/DC
3-2. Rated voltage: Maximum 25V/DC
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Power DIN female end molded connector is a type of connector used for power and signal connections, typically suitable for various electronic devices and systems, especially in the fields of audio, communication, and industrial automation. The design features of this connector make it flexible and reliable during installation and use.

characteristic
1. End forming design:
The design of wire end molded connectors makes the connection behavior of wires more convenient, providing good contact and mechanical reliability. By designing quick connections or connectors, installation time and workload have been reduced.

2. Multiple configurations:
The Power DIN adapter can provide multiple pin configurations, commonly including 3-pin, 5-pin, 7-pin, and more. Users can choose according to their needs to adapt to different signal and power requirements.

3. High reliability:
Better materials and workmanship make this connector have excellent corrosion resistance and wear resistance, which helps maintain stable performance under various environmental conditions.

4. Simple installation method:
Wire end molded connectors typically have simple plug and unplug features, making them easy to connect and disconnect quickly and reducing maintenance and replacement time.

5. Compatibility:
Designed in accordance with international standards, with good interchangeability, suitable for various devices and scenarios.

application area
Power DIN female end molded connectors are generally used in the following fields:

Audio equipment:
Widely used in audio equipment, mixing consoles, professional audio equipment, and musical instruments to ensure the transmission of high-quality signals and stable power supply.

Industrial control:
Provide reliable power and signal connections in the application of feedback sensors, control signals, and actuators.

Communication equipment:
Used in network switches, routers, and other communication devices to meet the dual requirements of power and data transmission.

Medical equipment:
Applied to various medical instruments and monitoring equipment to ensure accurate signal transmission and safe power supply.

Installation and maintenance recommendations

Carefully inspect the connector:
Before connecting, ensure that the contact points of the connector and wires are clean, free of oxidation or other impurities to ensure a good electrical connection.

Reasonable selection of wires:
According to the specifications of the connector, select the appropriate wire length and type to meet the current and voltage requirements and ensure good conductivity.

Avoid overload:
When using, avoid exceeding the rated current and voltage of the connector to reduce the risk of damage and ensure safe use.

Regular inspection:
Regularly check the connection method of the connector to ensure there is no looseness or physical damage, and perform maintenance and replacement in a timely manner.

Keep clean:
Ensure the cleanliness of the connector and its surrounding environment to prevent dust and debris from affecting the performance and safety of the connection.

summary
The Power DIN female end molded connector has become the preferred connection solution due to its high reliability, easy installation and use, and wide range of application scenarios. By reasonable selection and regular maintenance, the stability and efficiency of the system can be ensured, meeting the connection needs of various electronic devices. If you have specific technical requirements or other questions, please feel free to contact a technician!
