KSD-US-08M2-14

KSD-US-08M2-14

  • 产品特性
  • 应用范围

图纸下载 样品申请

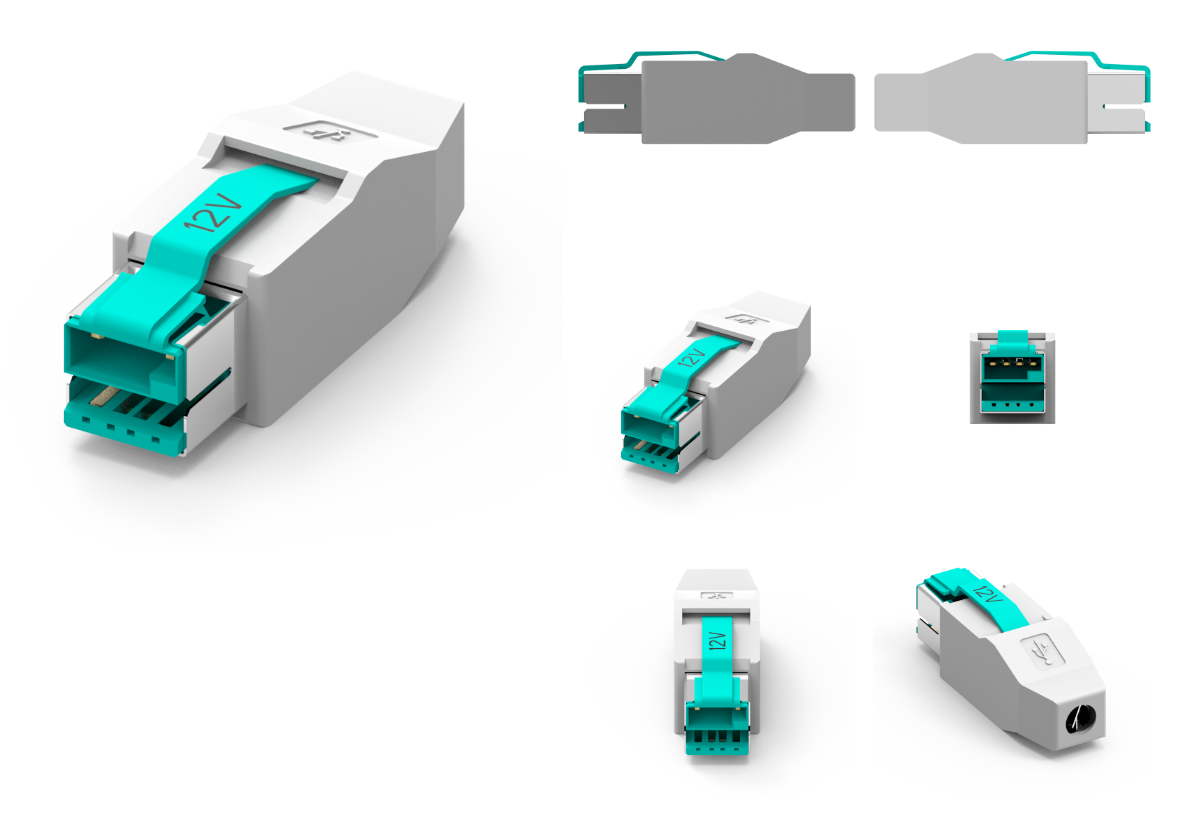

品名：Power USB 公头8PIN 组装式连接器
1.材料：
1-1.外壳：尼龙66 UL94V-0
1-2.触点：磷青铜
1-3. 长壳：磷青铜
1-4.短壳：磷青铜
1-5.上盖：ABS。
1-6.基座盖：ABS。
2.完成：
2-1. 接触：金10u“最小接触面积
在焊料尾部涂上最小80u“的锡，在所有50u”的最小厚度上涂上镍。
2-2.外壳：全部镀锡
3.电气规格：
3-1.额定电压和电流：在250V交流电压下最小1.5A，
电源USB:250V交流电最小3.0A。
3-3.接触电阻：最大30mhm
3-3.绝缘电阻：在DC500V下最小为1000M欧姆。
3-3.绝缘耐压：交流500V/1分钟。
品牌：科斯达开关KSDKG
产地：中国东莞


Power USB 公头 8PIN 组装式连接器 是一种设计用于在电子设备之间传输电源及数据的连接器，这种设计通常用于需要更高电流输送和可靠连接的应用场合。以下是关于这种连接器的详细信息：

主要特点
1.引脚配置：
通常，该连接器具有 8 个引脚，主要包括：
VBUS（电源正极，提供5V电源）
GND（接地）
其他引脚可能用于数据传输或控制信号。

2.组装式设计：
组装式连接器设计使得在生产和维护过程中更加灵活，允许用户在不同的应用场合中选择或者更换连接器。

3.材料与耐用性：
通常由塑料和镀金或镀镍等金属材料制成，以确保耐用性和抗腐蚀性能，以应对不同环境条件下的使用需求。

4.公头设计：
作为公头连接器，它能够方便地插入到母头连接器中，形成坚固的物理和电气连接。

应用领域

1.移动设备：
用于智能手机、平板电脑和其他便携式设备的充电和数据传输。

2.消费电子产品：
例如蓝牙音响、便携式游戏机和其他小型电子设备。

3.嵌入式设备：
在某些嵌入式系统中，用于提供电源连接。

4.工业应用：
适用于电源接入的工业设备，确保设备在运行过程中的电力供应。

安装与维护建议

1.焊接和组装：
在制作电路板时，确保引脚焊接牢固，避免影响连接的稳定性。

2.定期清洁：
定期检查连接器，清洁插孔和插头，确保没有灰尘或污垢积聚，以防止接触不良。

3.插拔小心：
插拔连接器时要轻柔，确保不施加过大力量，防止机械损坏。

4.功能测试：
所有设备连接后，进行功能测试以确保电源正常，并验证数据传输线路的工作状态。

总结
Power USB 公头 8PIN 组装式连接器 在现代电子产品中扮演着重要角色，提供可靠的电源和数据连接。选择合适的连接器可以确保设备的良好性能和用户体验。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: Power USB Male 8PIN Assembled Connector
1. Materials:
1-1. Shell: Nylon 66 UL94V-0
1-2. Contact: phosphor bronze
1-3.  Long shell: phosphor bronze
1-4. Short shell: phosphor bronze
1-5. Upper cover: ABS。
1-6. Base cover: ABS。
2. Complete:
2-1.  Contact: Gold 10u "minimum contact area
Apply a minimum of 80u "tin to the tail of the solder, and apply nickel to all minimum thicknesses of 50u".
2-2. Shell: All tin plated
3. Electrical specifications:
3-1. Rated voltage and current: minimum 1.5A at 250V AC voltage,
Power USB: 250V AC, minimum 3.0A.
3-3. Contact resistance: maximum 30mhm
3-3. Insulation resistance: The minimum resistance is 1000M ohms at DC500V.
3-3. Insulation withstand voltage: AC 500V/1 minute.
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The Power USB male 8PIN assembled connector is a connector designed for transmitting power and data between electronic devices, typically used in applications that require higher current delivery and reliable connections. Here is detailed information about this connector:

main features
1. Pin configuration:
Usually, this connector has 8 pins, mainly including:
VBUS (positive pole of power supply, providing 5V power supply)
GND (Ground)
Other pins may be used for data transmission or control signals.

2. Modular design:
The modular connector design makes the production and maintenance process more flexible, allowing users to choose or replace connectors in different application scenarios.

3. Materials and Durability:
It is usually made of plastic and metal materials such as gold-plated or nickel plated to ensure durability and corrosion resistance, to meet the needs of different environmental conditions.

4. Public head design:
As a male connector, it can be easily inserted into a female connector to form a sturdy physical and electrical connection.

application area

1. Mobile devices:
Used for charging and data transfer of smartphones, tablets, and other portable devices.

2. Consumer electronics products:
For example, Bluetooth speakers, portable game consoles, and other small electronic devices.

3. Embedded devices:
In some embedded systems, it is used to provide power connections.

4. Industrial applications:
Suitable for industrial equipment with power access, ensuring power supply during operation.

Installation and maintenance recommendations

1. Welding and assembly:
When making circuit boards, ensure that the pins are firmly soldered to avoid affecting the stability of the connections.

2. Regular cleaning:
Regularly check the connectors, clean the sockets and plugs to ensure that there is no accumulation of dust or dirt to prevent poor contact.

3. Be careful when plugging and unplugging:
When plugging and unplugging connectors, be gentle to ensure that no excessive force is applied to prevent mechanical damage.

4. Functional testing:
After all devices are connected, perform functional testing to ensure that the power supply is functioning properly and verify the working status of the data transmission lines.

summary
The Power USB male 8PIN assembled connector plays an important role in modern electronic products, providing reliable power and data connections. Choosing the appropriate connector can ensure good performance and user experience of the device. If you have further questions or need specific technical parameters, please feel free to contact the technician!
