KSD-US-08F2-03

KSD-US-08F2-03

  • 产品特性
  • 应用范围

图纸下载 样品申请

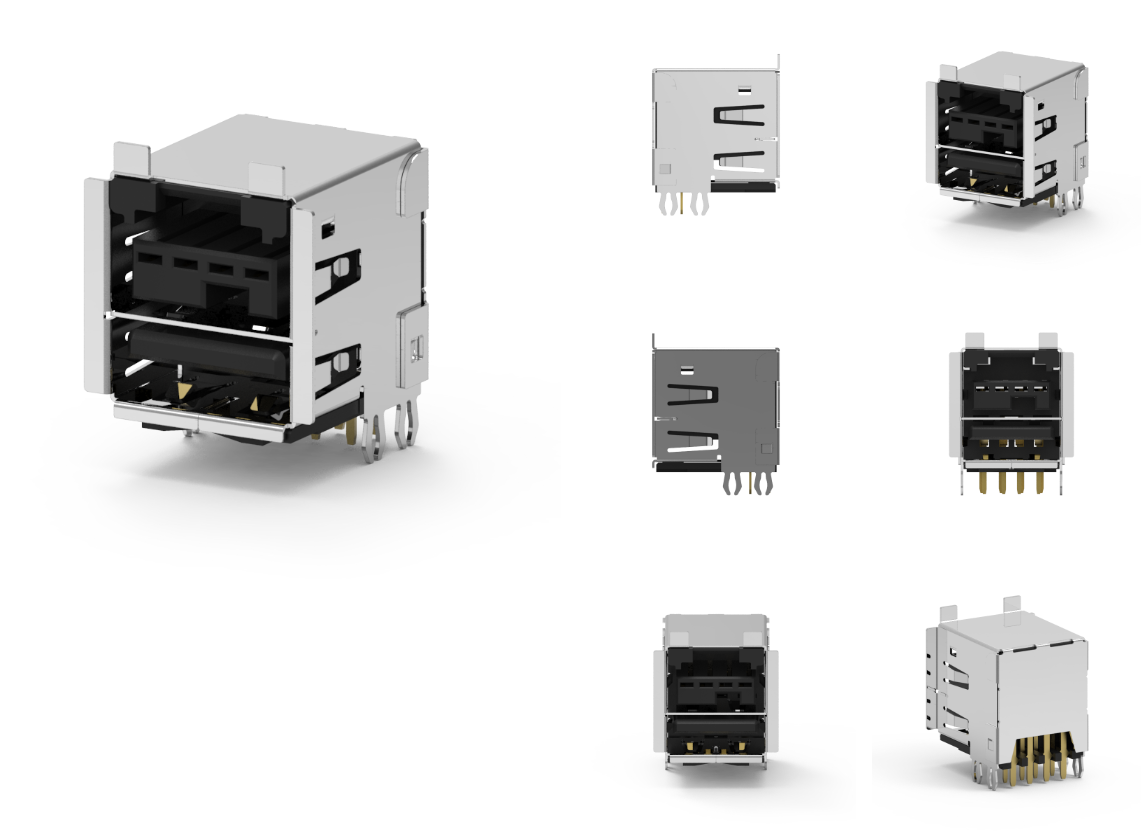

品名：Power USB 母头8PIN 90°插板式连接器
1.材料：
1-1.外壳：尼龙46 UL94V-0；颜色：见表A
1-2.触点：磷青铜，t=0.3
1-3.外壳：黄铜，t=0.3
1-4.弹片：磷青铜
2.完成：
2-1.触点：接触面积：最小30U“镀金
焊接区域：亚光锡
底板：最小50u”。镍
2-2.外壳：整体为60u“~100u”镍
2-3. 弹片：整体为60u“~100u”镍
3.电气：
3-1.额定电流：1.5A USB段，3.0A电源段
3-2.额定电压：USB；5.25V直流，+电源；12伏直流，24伏直流，5伏直流
3-3.绝缘耐压：750V交流
3-4.绝缘电阻：500V直流时为1000mq
3-5.接触电阻：最大30mhm
3-6. 交配周期：5000次
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Power USB 母头 8PIN 90°插板式连接器 是一种用于电子设备的连接器，主要用于电源和数据传输，适合空间较为紧凑的应用环境。以下是该类型连接器的详细信息：

主要特点

1.引脚配置：
母头 8PIN 连接器通常有 8 个引脚，用于以下功能：
VBUS: 电源正极 (通常为 5V)
GND: 接地
其余引脚可以配置为数据传输（D+和D-）和其他控制信号引脚。

2.90° 插板式设计：
90° 插板式设计允许连接器与电路板成直角插入，这对于在有限空间内安装非常有利。
能有效减少连接线的弯折，降低了对连接器的应力，提高了整体的可靠性。

3.组装简便：
此类连接器通常设计便于在制造过程中安装，通常通过焊接或插入安装到 PCB（印刷电路板）上。

4.材料与耐用性：
通常使用高质量塑料和金属材料（如镀金或镀镍）制成，能抵抗日常磨损和腐蚀，确保长期稳定的电气性能和机械强度。

应用领域

1.移动设备：
适用于智能手机、平板电脑及其他便携式设备的充电和数据传输。

2.消费类电子产品：
包括数码相机、蓝牙音箱等消费电子产品。

3.工业设备：
用于工业控制设备、传感器和通信设备中，确保稳定的电源和数据连接。

4.嵌入式系统：
在嵌入式应用中，90°的设计可以更好的适应空间限制。

安装与维护建议

1.焊接工艺：
确保在焊接连接器时温度和时间的控制，避免对连接器造成热损伤。

2.空间布局：
在设计 PCB 布局时，合理安排连接器的位置和走线，确保连接器的便利插拔和良好散热。

3.定期检查：
定期检查连接器的接触点和引脚，清洁以去除灰尘和污垢，确保连接的可靠性。

4.测试功能：
在安装完毕后，进行电气功能测试，确保电源正常工作以及数据传输无异常。

总结
Power USB 母头 8PIN 90°插板式连接器 是一种灵活且高效的解决方案，适用于多种电源和数据连接需求，尤其是在空间有限的环境中。选择合适的连接器和注意安装细节，可以确保设备的长期可靠性和性能。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: Power USB Female Head 8PIN 90 ° Plug in Plate Connector
1. Materials:
1-1. Shell: Nylon 46 UL94V-0; Color: See Table A
1-2. Contact: phosphor bronze, t=0.3
1-3. Shell: brass, t=0.3
1-4. Bullets: phosphor bronze
2. Complete:
2-1. Contact: Contact Area: Minimum 30U "Gold Plated
Welding area: Matte tin
Bottom plate: minimum 50u. nickel
2-2. Shell: Overall made of 60u "~100u" nickel
2-3.  Bullet fragments: Overall made of 60u "~100u" nickel
3. Electrical:
3-1. Rated current: 1.5A USB segment, 3.0A power segment
3-2. Rated voltage: USB； 5.25V DC,+power supply; 12V DC, 24V DC, 5V DC
3-3. Insulation withstand voltage: 750V AC
3-4. Insulation resistance: 1000mq at 500V DC
3-5. Contact resistance: maximum 30mhm
3-6.  Mating cycle: 5000 times
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Power USB female 8PIN 90 ° plug-in connector is a connector used for electronic devices, mainly for power and data transmission, suitable for applications with compact space. The following is detailed information about this type of connector:

main features

1. Pin configuration:
A female 8PIN connector typically has 8 pins and is used for the following functions:
VBUS:  Positive pole of power supply (usually 5V)
GND:  Grounding
The remaining pins can be configured as data transmission (D+and D -) and other control signal pins.

2.90 ° plug-in design:
The 90 ° plug-in design allows the connector to be inserted at a right angle to the circuit board, which is very advantageous for installation in limited spaces.
It can effectively reduce the bending of connecting wires, reduce the stress on connectors, and improve overall reliability.

3. Easy assembly:
This type of connector is typically designed for easy installation during the manufacturing process, usually by soldering or inserting it onto a PCB (printed circuit board).

4. Materials and Durability:
It is usually made of high-quality plastic and metal materials (such as gold or nickel plating) that can resist daily wear and corrosion, ensuring long-term stable electrical performance and mechanical strength.

application area

1. Mobile devices:
Suitable for charging and data transfer of smartphones, tablets, and other portable devices.

2. Consumer electronics products:
Including consumer electronics products such as digital cameras and Bluetooth speakers.

3. Industrial equipment:
Used in industrial control equipment, sensors, and communication devices to ensure stable power and data connections.

4. Embedded systems:
In embedded applications, a 90 ° design can better adapt to space limitations.

Installation and maintenance recommendations

1. Welding process:
Ensure temperature and time control during connector welding to avoid thermal damage to the connector.

2. Spatial layout:
When designing PCB layout, arrange the position and routing of connectors reasonably to ensure convenient insertion and removal of connectors and good heat dissipation.

3. Regular inspection:
Regularly inspect the contact points and pins of the connector, clean them to remove dust and dirt, and ensure the reliability of the connection.

4. Testing function:
After installation, conduct electrical function testing to ensure that the power supply is working properly and data transmission is normal.

summary
The Power USB female 8PIN 90 ° plug-in connector is a flexible and efficient solution suitable for various power and data connection needs, especially in environments with limited space. Choosing appropriate connectors and paying attention to installation details can ensure the long-term reliability and performance of the equipment. If you have further questions or need specific technical parameters, please feel free to contact the technician!
