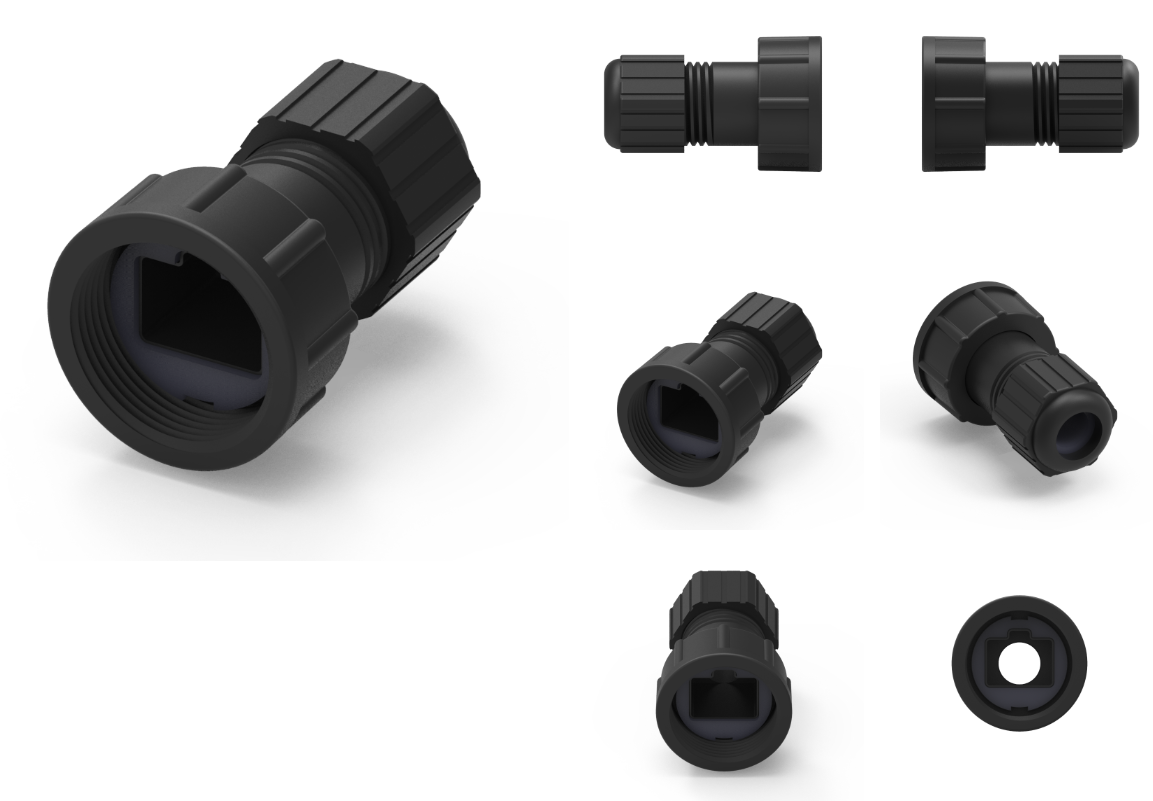

品名：RJ45 公头8PIN防水连接器
1.材料：
1-1. 外壳：PBT UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：PA66 UL94V-0；颜色：黑色
1-4.接地：SUS 301
1-5.垫片：硅胶；颜色：黑色
1-6. 螺母：PA66
2.完成：
2-1.触点：镀金
2-2. 接地：镀镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：125VAC
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
RJ45 公头 8PIN 防水连接器
RJ45 公头 8PIN 防水连接器是一种专门设计用于网络通讯的连接器，它结合了 RJ45 接口的标准规范与防水性能，适合在潮湿或恶劣环境中使用。这个连接器广泛应用于网络设备、监控摄像头、工业控制系统等领域。
主要特点
1.防水性能：
IP等级：通常具有 IP67 或更高级别的防护性能，能够有效防止水和灰尘的侵入，适合室外或潮湿环境。
密封设计：采用 O 型圈或密封胶，确保在插拔后无水分渗透，保持连接器内部干燥。
2.RJ45 接口标准：
8PIN 配置：遵循 IEEE 802.3 标准，支持以太网传输，包括 10/100/1000Mbps 网络速度。
广泛兼容：与各种网络设备（如交换机、路由器、监控设备等）兼容，便于插拔和替换。
3.高耐用性：
材料选择：使用高强度塑料和金属组件，提高连接器的耐冲击和耐腐蚀性。
耐久性设计：支持多次插拔，确保长期使用不易损坏。
4.易于安装：
用户友好：设计简捷方便，用户可以快速进行安装和拆卸。
紧凑尺寸：小型化设计，便于在空间有限的环境中集成。
应用领域
1.网络通信：适用于局域网（LAN）、广域网（WAN）连接，确保数据传输的稳定性和可靠性。
2.监控系统：用于IP监控摄像头和相关设备，确保数据流畅传输并防止水损坏。
3.工业控制：在工厂自动化和制造设备中使用，适应各种环境条件。
4.户外设备：用于各种户外网络设备，如路由器、无线AP（接入点）等。
使用注意事项
1.正确插拔：在插拔连接器时，确保对齐，避免施加过大力量，保护连接器设计。
2.定期检查防水性能：定期检查密封圈的完好性，确保防水功能持续有效。
3.遵循电气规范：在规定的电流和电压范围内使用，避免因过载导致设备损坏。
4.保持连接器清洁：避免污垢或水分影响连接性能，定期清洁连接端口。
总结
RJ45 公头 8PIN 防水连接器结合了网络通讯标准与高防水性，成为多种应用环境中的优选连接器。无论是在室外设备、监控系统还是工业控制中，这种连接器提供了可靠的连接解决方案。如果您需要进一步的信息或技术支持，欢迎联系技术员！
Product Name: RJ45 Male 8PIN Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: PA66 UL94V-0； Color: Black
1-4. Grounding: SUS 301
1-5. Gasket: Silicone; Color: Black
1-6. Nut: PA66
2. Complete:
2-1. Contact: Gold plating
2-2. Grounding: Nickel plating
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 125VAC
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
RJ45 male 8PIN waterproof connector
The RJ45 male 8PIN waterproof connector is a connector specifically designed for network communication. It combines the standard specifications and waterproof performance of RJ45 interfaces, making it suitable for use in humid or harsh environments. This connector is widely used in fields such as network devices, surveillance cameras, industrial control systems, etc.
main features
1. Waterproof performance:
IP rating: It usually has IP67 or higher protection performance, which can effectively prevent water and dust from entering, suitable for outdoor or humid environments.
Sealing design: using O-ring or sealant to ensure no moisture penetration after insertion and removal, keeping the inside of the connector dry.
2. RJ45 interface standard:
8PIN configuration: Complies with IEEE 802.3 standard, supports Ethernet transmission, including 10/100/1000Mbps network speed.
Wide compatibility: Compatible with various network devices such as switches, routers, monitoring devices, etc., easy to plug and replace.
3. High durability:
Material selection: Use high-strength plastic and metal components to improve the impact and corrosion resistance of the connector.
Durability design: Supports multiple insertions and removals, ensuring long-term use without easy damage.
4. Easy to install:
User friendly: The design is simple and convenient, allowing users to quickly install and disassemble.
Compact size: With a compact design, it is easy to integrate in environments with limited space.
application area
1. Network communication: Suitable for local area network (LAN) and wide area network (WAN) connections, ensuring the stability and reliability of data transmission.
2. Monitoring system: used for IP monitoring cameras and related devices to ensure smooth data transmission and prevent water damage.
3. Industrial control: used in factory automation and manufacturing equipment to adapt to various environmental conditions.
4. Outdoor equipment: Used for various outdoor network devices, such as routers, wireless APs (access points), etc.
Precautions for use
1. Correct plugging and unplugging: When plugging and unplugging connectors, ensure alignment and avoid applying excessive force to protect the connector design.
2. Regularly check the waterproof performance: Regularly check the integrity of the sealing ring to ensure that the waterproof function remains effective.
3. Follow electrical specifications: Use within the specified current and voltage range to avoid equipment damage caused by overload.
4. Keep the connector clean: Avoid dirt or moisture affecting the connection performance, and regularly clean the connection ports.
summary
The RJ45 male 8PIN waterproof connector combines network communication standards with high waterproofness, making it the preferred connector in various application environments. This connector provides a reliable connection solution for outdoor equipment, monitoring systems, and industrial control. If you need further information or technical support, please feel free to contact the technician!
